| Stainless Steel Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider join widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others. | |||||||||||
| NBDS-30 | 30 | 93 | 75 | 9 | 3 | 68 | +34/-6mm | 40mm | 25mm | 3mm | |
| NBDS-53 | 53 | 118 | 100 | 9 | 3 | 68 | +34/-6mm | 40mm | 25mm | 3mm | |
| NBDS-80 | 80 | 143 | 125 | 9 | 3 | 68 | +34/-6mm | 40mm | 25mm | 3mm | |
| NBDS-105 | 105 | 168 | 150 | 9 | 3 | 105 | +34/-6mm | 40mm | 25mm | 3mm | |
| NBDS-155 | 155 | 218 | 200 | 9 | 3 | 105 | +34/-6mm | 40mm | 25mm | 3mm | |
The Latham Flat-Line Series Standard 25mm Deep floor expansion joint covers are available with stainless steel cover plates. This series can carry a BFG water gutter if required. The series has a depth below the finished floor height of 25mm. The series is designed to be installed generally into a preformed recess although in some applications the product may not require a recess, depending on the type and depth of the floor finish. When the installation structural joint width exceeds 50mm the Series can accommodate the Latham Fire Barrier system.
The Latham Flat-Line Series floor expansion joint covers are designed for normal pedestrian applications where even the slightest bump in a floor can not be tolerated like in hospitals, nursing homes, operating theatres and specialty manufacturing plants.
The Latham Flat-Line Series can be used in conjunction with many floor finishes, such as terrazzo, tile, concrete, vinyl, direct stick carpet and epoxy flooring etc. The systems offer various movements in 6 directions. The movement available will depend on the physical structural joint width and the installation width for the expansion joint cover. NBDS Series standard depth 25mm, optional depths available to suit deeper set downs and deeper floor finishes, 32mm, 38mm, 50mm, 64mm, 79mm, 89mm, 104mm, 114mm, 139mm and 164mm.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
| Stainless Steel Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider join widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others. | |||||||||||
| NBDSL-30 | 30 | 60 | 51 | 9 | 3 | 68 | +22/-3mm | 25mm | 25mm | 3mm | |
| NBDSL-53 | 53 | 86 | 77 | 9 | 3 | 68 | +22/-3mm | 25mm | 25mm | 3mm | |
| NBDSL-80 | 80 | 109 | 100 | 9 | 3 | 68 | +22/-3mm | 25mm | 25mm | 3mm | |
| NBDSL-105 | 105 | 134 | 125 | 9 | 3 | 68 | +22/-3mm | 25mm | 25mm | 3mm | |
| NBDSL-155 | 155 | 184 | 175 | 9 | 3 | 68 | +22/-3mm | 25mm | 25mm | 3mm | |

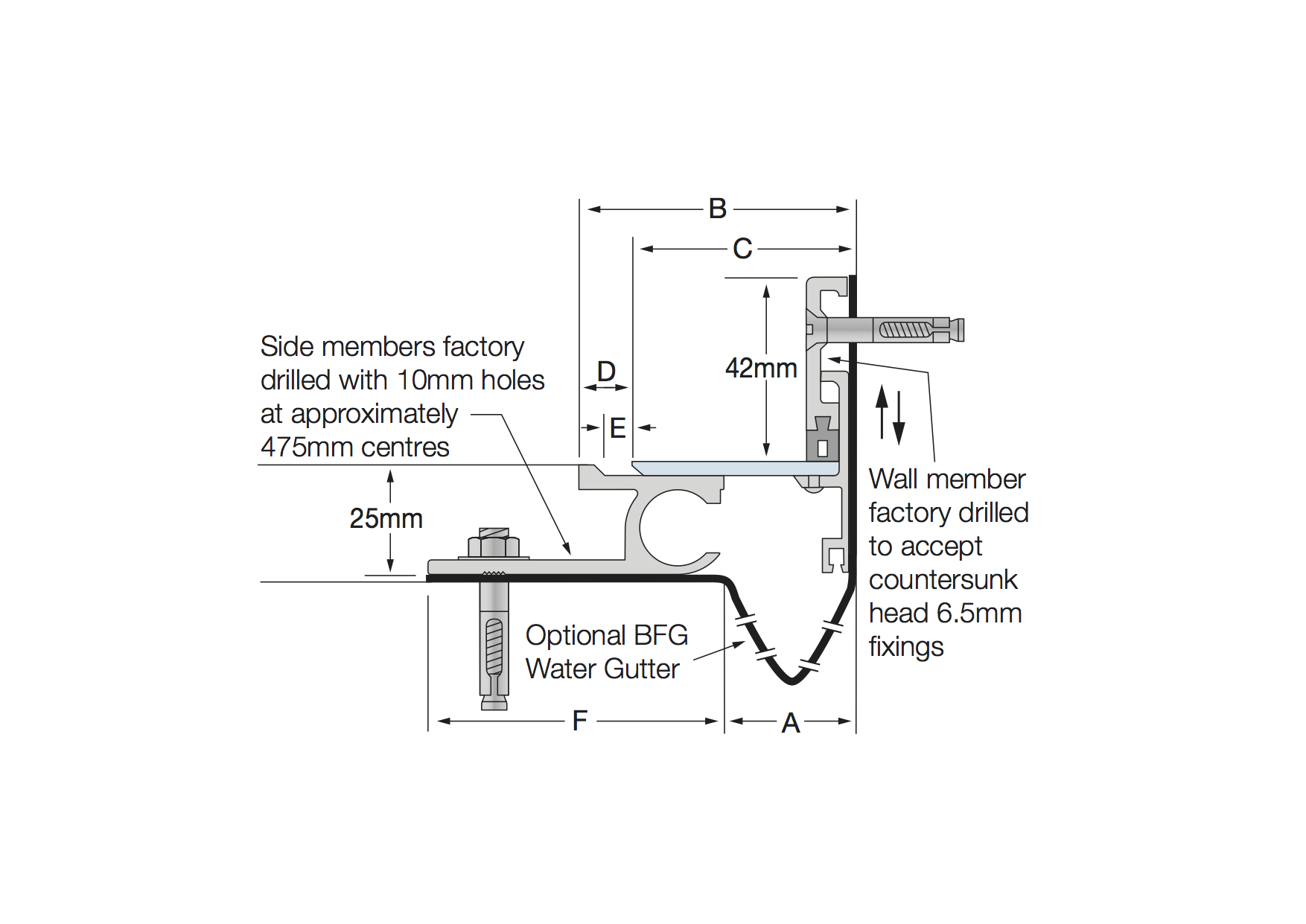

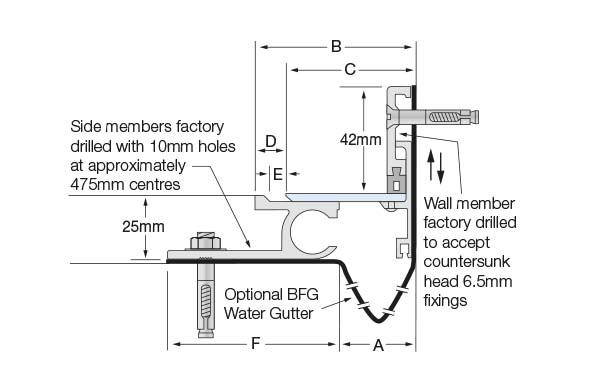

The Latham Flat-Line Series Standard 25mm Deep floor-to-wall expansion joint covers are available with stainless steel cover plates. This series can carry a BFG water gutter if required. The series has a depth below the finished floor height of 25mm. The series is designed to be installed generally into a preformed recess although in some applications the product may not require a recess, depending on the type and depth of the floor finish. When the installation structural joint width exceeds 50mm the Series can accommodate the Latham Fire Barrier system.
The Latham Flat-Line Series floor-to-wall expansion joint covers are designed for normal pedestrian applications where even the slightest bump in a floor can not be tolerated like in hospitals, nursing homes, operating theatres and specialty manufacturing plants.
The Latham Flat-Line Series can be used in conjunction with many floor finishes, such as terrazzo, tile, concrete, vinyl, direct stick carpet and epoxy flooring etc. The systems offer various movements in 6 directions. The movement available will depend on the physical structural joint width and the installation width for the expansion joint cover. NBDS Series standard depth 25mm, optional depths available to suit deeper set downs and deeper floor finishes, 32mm, 38mm, 50mm, 64mm, 79mm, 89mm, 104mm, 114mm, 139mm and 164mm.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
| Solid Brass Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others. | |||||||||||
| NBB-55 | 55 | 118 | 100 | 9 | 3 | 66 | +34/-6mm | 40mm | 25mm | 3mm | |
| NBB-80 | 80 | 143 | 125 | 9 | 3 | 66 | +34/-6mm | 40mm | 25mm | 3mm | |
| NBB-105 | 105 | 168 | 150 | 9 | 3 | 66 | +34/-6mm | 40mm | 25mm | 3mm | |
| NBB-130 | 130 | 193 | 175 | 9 | 3 | 66 | +34/-6mm | 40mm | 25mm | 5mm | |

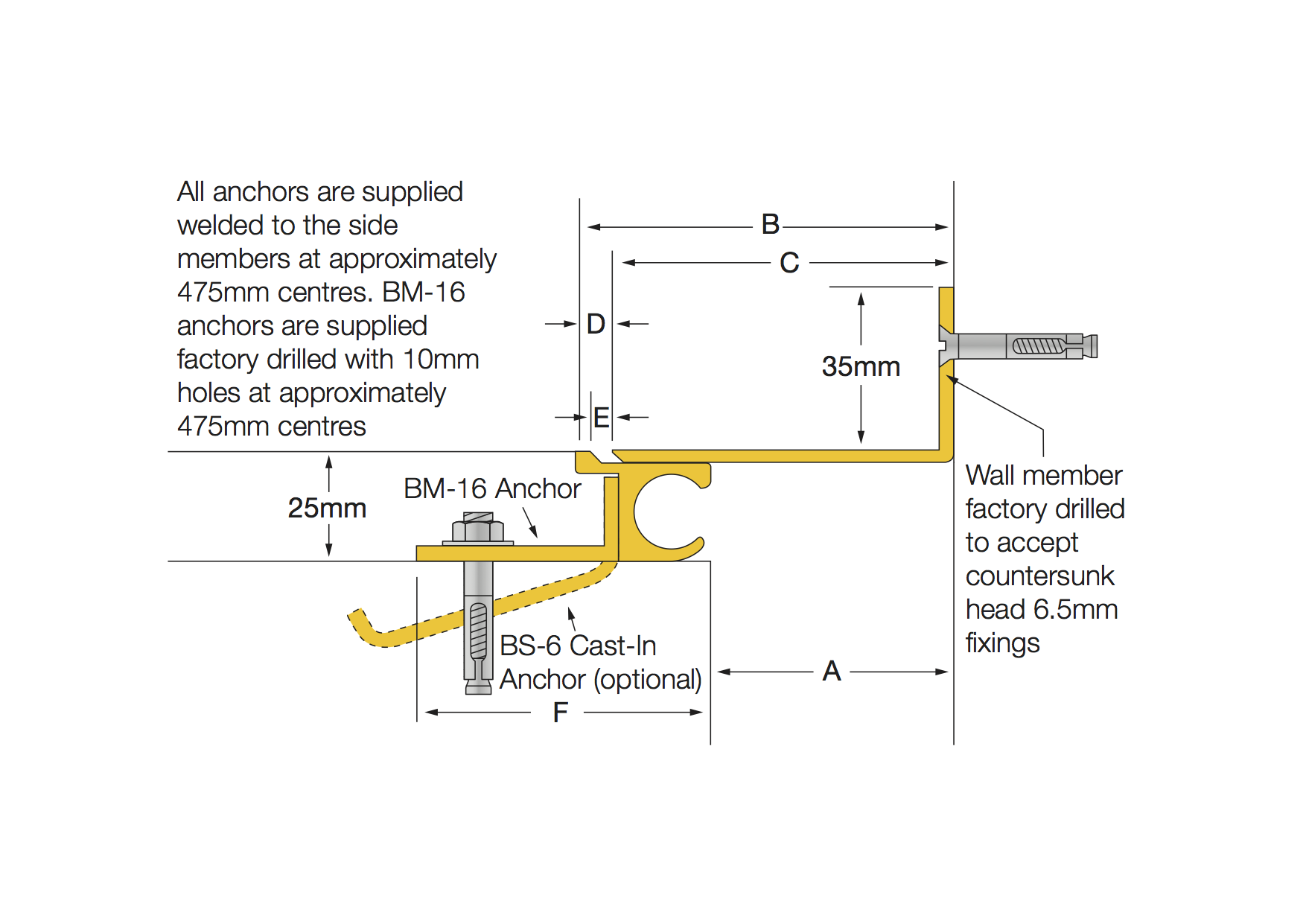

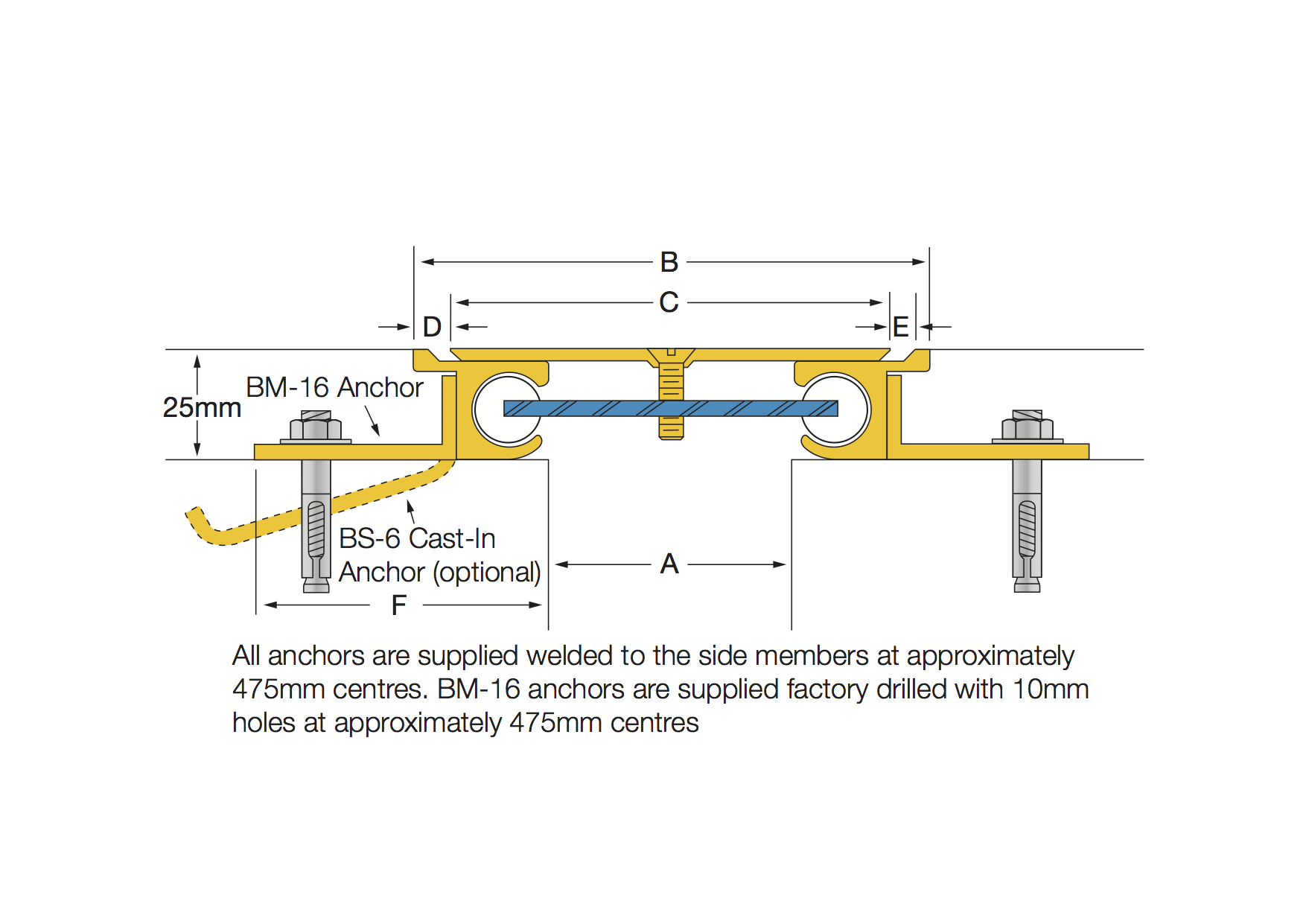

The Latham Flat-Line Series Standard 25mm deep floor expansion joint covers are available in solid brass. The series has a depth below the finished floor height of 25mm. The series can be set into a preformed recess with BM-16 Block-Out Anchors (supplied unless otherwise noted), in conjunction with mechanical fixings, or cast-into the slab when it is poured, with BS-6 Cast-In Anchors.
The Latham Flat-Line Series floor expansion joint covers are designed for normal pedestrian applications where even the slightest bump in a floor can not be tolerated like in hospitals, nursing homes, operating theatres and specialty manufacturing plants.
The Latham Flat-Line Series can be used in conjunction with many floor finishes, such as terrazzo, tile, concrete, vinyl, direct stick carpet and epoxy flooring etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover. NBB Series standard depth 25mm, optional depths available to suit deeper set downs and deeper floor finishes, 45mm, 55mm, 70mm, 80mm, 95mm, 105mm, 130mm and 155mm.
Download our technical data sheets - PDF
View and download our data sheets - PDF
Download our section details - CAD
| Solid Brass Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others. | |||||||||||
| NBBL-55 | 55 | 87 | 78 | 8 | 3 | 66 | +22/-3mm | 25mm | 25mm | 3mm | |
| NBBL-80 | 80 | 111 | 103 | 8 | 3 | 66 | +22/-3mm | 25mm | 25mm | 3mm | |
| NBBL-105 | 105 | 136 | 128 | 8 | 3 | 66 | +22/-3mm | 25mm | 25mm | 3mm | |
| NBBL-155 | 155 | 161 | 163 | 8 | 3 | 66 | +22/-3mm | 25mm | 25mm | 5mm | |
The Latham Flat-Line Series Standard 25mm deep floor-to-wall expansion joint covers are available in solid brass. The series has a depth below the finished floor height of 25mm. The series can be set into a preformed recess with BM-16 Block-Out Anchors (supplied unless otherwise noted), in conjunction with mechanical fixings, or cast-into the slab when it is poured, with BS-6 Cast-In Anchors.
The Latham Flat-Line Series floor-to-wall expansion joint covers are designed for normal pedestrian applications where even the slightest bump in a floor can not be tolerated like in hospitals, nursing homes, operating theatres and specialty manufacturing plants.
The Latham Flat-Line Series can be used in conjunction with many floor finishes, such as terrazzo, tile, concrete, vinyl, direct stick carpet and epoxy flooring etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover. NBB Series standard depth 25mm, optional depths available to suit deeper set downs and deeper floor finishes, 45mm, 55mm, 70mm, 80mm, 95mm, 105mm, 130mm and 155mm.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
| Solid Brass Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | |
|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others. | ||||||||||
| AB-25 | 25 | 141 | 75 | 33 | 25 | 82 | +/-6mm | 12mm | 36mm | |
| AB-50 | 50 | 166 | 100 | 33 | 25 | 82 | +/-6mm | 12mm | 36mm | |
| AB-75 | 75 | 191 | 125 | 33 | 25 | 82 | +/-6mm | 12mm | 36mm | |
| AB-100 | 100 | 216 | 150 | 33 | 25 | 82 | +/-6mm | 12mm | 36mm | |
| AB-150 | 150 | 266 | 200 | 33 | 25 | 82 | +/-6mm | 12mm | 36mm | |
The Latham Brass Visual Flat-Line Series 36mm deep floor expansion joint covers have a aluminium base with brass visual top plates and beige colour resilient inserts. This series can carry a water gutter if required. The series has a depth below the finished floor height of 36mm. The series can be set into a preformed recess with CA-6 Block-Out Anchors (supplied unless otherwise noted), in conjunction with mechanical fixings, or cast-into the slab when it is poured, with CA-6 Cast-In Anchors.
The Latham Brass Visual Flat-Line Series floor expansion joint covers are designed for normal pedestrian applications where even the slightest bump in a floor can not be tolerated like hospitals, nursing homes, operating theatres and specialty manufacturing plants.
The Latham Flat Line Series can be used in conjunction with many floor finishes, such as terrazzo, tile, concrete, vinyl, direct stick carpet and epoxy flooring etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover. Joint covers with resilient inserts have a flush surface when the joint is at its nominal width, however resilient inserts may cause maintenance issue in areas of high traffic or constant movement and are limited to interior applications.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
| Solid Brass Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | |
|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others. | ||||||||||
| ABL-25 | 25 | 64 | 46 | 33 | 25 | 82 | +/-3mm | 6mm | 36mm | |
| ABL-50 | 50 | 166 | 100 | 33 | 25 | 82 | +/-3mm | 6mm | 36mm | |
| ABL-75 | 75 | 191 | 125 | 33 | 25 | 82 | +/-3mm | 6mm | 36mm | |
| ABL-100 | 100 | 216 | 150 | 33 | 25 | 82 | +/-3mm | 6mm | 36mm | |
| ABL-150 | 150 | 266 | 200 | 33 | 25 | 82 | +/-3mm | 6mm | 36mm | |

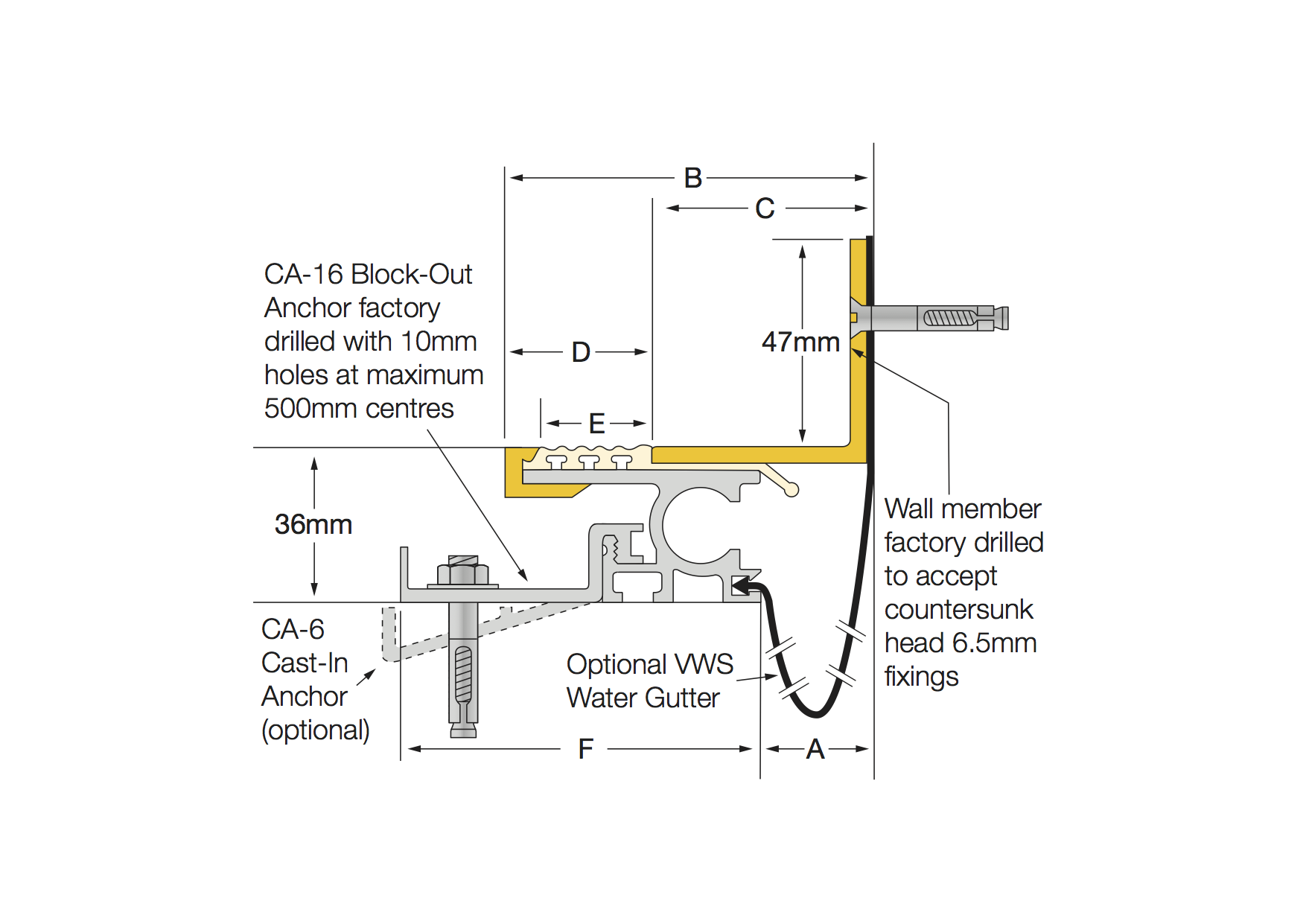

The Latham Brass Visual Flat-Line Series 36mm deep floor-to-wall expansion joint covers have a aluminium base with brass visual top plates and beige colour resilient inserts. This series can carry a water gutter () if required. The series has a depth below the finished floor height of 36mm. The series can be set into a preformed recess with CA-6 Block-Out Anchors (supplied unless otherwise noted), in conjunction with mechanical fixings, or cast-into the slab when it is poured, with CA-6 Cast-In Anchors.
The Latham Brass Visual Flat-Line Series floor-to-wall expansion joint covers are designed for normal pedestrian applications where even the slightest bump in a floor can not be tolerated like hospitals, nursing homes, operating theatres and specialty manufacturing plants.
The Latham Flat Line Series can be used in conjunction with many floor finishes, such as terrazzo, tile, concrete, vinyl, direct stick carpet and epoxy flooring etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover. Joint covers with resilient inserts have a flush surface when the joint is at its nominal width, however resilient inserts may cause maintenance issue in areas of high traffic or constant movement and are limited to interior applications.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
| Stainless Steel Code | Aluminium Code | Cover Plate Type | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. | ||||||||||||
| SD-25 | C-25 | Smooth | 25 | 100 | 64 | 18 | 12 | 82 | +/-4mm | 8mm | 40mm | |
| RT-25 | Recessed 3mm for vinyl | 25 | 100 | 64 | 18 | 12 | 82 | +/-4mm | 8mm | 40mm | ||
| CR-25 | Abrasive | 25 | 100 | 64 | 18 | 12 | 82 | +/-4mm | 8mm | 40mm | ||
| SD-50 | C-50 | Smooth | 50 | 164 | 100 | 33 | 25 | 82 | +/-8mm | 16mm | 40mm | |
| RT-50 | Recessed 3mm for vinyl | 50 | 164 | 100 | 33 | 25 | 82 | +/-8mm | 16mm | 40mm | ||
| CR-50 | Abrasive | 50 | 164 | 100 | 33 | 25 | 82 | +/-8mm | 16mm | 40mm | ||
| CRS-50 | Striped Abrasive | 50 | 164 | 100 | 33 | 25 | 82 | +/-8mm | 16mm | 40mm | ||
| SD-100 | C-100 | Smooth | 100 | 214 | 150 | 33 | 25 | 82 | +/-8mm | 16mm | 40mm | |
| RT-100 | Recessed 3mm for vinyl | 100 | 214 | 150 | 33 | 25 | 82 | +/-8mm | 16mm | 40mm | ||
| CR-100 | Abrasive | 100 | 214 | 150 | 33 | 25 | 82 | +/-8mm | 16mm | 40mm | ||
| SD-150 | C-150 | Smooth | 150 | 264 | 200 | 33 | 25 | 82 | +/-8mm | 16mm | 40mm | |
The Latham Flat-line Series Resilient Insert 40mm deep floor expansion joint covers are available with aluminium and stainless steel cover plates. The cover plate can have either a flat aluminium or stainless steel, recessed for vinyl, or slip resistant abrasive filled insert. This series can carry a water gutter if required. They can be set into a pre-formed recess with CA-6 Block-Out Anchors, in conjunction with mechanical fixings, or cast-into the slab when it is poured, with CA-6 Cast-In Anchors.
The Latham Flat-line Series Resilient Insert floor expansion joint covers are designed for normal pedestrian applications, such as office buildings, hotel foyers and hospitals etc. These joint covers can be used in conjunction with many floor finishes, such as tile, timber, concrete, vinyl, adhesive backed carpet tiles and epoxy floors etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Joint Covers with resilient inserts have a flush surface when the joint is at its nominal width, however resilient inserts may cause maintenance issue in areas of high traffic or constant movement and are limited to interior applications.
Download our technical data sheets - PDF
Vinyl Insert
Stainless Steel Insert
Abrasive Insert
Download our product data sheets - PDF
Download our section details - CAD
| Stainless Steel Code | Aluminium Code | Cover Plate Type | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. | ||||||||||||
| CLS-25 | CL-25 | Smooth | 25 | 64 | 48 | 18 | 12 | 82 | +/-4mm | 4mm | 40mm | |
| CLS-50 | CL-50 | Smooth | 50 | 108 | 75 | 33 | 25 | 82 | +/-8mm | 16mm | 40mm | |
| CLS-100 | CL-100 | Smooth | 100 | 158 | 125 | 33 | 25 | 82 | +/-8mm | 16mm | 40mm | |
| CLS-150 | CL-150 | Smooth | 150 | 208 | 175 | 33 | 25 | 82 | +/-8mm | 16mm | 40mm | |

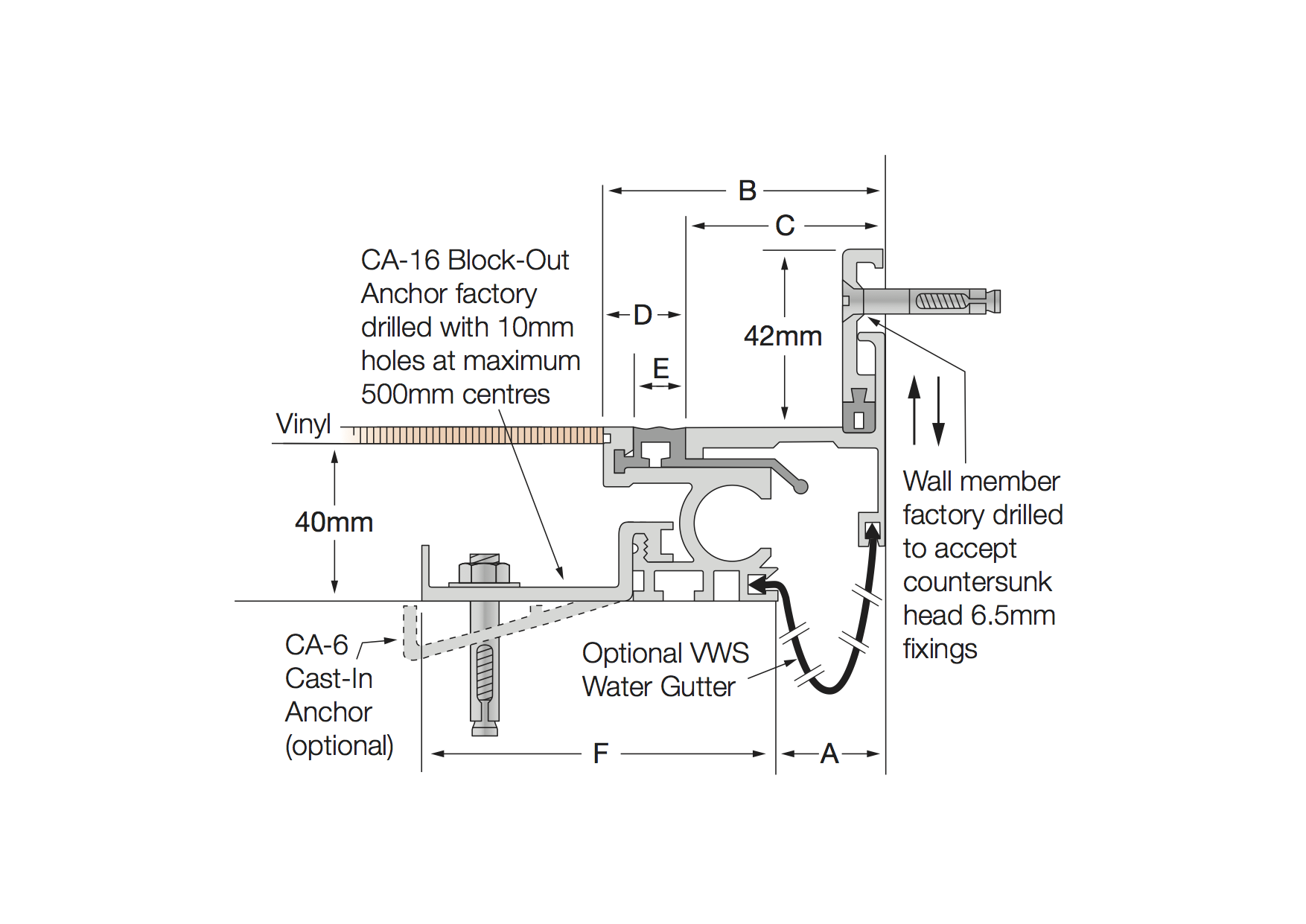

The Latham Flat-line Series Resilient Insert 40mm deep floor-to-wall expansion joint covers are available with aluminium and stainless steel cover plates. The cover plate can have either a flat aluminium or stainless steel, recessed for vinyl, or slip resistant abrasive filled insert. This series can carry a water gutter if required. They can be set into a pre-formed recess with CA-6 Block-Out Anchors, in conjunction with mechanical fixings, or cast-into the slab when it is poured, with CA-6 Cast-In Anchors.
The Latham Flat-line Series Resilient Insert floor-to-wall expansion joint covers are designed for normal pedestrian applications, such as office buildings, hotel foyers and hospitals etc. These joint covers can be used in conjunction with many floor finishes, such as tile, timber, concrete, vinyl, adhesive backed carpet tiles and epoxy floors etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Joint Covers with resilient inserts have a flush surface when the joint is at its nominal width, however resilient inserts may cause maintenance issue in areas of high traffic or constant movement and are limited to interior applications.
Download our technical data sheets - PDF
Stainless Steel Insert
Download our product data sheets - PDF
Download our section details - CAD
