| Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. Aluminium & stainless steel cover thickness may vary, see the detailed drawing at the links below for the exact detail & cover thickness. | ||||||||||||

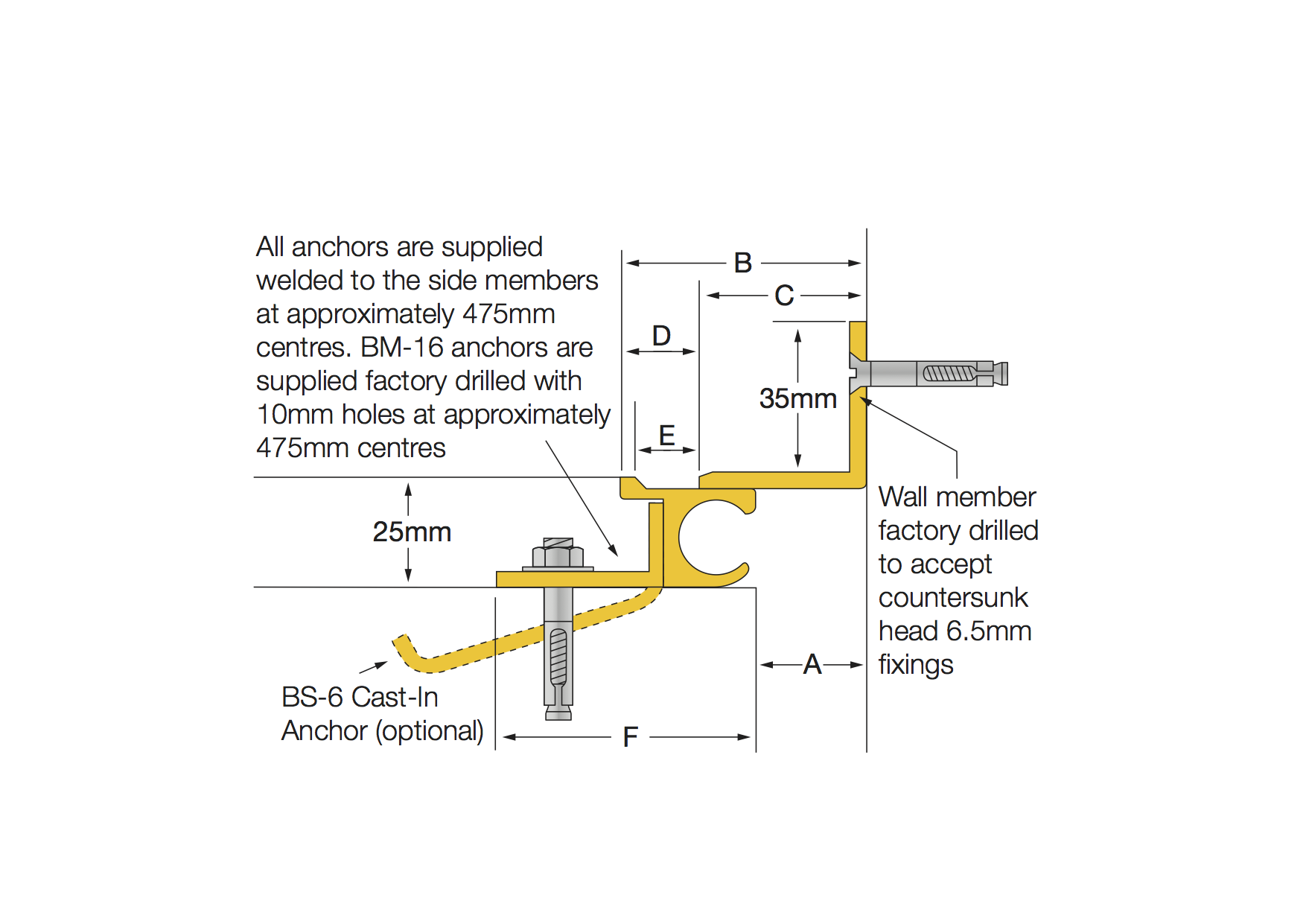

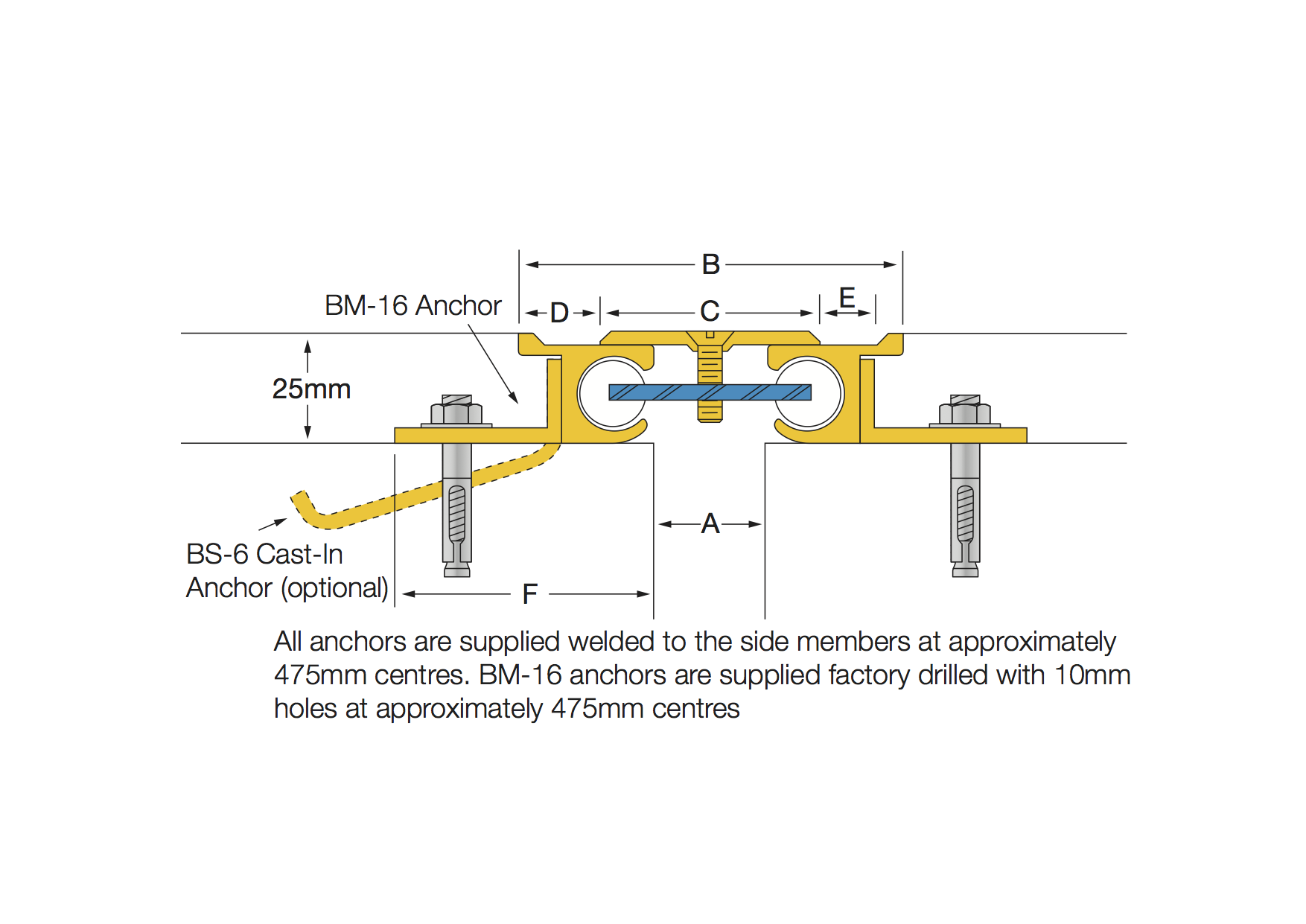

| CS-25 | CA-25 | 25 | 86 | 50 | 18 | 12 | 82 | +20/-15mm | 35mm | 33mm | 3mm | |
| CS-50 | CA-50 | 50 | 111 | 75 | 18 | 12 | 82 | +20/-25mm | 45mm | 33mm | 3mm | |
| CS-35 | CA-35 | 35 | 125 | 75 | 25 | 20 | 82 | +35/-25mm | 60mm | 33mm | 3mm | |
| CS-60 | CA-60 | 60 | 150 | 100 | 25 | 20 | 82 | +/-35mm | 70mm | 33mm | 3mm | |
| CS-75 | CA-75 | 75 | 165 | 115 | 25 | 20 | 82 | +/-35mm | 70mm | 33mm | 3mm | |
| CS-85 | CA-85 | 85 | 175 | 125 | 25 | 20 | 82 | +/-35mm | 70mm | 33mm | 4mm | |
| CS-100 | CA-100 | 100 | 190 | 140 | 25 | 20 | 82 | +/-35mm | 70mm | 33mm | 4mm | |
| CS-135 | CA-135 | 135 | 225 | 175 | 25 | 20 | 82 | +/-35mm | 70mm | 33mm | 5mm | |
The Latham Ultimate Series Standard 33mm deep floor expansion joint covers are available with aluminium and stainless steel cover plates; this series can carry a VWS water gutter if required. The series has a depth below the finished floor height of 33mm. The series can be set into a preformed recess with CA-16 Block-Out Anchors (supplied unless otherwise noted), in conjunction with mechanical fixings, or cast-into the slab when it is poured, with CA-6 Cast-In Anchors.
The Latham Ultimate Series Standard floor expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres and airports etc. These joint covers can be used in conjunction with many floor finishes such as concrete topping, terrazzo, tile, timber, concrete, vinyl, direct stick carpet and carpet tiles, epoxy floors etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product detail sheets - PDF
Download our section details - CAD
| Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium & stainless steel cover thickness may vary, see detailed drawing at the links below for the exact detail & cover thickness. | ||||||||||||
| LS-25 | LA-25 | 25 | 56 | 38 | 18 | 12 | 82 | +/-12mm | 25mm | 33mm | 3mm* | |
| LS-45 | LA-45 | 46 | 91 | 66 | 25 | 20 | 82 | +/-20mm | 40mm | 33mm | 3mm* | |
| LS-50 | LA-50 | 50 | 81 | 63 | 18 | 12 | 82 | +/-12mm | 25mm | 33mm | 3mm* | |
| LS-75 | LA-75 | 71 | 111 | 91 | 25 | 20 | 82 | +/-20mm | 40mm | 33mm | 4mm* | |
| LS-100 | LA-100 | 96 | 137 | 116 | 25 | 20 | 82 | +/-20mm | 40mm | 33mm | 4mm* | |
| LS-150 | LA-150 | 146 | 187 | 166 | 25 | 20 | 82 | +/-20mm | 40mm | 33mm | 5mm* | |
The Latham Ultimate Series Standard 33mm deep floor expansion joint covers are available with aluminium and stainless steel cover plates; this series can carry a VWS water gutter if required. The series has a depth below the finished floor height of 33mm. The series can be set into a preformed recess with CA-16 Block-Out Anchors (supplied unless otherwise noted), in conjunction with mechanical fixings, or cast-into the slab when it is poured, with CA-6 Cast-In Anchors.
The Latham Ultimate Series Standard floor expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres and airports etc. These joint covers can be used in conjunction with many floor finishes such as concrete topping, terrazzo, tile, timber, concrete, vinyl, direct stick carpet and carpet tiles, epoxy floors etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product detail sheets - PDF
Download our section details - CAD
| Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium & stainless steel cover thickness may vary, see detailed drawing at the links below for the exact detail & cover thickness. | ||||||||||||

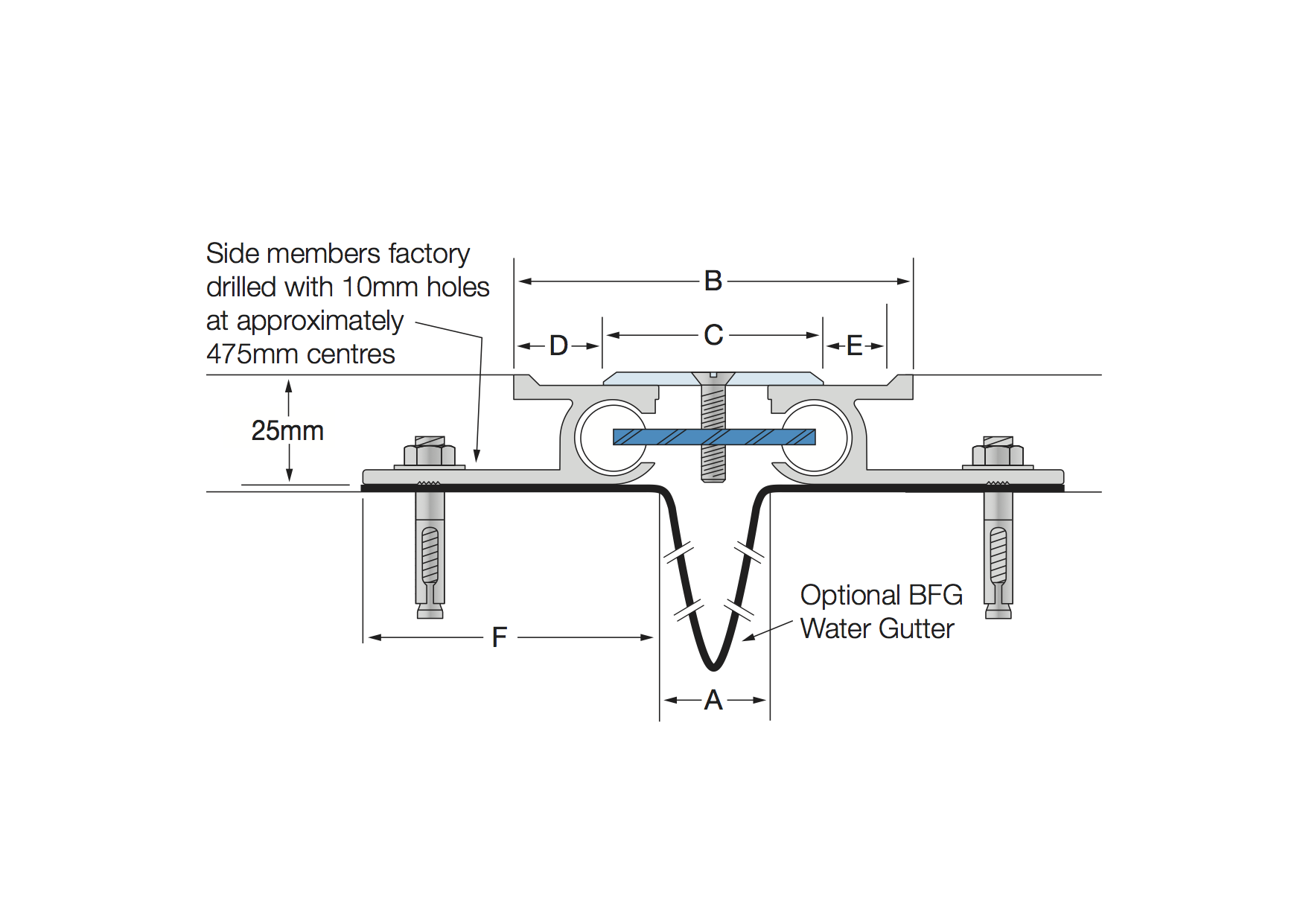

| DCS-25 | DCA-25 | 25 | 90 | 50 | 18 | 12 | 68 | +20/-15mm | 35mm | 25mm | 3mm* | |
| DCS-50 | DCA-50 | 50 | 116 | 75 | 18 | 12 | 68 | +20/-25mm | 45mm | 25mm | 3mm* | |
| DCS-75 | DCA-75 | 75 | 141 | 100 | 18 | 12 | 68 | +20/-25mm | 45mm | 25mm | 3mm* | |
| DCS-60 | DCA-60 | 60 | 214 | 125 | 40 | 35 | 105 | +55/-50mm | 105mm | 25mm | 4mm* | |
| DCS-110 | DCA-110 | 110 | 252 | 175 | 40 | 35 | 105 | +55/-65mm | 120mm | 25mm | 5mm* | |
| DCS-150 | DCA-150 | 150 | 292 | 215 | 40 | 35 | 105 | +55/-65mm | 120mm | 25mm | 5mm* | |
The Latham Ultimate Series Shallow 25mm Deep floor expansion joint covers are available with aluminium and stainless steel cover plates; this series can carry a BFG water gutter if required. The series has a depth below the finished floor height of 25mm. The series is designed to be installed generally into a preformed recess although in some applications the product may not require a recess, depending on the type and depth of the floor finish. When the installation structural joint width exceeds 50mm the Series can accommodate the Latham Fire Barrier system.
The Latham Ultimate Series Shallow floor expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres and airports etc. These joint covers can be used in conjunction with many floor finishes such as tile, timber, concrete, vinyl, direct stick carpet and carpet tiles, epoxy floors etc.
The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product detail sheets - PDF
Download our section details - CAD
| Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium & stainless steel cover thickness may vary, see detailed drawing at the links below for the exact detail & cover thickness. | ||||||||||||

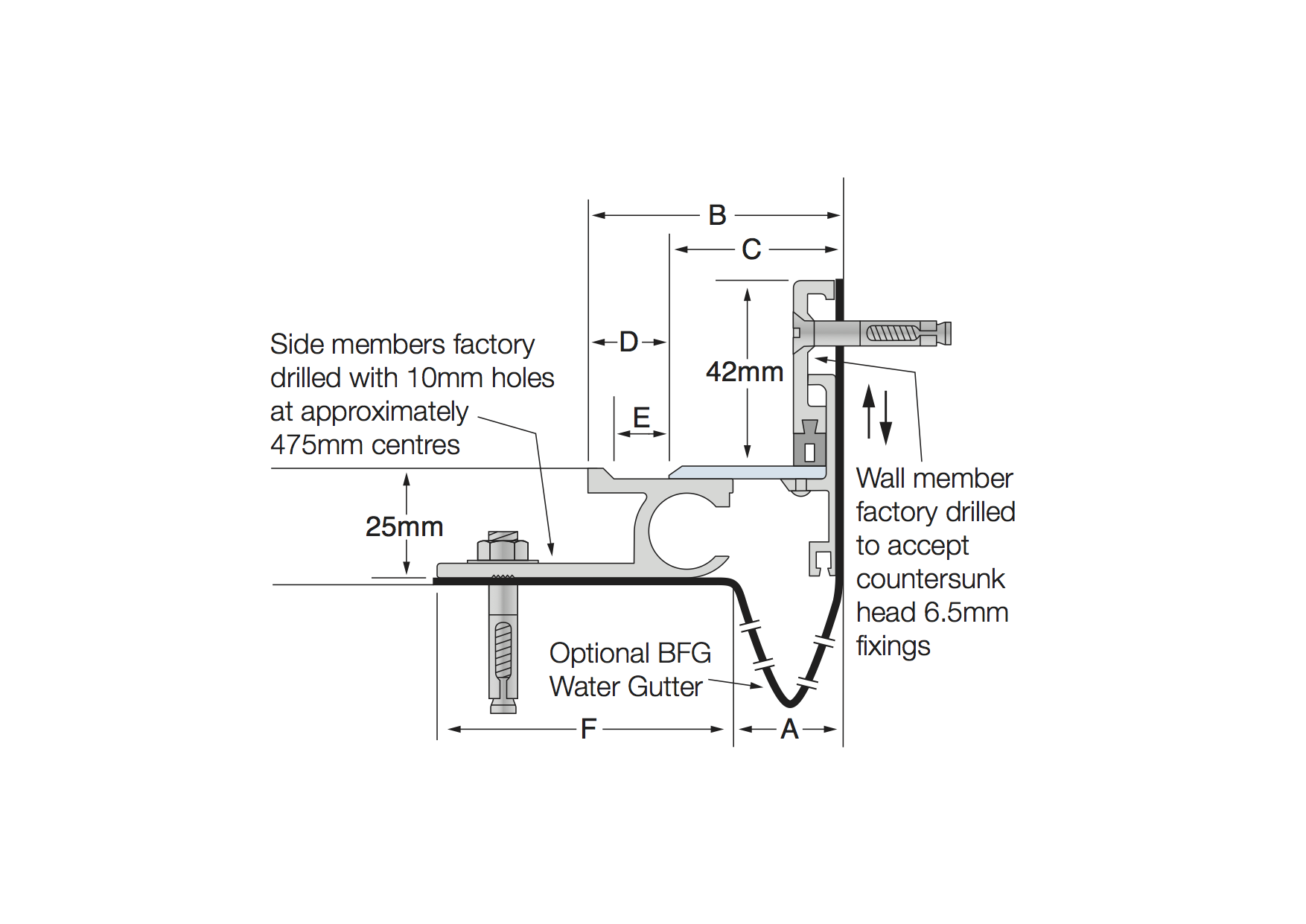

| DCSL-25 | DCAL-25 | 25 | 56 | 37 | 18 | 12 | 68 | +/-12mm | 25mm | 25mm | 3mm* | |
| DCSL-50 | DCAL-50 | 50 | 82 | 62 | 18 | 12 | 68 | +/-12mm | 25mm | 25mm | 3mm* | |
| DCSL-75 | DCAL-75 | 75 | 106 | 87 | 18 | 12 | 68 | +/-12mm | 25mm | 25mm | 3mm* | |
| DCSL-60 | DCAL-60 | 60 | 130 | 99 | 40 | 35 | 105 | +/-32mm | 65mm | 25mm | 3mm* | |
| DCSL-110 | DCAL-110 | 110 | 180 | 145 | 40 | 35 | 105 | +/-32mm | 65mm | 25mm | 4mm* | |
| DCSL-150 | DCAL-150 | 150 | 220 | 185 | 40 | 35 | 105 | +/-32mm | 65mm | 25mm | 5mm* | |
The Latham Ultimate Series Shallow 25mm Deep floor-to-wall expansion joint covers are available with aluminium and stainless steel cover plates; this series can carry a BFG water gutter if required. The series has a depth below the finished floor height of 25mm. The series is designed to be installed generally into a preformed recess although in some applications the product may not require a recess, depending on the type and depth of the floor finish. When the installation structural joint width exceeds 50mm the Series can accommodate the Latham Fire Barrier system.
The Latham Ultimate Series Shallow floor-to-wall expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres and airports etc. These joint covers can be used in conjunction with many floor finishes such as tile, timber, concrete, vinyl, direct stick carpet and carpet tiles, epoxy floors etc.
The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product detail sheets - PDF
Download our section details - CAD

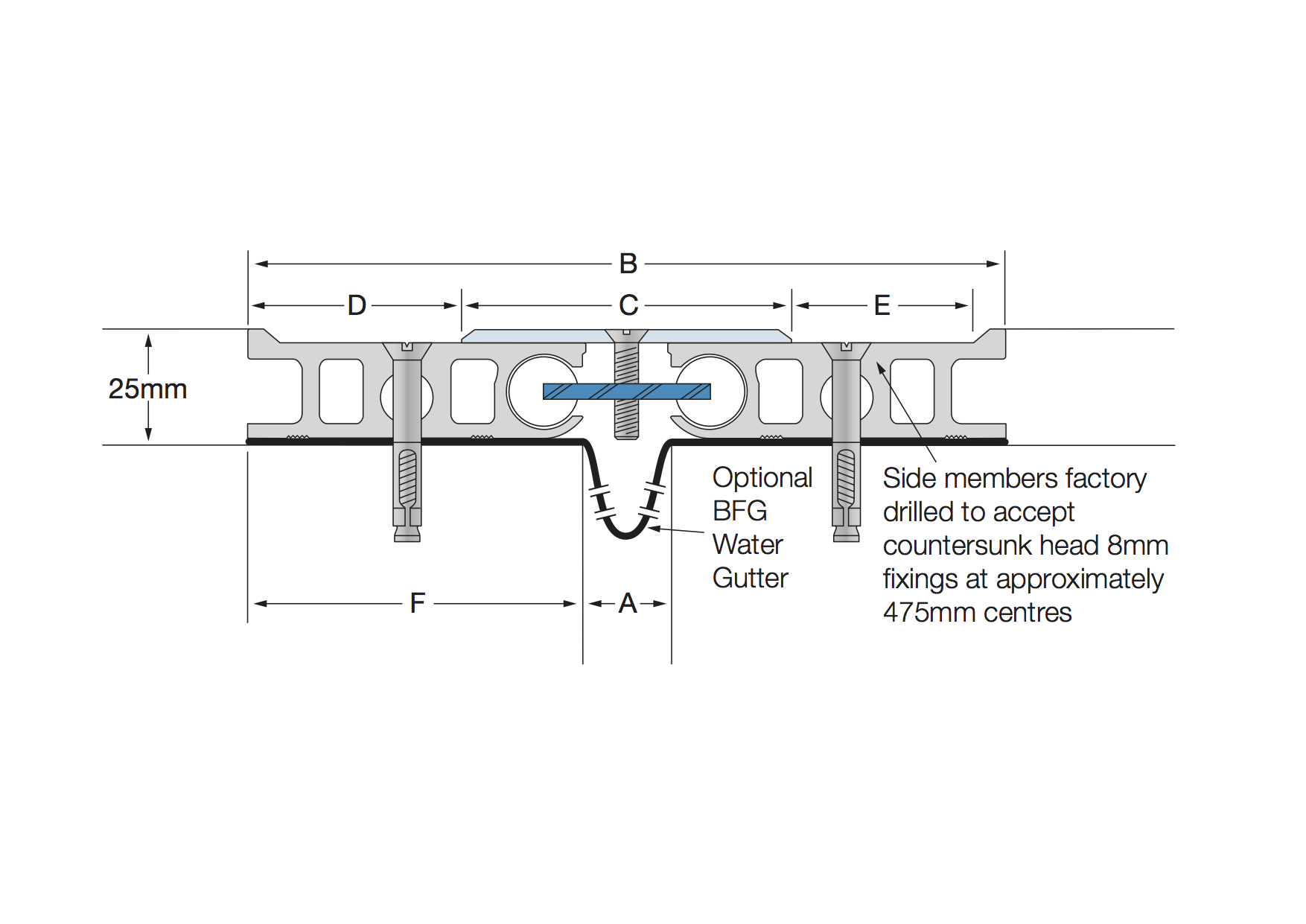

| Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium & stainless steel cover thickness may vary, see detailed drawing at the links below for the exact detail & cover thickness. | ||||||||||||
| NSS-20 | NSA-20 | 20 | 174 | 75 | 46 | 40 | 77 | +45/-10mm | 55mm | 25mm | 3mm* | |
| NSS-30 | NSA-30 | 30 | 184 | 100 | 41 | 35 | 77 | +55/-20mm | 75mm | 25mm | 3mm* | |
| NSS-55 | NSA-55 | 55 | 209 | 125 | 41 | 35 | 77 | +55/-45mm | 100mm | 25mm | 4mm* | |
| NSS-80 | NSA-80 | 80 | 234 | 150 | 41 | 35 | 77 | +55/-65mm | 120mm | 25mm | 5mm* | |
| NSS-105 | NSA-105 | 105 | 259 | 175 | 41 | 35 | 77 | +55/-70mm | 125mm | 25mm | 5mm* | |
The Latham Ultimate Series Surface Fixed 25mm Deep floor expansion joint covers are available with aluminium and stainless steel cover plates; this series can carry a BFG water gutter if required. The series has a depth below the finished floor height of 25mm. The series is designed to be installed in a retro fit application when an expansion joint cover has been left out of the design or installation and it needs to be cut in later. This system offers relatively easy and quick retro fit application and does not require the surrounding floor finish to be removed. When the installation structural joint width exceeds 50mm the series can accommodate the Latham Fire Barrier System.
The Latham Ultimate Series Surface Fixed floor expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres, airports etc. These joint covers can be used in conjunction with many floor finishes such as tile, timber, concrete, vinyl, direct stick carpet and carpet tiles, epoxy floors etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover. In new applications we would recommend that a recessed expansion joint cover like those available from the rest of the Ultimate Series be considered as this will provide better performance than the retro fit product detailed here.
Download our technical data sheets - PDF
Download our product detail sheets - PDF
Download our section details - CAD

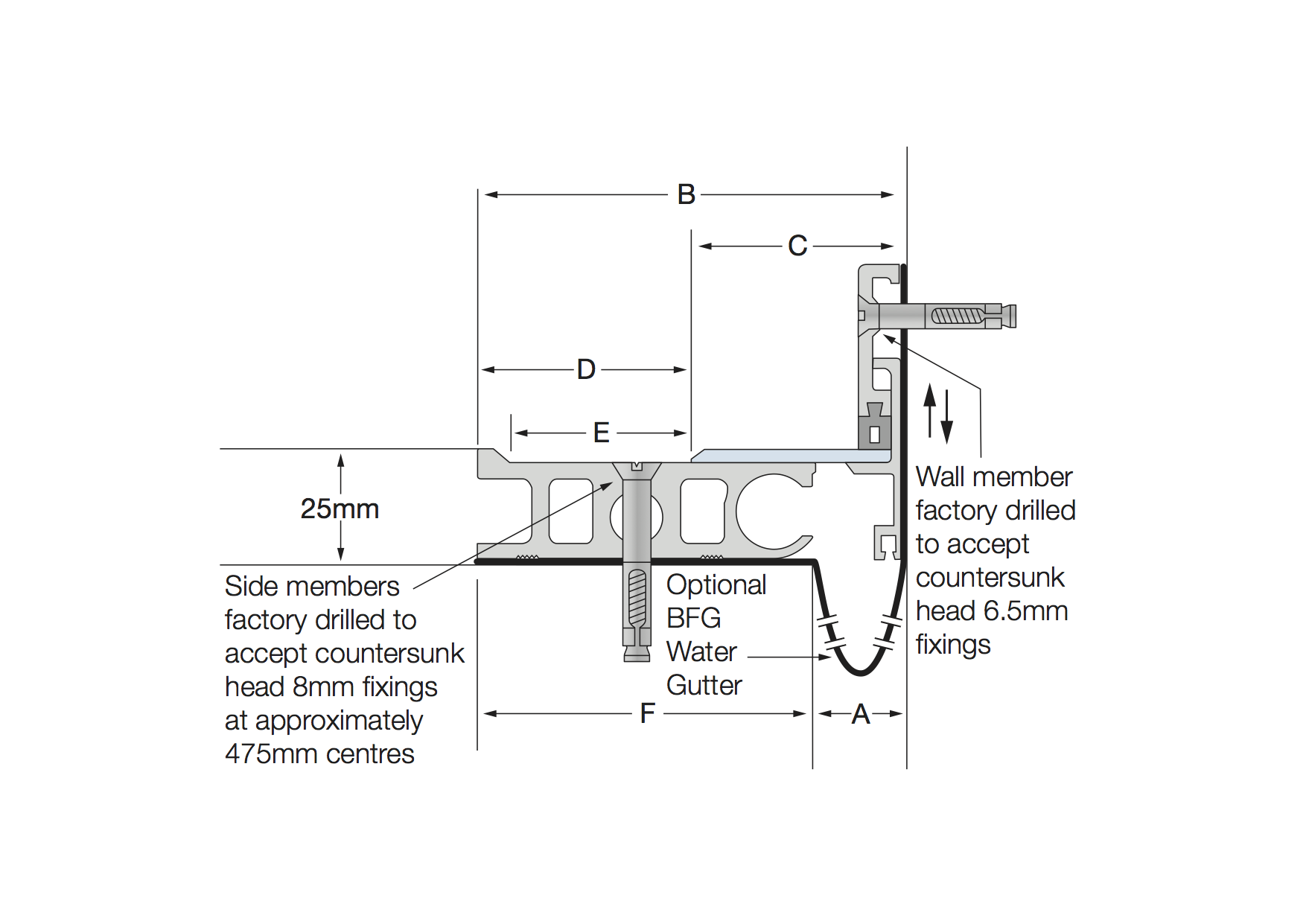

| Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium & stainless steel cover thickness may vary, see detailed drawing at the links below for the exact detail & cover thickness. | ||||||||||||
| NSSL-20 | NSAL-20 | 20 | 97 | 55 | 46 | 40 | 77 | +25/-8mm | 33mm | 25mm | 3mm* | |
| NSSL-30 | NSAL-30 | 30 | 107 | 65 | 41 | 35 | 77 | +30/-18mm | 48mm | 25mm | 3mm* | |
| NSSL-55 | NSAL-55 | 55 | 132 | 90 | 41 | 35 | 77 | +30/-40mm | 70mm | 25mm | 4mm* | |
| NSSL-80 | NSAL-80 | 80 | 157 | 115 | 41 | 35 | 77 | +30/-40mm | 70mm | 25mm | 5mm* | |
| NSSL-105 | NSAL-105 | 105 | 182 | 140 | 41 | 35 | 77 | +30/-40mm | 70mm | 25mm | 5mm* | |
The Latham Ultimate Series Surface Fixed 25mm Deep floor-to-wall expansion joint covers are available with aluminium and stainless steel cover plates; this series can carry a BFG water gutter if required. The series has a depth below the finished floor height of 25mm. The series is designed to be installed in a retro fit application when an expansion joint cover has been left out of the design or installation and it needs to be cut in later. This system offers relatively easy and quick retro fit application and does not require the surrounding floor finish to be removed. When the installation structural joint width exceeds 50mm the series can accommodate the Latham Fire Barrier System.
The Latham Ultimate Series Surface Fixed floor-to-wall expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres, airports etc. These joint covers can be used in conjunction with many floor finishes such as tile, timber, concrete, vinyl, direct stick carpet and carpet tiles, epoxy floors etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover. In new applications we would recommend that a recessed expansion joint cover like those available from the rest of the Ultimate Series be considered as this will provide better performance than the retro fit product detailed here.
Download our technical data sheets - PDF
Download our product detail sheets - PDF
Download our section details - CAD
| Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium and stainless steel cover plate thickness may vary, see detailed product drawing at the links below for exact details and cover thickness. | ||||||||||||

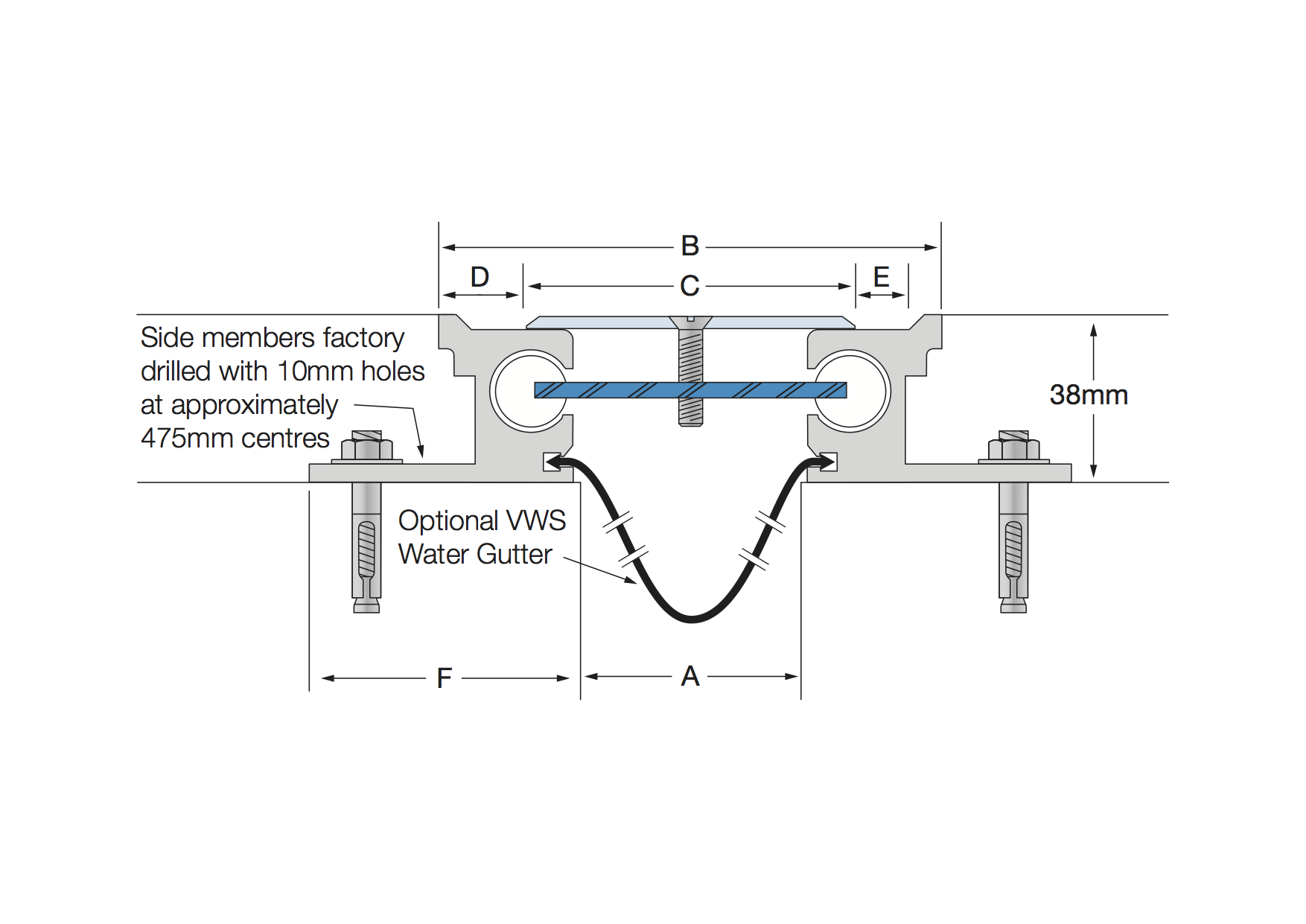

| SAS-25 (FASM 38) | SAA-25 (FASM 38) | 25 | 87 | 50 | 18 | 13 | 60 | +20/-15mm | 35mm | 38mm | 3mm* | |
| SAS-50 (FASM 38) | SAA-50 (FASM 38) | 50 | 113 | 75 | 18 | 13 | 60 | +20/-25mm | 45mm | 38mm | 3mm* | |
| SAS-75 (FASM 38) | SAA-75 (FASM 38) | 75 | 137 | 100 | 18 | 13 | 60 | +20/-25mm | 45mm | 38mm | 3mm* | |
The Latham Ultimate Series Medium (FASM 38) 38mm floor expansion joint covers are available with aluminium and stainless steel cover plates. This series can carry a BFG water gutter if required. The series has a depth below the finished floor height of 38mm. The series is designed to be installed with Terrazzo Tiles with an overall set down of approximately 38mm, although it is suitable for installations with other floor finishes as well. When the installation structural joint width exceeds 50mm the Series can accommodate the Latham Fire Barrier System.
The Latham Ultimate Series Medium (FASM 38) floor expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres, airports etc. These joint covers can be used in conjunction with many floor finishes such as terrazzo tile, pavers, tile, timber, natural stone, etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product detail sheets - PDF
Download our section details - CAD
-1.png)

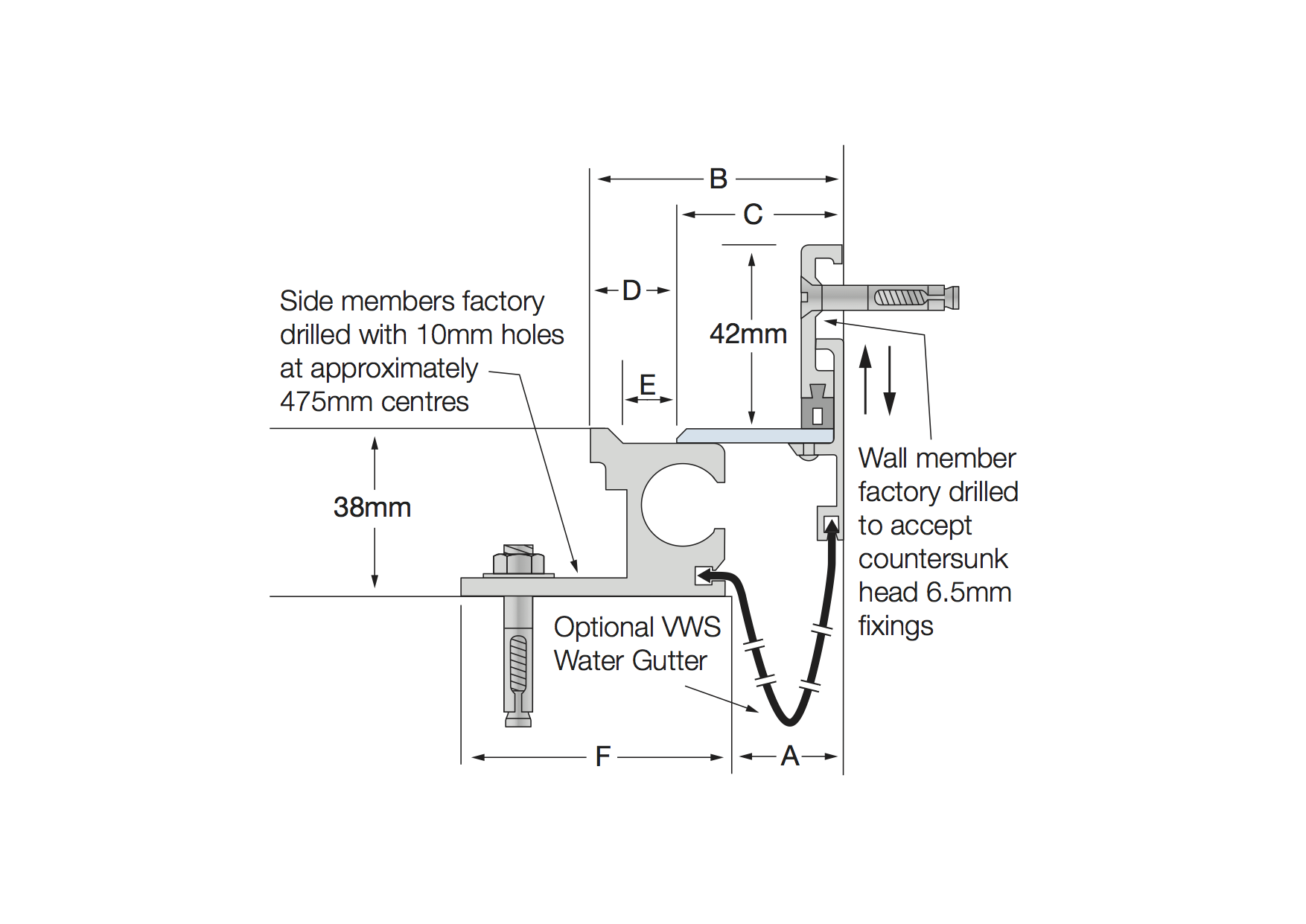

| Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium and stainless steel cover plate thicknesses may vary, see detailed product drawing at the links below for exact details and cover thickness. | ||||||||||||
| SLS-25 (FASM 38) | SLA-25 (FASM 38) | 25 | 58 | 38 | 18 | 13 | 60 | +/-12mm | 25mm | 38mm | 3mm* | |
| SLS-50 (FASM 38) | SLA-50 (FASM 38) | 50 | 81 | 63 | 18 | 13 | 60 | +/-12mm | 25mm | 38mm | 3mm* | |
| SLS-75 (FASM 38) | SLA-75 (FASM 38) | 75 | 106 | 88 | 18 | 13 | 60 | +/-12mm | 25mm | 38mm | 3mm* | |
The Latham Ultimate Series Medium (FASM 38) 38mm floor-to-wall expansion joint covers are available with aluminium and stainless steel cover plates. This series can carry a BFG water gutter if required. The series has a depth below the finished floor height of 38mm. The series is designed to be installed with Terrazzo Tiles with an overall set down of approximately 38mm, although it is suitable for installations with other floor finishes as well. When the installation structural joint width exceeds 50mm the Series can accommodate the Latham Fire Barrier System.
The Latham Ultimate Series Medium (FASM 38) floor-to-wall expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres, airports etc. These joint covers can be used in conjunction with many floor finishes such as terrazzo tile, pavers, tile, timber, natural stone, etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product detail sheets - PDF
Download our section details - CAD

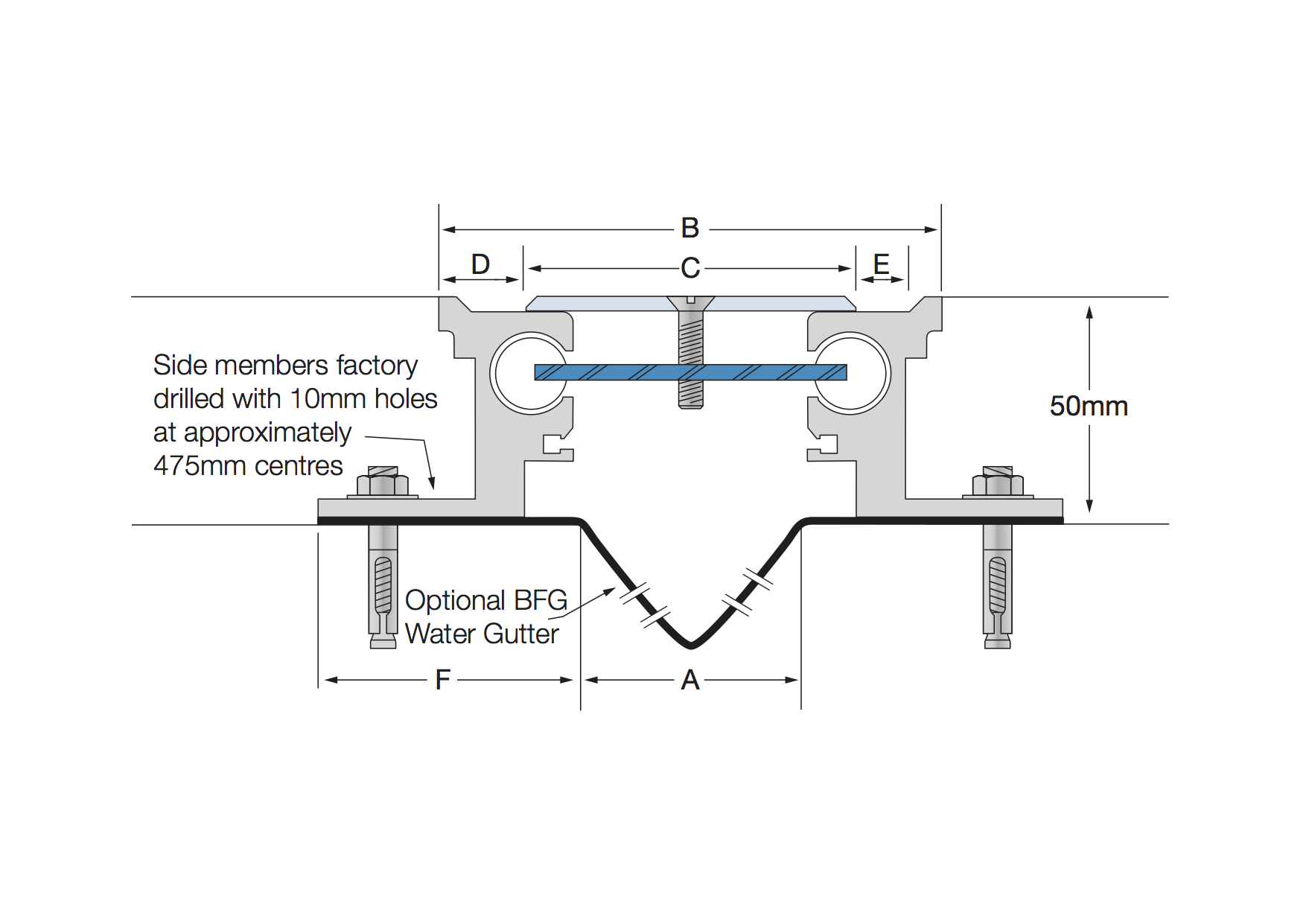

| Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium & stainless steel cover thickness may vary, see detailed drawing at the links below for the exact detail & cover thickness. | |||||||||||
| SAS-25 (FASM 50) | SAA-25 (FASM 50) | 25 | 87 | 50 | 18 | 13 | 60 | +20/-15mm | 35mm | 50mm | 3mm* |
| SAS-50 (FASM 50) | SAA-50 (FASM 50) | 50 | 113 | 75 | 18 | 13 | 60 | +20/-25mm | 45mm | 50mm | 3mm* |
| SAS-44 (FASM 50) | SAA-44 (FASM 50) | 44 | 163 | 100 | 32 | 26 | 87 | +50/-30mm | 80mm | 50mm | 3mm* |
| SAS-75 (FASM 50) | SAA-75 (FASM 50) | 70 | 189 | 125 | 32 | 26 | 87 | +50/-50mm | 100mm | 50mm | 4mm* |
| SAS-100 (FASM 50) | SAA-100 (FASM 50) | 95 | 214 | 150 | 32 | 26 | 87 | +50/-50mm | 100mm | 50mm | 5mm* |
| SAA-125 (FASM 50) | 120 | 239 | 175 | 32 | 26 | 87 | +50/-50mm | 100mm | 50mm | 5mm* | |
| SAS-150 (FASM 50) | SAA-150 (FASM 50) | 145 | 264 | 200 | 32 | 26 | 87 | +50/-50mm | 100mm | 50mm | 5mm* |
The Latham Ultimate Series Deep (FASM 50) 50mm deep floor and floor-to-wall expansion joint covers are available with aluminium and stainless steel cover plates. This series can carry a BFG or VWS water gutter if required. The series has a depth below the finished floor height of 50mm. The series is designed to be installed with Terrazzo Tiles with an overall set down of approximately 50mm, although it is suitable for installations with other floor finishes as well. When the installation structural joint width exceeds 50mm the Series can accommodate the Latham Fire Barrier system.
The Latham Ultimate Series Deep (FASM 50) floor and floor to-wall expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres, airports etc. These joint covers can be used in conjunction with many floor finishes such as terrazzo tile, insitu terrazzo, pavers, tile, timber, natural stone etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product detail sheets - PDF
Download our section details - CAD
| Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium & stainless steel cover thickness may vary, see detailed drawing at the links below for the exact detail & cover thickness. | ||||||||||||

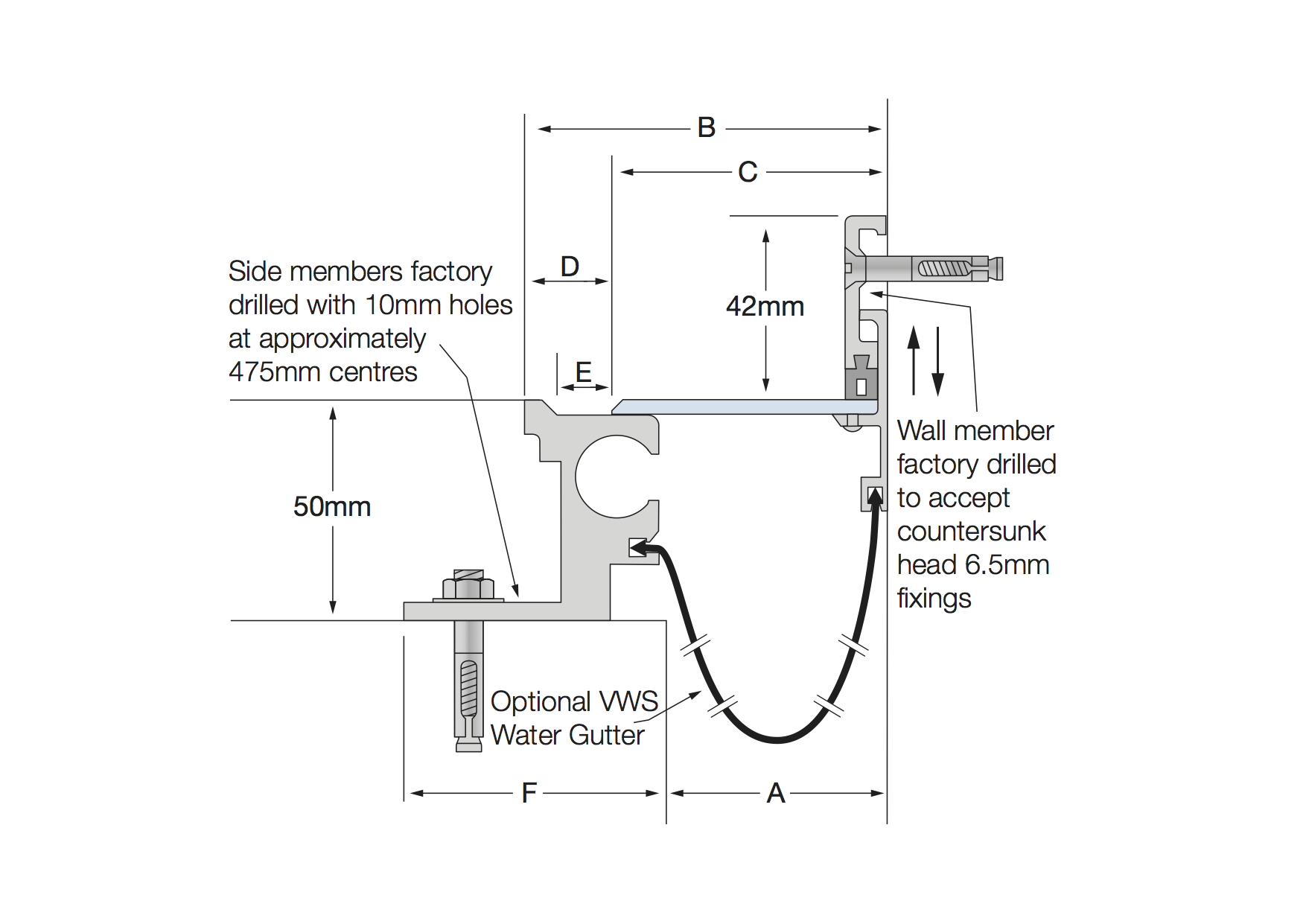

| SLS-25 (FASM 50) | SLA-25 (FASM 50) | 25 | 58 | 38 | 18 | 13 | 60 | +/-12mm | 25mm | 50mm | 3mm* | |
| SLS-50 (FASM 50) | SLA-50 (FASM 50) | 50 | 81 | 63 | 18 | 13 | 60 | +/-12mm | 25mm | 50mm | 3mm* | |
| SLS-44 (FASM 50) | SLA-44 (FASM 50) | 44 | 99 | 72 | 32 | 26 | 87 | +/-25mm | 50mm | 50mm | 3mm* | |
| SLS-75 (FASM 50) | SLA-75 (FASM 50) | 70 | 125 | 98 | 32 | 26 | 87 | +/-25mm | 50mm | 50mm | 4mm* | |
| SLS-100 (FASM 50) | SLA-100 (FASM 50) | 95 | 150 | 123 | 32 | 26 | 87 | +/-25mm | 50mmm | 50mm | 5mm* | |
| SLS-150 (FASM 50) | SLA-150 (FASM 50) | 145 | 200 | 173 | 32 | 26 | 87 | +/-25mm | 50mm | 50mm | 5mm* | |
The Latham Ultimate Series Deep (FASM 50) 50mm deep floor-to-wall expansion joint covers are available with aluminium and stainless steel cover plates. This series can carry a BFG or VWS water gutter if required. The series has a depth below the finished floor height of 50mm. The series is designed to be installed with Terrazzo Tiles with an overall set down of approximately 50mm, although it is suitable for installations with other floor finishes as well. When the installation structural joint width exceeds 50mm the Series can accommodate the Latham Fire Barrier system.
The Latham Ultimate Series Deep (FASM 50) floor-to-wall expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres, airports etc. These joint covers can be used in conjunction with many floor finishes such as terrazzo tile, insitu terrazzo, pavers, tile, timber, natural stone etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product detail sheets - PDF
Download our section details - CAD
| Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium & stainless steel cover thickness may vary, see detailed drawing at the links below for the exact detail & cover thickness. | ||||||||||||

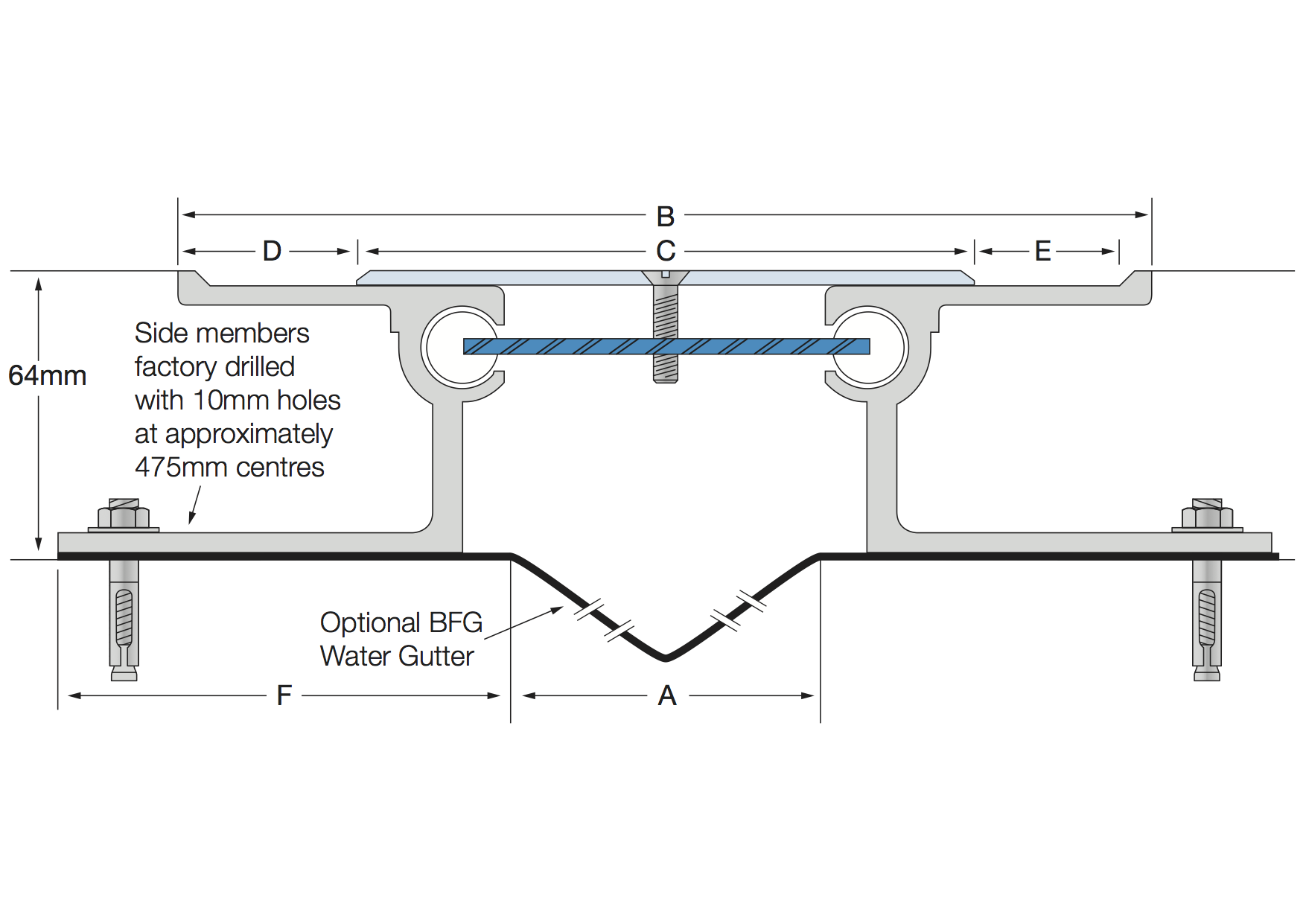

| SAS-30 (FASM 64) | SAA-30 (FASM 64) | 30 | 182 | 100 | 40 | 35 | 101 | +65/-20mm | 85mm | 64mm | 3mm* | |
| SAS-55 (FASM 64) | SAA-55 (FASM 64) | 55 | 207 | 125 | 40 | 35 | 101 | +65/-45mm | 110mm | 64mm | 3mm* | |
| SAS-80 (FASM 64) | SAA-80 (FASM 64) | 80 | 232 | 150 | 40 | 35 | 101 | +/-65mm | 130mm | 64mm | 3mm* | |
| SAS-105 (FASM 64) | SAA-105 (FASM 64) | 105 | 257 | 175 | 40 | 35 | 101 | +/-65mm | 130mm | 64mm | 3mm* | |
| SAS-130 (FASM 64) | SAA-130 (FASM 64) | 130 | 282 | 200 | 40 | 35 | 101 | +/-65mm | 130mm | 64mm | 5mm* | |
| SAS-155 (FASM 64) | SAA-155 (FASM 64) | 155 | 307 | 225 | 40 | 35 | 101 | +/-65mm | 130mm | 64mm | 5mm* | |
The Latham Ultimate Series Deep (FASM 64) 64mm deep floor expansion joint covers are available with aluminium and stainless steel cover plates. This series can carry a BFG water gutter if required. The series has a depth below the finished floor height of 64mm. The series is designed to be installed with terrazzo tiles with an overall set down of approximately 64mm, although it is suitable for installations with other floor finishes as well. When the installation structural joint width exceeds 50mm the Series can accommodate the Latham Fire Barrier system
.
The Latham Ultimate Series Deep (FASM 64) floor expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres, airports etc. These joint covers can be used in conjunction with many floor finishes such as terrazzo tile, insitu terrazzo, pavers, tile, timber, natural stone etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product detail sheets - PDF
Download our section details - CAD
_EJC.png)

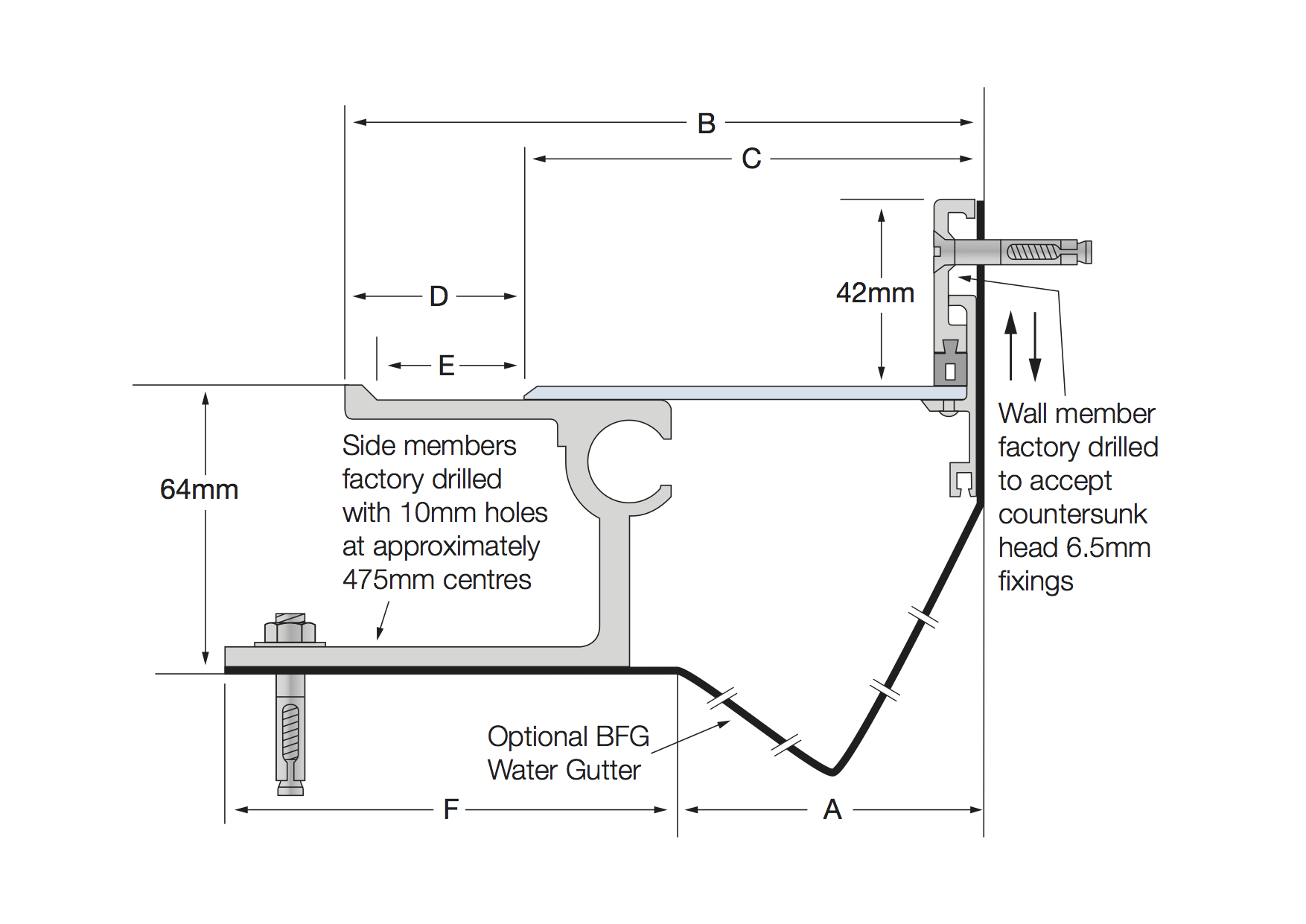

| Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium & stainless steel cover thickness may vary, see detailed drawing at the links below for the exact detail & cover thickness. | ||||||||||||
| SLS-30 (FASM 64) | SLA-30 (FASM 64) | 30 | 105 | 65 | 40 | 35 | 101 | +32/-25mm | 57mm | 64mm | 3mm* | |
| SLS-55 (FASM 64) | SLA-55 (FASM 64) | 55 | 130 | 90 | 40 | 35 | 101 | +/-32mm | 65mm | 64mm | 3mm* | |
| SLS-80 (FASM 64) | SLA-80 (FASM 64) | 80 | 155 | 115 | 40 | 35 | 101 | +/-32mm | 65mm | 64mm | 3mm* | |
| SLS-105 (FASM 64) | SLA-105 (FASM 64) | 105 | 180 | 140 | 40 | 35 | 101 | +/-32mm | 65mm | 64mm | 3mm* | |
| SLS-130 (FASM 64) | SLA-130 (FASM 64) | 130 | 205 | 165 | 40 | 35 | 101 | +/-32mm | 65mm | 64mm | 5mm* | |
| SLS-155 (FASM 64) | SLA-155 (FASM 64) | 155 | 230 | 190 | 40 | 35 | 101 | +/-32mm | 65mm | 64mm | 5mm* | |
The Latham Ultimate Series Deep (FASM 64) 64mm deep floor-tp-wall expansion joint covers are available with aluminium and stainless steel cover plates. This series can carry a BFG water gutter if required. The series has a depth below the finished floor height of 64mm. The series is designed to be installed with terrazzo tiles with an overall set down of approximately 64mm, although it is suitable for installations with other floor finishes as well. When the installation structural joint width exceeds 50mm the Series can accommodate the Latham Fire Barrier system
.
The Latham Ultimate Series Deep (FASM 64) floor-to-wall expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres, airports etc. These joint covers can be used in conjunction with many floor finishes such as terrazzo tile, insitu terrazzo, pavers, tile, timber, natural stone etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product detail sheets - PDF
Download our section details - CAD
_EJC%20.png)
| Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium & stainless steel cover thickness may vary, see detailed drawing at the links below for the exact detail & cover thickness. | ||||||||||||
| SAS-25 (SSSM▲) | SAA-25 (SSSM▲) | 25 | 87 | 50 | 18 | 13 | ● | +20/-15mm | 40mm | Specify | 3mm* | |
| SAS-50 (SSSM▲) | SAA-50 (SSSM▲) | 50 | 113 | 75 | 18 | 13 | ● | +20/-25mm | 45mm | Specify | 3mm* | |
| SAS-44 (SSSM▲) | SAA-44 (SSSM▲) | 44 | 163 | 100 | 32 | 26 | ● | +50/-35mm | 85mm | Specify | 3mm* | |
| SAS-75 (SSSM▲) | SAA-75 (SSSM▲) | 70 | 189 | 125 | 32 | 26 | ● | +50/-50mm | 100mm | Specify | 3mm* | |
| SAS-100 (SSSM▲) | SAA-100 (SSSM▲) | 95 | 214 | 150 | 32 | 26 | ● | +50/-50mm | 100mm | Specify | 3mm* | |
| SAS-150 (SSSM▲) | SAA-150 (SSSM▲) | 145 | 264 | 200 | 32 | 26 | ● | +50/-50mm | 100mm | Specify | 5mm* | |
▲ Specify required depth i.e. SAS-25 (SSSM 79) as drawn. Available depths: 79mm, 89mm, 104mm, 114mm, 139mm & 164mm
● “F” distance subject to required depth
The Latham Ultimate Series (SSSM▲) has the aluminium side member installed on a continuous treated steel support, and as such we can offer a full range of the versatile SAS and SLS Series in non standard depths for floor expansion applications. The expansion joint covers are available with aluminium and stainless steel cover plates; this series can carry a BFG water gutter if required. The series has a variable depth below the finished floor height of 54mm, 64mm, 79mm, 89mm, 104mm, 114mm, 139mm and 164mm, (▲) specify depth (custom heights available on request). The series is designed to be installed with paver type applications, with generally an extremely thick paver or a deep bed although it is suitable for installations with other floor finishes as well. When the installation structural joint width exceeds 50mm the Series can accommodate the Latham Fire Barrier system.
The Latham Ultimate Series (SSSM▲) floor expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres and airports etc. These joint covers can be used in conjunction with many floor finishes such as pavers, natural stone, or a very deep bed set down, etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product detail sheets - PDF
Download our section details - CAD
_EJC%20.png)
| Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium & stainless steel cover thickness may vary, see detailed drawing at the links below for the exact detail & cover thickness. | ||||||||||||
| SLS-25 (SSSM▲) | SLA-25 (SSSM▲) | 25 | 56 | 38 | 18 | 13 | ● | +/-12mm | 24mm | Specify | 3mm* | |
| SLS-50 (SSSM▲) | SLA-50 (SSSM▲) | 50 | 81 | 63 | 18 | 13 | ● | +/-12mm | 24mm | Specify | 3mm* | |
| SLS-44 (SSSM▲) | SLA-44 (SSSM▲) | 44 | 110 | 78 | 32 | 26 | ● | +/-25mm | 50mm | Specify | 3mm* | |
| SLS-75 (SSSM▲) | SLA-75 (SSSM▲) | 70 | 132 | 100 | 32 | 26 | ● | +/-25mm | 50mm | Specify | 3mm* | |
| SLS-100 (SSSM▲) | SLA-100 (SSSM▲) | 95 | 157 | 125 | 32 | 26 | ● | +/-25mm | 50mm | Specify | 3mm* | |
| SLS-150 (SSSM▲) | SLA-150 (SSSM▲) | 145 | 217 | 175 | 32 | 26 | ● | +/-25mm | 50mm | Specify | 5mm* | |
▲ Specify required depth i.e. SLS-25 (SSSM 79) as drawn. Available depths: 79mm, 89mm, 104mm, 114mm, 139mm & 164mm
● “F” distance subject to required depth
The Latham Ultimate Series (SSSM▲) has the aluminium side member installed on a continuous treated steel support, and as such we can offer a full range of the versatile SAS and SLS Series in non standard depths for floor expansion applications. The expansion joint covers are available with aluminium and stainless steel cover plates; this series can carry a BFG water gutter if required. The series has a variable depth below the finished floor height of 54mm, 64mm, 79mm, 89mm, 104mm, 114mm, 139mm and 164mm, (▲) specify depth (custom heights available on request). The series is designed to be installed with paver type applications, with generally an extremely thick paver or a deep bed although it is suitable for installations with other floor finishes as well. When the installation structural joint width exceeds 50mm the Series can accommodate the Latham Fire Barrier system.
The Latham Ultimate Series (SSSM▲) floor-to-wall expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres and airports etc. These joint covers can be used in conjunction with many floor finishes such as pavers, natural stone, or a very deep bed set down, etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product detail sheets - PDF
Download our section details - CAD
| Solid Brass Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. | |||||||||||
| CAB-25 | 25 | 86 | 50 | 18 | 13 | 60 | +20/-15mm | 35mm | 25mm | 3mm | |
| CAB-50 | 50 | 111 | 75 | 18 | 13 | 60 | +20/-25mm | 45mm | 25mm | 3mm | |
| CAB-51 | 50 | 160 | 100 | 30 | 25 | 75 | +/-40mm | 80mm | 25mm | 3mm | |
| CAB-75 | 75 | 185 | 125 | 30 | 25 | 75 | +40/-50mm | 90mm | 25mm | 3mm | |
| CAB-100 | 100 | 210 | 150 | 30 | 25 | 75 | +40/-50mm | 90mm | 25mm | 5mm | |
| CAB-150 | 150 | 260 | 200 | 30 | 25 | 75 | +40/-50mm | 90mm | 25mm | 5mm | |
The Latham Brass Ultimate Series Standard 25mm deep floor expansion joint covers are constructed of solid brass. The series has a depth below the finished floor height of 25mm. The series can be set into a preformed recess with BM-16 Block-Out Anchors (supplied unless otherwise noted), in conjunction with mechanical fixings, or cast-in to the slab when it is poured, with BS-6 Cast-In Anchors.
The Latham Brass Ultimate Series Standard floor expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres and airports etc. These joint covers can be used in conjunction with many floor finishes such as concrete topping, terrazzo, tile, timber, concrete, vinyl, direct stick carpet and carpet tiles, epoxy floors etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product detail sheets - PDF
Download our section details - CAD
| Solid Brass Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. | |||||||||||
| LAB-25 | 25 | 56 | 38 | 18 | 12 | 60 | +/-12mm | 24mm | 25mm | 3mm | |
| LAB-50 | 50 | 82 | 64 | 18 | 12 | 60 | +/-12mm | 24mm | 25mm | 3mm | |
| LAB-51 | 50 | 105 | 75 | 30 | 25 | 75 | +/-25mm | 50mm | 25mm | 3mm | |
| LAB-75 | 75 | 130 | 100 | 30 | 25 | 75 | +/-25mm | 50mm | 25mm | 3mm | |
| LAB-100 | 100 | 155 | 125 | 30 | 25 | 75 | +/-25mm | 50mm | 25mm | 5mm | |
| LAB-150 | 150 | 205 | 175 | 30 | 25 | 75 | +/-25mm | 50mm | 25mm | 5mm | |

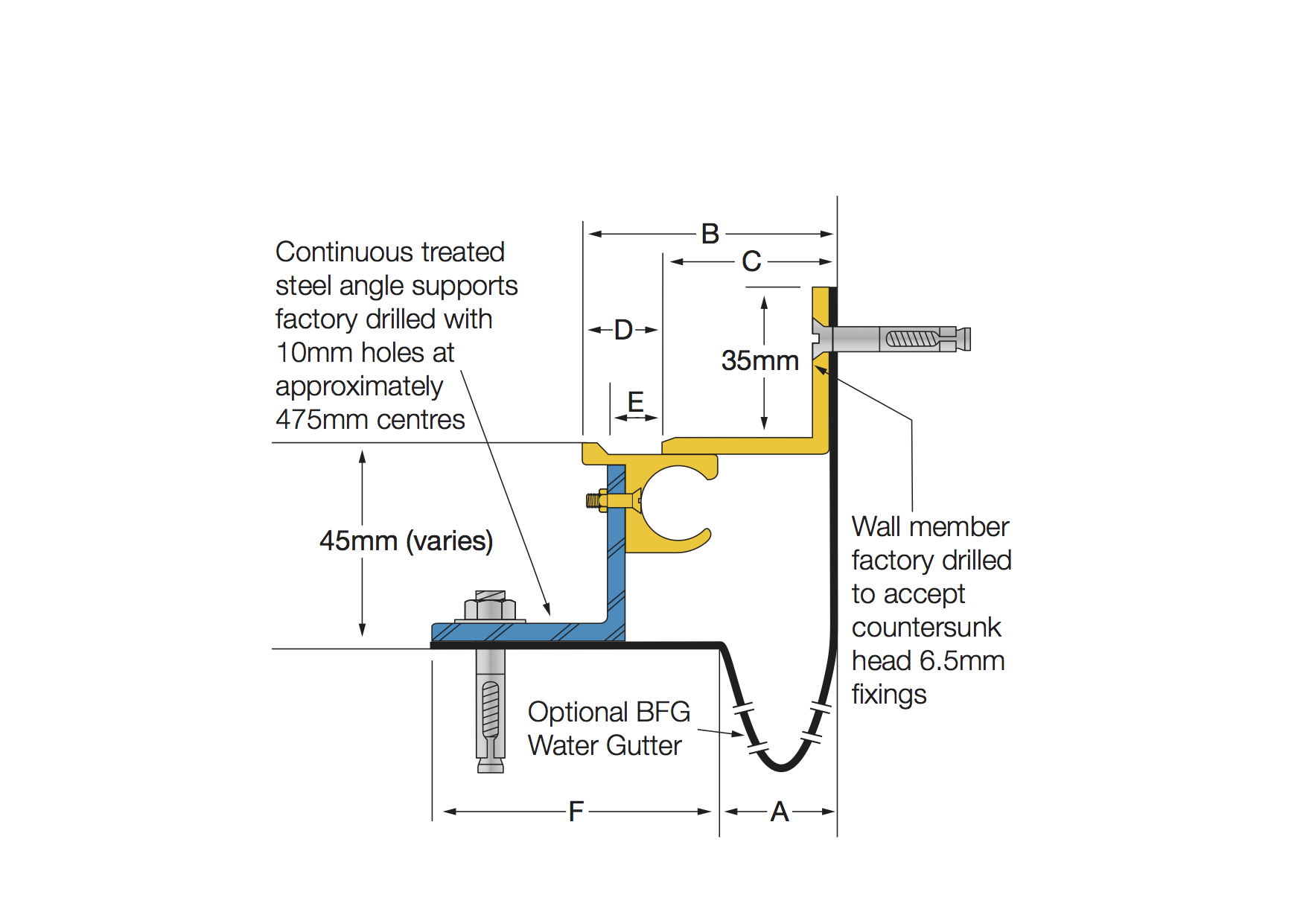

The Latham Brass Ultimate Series Standard 25mm deep floor-to-wall expansion joint covers are constructed of solid brass. The series has a depth below the finished floor height of 25mm. The series can be set into a preformed recess with BM-16 Block-Out Anchors (supplied unless otherwise noted), in conjunction with mechanical fixings, or cast-in to the slab when it is poured, with BS-6 Cast-In Anchors.
The Latham Brass Ultimate Series Standard floor-to-wall expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres and airports etc. These joint covers can be used in conjunction with many floor finishes such as concrete topping, terrazzo, tile, timber, concrete, vinyl, direct stick carpet and carpet tiles, epoxy floors etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product detail sheets - PDF
Download our section details - CAD
| Brass Code Smooth Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. | |||||||||||
| SAB-25 (SSSM▲) | 25 | 87 | 50 | 18 | 12 | ● | +/-15mm | 30mm | 45mm | 3mm | |
| SAB-50 (SSSM▲) | 50 | 113 | 75 | 18 | 12 | ● | +15/-25mm | 40mm | 45mm | 3mm | |
| SAB-51 (SSSM▲) | 50 | 163 | 100 | 30 | 25 | ● | +/-40mm | 80mm | 55mm | 3mm | |
| SAB-75 (SSSM▲) | 75 | 189 | 125 | 30 | 25 | ● | +40/-50mm | 90mm | 55mm | 3mm | |
| SAB-100 (SSSM▲) | 100 | 214 | 150 | 30 | 25 | ● | +40/-50mm | 90mm | 55mm | 5mm | |
| SAB-150 (SSSM▲) | 150 | 264 | 200 | 30 | 25 | ● | +40/-50mm | 90mm | 55mm | 5mm | |
▲ Specify required depth i.e. SAB-25 (SSSM 45) as drawn. Available depths: 45mm, 55mm, 70mm, 80mm, 95mm, 105mm, 130mm & 155mm
● “F” distance subject to required depth

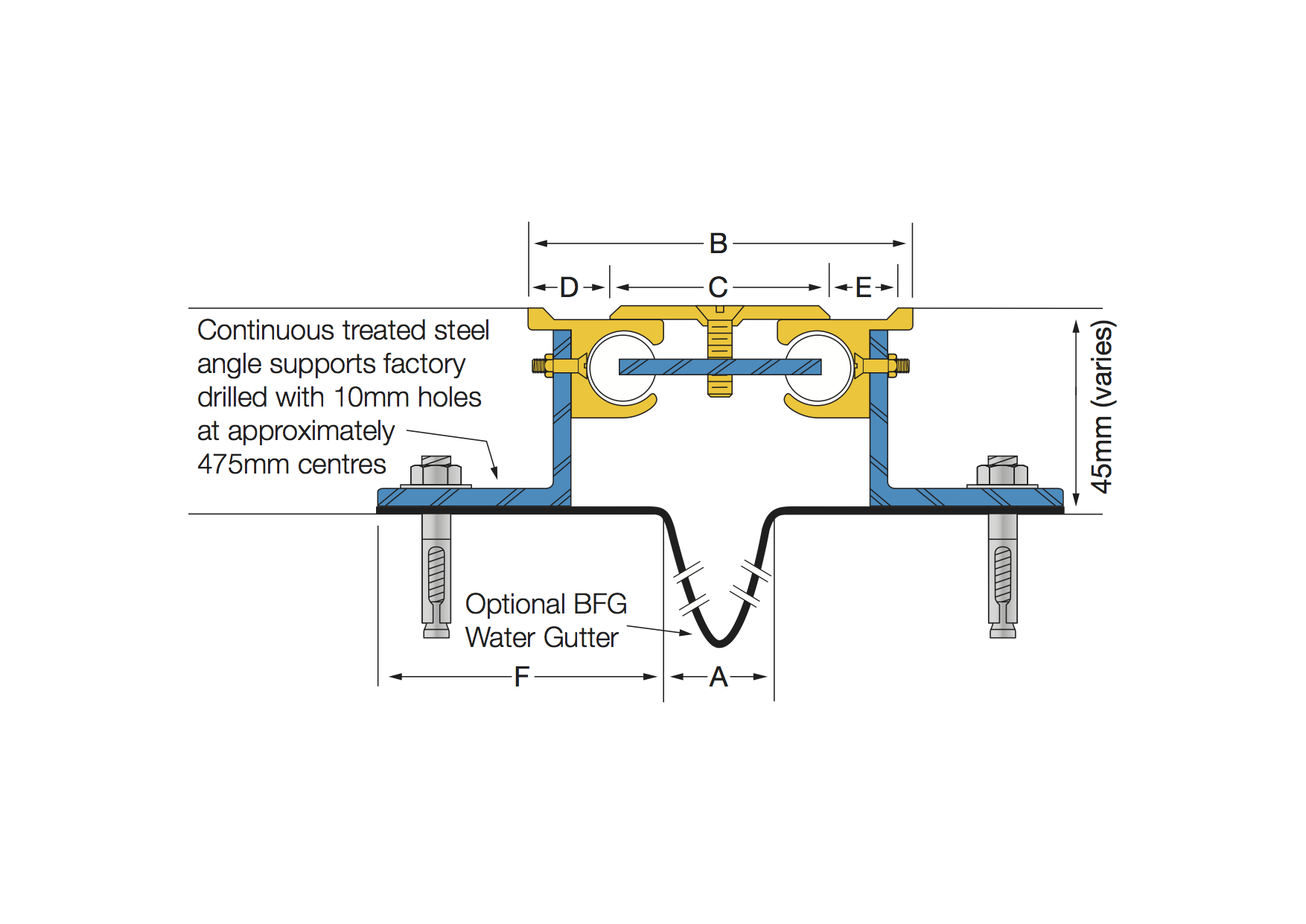

The Latham Brass Ultimate Series (SSSM▲) has the solid brass expansion joint cover installed on a continuous treated steel support and as such we can offer a full range of the versatile SAB and SLB Series in non standard depths for floor and floor-to-wall expansion applications. This series can carry a BFG water gutter if required. The series has a variable depth below the finished floor height of 45mm, 55mm, 70mm, 80mm, 95mm, 105mm, 130mm and 155mm. Unless otherwise specified the 25 and 50 Series will have a standard depth of 45mm, whilst the 51 Series and above with have a standard depth of 55mm. Alternatively (▲) specify depth (custom heights available on request).
The series is designed to be installed in paver type applications, with generally an extremely thick paver or a deep bed, although it is suitable for installations with other floor finishes as well. When the installation structural joint width exceeds 50mm the Series can accommodate the Latham Fire Barrier system. The systems offer various movement in 6 directions. The movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product detail sheets - PDF
Download our section details - CAD
| Brass Code Smooth Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. | |||||||||||
| SLB-25 (SSSM▲) | 25 | 56 | 38 | 18 | 12 | ● | +/-12mm | 24mm | 45mm | 3mm | |
| SLB-50 (SSSM▲) | 50 | 82 | 64 | 18 | 12 | ● | +/-12mm | 24mm | 45mm | 3mm | |
| SLB-51 (SSSM▲) | 50 | 105 | 75 | 30 | 25 | ● | +/-25mm | 50mm | 55mm | 3mm | |
| SLB-75 (SSSM▲) | 75 | 130 | 100 | 30 | 25 | ● | +/-25mm | 50mm | 55mm | 3mm | |
| SLB-100 (SSSM▲) | 100 | 155 | 125 | 30 | 25 | ● | +/-25mm | 50mm | 55mm | 5mm | |
| SLB-150 (SSSM▲) | 150 | 205 | 175 | 30 | 25 | ● | +/-25mm | 50mm | 55mm | 5mm | |
▲ Specify required depth i.e. SLB-25 (SSSM 45) as drawn. Available depths: 45mm, 55mm, 70mm, 80mm, 95mm, 105mm, 130mm & 155mm
● “F” distance subject to required depth
The Latham Brass Ultimate Series (SSSM▲) has the solid brass expansion joint cover installed on a continuous treated steel support and as such we can offer a full range of the versatile SAB and SLB Series in non standard depths for floor and floor-to-wall expansion applications. This series can carry a BFG water gutter if required. The series has a variable depth below the finished floor height of 45mm, 55mm, 70mm, 80mm, 95mm, 105mm, 130mm and 155mm. Unless otherwise specified the 25 and 50 Series will have a standard depth of 45mm, whilst the 51 Series and above with have a standard depth of 55mm. Alternatively (▲) specify depth (custom heights available on request).
The series is designed to be installed in paver type applications, with generally an extremely thick paver or a deep bed, although it is suitable for installations with other floor finishes as well. When the installation structural joint width exceeds 50mm the Series can accommodate the Latham Fire Barrier system. The systems offer various movement in 6 directions. The movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product detail sheets - PDF
Download our section details - CAD
.svg "Logo (2)")
