The Latham Surface Line Series of expansion joint covers are specifically designed for applications where recesses are not possible either through the design of the building, the substrate material or where recesses have been overlooked. The mechanical systems in the range allow 6 way movement, whilst the surface fixed products generally cover 2 directional movement. The systems offer thermal and structural movement and shrinkage and will accommodate limited seismic movement. Systems are available in Stainless Steel, Aluminium, Brass and various shallow cover plate inserts, to complement most facets of architectural design, whilst incorporating the required movement element. Surface-Line Series Floor and Floor-to-Wall Expansion Joint Covers should be considered with Wall-Line Series wall and ceiling expansion joint covers..
Product Specifications How to Specify Guide
Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | G | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium and stainless steel cover plate thicknesses may vary, see the detailed drawing at the links below for exact detail & cover thickness. | |||||||||||||
GXS-25 | GXA-25 | 25 | 201 | 75 | 72 | 45 | 15 | 18 | +25/-15mm | 40mm | Surface Mounted | 3mm* | |
GXS-50 | GXA-50 | 50 | 226 | 100 | 72 | 45 | 15 | 18 | +/-25mm | 50mm | Surface Mounted | 3mm* | |
GXS-75 | GXA-75 | 75 | 251 | 125 | 72 | 45 | 15 | 18 | +/-25mm | 50mm | Surface Mounted | 3mm* | |
GXS-100 | GXA-100 | 100 | 276 | 150 | 72 | 45 | 15 | 18 | +/-25mm | 50mm | Surface Mounted | 3mm* | |
GXS-150 | 150 | 326 | 200 | 72 | 45 | 15 | 18 | +/-25mm | 50mm | Surface Mounted | 4mm* |
Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | G | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. Aluminium & stainless steel cover thickness may vary, see the detailed drawing at the links below for the exact detail & cover thickness. | |||||||||||||
GXS-25 | GXA-25 | 25 | 201 | 75 | 70 | 45 | 15 | 18 | +25/-15mm | 40mm | Surface Mounted | 3mm | |
GXS-50 | GXA-50 | 50 | 226 | 100 | 70 | 45 | 15 | 18 | +/-25mm | 50mm | Surface Mounted | 3mm | |
GXS-75 | GXA-75 | 75 | 251 | 125 | 70 | 45 | 15 | 18 | +/-25mm | 50mm | Surface Mounted | 3mm | |
GXS-100 | GXA-100 | 100 | 276 | 150 | 70 | 45 | 15 | 18 | +/-25mm | 50mm | Surface Mounted | 3mm | |
GXS-150 | GXA-150 | 150 | 326 | 200 | 70 | 45 | 15 | 18 | +/-25mm | 50mm | Surface Mounted | 4mm |

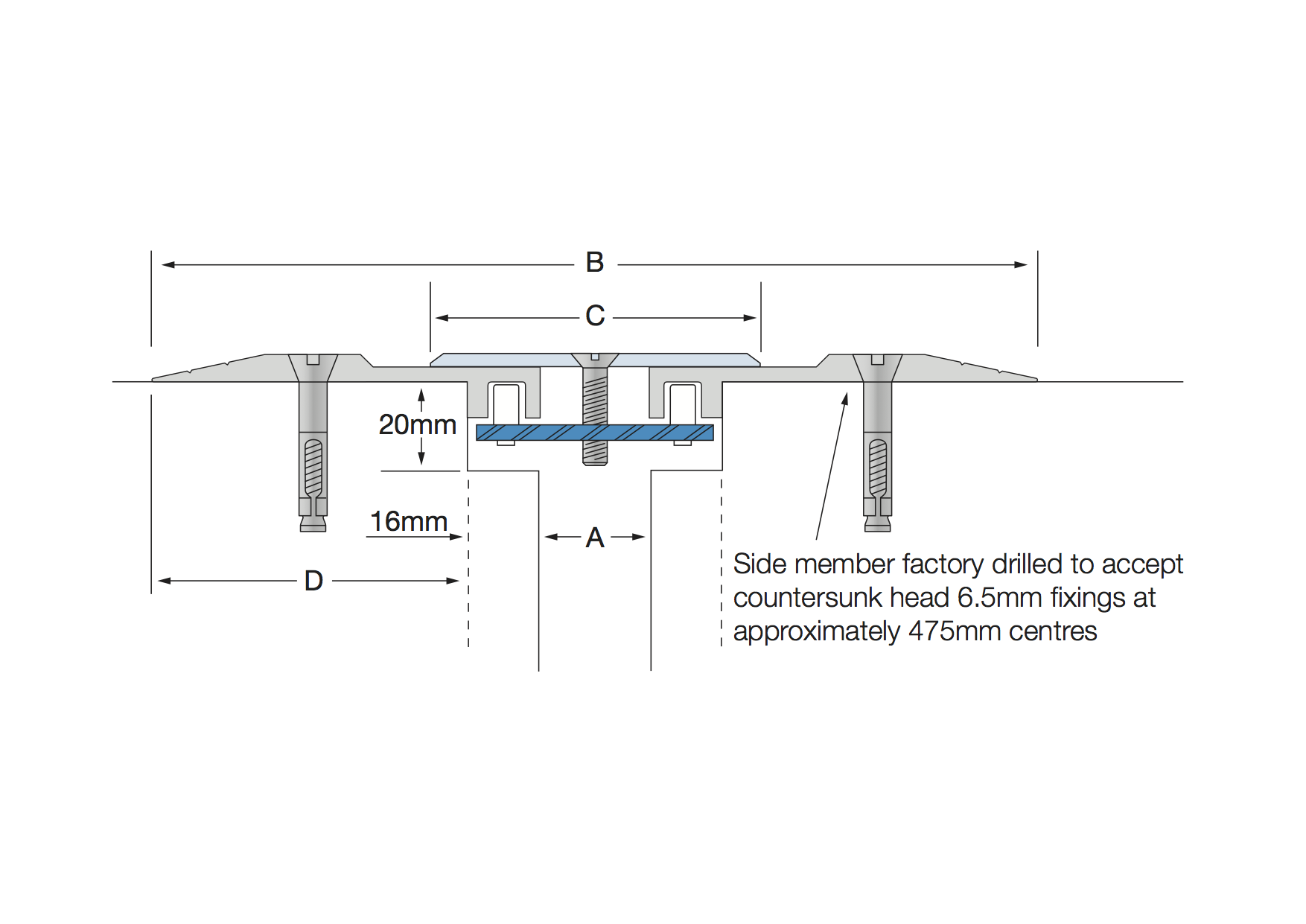

The Latham GXS and GXA Surface-Line Series floor expansion joint covers are available with stainless steel and aluminium cover plates. The series is designed to be installed into a minimal recess, or providing the joint width is 62mm or larger, the system can simply hang over the edge of the slabs and no recess is required, making it ideal for existing or new to existing applications as well as installation on non standard substrates like steel and glass.
These systems are designed to be purely surface mounted. The tapered edge on the side extrusions means that the systems will limit the height difference as pedestrian and small trolleys like shopping carts pass over the joints. When the expansion joint width is 50mm or wider the series can accommodate the Latham Fire Barrier System. During installation, we recommend that these expansion joint covers are fixed mechanically in place with fixings suitable for the application. The use of Latham Titazel Thixotropic Adhesive should also be considered.
The Latham Surface-Line Series floor expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, hospitals etc. The systems offer various movements in 6 directions. The movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | G | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium and stainless steel cover plate thicknesses may vary, see the detailed drawing at the links below for exact detail & cover thickness. | |||||||||||||
GXSL-25 | GXAL-25 | 25 | 113 | 50 | 72 | 45 | 15 | 18 | +20/-15mm | 35mm | Surface Mounted | 3mm* | |
GXSL-50 | GXAL-50 | 50 | 136 | 75 | 72 | 45 | 15 | 18 | +20/-15mm | 35mm | Surface Mounted | 3mm* | |
GXSL-75 | GXAL-75 | 75 | 163 | 100 | 72 | 45 | 15 | 18 | +20/-15mm | 35mm | Surface Mounted | 3mm* | |
GXSL-100 | GXAL-100 | 100 | 188 | 125 | 72 | 45 | 15 | 18 | +20/-15mm | 35mm | Surface Mounted | 3mm* | |
GXSL-150 | 150 | 238 | 175 | 72 | 45 | 15 | 18 | +20/-15mm | 35mm | Surface Mounted | 4mm* |
Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | G | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. Aluminium & stainless steel cover thickness may vary, see the detailed drawing at the links below for the exact detail & cover thickness. | |||||||||||||
GXSL-25 | GXAL-25 | 25 | 113 | 50 | 72 | 45 | 15 | 18 | +20/-15mm | 35mm | Surface Mounted | 3mm | |
GXSL-50 | GXAL-50 | 50 | 136 | 75 | 72 | 45 | 15 | 18 | +20/-15mm | 35mm | Surface Mounted | 3mm | |
GXSL-75 | GXAL-75 | 75 | 163 | 100 | 72 | 45 | 15 | 18 | +20/-15mm | 35mm | Surface Mounted | 3mm | |
GXSL-100 | GXAL-100 | 100 | 188 | 125 | 72 | 45 | 15 | 18 | +20/-15mm | 35mm | Surface Mounted | 3mm | |
GXSL-150 | GXAL-150 | 150 | 238 | 175 | 72 | 45 | 15 | 18 | +20/-15mm | 35mm | Surface Mounted | 4mm |

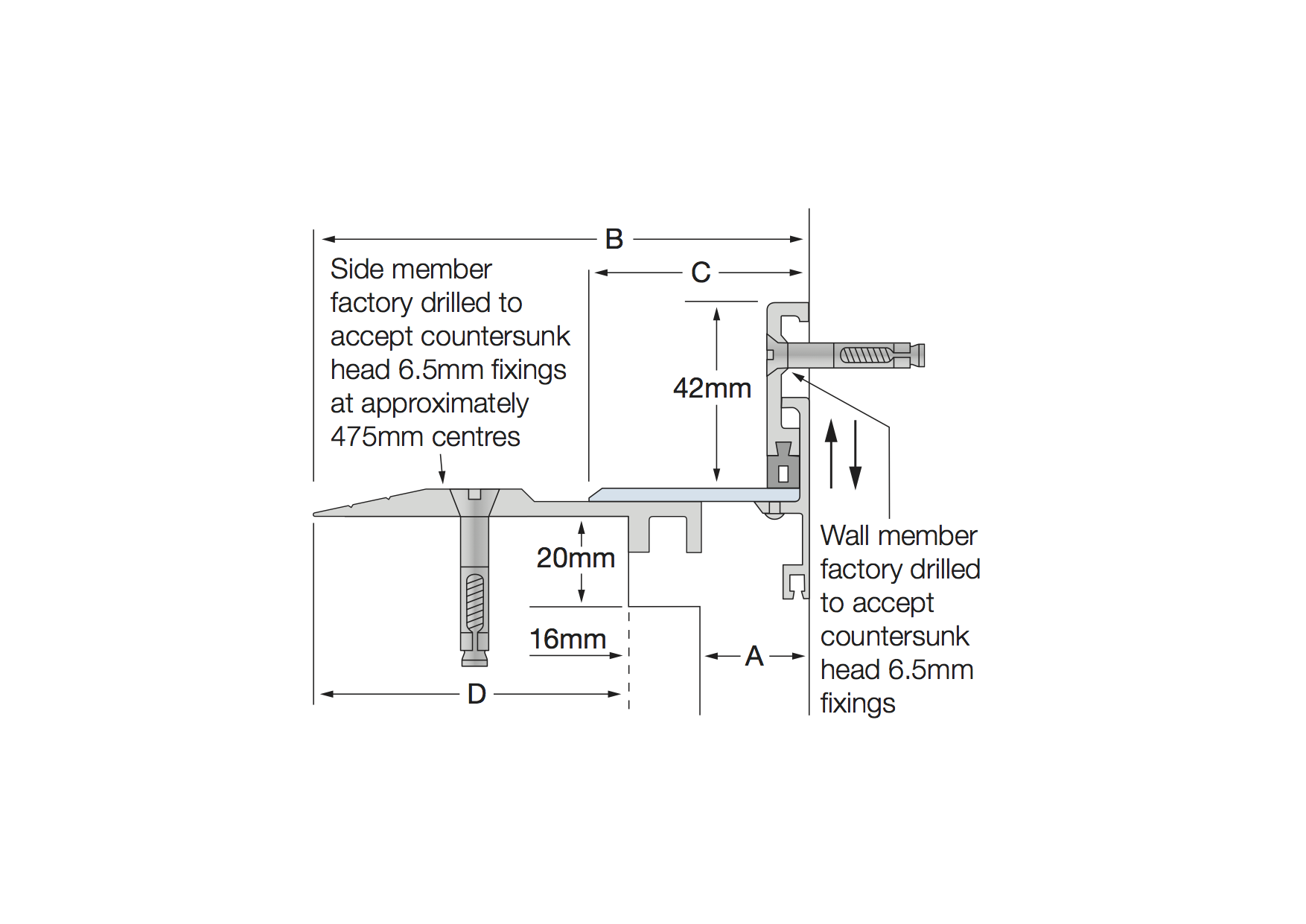

The Latham GXSL and GXAL Surface-Line Series floor-to-wall expansion joint covers are available with stainless steel and aluminium cover plates. The series is designed to be installed into a minimal recess, or providing the joint width is 62mm or larger, the system can simply hang over the edge of the slabs and no recess is required, making it ideal for existing or new to existing applications as well as installation on non standard substrates like steel and glass.
These systems are designed to be purely surface mounted. The tapered edge on the side extrusions means that the systems will limit the height difference as pedestrian and small trolleys like shopping carts pass over the joints. When the expansion joint width is 50mm or wider the series can accommodate the Latham Fire Barrier System. During installation, we recommend that these expansion joint covers are fixed mechanically in place with fixings suitable for the application. The use of Latham Titazel Thixotropic Adhesive should also be considered.
The Latham Surface-Line Series floor-to-wall expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, hospitals etc. The systems offer various movements in 6 directions. The movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others. *Aluminium and stainless steel cover plate thicknesses may vary, see the detailed drawing at the links below for exact details of the cover thickness. | ||||||||||||
FXS-25 | FXA-25 | 25 | 146 | 75 | 46 | 20 | 18 | +25/-15mm | 40mm | Surface Mounted | 3mm* | |
FXS-50 | FXA-50 | 50 | 171 | 100 | 46 | 20 | 18 | +/-25mm | 50mm | Surface Mounted | 3mm* | |
FXS-75 | FXA-75 | 75 | 196 | 125 | 46 | 20 | 18 | +/-25mm | 50mm | Surface Mounted | 3mm* | |
FXS-100 | FXA-100 | 100 | 221 | 150 | 46 | 20 | 18 | +/-25mm | 50mm | Surface Mounted | 3mm* | |
FXS-150 | 150 | 271 | 200 | 46 | 20 | 18 | +/-25mm | 50mm | Surface Mounted | 3mm* |
Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others. | ||||||||||||
FXS-25 | FXA-25 | 25 | 146 | 75 | 49 | 20 | 18 | +25/-15mm | 40mm | Surface Mounted | 3mm | |
FXS-50 | FXA-50 | 50 | 171 | 100 | 49 | 20 | 18 | +/-25mm | 50mm | Surface Mounted | 3mm | |
FXS-75 | FXA-75 | 75 | 196 | 125 | 49 | 20 | 18 | +/-25mm | 50mm | Surface Mounted | 3mm | |
FXS-100 | FXA-100 | 100 | 221 | 150 | 49 | 20 | 18 | +/-25mm | 50mm | Surface Mounted | 3mm | |
FXS-150 | FXA-150 | 150 | 271 | 200 | 49 | 20 | 18 | +/-25mm | 50mm | Surface Mounted | 3mm |

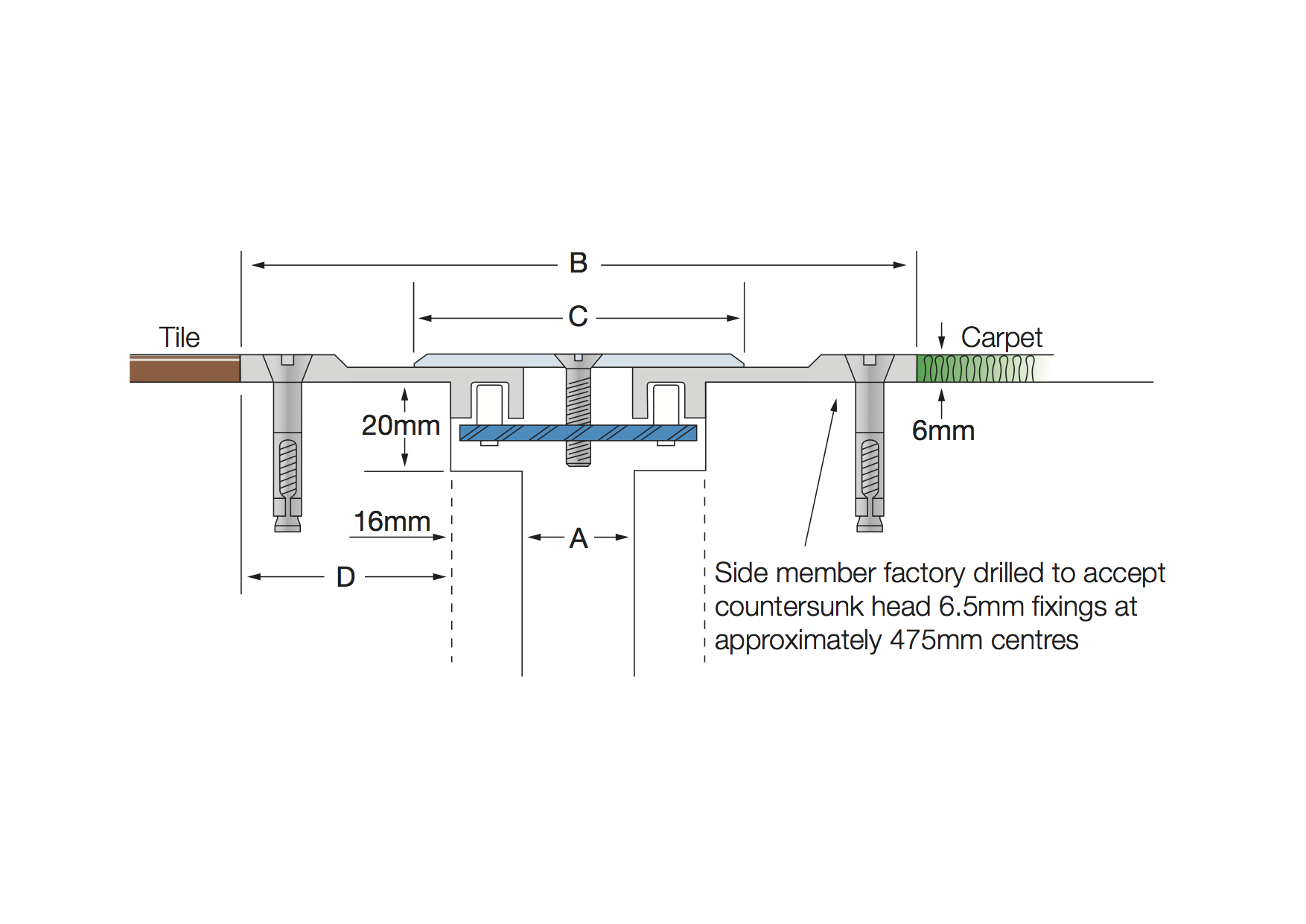

The Latham FXS and FXA Surface-Line Series floor expansion joint covers are available with stainless steel and aluminium cover plates. The series is designed to be installed into a minimal recess, or providing the joint width is 62mm or larger, the system can simply hang over the edge of the slabs and no recess is required, making it ideal for existing or new to existing applications as well as installation on non standard substrates like steel and glass.
These systems are designed to finish flush with the surrounding floor finish. The system can be suitably packed up to height if required. When the expansion joint width is 50mm or wider, the series can accommodate the Latham Fire Barrier System.During installation, we recommend that these expansion joint covers are fixed mechanically in place with fixings suitable for the application. The use of Latham Titazel Thixotropic Adhesive should also be considered.
The Latham Surface-Line Series floor expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, hospitals etc. These joint covers can be used in conjunction with many floor finishes, such as tile, timber, concrete, vinyl, adhesive backed carpet tiles, epoxy floors etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others. *Aluminium and stainless steel cover plate thicknesses may vary, see the detailed drawing at the links below for exact details of the cover thickness. | ||||||||||||
FXSL-25 | FXAL-25 | 25 | 87 | 50 | 46 | 20 | 18 | +20/-15mm | 35mm | Surface Mounted | 3mm* | |
FXSL-50 | FXAL-50 | 50 | 112 | 75 | 46 | 20 | 18 | +20/-15mm | 35mm | Surface Mounted | 3mm* | |
FXSL-75 | FXAL-75 | 75 | 137 | 100 | 46 | 20 | 18 | +20/-15mm | 35mm | Surface Mounted | 3mm* | |
FXSL-100 | FXAL-100 | 100 | 162 | 125 | 46 | 20 | 18 | +20/-15mm | 35mm | Surface Mounted | 3mm* | |
FXSL-150 | 150 | 212 | 175 | 46 | 20 | 18 | +20/-15mm | 35mm | Surface Mounted | 3mm* |
Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others. | ||||||||||||
FXSL-25 | FXAL-25 | 25 | 87 | 50 | 49 | 20 | 18 | +20/-15mm | 35mm | Surface Mounted | 3mm | |
FXSL-50 | FXAL-50 | 50 | 112 | 75 | 49 | 20 | 18 | +20/-15mm | 35mm | Surface Mounted | 3mm | |
FXSL-75 | FXAL-75 | 75 | 137 | 100 | 49 | 20 | 18 | +20/-15mm | 35mm | Surface Mounted | 3mm | |
FXSL-100 | FXAL-100 | 100 | 162 | 125 | 49 | 20 | 18 | +20/-15mm | 35mm | Surface Mounted | 3mm | |
FXSL-150 | FXAL-150 | 150 | 212 | 175 | 49 | 20 | 18 | +20/-15mm | 35mm | Surface Mounted | 3mm |

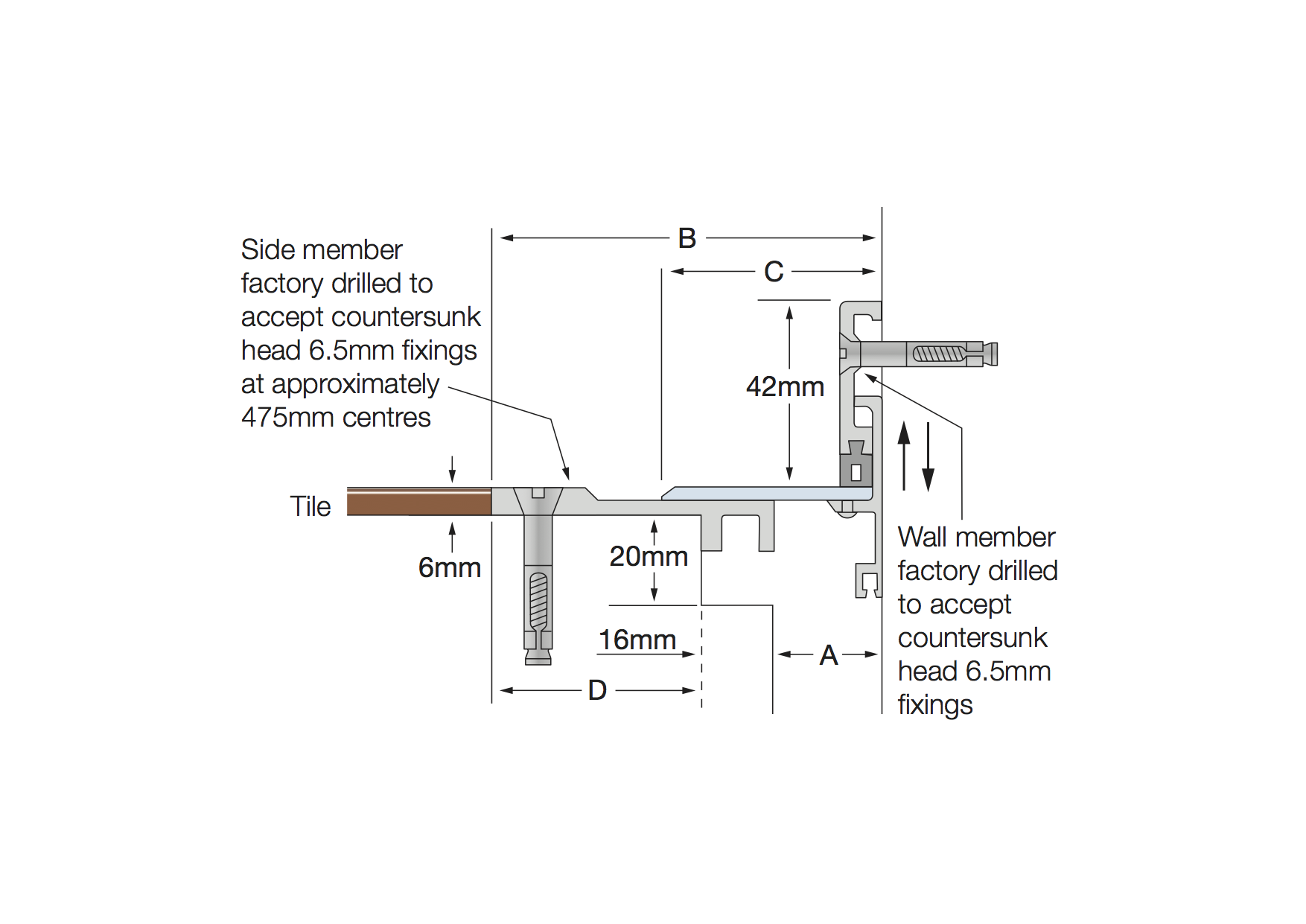

The Latham FXSL and FXAL Surface-Line Series floor-to-wall expansion joint covers are available with stainless steel and aluminium cover plates. The series is designed to be installed into a minimal recess, or providing the joint width is 62mm or larger, the system can simply hang over the edge of the slabs and no recess is required, making it ideal for existing or new to existing applications as well as installation on non standard substrates like steel and glass.
These systems are designed to finish flush with the surrounding floor finish. The system can be suitably packed up to height if required. When the expansion joint width is 50mm or wider, the series can accommodate the Latham Fire Barrier System. During installation, we recommend that these expansion joint covers are fixed mechanically in place with fixings suitable for the application. The use of Latham Titazel Thixotropic Adhesive should also be considered.
The Latham Surface-Line Series floor-to-wall expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, hospitals etc. These joint covers can be used in conjunction with many floor finishes, such as tile, timber, concrete, vinyl, adhesive backed carpet tiles, epoxy floors etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CADStainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | Brass Code Smooth Deck | A | B | C | D | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|
Larger movement capabilities & joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium, brass and stainless steel cover thicknesses may vary, see the detailed drawing at the links below for exact details of the cover thickness. | |||||||||||
EXS-25 | EXA-25 | EXB-25 | 25 | 155 | 75 | 49 | +25/-15mm | 40mm | Surface Mounted | 3mm* | |
EXS-50 | EXA-50 | EXB-50 | 50 | 180 | 100 | 49 | +/-25mm | 50mm | Surface Mounted | 3mm* | |
EXS-75 | EXA-75 | EXB-75 | 75 | 205 | 125 | 49 | +/-25mm | 50mm | Surface Mounted | 3mm* | |
EXS-100 | EXA-100 | EXB-100 | 100 | 230 | 150 | 49 | +/-25mm | 50mm | Surface Mounted | 3mm* | |
EXS-150 | EXB-150 | 150 | 280 | 200 | 49 | +/-25mm | 50mm | Surface Mounted | 4mm* |
Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | Brass Code Smooth Deck | A | B | C | D | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|
Larger movement capabilities & joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. Aluminium, brass & stainless steel cover thickness may vary, see the detailed drawing at the links below for the exact detail & cover thickness. | |||||||||||
EXS-25 | EXA-25 | EXB-25 | 25 | 155 | 75 | 49 | +25/-15mm | 40mm | Surface Mounted | 3mm | |
EXS-50 | EXA-50 | EXB-50 | 50 | 180 | 100 | 49 | +/-25mm | 50mm | Surface Mounted | 3mm | |
EXS-75 | EXA-75 | EXB-75 | 75 | 205 | 125 | 49 | +/-25mm | 50mm | Surface Mounted | 3mm | |
EXS-100 | EXA-100 | EXB-100 | 100 | 235 | 150 | 49 | +/-25mm | 50mm | Surface Mounted | 3mm | |
EXS-150 | EXA-150 | EXB-150 | 150 | 335 | 200 | 49 | +/-25mm | 50mm | Surface Mounted | 4mm |

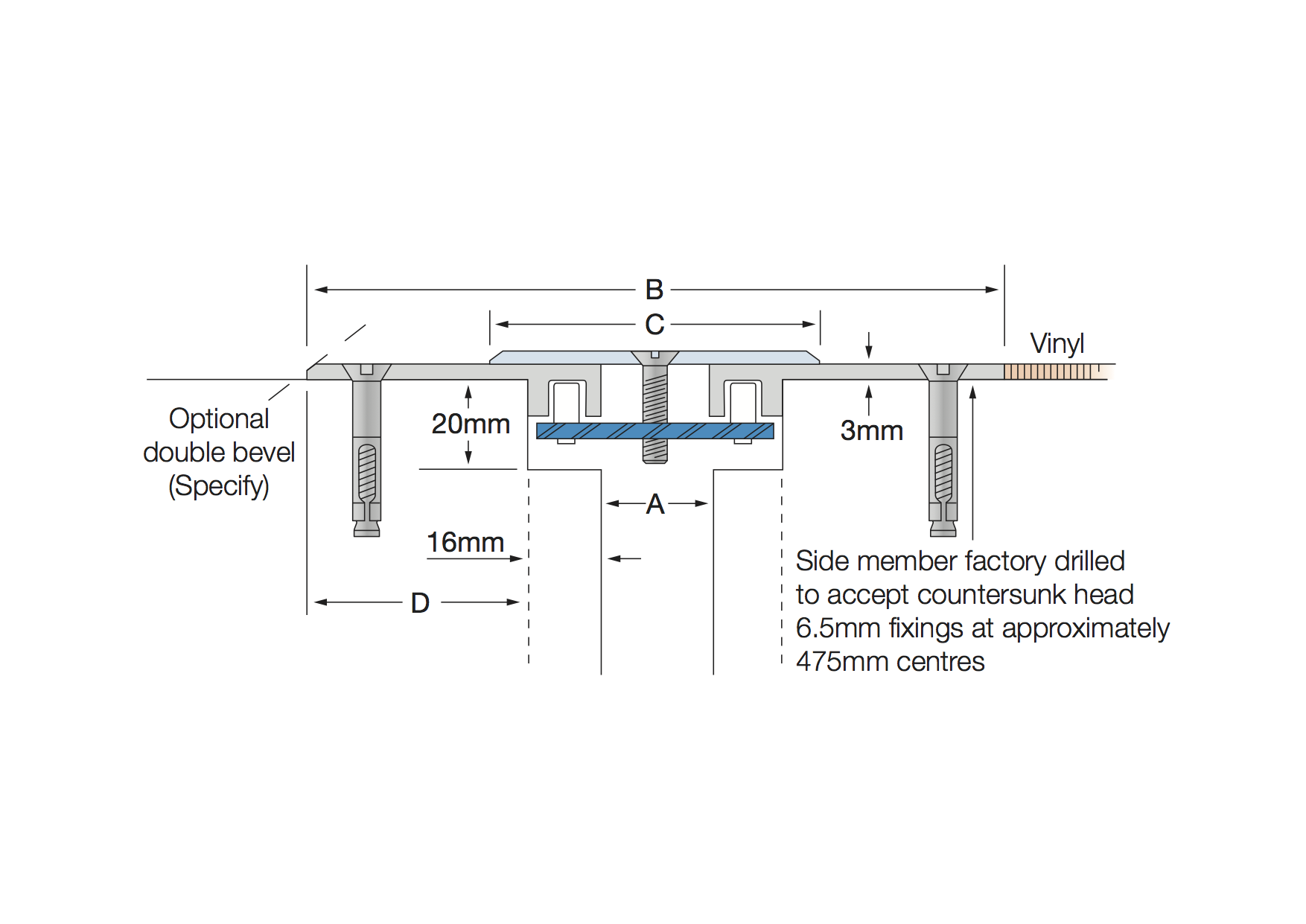

The Latham EXS, EXA and EXB Surface-Line Series floor expansion joint covers are available with stainless steel, aluminium and brass cover plates (best suited to carpet applications where the side members can not be seen).
The series is designed to be installed into a minimal recess, or providing the joint width is 62mm or larger, the system can simply hang over the edge of the slabs and no recess is required. This makes it ideal for existing or new to existing applications, as well as installation on non standard substrates like steel and glass. When the expansion joint width is 50mm or wider the series can accommodate the Latham Fire Barrier System.
During installation we recommend that these expansion joint covers are fixed mechanically in place with suitable fixings for the application, and the use of Latham Titazel Thixotropic Adhesive should also be considered.
The Latham Surface-Line Series Standard floor expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers and hospitals etc. These joint covers can be used in conjunction with many floor finishes, such as tile, timber, concrete, vinyl, adhesive backed carpet tiles and epoxy floors etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CADStainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | Brass Code Smooth Deck | A | B | C | D | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|
Larger movement capabilities & joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium, brass and stainless steel cover plate thicknesses may vary, see the detailed drawing at the links below for the exact details of the cover thickness. | |||||||||||
EXSL-25 | EXAL-25 | EXBL-25 | 25 | 90 | 50 | 49 | +/-20mm | 40mm | Surface Mounted | 3mm* | |
EXSL-50 | EXAL-50 | EXBL-50 | 50 | 115 | 75 | 49 | +/-20mm | 40mm | Surface Mounted | 3mm* | |
EXSL-75 | EXAL-75 | EXBL-75 | 75 | 140 | 100 | 49 | +/-20mm | 40mm | Surface Mounted | 3mm* | |
EXSL-100 | EXAL-100 | EXBL-100 | 100 | 165 | 125 | 49 | +/-20mm | 40mm | Surface Mounted | 3mm* | |
EXSL-150 | EXBL-150 | 150 | 215 | 175 | 49 | +/-20mm | 40mm | Surface Mounted | 4mm* |
Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | Brass Code Smooth Deck | A | B | C | D | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|
Larger movement capabilities & joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. Aluminium, brass & stainless steel cover thickness may vary, see the detailed drawing at the links below for the exact detail & cover thickness. | |||||||||||
EXSL-25 | EXAL-25 | EXBL-25 | 25 | 90 | 50 | 49 | +/-20mm | 40mm | Surface Mounted | 3mm | |
EXSL-50 | EXAL-50 | EXBL-50 | 50 | 115 | 75 | 49 | +/-20mm | 50mm | Surface Mounted | 3mm | |
EXSL-75 | EXAL-75 | EXBL-75 | 75 | 140 | 100 | 49 | +/-20mm | 50mm | Surface Mounted | 3mm | |
EXSL-100 | EXAL-100 | EXBL-100 | 100 | 165 | 125 | 49 | +/-20mm | 50mm | Surface Mounted | 3mm | |
EXSL-150 | EXAL-150 | EXBL-150 | 150 | 215 | 175 | 49 | +/-20mm | 50mm | Surface Mounted | 4mm |

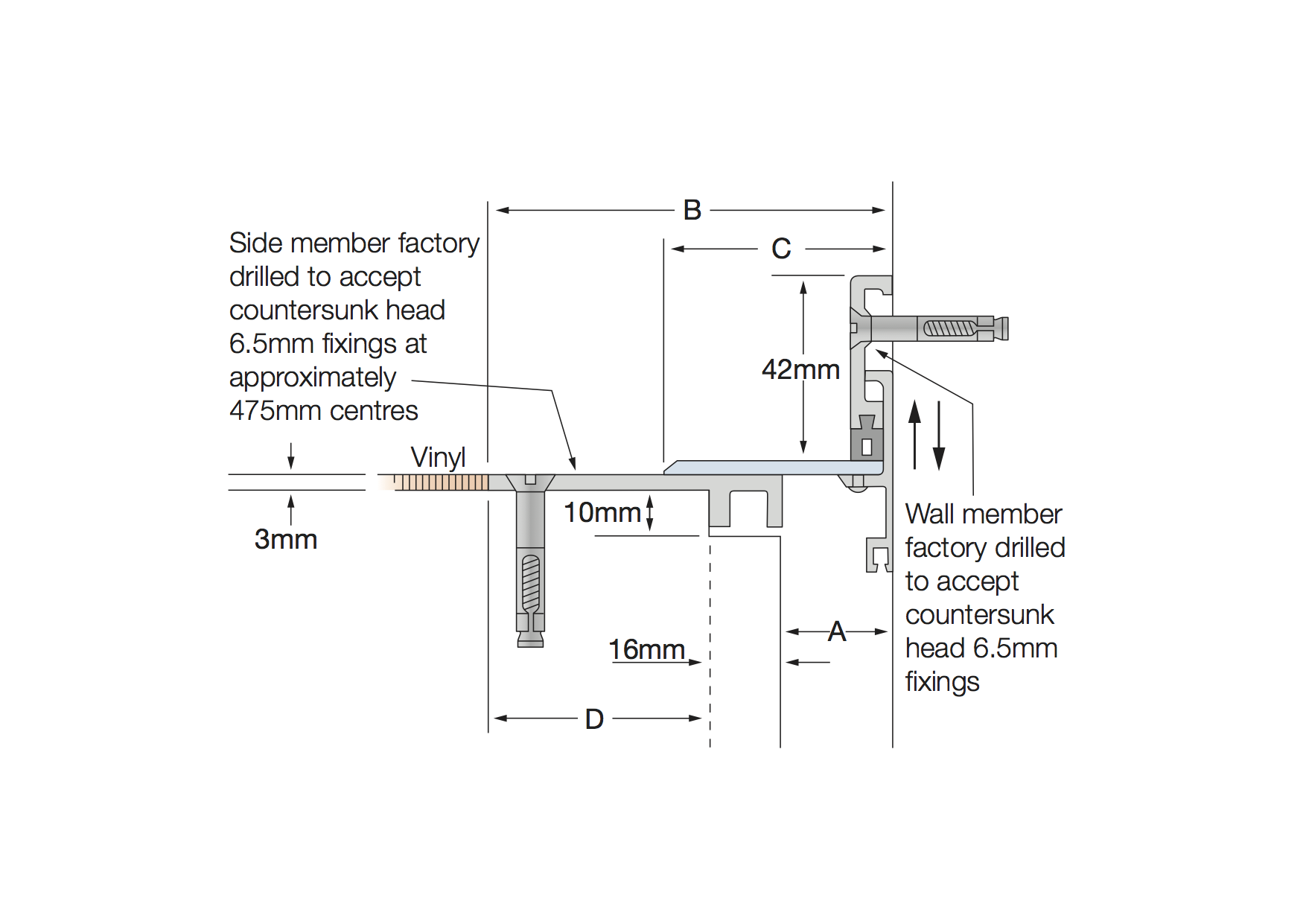

The Latham EXSL, EXAL and EXBL Surface-Line Series floor-to-wall expansion joint covers are available with stainless steel, aluminium and brass cover plates (best suited to carpet applications where the side members can not be seen).
The series is designed to be installed into a minimal recess, or providing the joint width is 62mm or larger, the system can simply hang over the edge of the slabs and no recess is required. This makes it ideal for existing or new to existing applications, as well as installation on non standard substrates like steel and glass. When the expansion joint width is 50mm or wider the series can accommodate the Latham Fire Barrier System.
During installation we recommend that these expansion joint covers are fixed mechanically in place with suitable fixings for the application, and the use of Latham Titazel Thixotropic Adhesive should also be considered.
The Latham Surface-Line Series Standard floor-to-wall expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers and hospitals etc. These joint covers can be used in conjunction with many floor finishes, such as tile, timber, concrete, vinyl, adhesive backed carpet tiles and epoxy floors etc. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Enquire About This ProductAluminium Code | A | B | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|
All measurements in millimetres. All mechanical expansion joint fixings by others. | ||||||
ABS-10 | 12 | 133 | +/-12mm | 24mm | Surface Mounted 4.5mm |
Stainless Steel Code Smooth Deck | Aluminium Code Ribbed Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. Aluminium & stainless steel cover thickness may vary, see the detailed drawing at the links below for the exact detail & cover thickness. | ||||||||||||
CS-25 | CA-25 | 25 | 86 | 50 | 18 | 12 | 82 | +20/-15mm | 35mm | 33mm | 3mm | |
CS-50 | CA-50 | 50 | 111 | 75 | 18 | 12 | 82 | +20/-25mm | 45mm | 33mm | 3mm | |
CS-35 | CA-35 | 35 | 125 | 75 | 25 | 20 | 82 | +35/-25mm | 60mm | 33mm | 3mm | |
CS-60 | CA-60 | 60 | 150 | 100 | 25 | 20 | 82 | +/-35mm | 70mm | 33mm | 3mm | |
CS-75 | CA-75 | 75 | 165 | 115 | 25 | 20 | 82 | +/-35mm | 70mm | 33mm | 3mm | |
CS-85 | CA-85 | 85 | 175 | 125 | 25 | 20 | 82 | +/-35mm | 70mm | 33mm | 4mm | |
CS-100 | CA-100 | 100 | 190 | 140 | 25 | 20 | 82 | +/-35mm | 70mm | 33mm | 4mm | |
CS-135 | CA-135 | 135 | 225 | 175 | 25 | 20 | 82 | +/-35mm | 70mm | 33mm | 5mm |
The Latham Surface-Line Series ABS-10 is a aluminium expansion joint detail designed for installation in conjunction with vinyl flooring, in areas where limited horizontal movement is expected. The material is supplied pre-drilled and during installation we recommend that these expansion joint covers are fixed mechanically in place with fixings suitable for the application. The use of Latham Titazel Thixotropic Adhesive should also be considered.
The Latham Surface-Line Series floor-to-wall expansion joint covers are designed for light duty pedestrian applications such as office buildings, and super markets. They are generally used in slab on ground construction.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Aluminium Code | A | B | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|
All measurements in millimetres. All mechanical expansion joint fixings by others. | ||||||
ABSL-10 | 12 | 65 | +/-12mm | 24mm | Surface Mounted 4.5mm |
Brass Code Smooth Deck | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|
Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. Aluminium & stainless steel cover thickness may vary, see the detailed drawing at the links below for the exact detail & cover thickness. | |||||||||||
SLB-25 (SSSM▲) | 25 | 56 | 38 | 18 | 12 | ● | +/-12mm | 24mm | 45mm | 3mm | |
SLB-50 (SSSM▲) | 50 | 82 | 64 | 18 | 12 | ● | +/-12mm | 24mm | 45mm | 3mm | |
SLB-51 (SSSM▲) | 50 | 105 | 75 | 30 | 25 | ● | +/-25mm | 50mm | 55mm | 3mm | |
SLB-75 (SSSM▲) | 75 | 130 | 100 | 30 | 25 | ● | +/-25mm | 50mm | 55mm | 3mm | |
SLB-100 (SSSM▲) | 100 | 155 | 125 | 30 | 25 | ● | +/-25mm | 50mm | 55mm | 5mm | |
SLB-150 (SSSM▲) | 150 | 205 | 175 | 30 | 25 | ● | +/-25mm | 50mm | 55mm | 5mm |
The Latham Surface-Line Series ABSL-10 is a aluminium expansion joint detail designed for installation in conjunction with vinyl flooring, in areas where limited horizontal movement is expected. The material is supplied pre-drilled and during installation we recommend that these expansion joint covers are fixed mechanically in place with fixings suitable for the application. The use of Latham Titazel Thixotropic Adhesive should also be considered.
The Latham Surface-Line Series floor-to-wall expansion joint covers are designed for light duty pedestrian applications such as office buildings, and super markets. They are generally used in slab on ground construction.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Solid Brass Code | A | B | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|
All measurements in millimetres. All mechanical expansion joint fixings by others. | ||||||
BS-10 | 12 | 133 | +/-12mm | 24mm | Surface Mounted 4mm |
Solid Brass Code | A | B | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|
All measurements in millimetres. All mechanical expansion joint fixings by others. | ||||||
BS-10 | 12 | 133 | +/-12mm | 24mm | Surface Mounted 4mm |

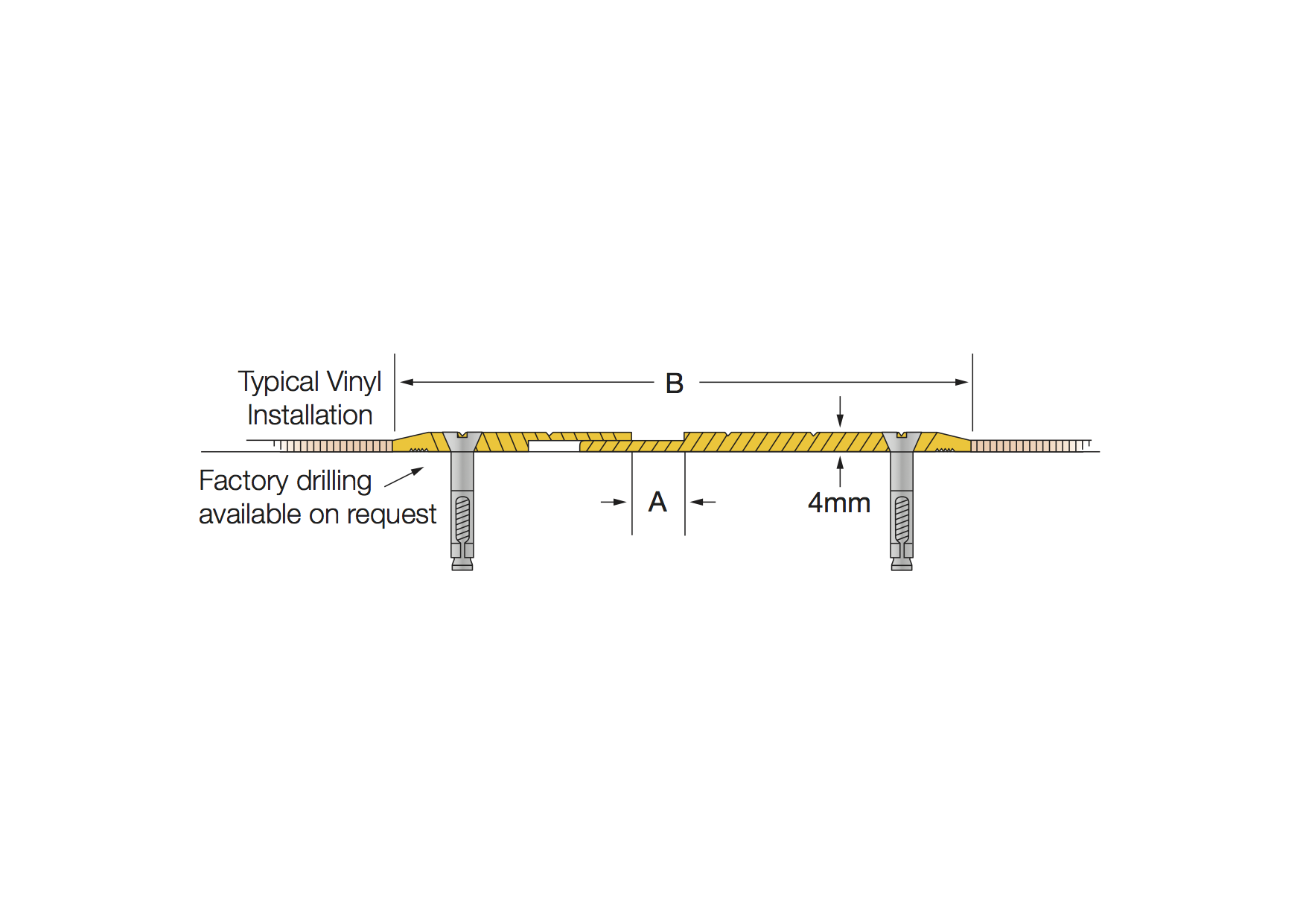

The Latham Surface-Line Series BS-10 is a solid brass expansion joint detail designed for installation in conjunction with vinyl flooring, in areas where limited horizontal movement is expected. The system is only available in brass as aluminium is considered too light for the application.The material is supplied pre-drilled and during installation we recommend that these expansion joint covers are fixed mechanically in place with fixings suitable for the application. The use of Latham Titazel Thixotropic Adhesive should also be considered.
The Latham Surface-Line Series floor-to-wall expansion joint covers are designed for light duty pedestrian applications such as office buildings, and super markets. They are generally used in slab on ground construction.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Solid Brass Code | A | B | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|
All measurements in millimetres. All mechanical expansion joint fixings by others. | ||||||
BSL-10 | 12 | 65 | +/-12mm | 24mm | Surface Mounted 4mm |
Solid Brass Code | A | B | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|
All measurements in millimetres. All mechanical expansion joint fixings by others. | ||||||
BSL-10 | 12 | 65 | +/-12mm | 24mm | Surface Mounted 4mm |

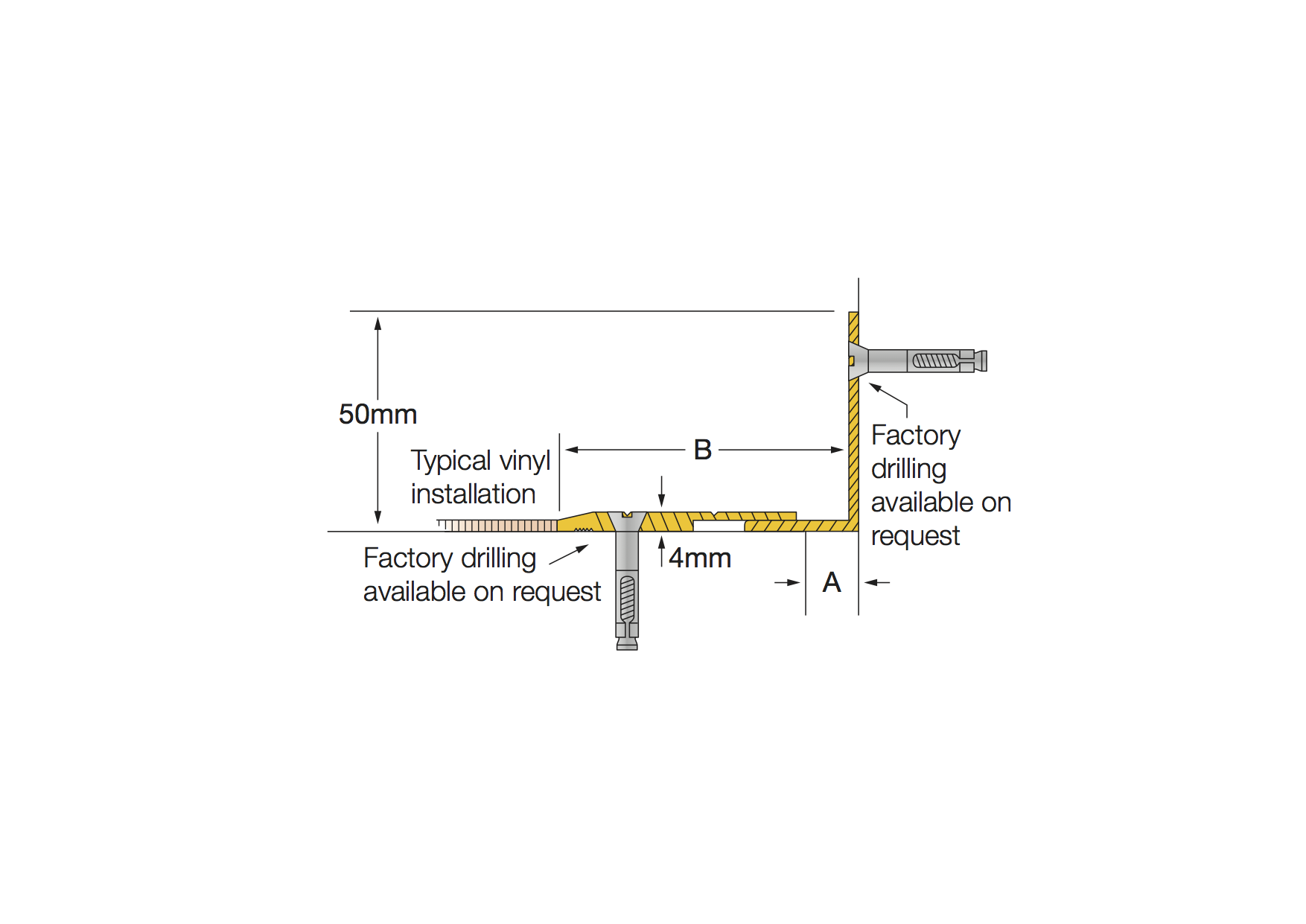

The Latham Surface-Line Series BSL-10 is a solid brass expansion joint detail designed for installation in conjunction with vinyl flooring, in areas where limited horizontal movement is expected. The system is only available in brass as aluminium is considered too light for the application. The material is supplied pre-drilled and during installation we recommend that these expansion joint covers are fixed mechanically in place with fixings suitable for the application. The use of Latham Titazel Thixotropic Adhesive should also be considered.
The Latham Surface-Line Series floor-to-wall expansion joint covers are designed for light duty pedestrian applications such as office buildings, and super markets. They are generally used in slab on ground construction.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Aluminium Code | A | B | C | Movement | Total Available Movement | Overall Depth |
---|---|---|---|---|---|---|
All measurements in millimetres. All mechanical expansion joint fixings by others. | ||||||
ASC-10 | 0-100 | 230 | 154 | +/-15mm | 30mm | Surface Mounted 9mm |
Solid Brass Code | A | B | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|
All measurements in millimetres. All mechanical expansion joint fixings by others. | ||||||
ASC-10 | 0-100 | 230 | +/-15mm | 30mm | Surface Mounted 9mm |

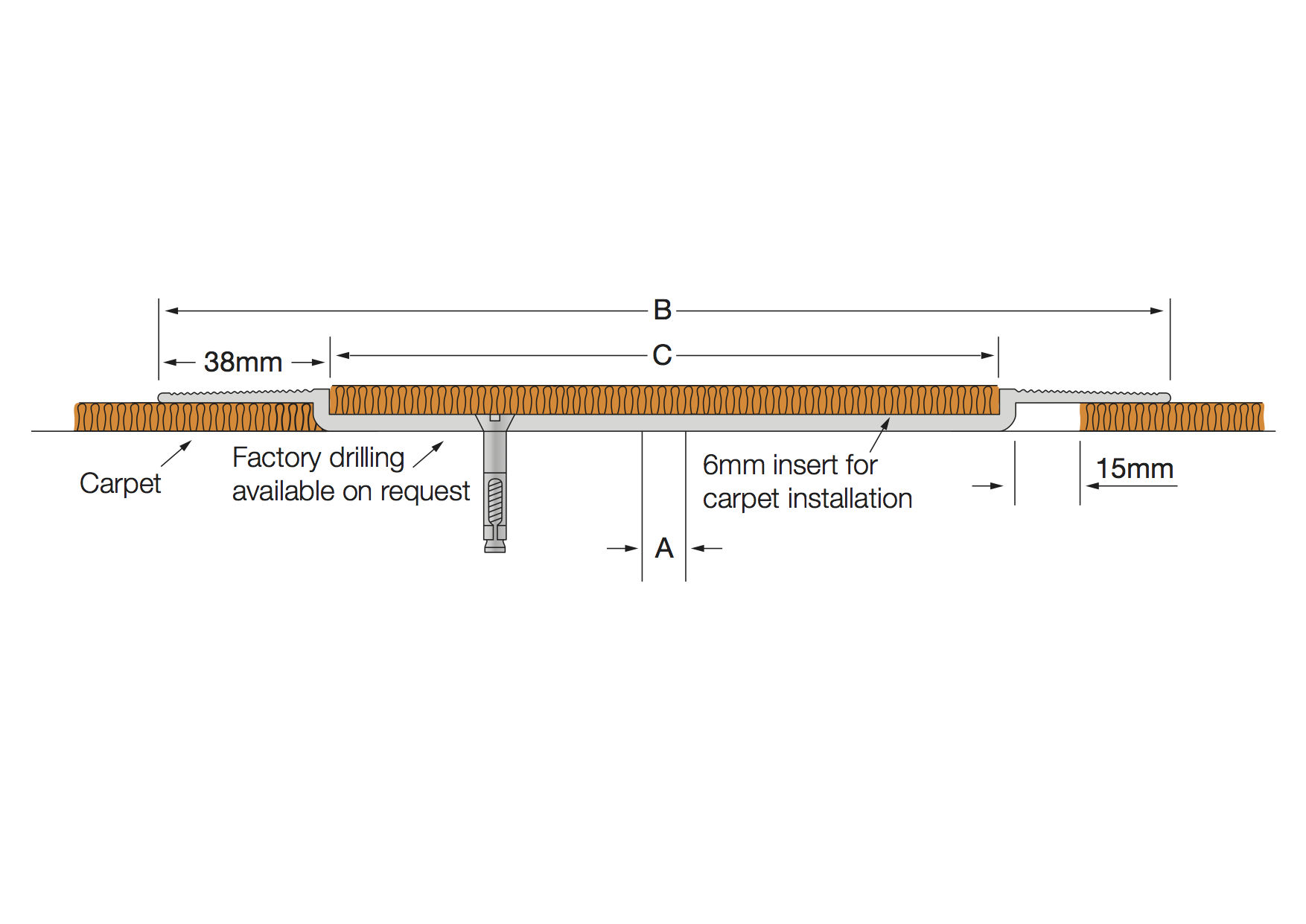

The Latham Surface-Line ASC-10 aluminium surface mounted slip joint cover is designed for use with direct stick carpet flooring in areas where limited horizontal movement is expected. The cover will accept rubber backed carpet inserts of 6mm.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Aluminium Code | A | B | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|
All measurements in millimetres. All mechanical expansion joint fixings by others. | ||||||
G-25 | 25 | 110 | +/-25mm | 50mm | Surface Mounted 7mm | |
G-25A | 25 | 110 | +/-25mm | 50mm | Surface Mounted 7mm |
Aluminium Code | A | B | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|
All measurements in millimetres. All mechanical expansion joint fixings by others. | ||||||
G-25 | 25 | 110 | +/-25mm | 50mm | Surface Mounted 7mm | |
G-25A | 25 | 110 | +/-25mm | 50mm | Surface Mounted 7mm |

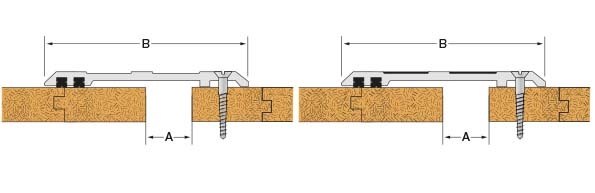

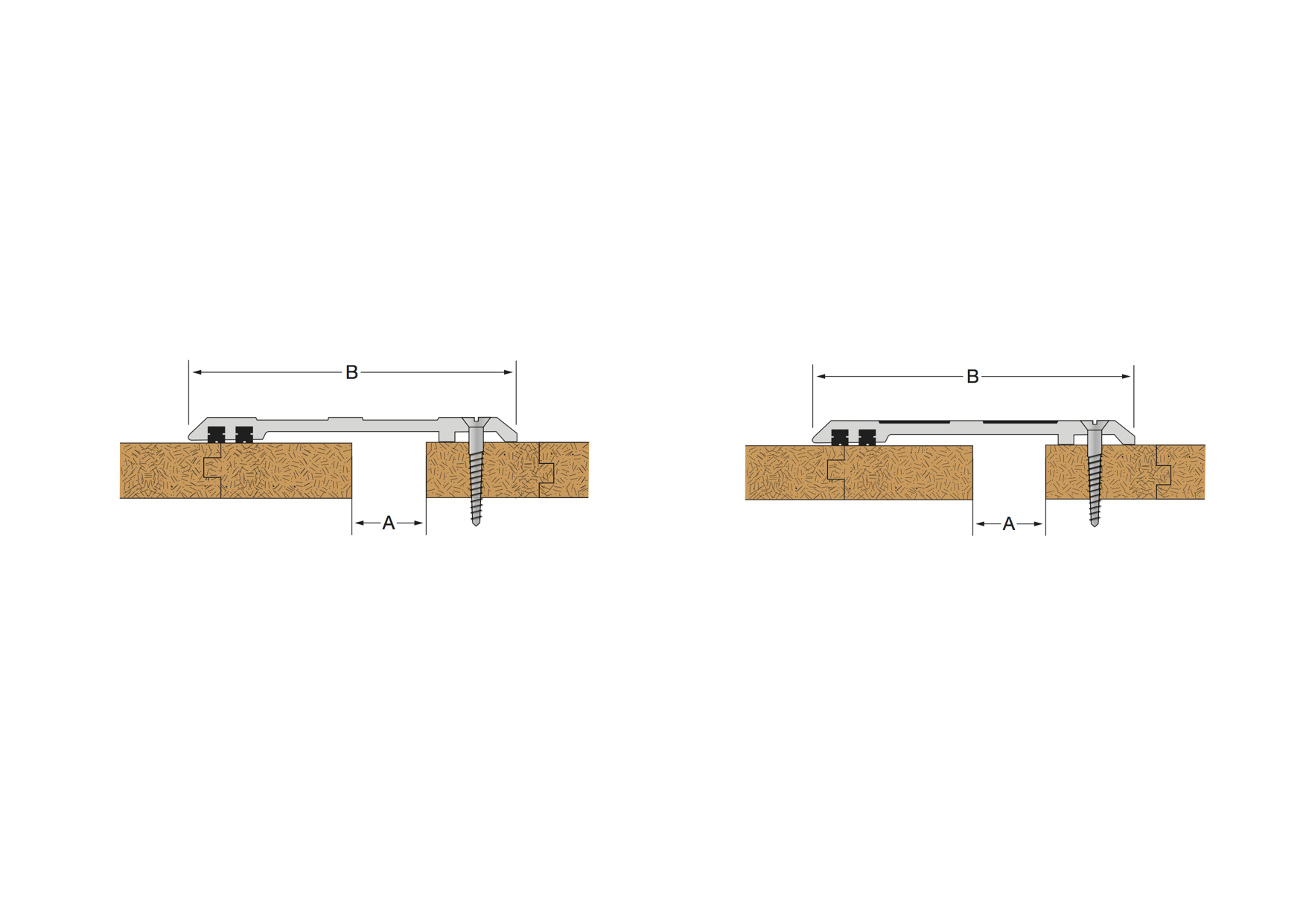

The Latham G-25 and G-25A with abrasive inserts Surface-Line Series floor slip joint covers offer 2 directional movement and are specially designed for gymnasium type applications, where the vibration and movement is great. This is accommodated through the Santoprene inserts and the extra depth of the cover plate.
On request, the G-25 can be supplied with 2 x 25mm wide re-surfacable slip resistant inserts installed. The G-25 with the slip resistant inserts applied is the G-25A. The standard slip resistant insert colour is black. Other colours are available on request. The cover plates are rigidly fixed to 1 side of the expansion joint as detailed. Optional factory drilling and fixings are available.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Use the form below to get in touch and one of our consultants will get back to you as soon as possible.
Modal body text goes here.
Submit the following to receive your content download.
14 Tennyson Road Gladesville 2111 NSW Australia
Phone: +61 2 9879 7888
Fax: +61 2 9879 7666
info@latham-australia.com
