Custom Made Loc & Tile Strips

Custom Made Loc & Tile Strips

Available in Brass, Zinc, Aluminium, Rebonite & Stainless Steel


Latham Australia can custom manufacture special purpose and special effect Loc Strips and Tile Strips. There are a multitude of options that can be offered.

We have solutions for visual enhancement, unusual or varied floor finishes, applications against columns or walls and heavy duty solutions.

The Latham Design Team is available to work with you to meet the custom requirements of your application. Please contact us to discuss your application.


Product Specifications   How to Specify Guide


Additional Information:
Award winning custom made loc & tile strips
Latham-Genuine-Warranty-Green-Tick-Symbol

CUSTOM MADE LOC® AND TILE STRIP PROFILE GUIDE

Specify Height, Width, Neoprene Colour & Metal Type

Product Type

Application

Metal Finishes Available

Metal Side Plate Depth

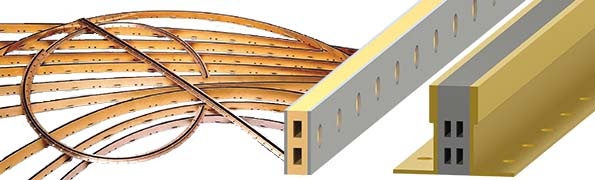

Curved Loc® Strips

Curved or circular Loc® Strips consult Latham Australia for further details.

1mm and 3mm Brass and Zinc, 0.7mm Stainless Steel.

22mm, 31mm, 40mm, 50mm, 65mm, 80mm, 90mm, 100mm, 115mm

Curved Tile Strips

Curved or circular Tile Strips consult Latham Australia for further details.

1mm and 3mm Brass and Aluminium, 0.7mm Stainless Steel.

10mm, 12mm, 15mm, 18mm, 20mm, 22mm, 25mm, 27mm, 32mm, 37mm, 42mm, 47mm, 52mm, 62mm, 72mm, 77mm, 82mm, 92mm, 102mm,  112mm, 127mm

THTSB 18x6 or 18x12

Suitable for onsite grinding, except THTSB 18x6 which cannot be ground.

Only available in Brass 3mm Visual.

20mm

THTSB 20x6 or 20x12

22mm

THTSB 25x6 or 25x12

27mm

THTSB 30x6 or 30x12

32mm

THTSB 33x6 or 33x12

35mm

PCS 19x6

Designed specifically for use in 19mm timber flooring applications, suitable for grinding in place.

1mm Brass and Zinc Perforated Side Plates.

19mm

PCS 19x12

Latham offer a wide variety of custom designs in our Neoprene Loc® and Tile Strip Ranges. Whether it be for visual aesthetics, controlling expansion and contraction at walls and columns or at interfaces between different floor finishes, in parquetry flooring or controlling anticipated extreme thermal movement. Whatever the application Latham’s team would be pleased to work with you to try and find a custom solution.

Please contact us to discuss your custom requirement. These are just some of the many custom details Latham can offer.

View and download our data sheets - PDF

Enquire About This Product

CUSTOM MADE LOC® AND TILE STRIP PROFILE GUIDE

Specify Height, Width, Neoprene Colour & Metal Type

Product Type

Application

Metal Finishes Available

Metal Side Plate Depth

FWLS ??x6*

Designed for floor-to-wall and

floor-to-column applications.

Available with Brass, Zinc and Stainless Steel Side Plates.

22mm, 31mm, 40mm, 50mm,

65mm, 80mm, 90mm,

100mm, 115mm

FWLS ??x12*

FWTS ??x6*

Designed for floor-to-wall and

floor-to-column applications.

Available with Brass,

Aluminium and Stainless

Steel Side Plates.

9mm, 12mm,

15mm, 18mm,

22mm, 25mm,

42mm, 46mm

FWTS ??x12*

FS1LS ??x6*

Designed for new to existing applications, with positive fixing in the bed, through the Loc® Strip Side Plate, whilst the other side butts against the existing finish.

Available with Brass, Zinc and Stainless Steel Side Plates.

22mm, 31mm, 40mm, 50mm,

65mm, 80mm, 90mm,

100mm, 115mm

FS1LS ??x12*

FS1TS ??x6*

Designed for new to existing applications, with positive fixing in the bed, through the Loc® Strip Side Plate, whilst the other side butts against the existing finish.

Available with Brass,

Aluminium and Stainless

Steel Side Plates.

20mm, 22mm, 25mm, 27mm,

32mm, 37mm, 42mm, 47mm,

52mm, 62mm, 72mm, 77mm,

82mm, 92mm, 102mm,

112mm, 127mm

FS1TS ??x12*

?? Denotes overall depth of the product required.

* Specify metal type.

Latham offer a wide variety of custom designs in our Neoprene Loc® and Tile Strip Ranges. Whether it be for visual aesthetics, controlling expansion and contraction at walls and columns or at interfaces between different floor finishes, in parquetry flooring or controlling anticipated extreme thermal movement. Whatever the application Latham’s team would be pleased to work with you to try and find a custom solution.

Please contact us to discuss your custom requirement. These are just some of the many custom details Latham can offer.

View and download our data sheets - PDF

Enquire About This Product

CUSTOM MADE LOC® AND TILE STRIP PROFILE GUIDE

Specify Height, Width, Neoprene Colour & Metal type

Product Type

Application

Metal Finishes Available

Metal Side Plate Depth

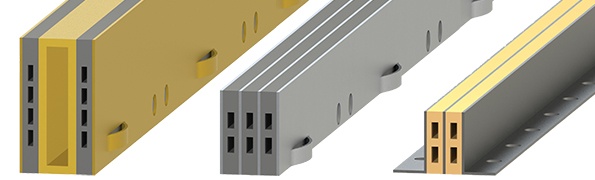

2LS 6 DOUBLE

Designed for double control and as a

visual effect in the floors.

Available with Brass, Zinc and Stainless Steel Side Plates.

22mm, 31mm, 40mm, 50mm, 65mm, 80mm, 90mm, 100mm, 115mm

2LS 12 DOUBLE

3LS 6 TRIPLE

Designed for triple control and as a

visual effect in the floors.

Available with Brass, Zinc and Stainless Steel Side Plates.

21mm, 31mm, 40mm, 50mm, 65mm, 80mm, 90mm, 100mm, 115mm

3LS 12 TRIPLE

2TS 6 DOUBLE

Designed for double control and as a

visual effect in the floors.

Available with Brass, Aluminium and Stainless Steel Side Plates.

20mm, 22mm, 25mm, 27mm, 32mm, 37mm, 42mm, 47mm, 52mm, 62mm, 72mm, 77mm, 82mm, 92mm, 102mm, 112mm, 127mm

2TS 12 DOUBLE

3TS 6 TRIPLE

Designed for triple control and as a

visual effect in the floors.

Available with Brass,

Aluminium and Stainless

Steel Side Plates.

20mm, 22mm, 25mm, 27mm, 32mm, 37mm, 42mm, 47mm, 52mm, 62mm, 72mm, 77mm, 82mm, 92mm, 102mm, 112mm, 127mm

3TS 12 TRIPLE

SPECIAL EFFECTS

There are a range of possibilities when it comes to special effect Joints. Consult with Latham Australia for further details.



Varying consult Latham

Australia for further details.

Latham offer a wide variety of custom designs in our Neoprene Loc® and Tile Strip Ranges. Whether it be for visual aesthetics, controlling expansion and contraction at walls and columns or at interfaces between different floor finishes, in parquetry flooring or controlling anticipated extreme thermal movement. Whatever the application Latham’s team would be pleased to work with you to try and find a custom solution.

Please contact us to discuss your custom requirement. These are just some of the many custom details Latham can offer.

View and download our data sheets - PDF

Enquire About This Product
