    Surface-Line Series

    G-25 Aluminium

    Surface Mounted Floor Expansion Joint Cover

    The G-25 Series
    Considered a gymnasium expansion joint cover for timber floors. Although surface mounted, it also accommodates vertical movement in the flooring caused by team sport, exercise classes or similar.

    Materials

    • Aluminium 6063-T5 mill finish alloy.

    • The G-25A is supplied with 2 x 25mm wide resurfacable slip resistant inserts installed.

    • Standard slip resistant insert colour is black (other colours are available on request).

    • Supplied in 3050mm lengths.

    Fixings

    • The cover plates should be rigidly fixed to one side of the expansion joint as detailed.

    • Optional factory drilling and fixings are available on request.

    Why you should choose Latham products

    Genuine Warranty
    AS 2021 Compliant
    NCC 2022 Compliant
    P5 Slip Resistant
    AS 2018 Compliant
    https://www.latham-australia.com/hubfs/Mechanical%20Expansion%20Joint%20Covers/Surface%20Line/1457x650-Tech%20Drawing-Surface%20Line%20G-25%20Aluminium.jpg

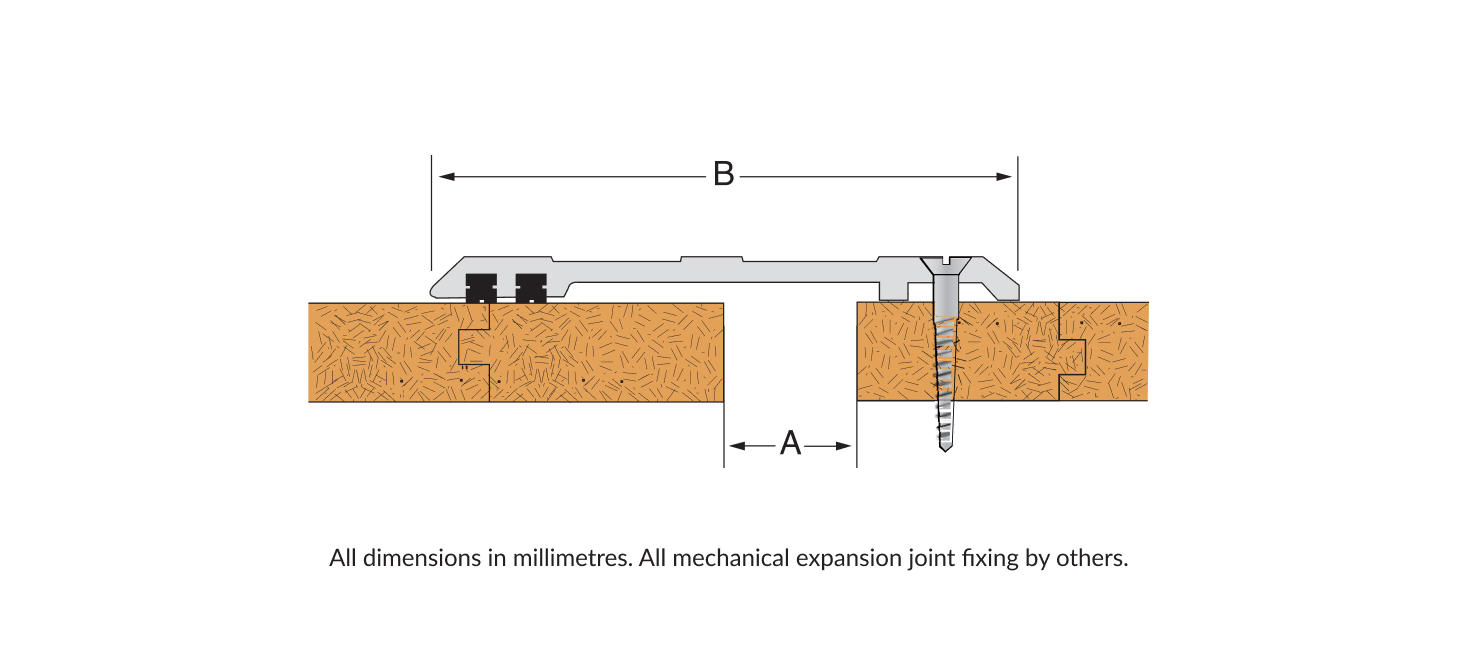

    TECHNICAL CHARACTERISTICS Illustrated: G-25
    Aluminium Code A B Movement Total Available Movement Overall Depth
    G-25 25 110 +/-25mm 50mm Surface Mounted 8mm



    Resources & Downloads

    Access essential resources and downloads. Ensure you have all the necessary information to select and install the best Latham product for your project.

    Joint Cover Specs
    Australian Good Design Award
    Warranty Details
    Product Information
    Fire Rated Systems
    Adaptive Sustainability Policy
    Architectural Specs
    Enquire about this product
    Special Note

    Customers with special applications are invited to discuss them with us. Service factors must be taken into consideration when selecting tactile indicator studs or directional bars.
