EXB-25 to EXB‑150

Floor‑to‑Floor Expansion Joint Cover with Brass Deck

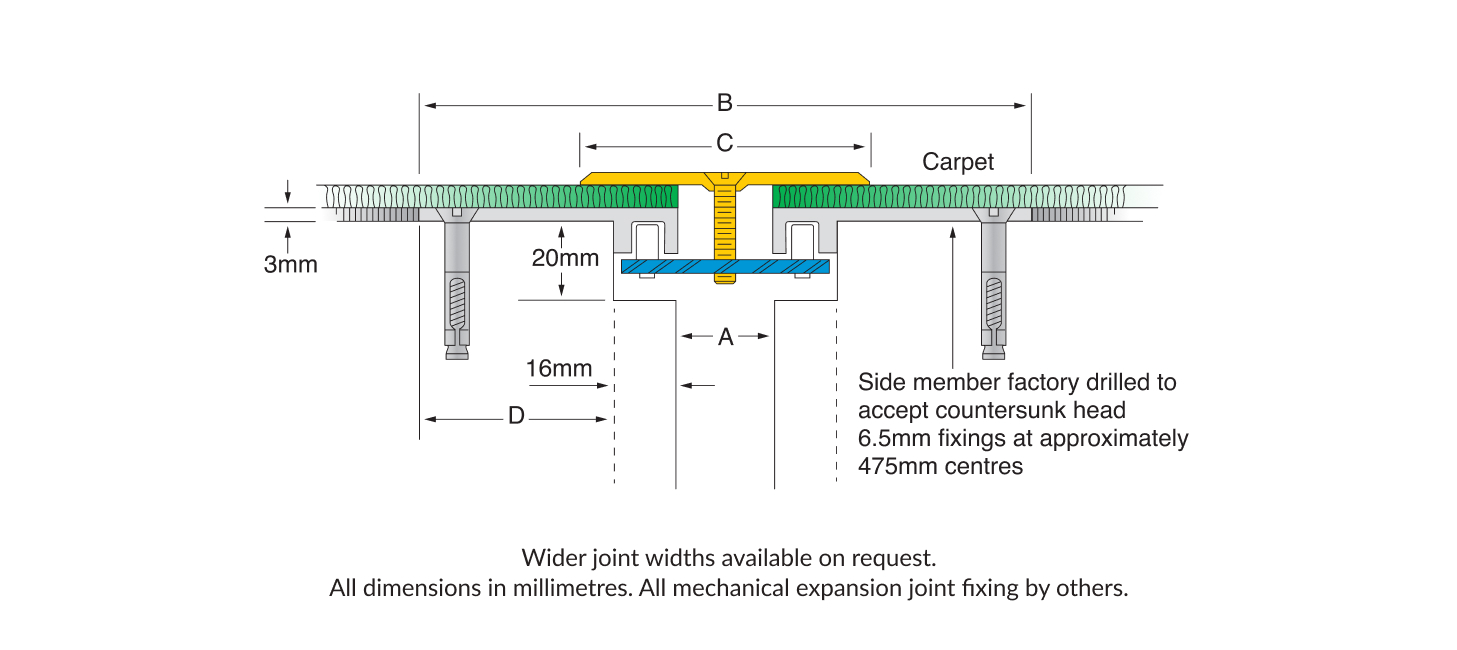

The EXB Surface-Line Series surface mounted floor-to-floor expansion joint covers carry a brass cover plate. The series is designed to be fixed directly through the side members, and can be packed up if required. They work particularly well in carpet applications. The detail below shows a 16mm x 20mm recess in the slabs, which is only required for joints less than 57mm wide. This effectively increases the width of the structural joint the system will accommodate. They would commonly be used in locations such as shopping centres, hotels, office foyers, schools, airports and other pedestrian traffic situations.

Materials

• Aluminium 6063-T5 mill finish alloy.

• Brass 389 mill finish alloy cover plate.

• Side member supplied in 3050mm lengths. Brass cover plate supplied in 4000mm lengths. 3mm brass cover plates wider than 100mm supplied in 1800mm lengths.

• Spring steel treated centring bar with cylindrical pins at ~475mm centres to facilitate multidirectional movement.

Fixings

• Side members factory drilled to accept 6.5mm countersunk head fixings at ~475mm centres.

• We recommend Latham Thixotropic Epoxy Adhesive be used in conjunction for superior securing.
