    Carpet-Line Series

    DRCAL-25 to DRCAL‑150 Aluminium

    Floor‑to‑Wall Expansion Joint Cover with Ribbed Deck

    The DRCAL Carpet-Line (shallow) Series floor-to-wall expansion joint covers are designed to be installed in carpet applications. These applications can incorporate direct-stick carpet or carpet with underlay, where the cover plate will hold down the carpet and underlay. This system would commonly be used in locations such as shopping centres, hotels, office foyers, schools, airports and other pedestrian traffic situations.

    Materials

    • Aluminium 6063-T5 mill finish alloy.

    • Supplied in 3050mm lengths.

    Fixings

    • Side member factory drilled with 10mm holes at ~475mm centres.

    • Wall member factory drilled to accept countersunk head 6.5mm fixings at ~475mm centres

    Why you should choose Latham products

    Genuine Warranty
    AS 2021 Compliant
    NCC 2022 Compliant
    P5 Slip Resistant
    AS 2018 Compliant
    https://www.latham-australia.com/hubfs/Mechanical%20Expansion%20Joint%20Covers/Carpet%20Line/1457x650-Tech%20Drawing-Carpet%20Line%20DRCAL.jpg

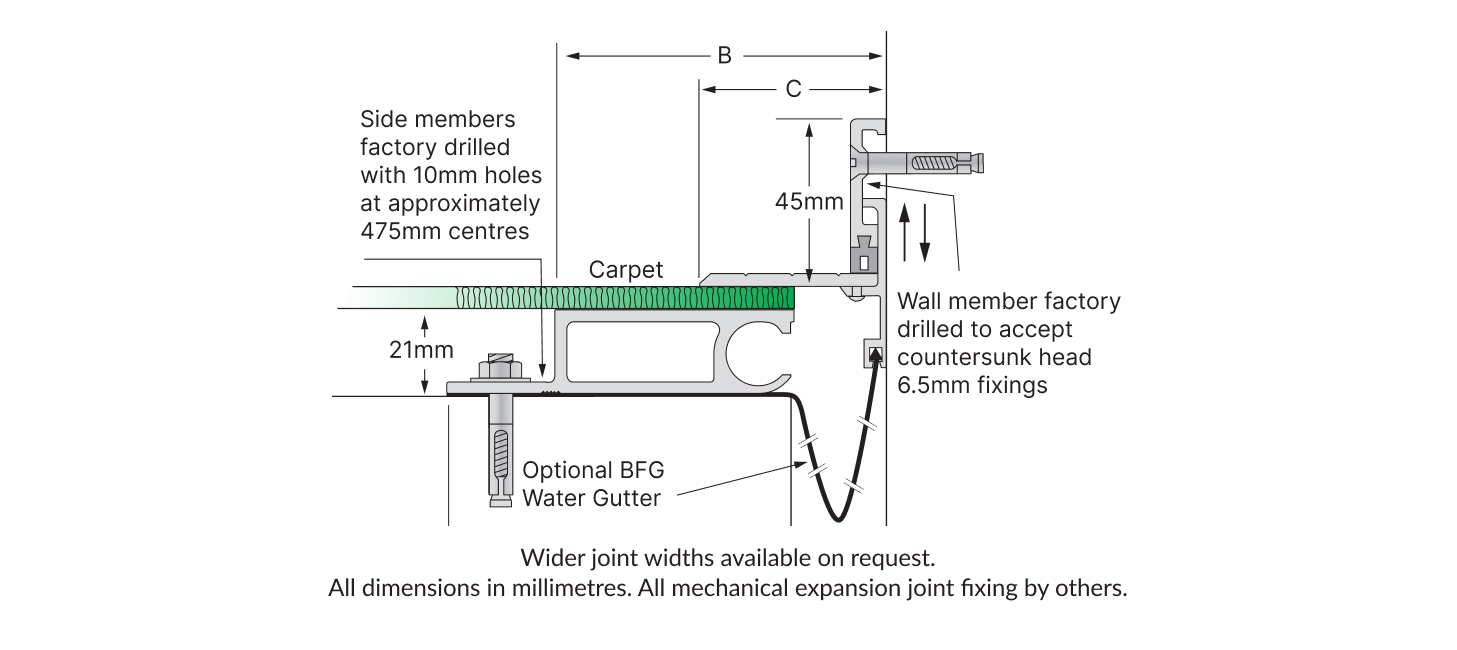

    TECHNICAL CHARACTERISTICS Illustrated: DRCAL-25
    Aluminium Code
    Ribbed Deck    		 A B C D Movement Total Available Movement Overall Depth Cover Plate Thickness
    DRCAL-25 25 90 50 93 +/-12mm 25mm 69mm 3mm
    DRCAL-50 50 115 75 93 +/-12mm 25mm 69mm 3mm
    DRCAL-75 75 140 100 93 +/-12mm 25mm 70mm 4mm
    DRCAL-100 100 165 125 93 +/-12mm 25mm 71mm 5mm
    DRCAL-150 • 150 215 175 93 +/-12mm 25mm 71mm 5mm

    • Denotes smooth deck
