    Carpet-Line Series

    DRCA-25 to DRCA‑150 Aluminium

    Floor‑to‑Floor Expansion Joint Cover with Ribbed Deck

    The DRCA Carpet-Line (shallow) Series floor-to-floor expansion joint covers are designed to be installed in carpet applications. These applications can incorporate direct-stick carpet or carpet with underlay, where the cover plate will hold down the carpet and underlay. This system would commonly be used in locations such as shopping centres, hotels, office foyers, schools, airports and other pedestrian traffic situations.

    Materials

    • Aluminium 6063-T5 mill finish alloy.

    • Supplied in 3050mm lengths.

    • Spring steel treated centring bar with nylon spherical balls at ~475mm centres.

    Fixings

    • Side members factory drilled with 10mm holes at ~475mm centres.

    Why you should choose Latham products

    Genuine Warranty
    AS 2021 Compliant
    NCC 2022 Compliant
    P5 Slip Resistant
    AS 2018 Compliant
    https://www.latham-australia.com/hubfs/Mechanical%20Expansion%20Joint%20Covers/Carpet%20Line/1457x650-Tech%20Drawing-Carpet%20Line%20DRCA.jpg

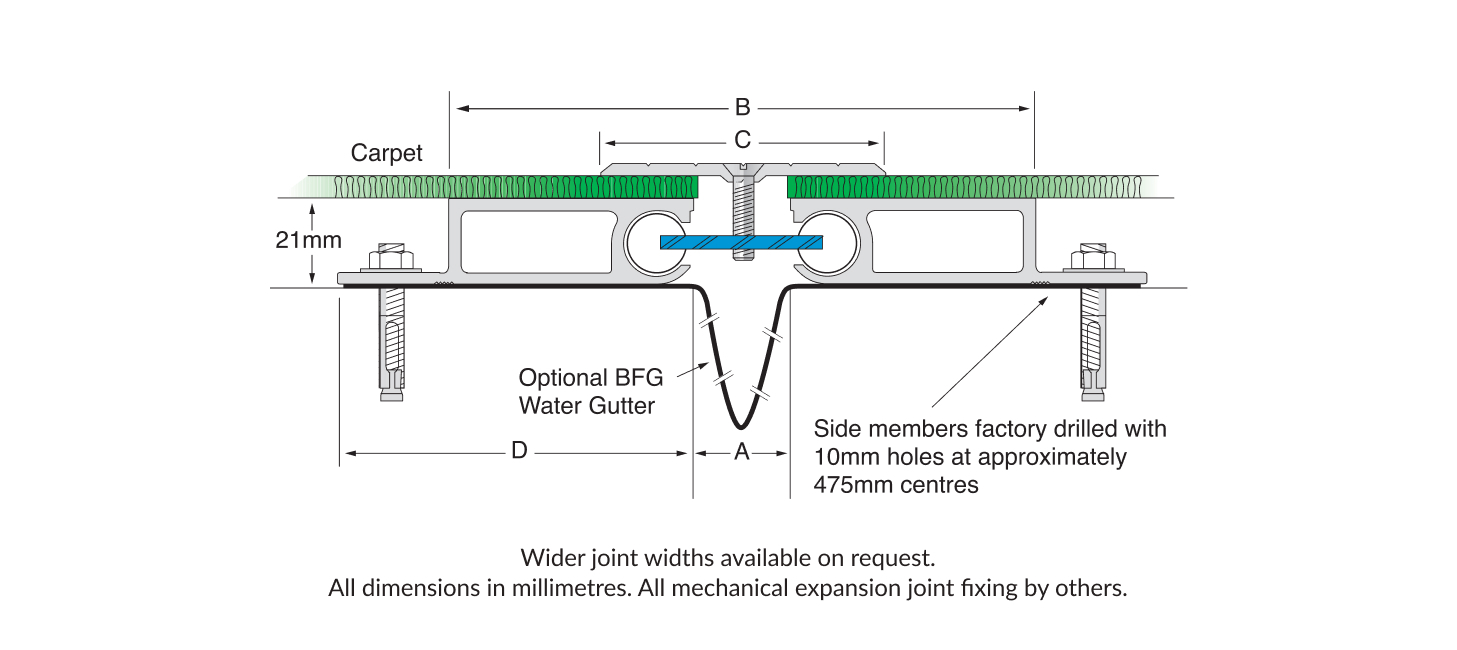

    TECHNICAL CHARACTERISTICS Illustrated: DRCA-25
    Aluminium Code
    Ribbed Deck    		 A B C D Movement Total Available Movement Overall Depth Cover Plate Thickness
    DRCA-25 25 155 75 93 +25/-15mm 40mm 24mm 3mm
    DRCA-50 50 180 100 93 +/-25mm 50mm 24mm 3mm
    DRCA-75 75 205 125 93 +/-25mm 50mm 24mm 4mm
    DRCA-100 100 230 150 93 +/-25mm 50mm 24mm 5mm
    DRCA-150 • 150 280 200 93 +/-25mm 50mm 25mm 5mm

    • Denotes smooth deck

    Resources & Downloads

    Access essential resources and downloads. Ensure you have all the necessary information to select and install the best Latham product for your project.

    Joint Cover Specs
    Australian Good Design Award
    Warranty Details
    Product Information
    Fire Rated Systems
    Adaptive Sustainability Policy
    Architectural Specs
    Enquire about this product
    Special Note

    Customers with special applications are invited to discuss them with us. Service factors must be taken into consideration when selecting tactile indicator studs or directional bars.

    Get in touch
    Other products in the series
    Carpet-Line Series

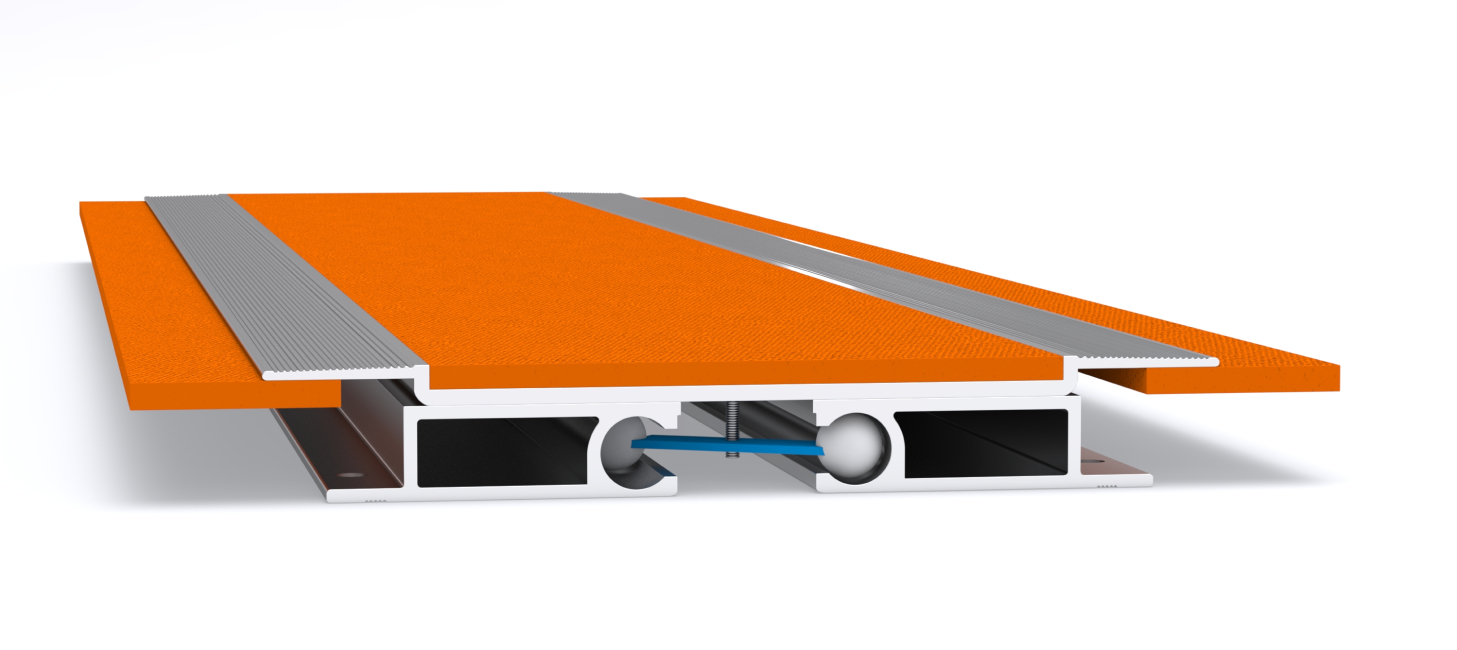

    SCA-25 to SCA‑100 Aluminium
    View product
    Carpet-Line Series

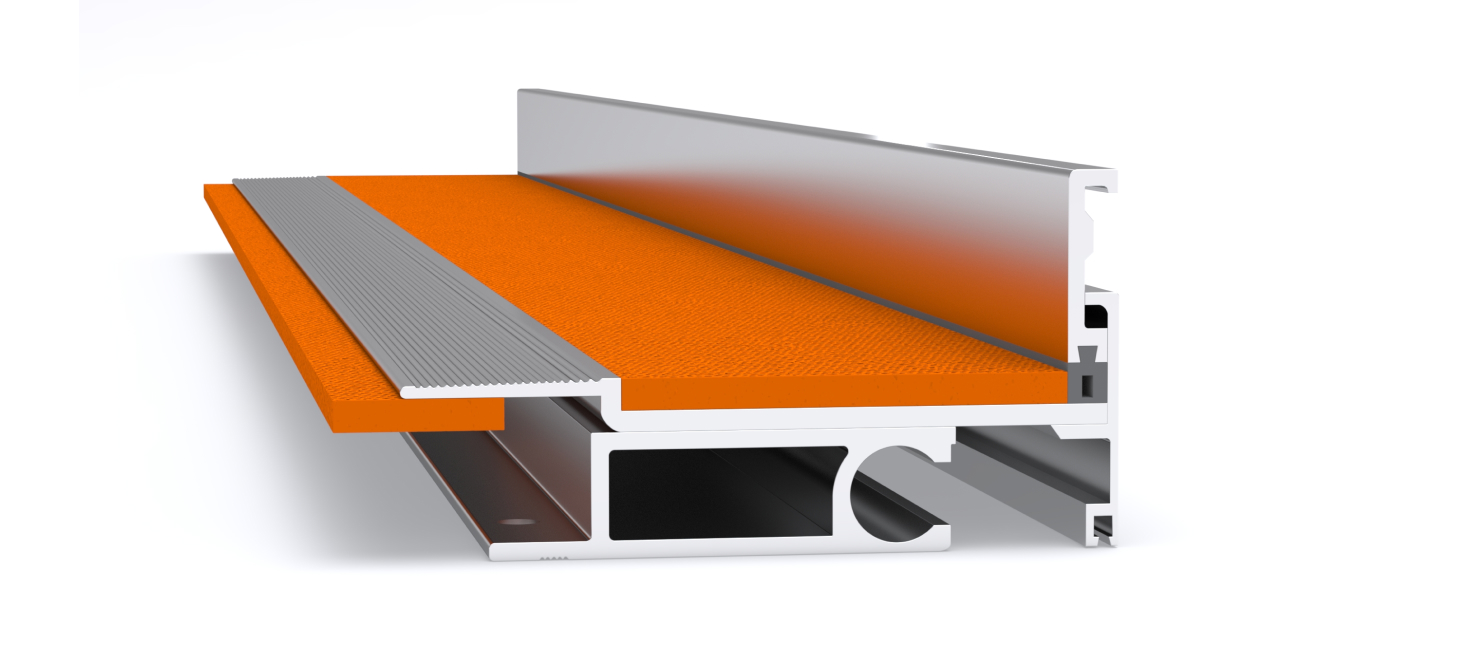

    SCAL‑25 to SCAL‑100 Aluminium
    View product
    Carpet-Line Series

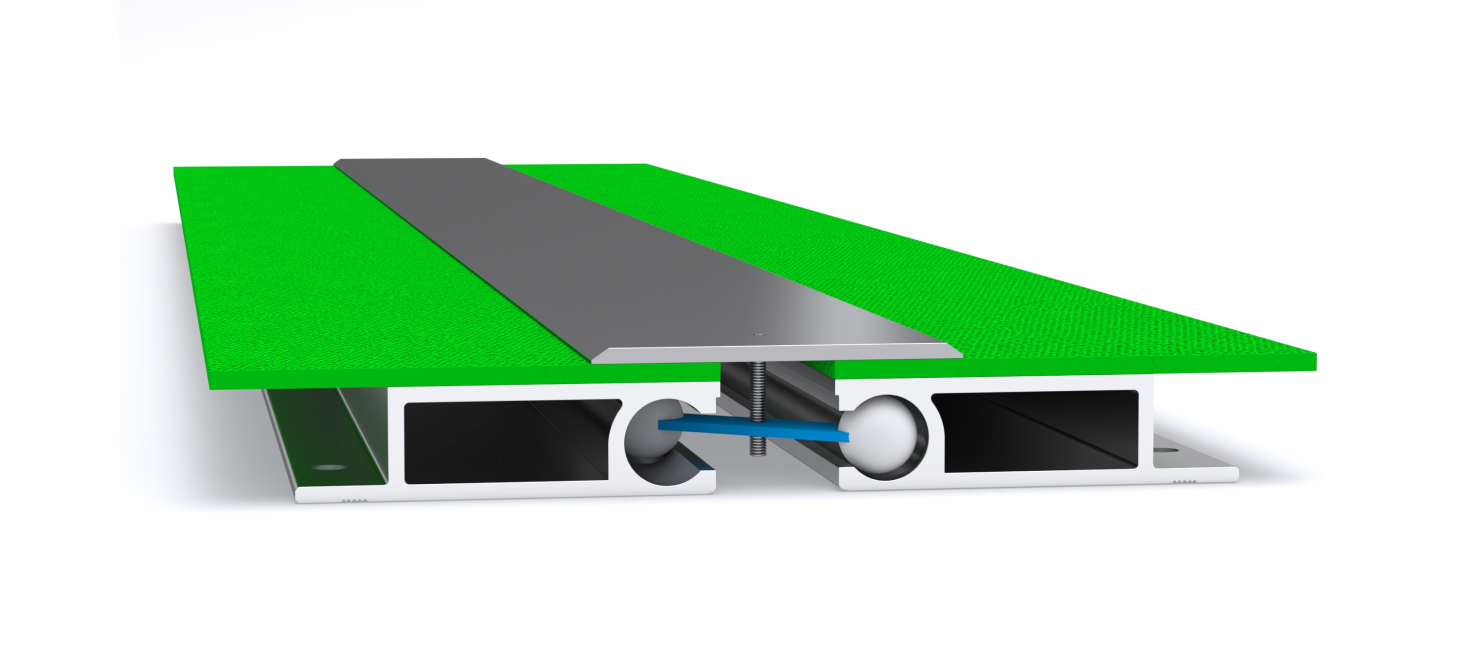

    DRCS-25 to DRCS‑150
