    PAVA-Inlay Series

    BSMP‑25 to BSMP‑100

    Floor‑to‑Floor Expansion Joint Cover

    BSMP Series PAVA‑Inlay floor-to‑floor expansion joint covers with solid brass cover plate are designed to accommodate a tile inlay up to 30mm deep which allows the joint surface to match the surrounding floor. The tapered edge of the cover plate is flush with the surface of the floor and controls the movement in the structure. The serrated top flanges of the joint provide additional slip resistance.

    Materials

    • Aluminium 6063-T5 mill finish alloy.

    • Spring steel treated centring bar with nylon spherical balls at ~475mm centres.

    • Supplied in 3050mm lengths.

    Fixings

    • Side members factory drilled with 10mm holes at ~475mm centres.

    • The tile must be fixed with a suitable bedding agent.

    Why you should choose Latham products

    Genuine Warranty
    AS 2021 Compliant
    NCC 2022 Compliant
    P5 Slip Resistant
    AS 2018 Compliant
    https://www.latham-australia.com/hubfs/Mechanical%20Expansion%20Joint%20Covers/PAVA%20Inlay/1457x650-Tech%20Drawing-PAVA%20Inlay%20BSMP.jpg

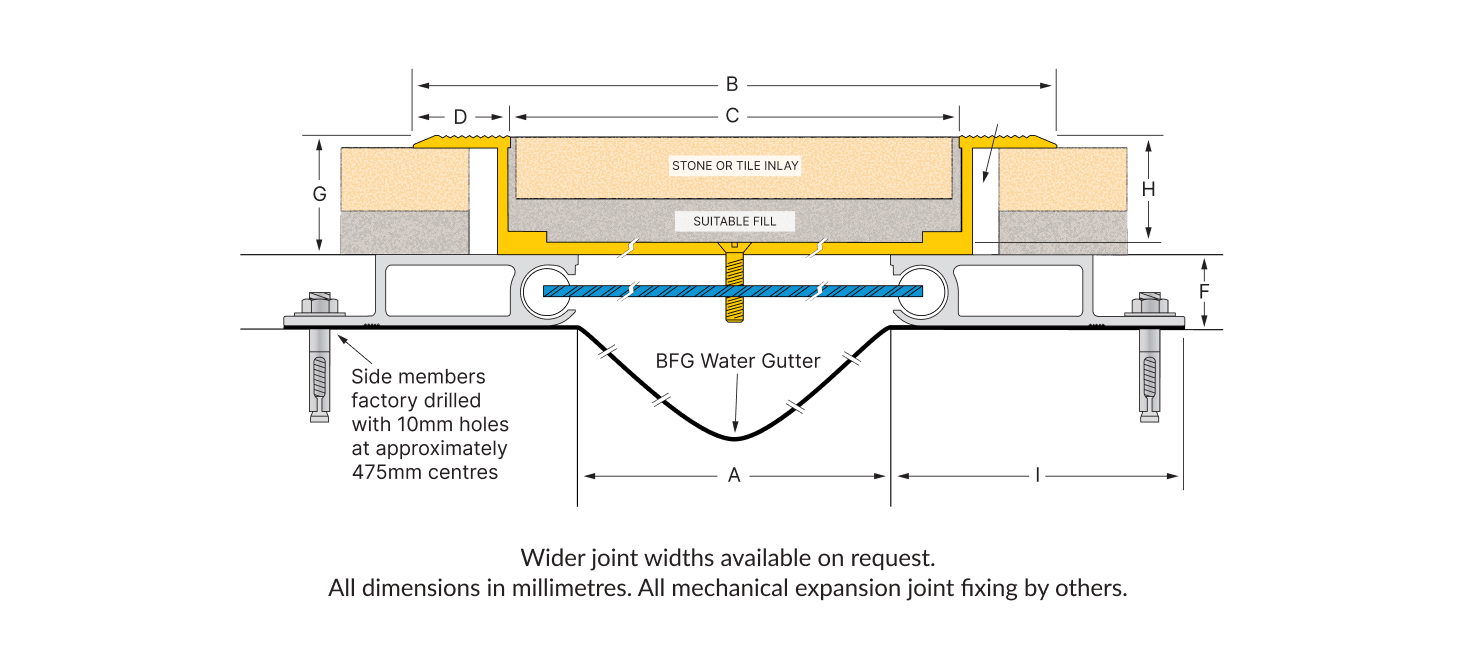

    TECHNICAL CHARACTERISTICS Illustrated: BSMP-100
    Solid Brass Code A B C D E F G H I Movement Total Available Movement Cover Plate Thickness
    BSMP-25 25 262 200 31 12 22 41 37 93 +20/-15mm 35mm 4mm
    BSMP-50 50 262 200 31 12 22 41 37 93 +/-20mm 40mm 4mm
    BSMP-75 75 262 200 31 12 22 41 37 93 +/-20mm 40mm 4mm
    BSMP-100 100 262 200 31 12 22 41 37 93 +/-20mm 40mm 4mm
