    PAVA-Inlay Series

    ASMP‑25 to ASMP‑100 Aluminium

    Floor‑to‑Floor Expansion Joint Cover

    ASMP Series PAVA-Inlay floor‑to‑floor expansion joint covers are designed to accommodate a tile inlay up to 30mm deep which allows the joint surface to match the surrounding floor. The tapered edge of the cover plate is flush with the surface of the floor and controls the movement in the structure. The serrated top flanges of the joint provide additional slip resistance.

    Materials

    • Aluminium 6063-T5 mill finish alloy.

    • Spring steel treated centring bar with nylon spherical balls at ~475mm centres.

    • Supplied in 3050mm lengths.

    Fixings

    • Side members factory drilled with 10mm holes at ~475mm centres.

    • The tile must be fixed with a suitable bedding agent.

    Why you should choose Latham products

    Genuine Warranty
    AS 2021 Compliant
    NCC 2022 Compliant
    P5 Slip Resistant
    AS 2018 Compliant
    https://www.latham-australia.com/hubfs/Mechanical%20Expansion%20Joint%20Covers/PAVA%20Inlay/1457x650-Tech%20Drawing-PAVA%20Inlay%20ASMP.jpg

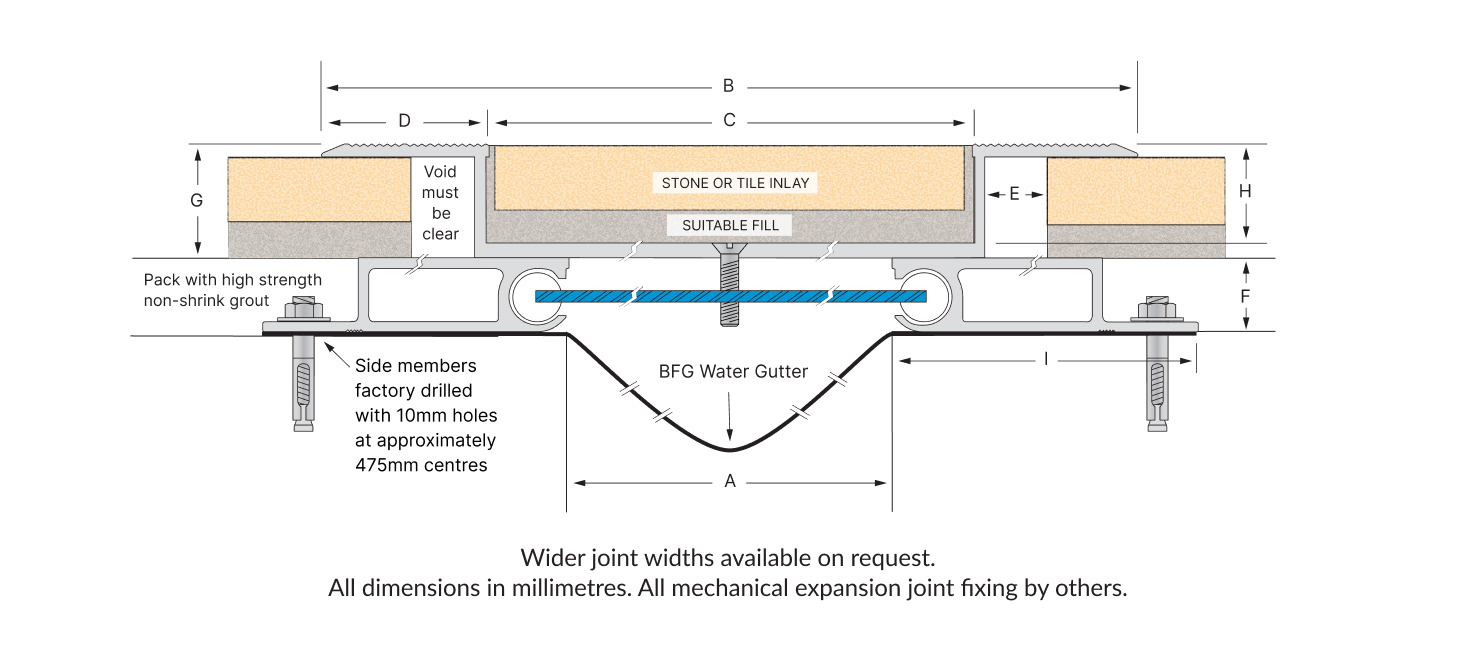

    TECHNICAL CHARACTERISTICS Illustrated: ASMP-100
    Aluminium Code A B C D E F G H I Movement Total Available Movement Cover Plate Thickness
    ASMP-25 25 250 150 50 25 22 35 30 93 +45/-15mm 60mm 4mm
    ASMP-50 50 250 150 50 25 22 35 30 93 +45/-40mm 85mm 4mm
    ASMP-75 75 250 150 50 25 22 35 30 93 +/-45mm 90mm 4mm
    ASMP-100 100 250 150 50 25 22 35 30 93 +/-45mm 90mm 4mm
