    PAVA-Inlay Series

    ASMPL‑25 to ASMPL‑100 Aluminium

    Floor‑to‑Wall Expansion Joint Cover

    ASMPL Series PAVA‑Inlay floor-to-wall expansion joint covers are designed to accommodate a tile inlay up to 30mm deep which allows the joint surface to match the surrounding floor. The tapered edge of the cover plate is flush with the surface of the floor and controls the movement in the structure. The serrated top flange of the joint provides additional slip resistance.

    Materials

    • Aluminium 6063-T5 mill finish alloy.

    • Supplied in 3050mm lengths.

    Fixings

    • Side member factory drilled with 10mm holes at ~475mm centres.

    • Wall member factory drilled to accept 6.5mm countersunk head fixings at ~475mm centres.

    • The tile must be fixed with a suitable bedding agent.

    Why you should choose Latham products

    Genuine Warranty
    AS 2021 Compliant
    NCC 2022 Compliant
    P5 Slip Resistant
    AS 2018 Compliant
    https://www.latham-australia.com/hubfs/Mechanical%20Expansion%20Joint%20Covers/PAVA%20Inlay/1457x650-Tech%20Drawing-PAVA%20Inlay%20ASMPL.jpg

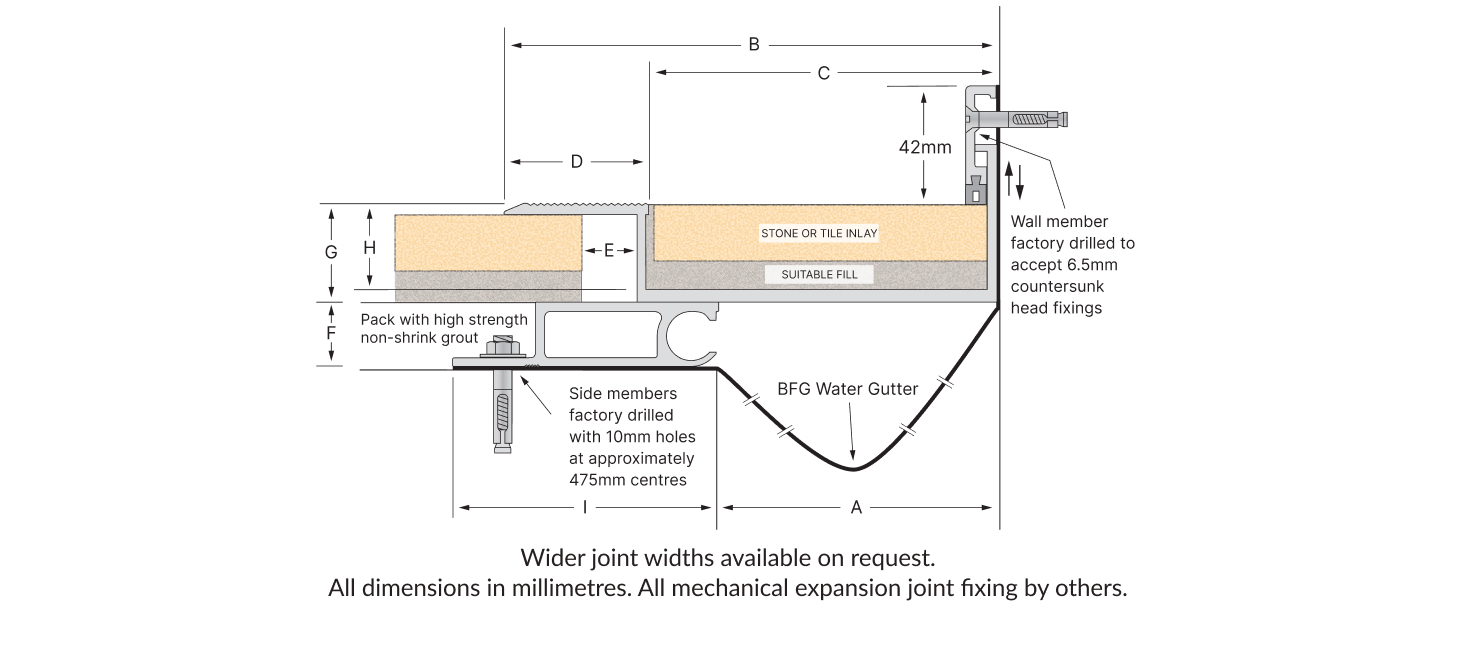

    TECHNICAL CHARACTERISTICS Illustrated: ASMPL-100
    Aluminium Code A B C D E F G H I Movement Total Available Movement Cover Plate Thickness
    ASMPL-25 25 175 125 50 25 22 35 30 93 +/-22mm 44mm 4mm
    ASMPL-50 50 175 125 50 25 22 35 30 93 +/-22mm 44mm 4mm
    ASMPL-75 75 175 125 50 25 22 35 30 93 +/-22mm 44mm 4mm
    ASMPL-100 100 175 125 50 25 22 35 30 93 +/-22mm 44mm 4mm

    Resources & Downloads

    Access essential resources and downloads. Ensure you have all the necessary information to select and install the best Latham product for your project.

    Joint Cover Specs
    Australian Good Design Award
    Warranty Details
    Product Information
    Fire Rated Systems
    Adaptive Sustainability Policy
    Architectural Specs
    Enquire about this product
    Special Note

    Customers with special applications are invited to discuss them with us. Service factors must be taken into consideration when selecting tactile indicator studs or directional bars.

    Get in touch
    Other products in the series
    PAVA-Inlay Series

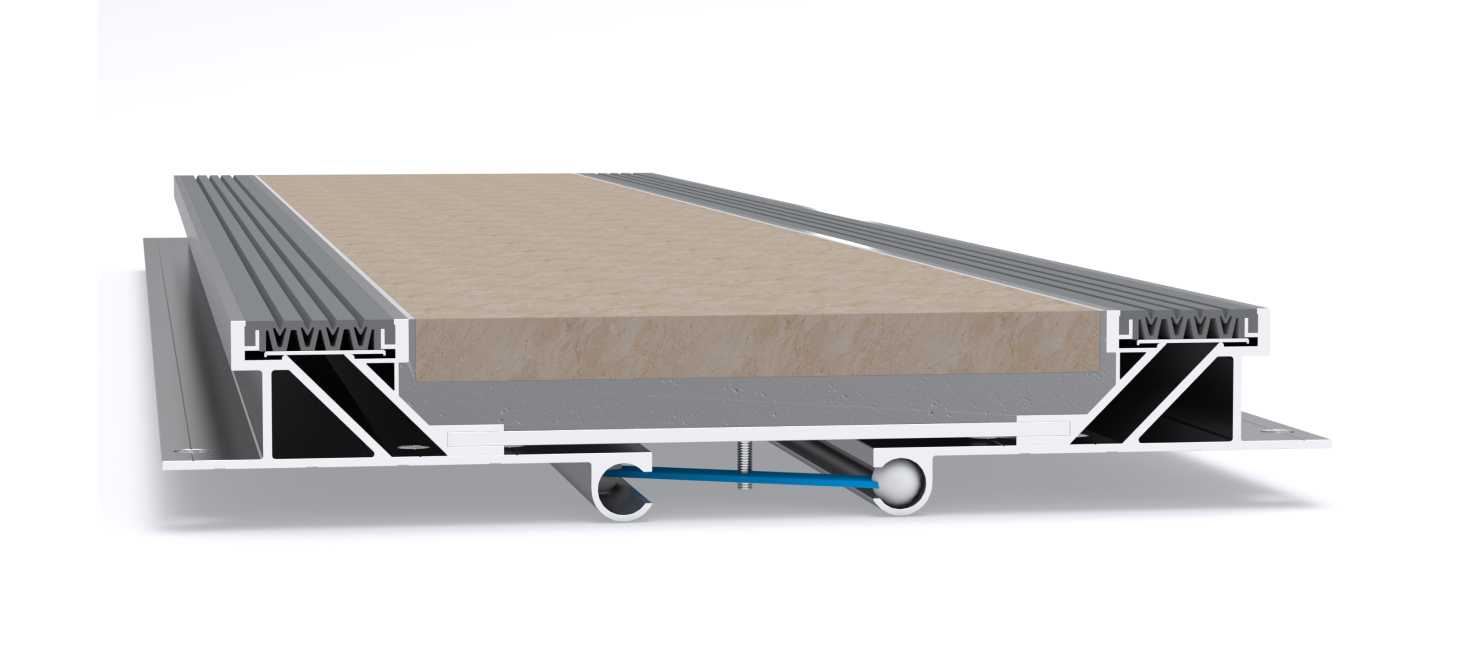

    SGAL-50 (TM) to SGAL‑200 (TM) Aluminium
    View product
    PAVA-Inlay Series

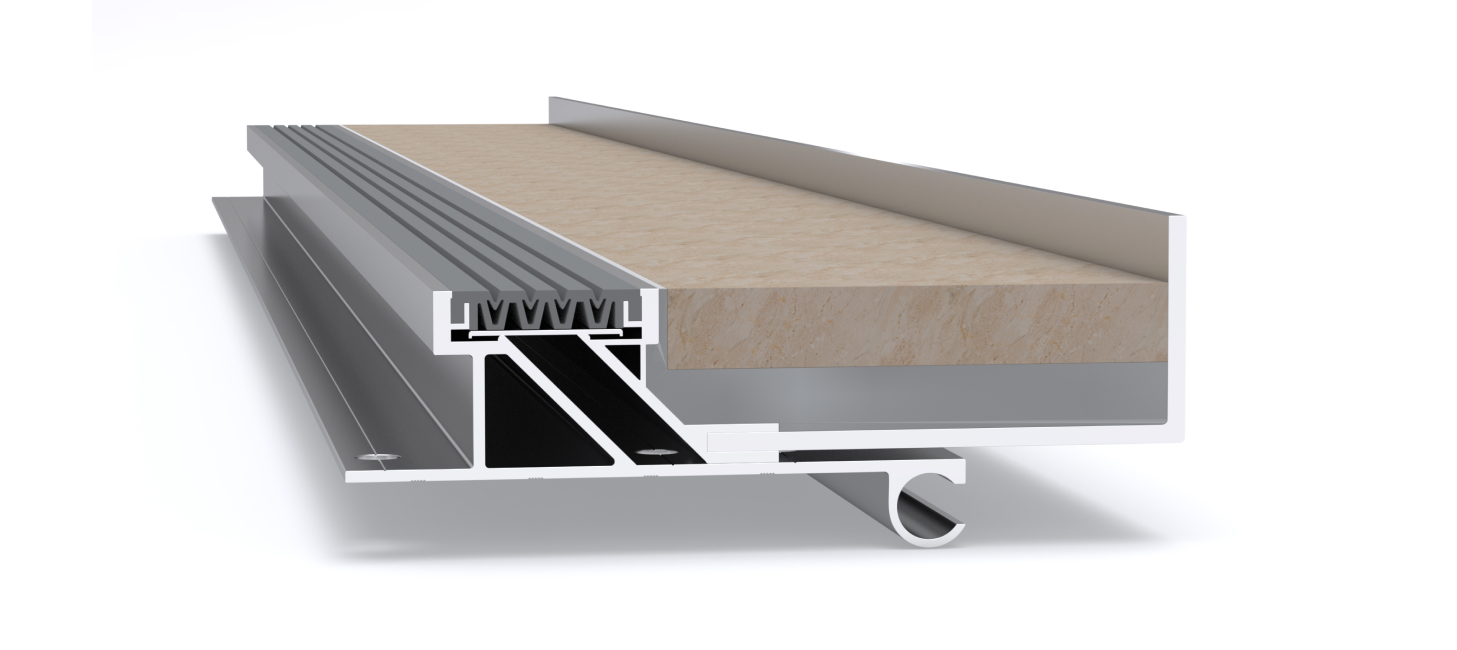

    SGALL‑50 (TM) to SGALL‑200 (TM) Aluminium
    View product
    PAVA-Inlay Series

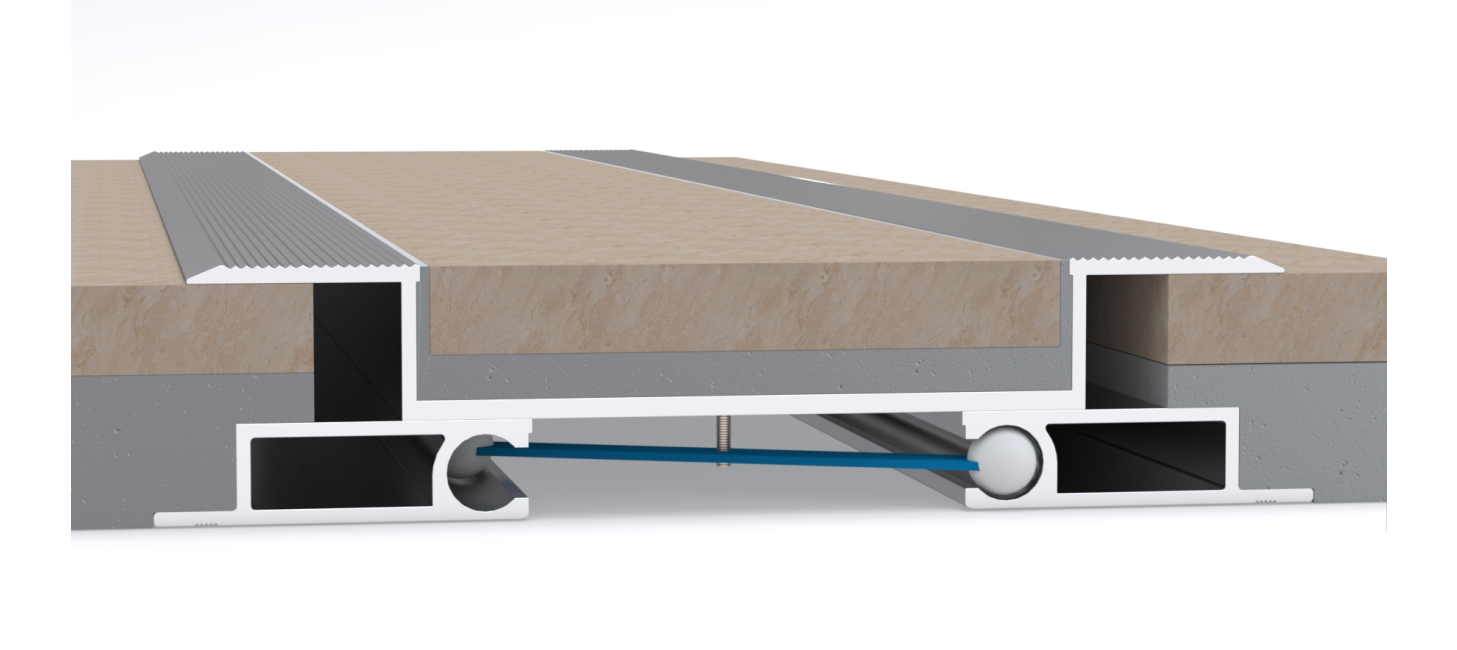

    ASMP‑25 to ASMP‑100 Aluminium
