    Surface-Line Series

    BSL-10 Solid Brass

    Floor‑to‑Wall Slip Joint

    The BSL-10 Series solid brass floor-to-wall slip joint is designed to be installed with vinyl flooring in areas where limited horizontal movement is expected. This style of expansion joint cover would usually be considered for supermarket and large department store applications, usually in slab-on-ground applications.

    Materials

    • Supplied in Brass 380 mill finish alloy.

    • Supplied in 4000mm lengths.

    Fixings

    • The material is available with factory drilling for fixing at approximately 350mm centres on request.

    • We recommend Latham Thixotropic Epoxy Adhesive be used in conjunction for superior securing.

    Why you should choose Latham products

    Genuine Warranty
    AS 2021 Compliant
    NCC 2022 Compliant
    P5 Slip Resistant
    AS 2018 Compliant

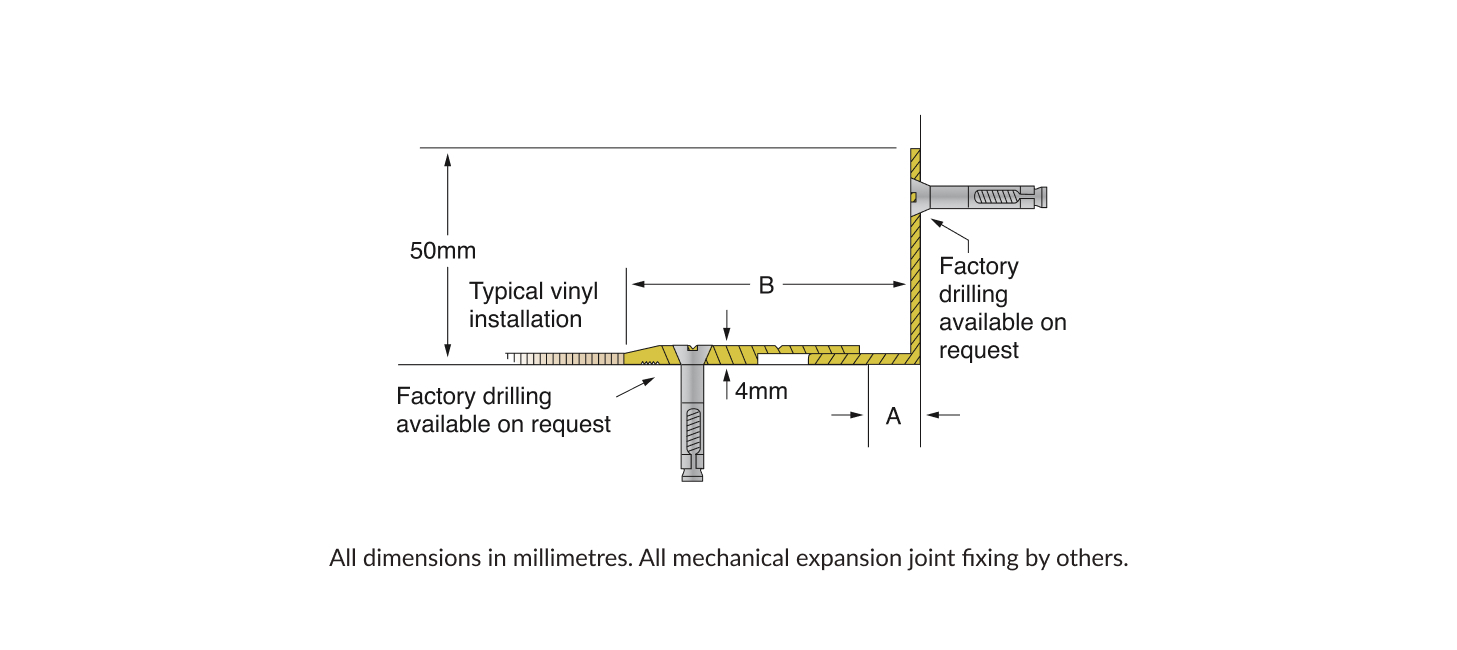

    https://www.latham-australia.com/hubfs/Mechanical%20Expansion%20Joint%20Covers/Surface%20Line/1457x650-Tech%20Drawing-Surface%20Line%20BSL-10%20Solid%20Brass.jpg
    TECHNICAL CHARACTERISTICS Illustrated: BSL-10
    Solid Brass Code
    Ribbed Deck    		 A B Movement Total Available Movement Overall Depth
    BSL-10 12 65 +/-12mm 24mm Surface Mounted



    Resources & Downloads

    Access essential resources and downloads. Ensure you have all the necessary information to select and install the best Latham product for your project.

    Joint Cover Specs
    Australian Good Design Award
    Warranty Details
    Product Information
    Fire Rated Systems
    Adaptive Sustainability Policy
    Architectural Specs
    Enquire about this product
    Special Note

    Customers with special applications are invited to discuss them with us. Service factors must be taken into consideration when selecting tactile indicator studs or directional bars.
