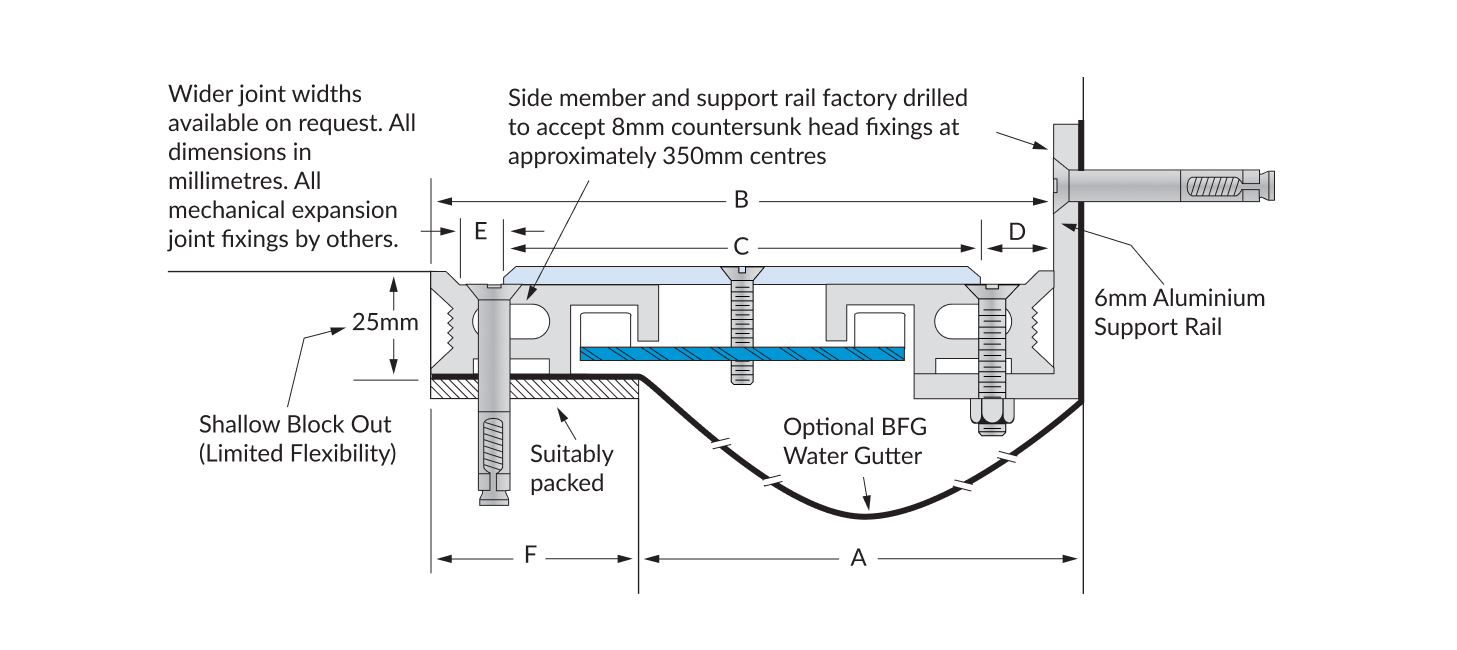

HHSAF‑25 to HHSAF‑200

Floor‑to‑Wall Expansion Joint Cover with Stainless Steel Deck

The HHSAF Series Heavy-Duty Pedestrian expansion joint covers are designed to mirror the movement of the HHS Series. Equipped with stainless steel cover plates, they are intended for heavy‑duty pedestrian applications where floor-to-wall expansion joints are required. Designed to work with the HHS Series floor‑to‑floor expansion joint covers they can accept heavier traffic (subject to the load and the span), such as EWPs. For more load information contact Latham Australia, who can supply point loads to suit various traffic loads and wheel sizes. The HHSAF also offers extended movement over the traditional
 floor-to-wall configuration.

Materials

• Aluminim 6063-T5 mill finish alloy.

• 304 Grade 2B finish stainless steel cover plates to 6mm thickness and #1 finish for cover plates thicker than 6mm.

• Spring steel treated centring bar with cylindrical pins at ~475mm centres.

• Supplied in 3050mm lengths.

Fixings

• Side members factory drilled to accept 8mm countersunk head fixings at ~350mm centres.
