    Heavy Duty Series

    HHAL‑25 to HHAL‑200

    Floor‑to‑Wall Expansion Joint Cover with Ribbed Deck

    The HHAL Series Heavy-Duty Pedestrian expansion joint covers are designed for heavy‑duty pedestrian applications where floor-to-wall expansion joints are required. These are designed to work with the HHA Series floor expansion joint covers. They can accept heavier traffic (subject to the load and the span) such as EWP’s. For more load information, contact Latham Australia who can supply point loads to suit various traffic loads and wheel sizes.

    Materials

    • Aluminim 6063-T5 mill finish alloy.

    • Supplied in 3050mm lengths.

    Fixings

    • Side members factory drilled to accept 8mm countersunk head fixings at ~350mm centres.

    Why you should choose Latham products

    Genuine Warranty
    AS 2021 Compliant
    NCC 2022 Compliant
    P5 Slip Resistant
    AS 2018 Compliant
    https://www.latham-australia.com/hubfs/Mechanical%20Expansion%20Joint%20Covers/Heavy%20Duty/1457x650-Tech%20Drawing-Heavy%20Duty%20HHAL%E2%80%9025%20to%20HHAL%E2%80%90200.jpg

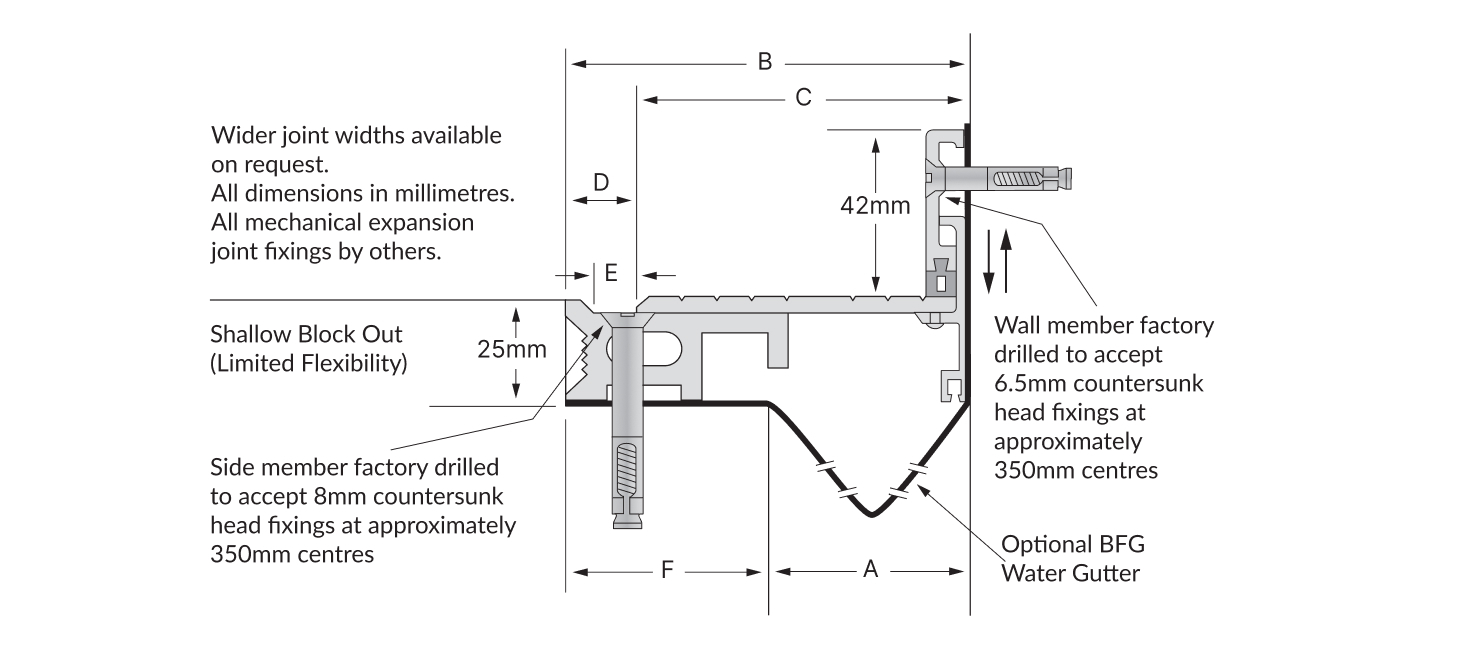

    TECHNICAL CHARACTERISTICS Illustrated: HHAL-50
    Aluminium Code Ribbed Deck A B C D E F Movement Total Available Movement Overall Depth Cover Plate Thickness
    HHAL-25 25 75 57 18 12 50 +/-13mm 26mm 67mm 5mm
    HHAL-50 50 100 82 18 12 50 +/-13mm 26mm 67mm 5mm
    HHAL-75 75 125 107 18 12 50 +/-13mm 26mm 67mm 5mm
    HHAL-100 100 150 132 18 12 50 +/-13mm 26mm 68mm 6mm
    HHAL-150 • 150 200 182 18 12 50 +/-13mm 26mm 68mm 6mm
    HHAL-200 • 200 250 232 18 12 50 +/-13mm 26mm 69mm 7mm

    • Denotes smooth deck
