The Latham Wall-Line Series of expansion joint covers are specifically designed for wall and ceiling applications. There are a variety of systems which range from spring fixings details to mechanical fixed details in full aluminium or aluminium and Santoprene inserts. Some systems in the range allow 6 way movement, whilst the surface fixed products generally cover 2 directional movement. The systems offer thermal and structural movement and shrinkage and will accommodate limited seismic movement.
Product Specifications How to Specify Guide
Aluminium Code | A | B | C | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|---|
Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others. | |||||||
25K | 25 | 126 | 38 | +/-23mm | 46mm | 16mm | |
50K | 50 | 126 | 38 | +/-23mm | 46mm | 16mm | |
75K | 75 | 191 | 58 | +/-45mm | 90mm | 16mm | |
100K | 100 | 216 | 58 | +/-45mm | 90mm | 16mm | |
150K | 150 | 266 | 58 | +/-45mm | 90mm | 16mm |
Aluminium Code | A | B | C | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|---|
Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others. | |||||||
25K | 25 | 116 | 38 | +30/-20mm | 50mm | 16mm | |
50K | 50 | 126 | 38 | +/-30mm | 60mm | 16mm | |
75K | 75 | 191 | 58 | +/-50mm | 100mm | 16mm | |
100K | 100 | 216 | 58 | +/-50mm | 100mm | 16mm | |
150K | 150 | 266 | 58 | +/-50mm | 100mm | 16mm |
The Latham Wall-Line Series Standard wall and ceiling expansion joint covers are for internal and external applications. As standard all visual surfaces come with a 20 micron clear anodised finish (standard) or brass colour anodised finish (specify brass colour finish). The standard K range is 16mm deep and can carry a water/wind barrier if required. The range can be installed flush internally with 16mm wall board or the curvature of the profile 13mm board will appear almost flush, surface mounted or recessed brick, block work or concrete. When the expansion joint width is 50mm or wider, the range can accommodate the Latham Fire Barrier system.
All Wall-Line Series aluminium expansion joint covers can be successfully powder coated or anodised to harmonize with the wall and ceiling finish. If this is required please contact a Latham representative to discuss the application. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Enquire About This Product
Aluminium Code | A | B | C | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|---|
Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others. | |||||||
25L | 25 | 83 | 58 | +25/-15mm | 40mm | 16mm | |
50L | 50 | 108 | 58 | +/-25mm | 50mm | 16mm | |
75L | 75 | 133 | 58 | +/-25mm | 50mm | 16mm | |
100L | 100 | 158 | 58 | +/-25mm | 50mm | 16mm | |
150L | 150 | 208 | 58 | +/-25mm | 50mm | 16mm |
Aluminium Code | A | B | C | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|---|
Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others. | |||||||
25L | 25 | 83 | 58 | +25/-15mm | 40mm | 16mm | |
50L | 50 | 108 | 58 | +/-25mm | 50mm | 16mm | |
75L | 75 | 133 | 58 | +/-25mm | 50mm | 16mm | |
100L | 100 | 158 | 58 | +/-25mm | 50mm | 16mm | |
150L | 150 | 208 | 58 | +/-25mm | 50mm | 16mm |
The Latham Wall-Line Series Standard wall and ceiling expansion joint covers are for internal and external applications. As standard all visual surfaces come with a 20 micron clear anodised finish (standard) or brass colour anodised finish (specify brass colour finish). The standard L range is16mm deep and can carry a water/wind barrier if required. The range can be installed flush internally with 16mm wall board or the curvature of the profile 13mm board will appear almost flush, surface mounted or recessed brick, block work or concrete. When the expansion joint width is 50mm or wider, the range can accommodate the Latham Fire Barrier system.
All Wall-Line Series aluminium expansion joint covers can be successfully powder coated or anodised to harmonize with the wall and ceiling finish. If this is required please contact a Latham representative to discuss the application. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Enquire About This Product
Aluminium Code | A | B | C | Movement | Total Available Movement | Overall Depth |
---|---|---|---|---|---|---|
Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others. | ||||||
25M | 25 | 235 | 48 | +30/-17mm | 47mm | 12mm |
50M | 50 | 260 | 48 | +50/-42mm | 92mm | 12mm |
75M | 75 | 285 | 48 | +/-50mm | 100mm | 12mm |
100M | 100 | 310 | 48 | +/-50mm | 100mm | 12mm |
150M | 150 | 360 | 48 | +/-50mm | 100mm | 12mm |
Aluminium Code | A | B | C | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|---|
Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others. | |||||||
25M | 25 | 235 | 48 | +30/-17mm | 47mm | 12mm | |
50M | 50 | 260 | 48 | +50/-42mm | 92mm | 12mm | |
75M | 75 | 285 | 48 | +/-50mm | 100mm | 12mm | |
100M | 100 | 310 | 48 | +/-50mm | 100mm | 12mm | |
150M | 150 | 360 | 48 | +/-50mm | 100mm | 12mm |
The Latham Wall-Line Series Surface Mounted wall & ceiling expansion joint covers are for internal and external applications. As standard all material is supplied in mill finish aluminium. The standard M Series are for surface mounted applications and sit proud of the surface by 5mm. Ranges are 12mm deep and can carry a water/wind barrier if required. When the expansion joint width is 50mm or wider, the range can accommodate the Latham Fire Barrier Systems.
All Wall-Line Series aluminium expansion joint covers can be successfully powder coated or anodised to harmonize with the wall or ceiling finish. If this is required please contact a Latham representative to discuss the application. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Aluminium Code | A | B | C | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|---|
Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others. | |||||||
25ML | 25 | 130 | 48 | +/-25mm | 50mm | 12mm | |
50ML | 50 | 155 | 48 | +/-25mm | 50mm | 12mm | |
75ML | 75 | 180 | 48 | +/-25mm | 50mm | 12mm | |
100ML | 100 | 205 | 48 | +/-25mm | 50mm | 12mm | |
150ML | 150 | 255 | 48 | +/-25mm | 50mm | 12mm |
Aluminium Code | A | B | C | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|---|
Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others. | |||||||
25ML | 25 | 130 | 48 | +/-25mm | 50mm | 12mm | |
50ML | 50 | 155 | 48 | +/-25mm | 50mm | 12mm | |
75ML | 75 | 180 | 48 | +/-25mm | 50mm | 12mm | |
100ML | 100 | 205 | 48 | +/-25mm | 50mm | 12mm | |
150ML | 150 | 255 | 48 | +/-25mm | 50mm | 12mm |
The Latham Wall-Line Series Surface Mounted wall & ceiling expansion joint covers are for internal and external applications. As standard all material is supplied in mill finish aluminium. The standard M Series are for surface mounted applications and sit proud of the surface by 5mm. Ranges are 12mm deep and can carry a water/wind barrier if required. When the expansion joint width is 50mm or wider, the range can accommodate the Latham Fire Barrier Systems.
All Wall-Line Series aluminium expansion joint covers can be successfully powder coated or anodised to harmonize with the wall or ceiling finish. If this is required please contact a Latham representative to discuss the application. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Aluminium Code | A | B | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|
All dimensions in millimetres. All mechanical expansion joint fixings by others. | ||||||
Type 25S | 25 | 66 | +/-25mm | 50mm | 6mm | |
Type 50S | 50 | 106 | +/-40mm | 80mm | 6mm | |
Type 75S | 75 | 161 | +/-65mm | 130mm | 6mm | |
Type 100S | 100 | 161 | +/-40mm | 80mm | 6mm |
Aluminium Code | A | B | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|
All dimensions in millimetres. All mechanical expansion joint fixings by others. | ||||||
Type 25S | 25 | 66 | +/-25mm | 50mm | 6mm | |
Type 50S | 50 | 106 | +/-40mm | 80mm | 6mm | |
Type 75S | 75 | 161 | +/-65mm | 130mm | 6mm | |
Type 100S | 100 | 161 | +/-40mm | 80mm | 6mm |
The Latham Wall-Line S Series Surface Mounted wall and ceiling expansion joint covers are generally for internal applications only, although they can also be used for external application where Latham type water and wind barrier are not required. Surfaces come with a 20 micron clear anodised finish (standard) or brass colour anodised finish (specify brass colour finish). On request these can also be anodised or powder coated to other colours. All sections have hidden fixings.
The S range are suitable for fixing to masonry, timber, cement sheet, gyprock and other hard surfaced applications; they clip onto the wall or ceiling with a pre-fixed locking mechanism.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Aluminium Code | A | B | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|
All dimensions in millimetres. All mechanical expansion joint fixings by others. | ||||||
Type 25SL | 25 | 47 | +/-12mm | 24mm | 6mm | |
Type 50SL | 50 | 75 | +/-22mm | 44mm | 6mm | |
Type 75SL | 75 | 125 | +48/-50mm | 98mm | 6mm | |
Type 100SL | 100 | 125 | +23/-75mm | 98mm | 6mm |
Aluminium Code | A | B | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|
All dimensions in millimetres. All mechanical expansion joint fixings by others. | ||||||
Type 25SL | 25 | 53 | +/-12mm | 24mm | 6mm | |
Type 50SL | 50 | 75 | +/-22mm | 44mm | 6mm | |
Type 75SL | 75 | 150 | +/-60mm | 100mm | 6mm | |
Type 100SL | 100 | 150 | +/-40mm | 80mm | 6mm |

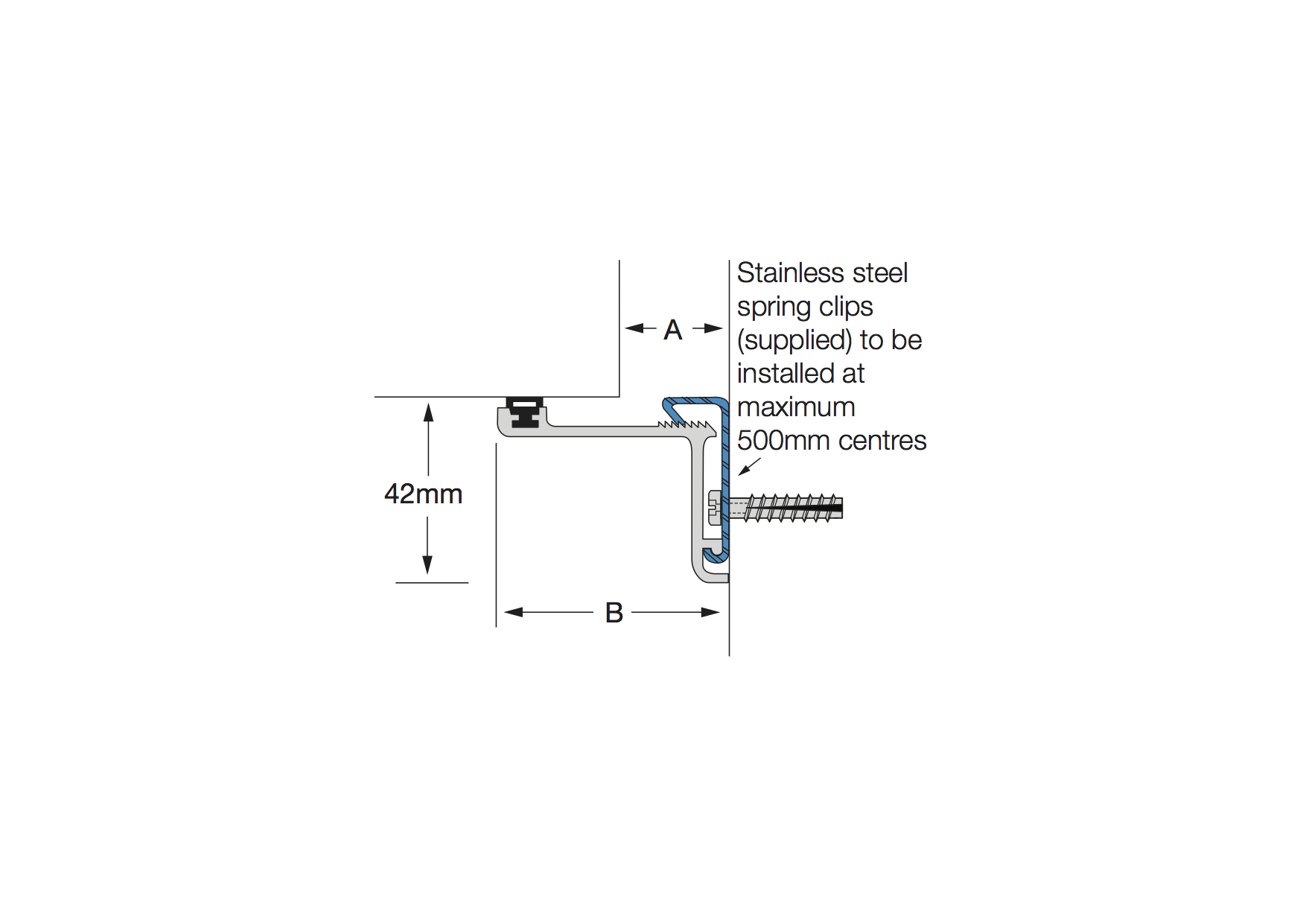

The Latham Wall-Line SL Series Surface Mounted wall and ceiling expansion joint covers are generally for internal applications only, although they can also be used for external application where Latham type water and wind barrier are not required. Surfaces come with a 20 micron clear anodised finish (standard) or brass colour anodised finish (specify brass colour finish). On request these can also be anodised or powder coated to other colours. All sections have hidden fixings.
The SL range are suitable for fixing to masonry, timber, cement sheet, gyprock and other hard surfaced applications; they clip onto the wall or ceiling with a pre-fixed locking mechanism.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Aluminium Code | A | B | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|
Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others. | ||||||
Type 25SC | 25 | 66 | +/-25mm | 50mm | 6mm | |
Type 50SC | 50 | 106 | +/-25mm | 50mm | 6mm | |
Type 25SCL | 25 | 53 | +/-12mm | 25mm | 6mm | |
Type 50SCL | 50 | 90 | +/-15mm | 30mm | 6mm |
Aluminium Code | A | B | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|
Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others. | ||||||
Type 25SC | 25 | 66 | +/-25mm | 50mm | 6mm | |
Type 50SC | 50 | 106 | +/-25mm | 60mm | 6mm | |
Type 25SCL | 25 | 53 | +/-12mm | 25mm | 6mm | |
Type 50SCL | 50 | 90 | +/-15mm | 30mm | 6mm |

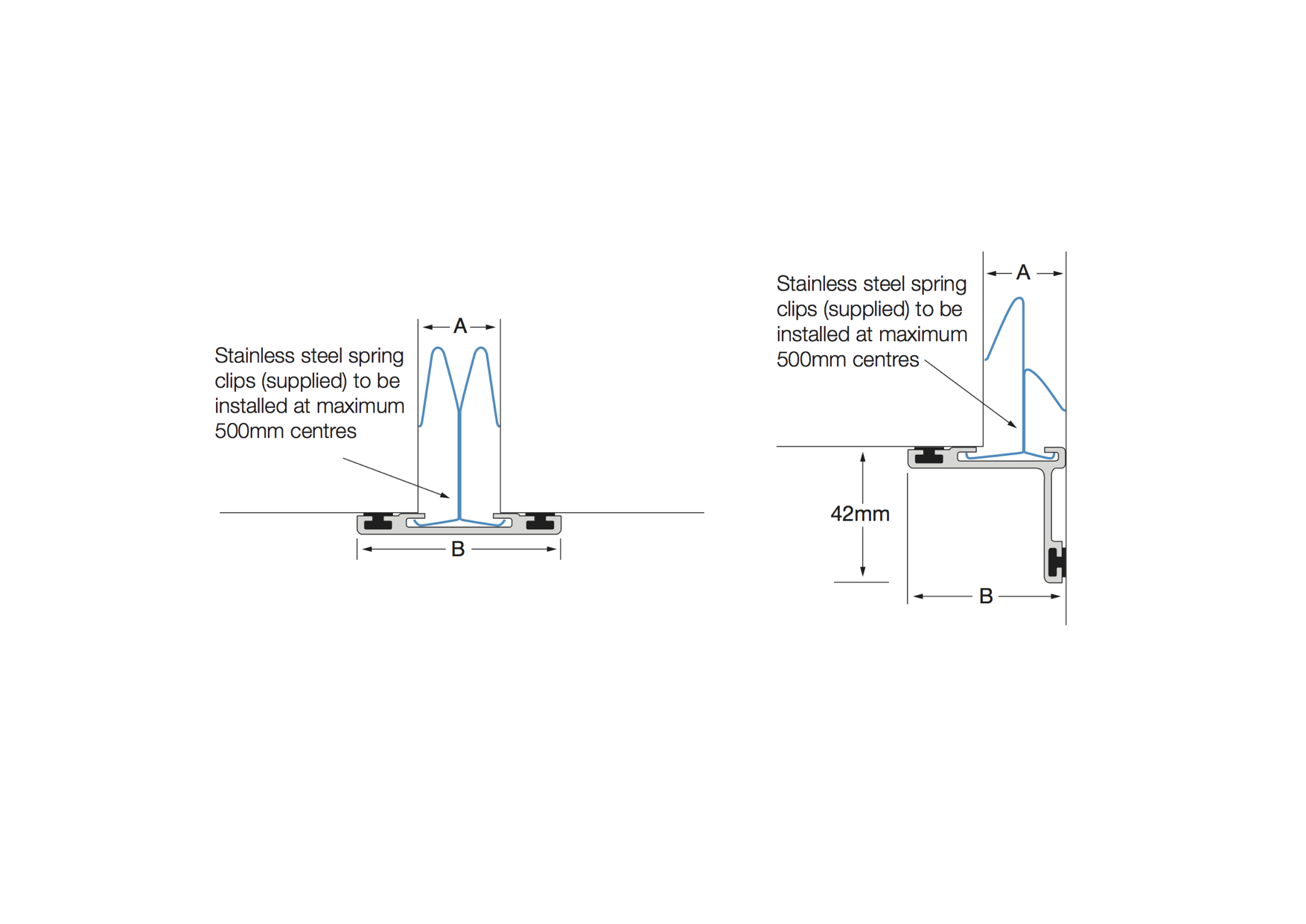

The Latham Wall-Line SC and SCL Series Surface Mounted wall and ceiling expansion joint covers are generally for internal applications only, although they can also be used for external application where Latham type water and wind barrier are not required. Surfaces come with a 20 micron clear anodised finish (standard) or brass colour anodised finish (specify brass colour finish). On request these can also be anodised or powder coated to other colours.
The SC and SCL Series are generally for masonry stud wall or block work type applications, they can be made to suit other wall and ceiling installation details on site but this will depend on the actual site condition. They are held in position with a tough stainless steel spring clip at approximately 500mm centres, which make the profiles virtually impossible to remove once installed.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Aluminium Code | A | B | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|
All dimensions in millimetres. All mechanical expansion joint fixings by others. | ||||||
Type 25SAC | 25 | 66 | +/-25mm | 50mm | 6mm | |
Type 50SAC | 50 | 106 | +/-30mm | 60mm | 6mm | |
Type 25SACL | 25 | 53 | +/-12mm | 25mm | 6mm | |
Type 50SACL | 50 | 90 | +/-15mm | 30mm | 6mm |
Aluminium Code | A | B | Movement | Total Available Movement | Overall Depth | |
---|---|---|---|---|---|---|
All dimensions in millimetres. All mechanical expansion joint fixings by others. | ||||||
Type 25SAC | 25 | 66 | +/-25mm | 50mm | 6mm | |
Type 50SAC | 50 | 116 | +/-30mm | 80mm | 6mm | |
Type 25SACL | 25 | 53 | +/-12mm | 25mm | 6mm | |
Type 50SACL | 50 | 90 | +/-15mm | 30mm | 6mm |

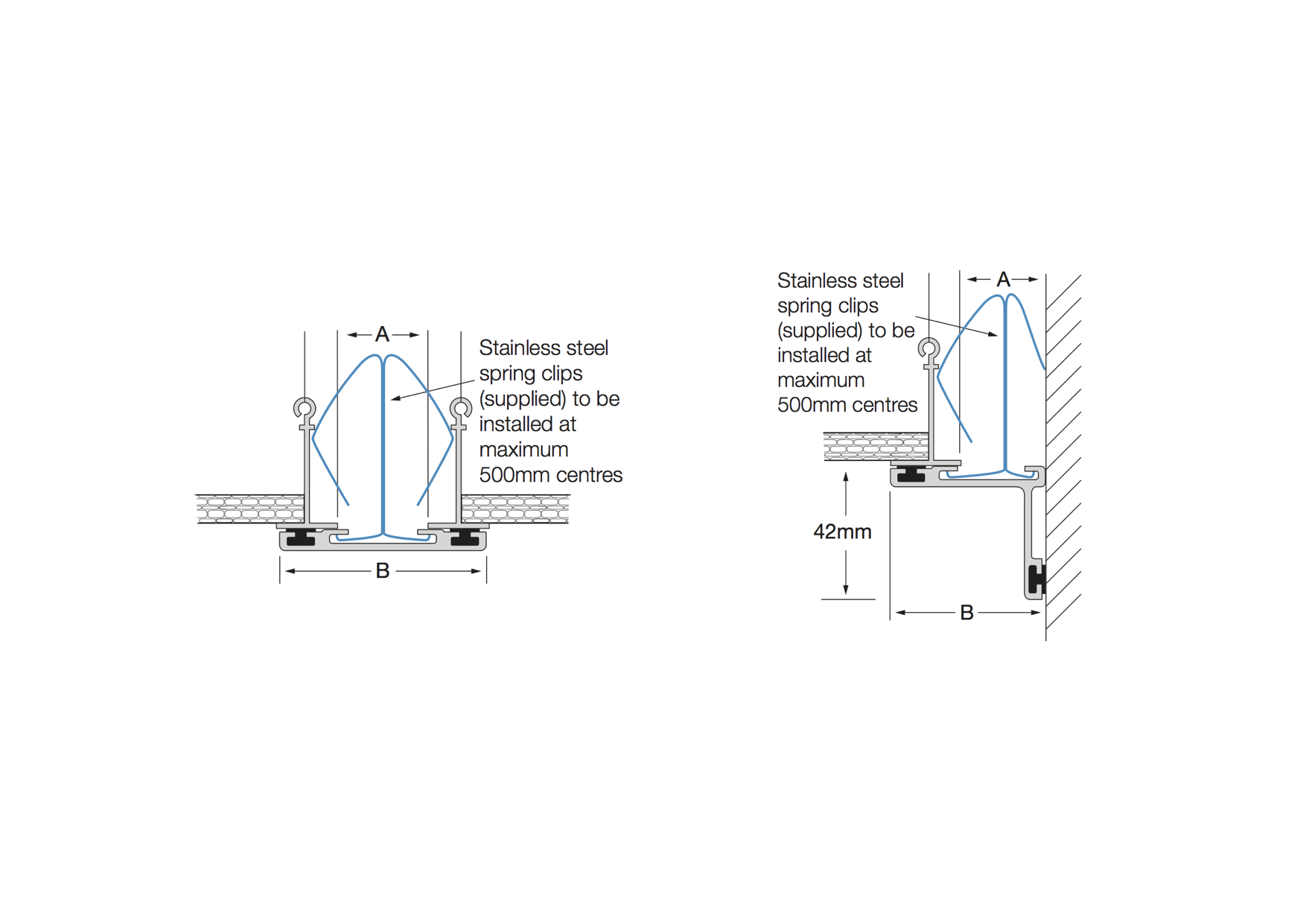

The Latham Wall-Line SAC and SACL Series Surface Mounted wall and ceiling expansion joint covers are generally for internal applications, although they can also be used for external application where Latham type water and wind barrier are not required. Surfaces come with a 20 micron clear anodised finish (standard) or brass colour anodised finish (specify brass colour finish). On request, these can be anodised or powder-coated to other colours.
The SAC and SACL Series are generally installed in acoustic ceiling type applications or in panelled ceilings with ceiling Tee’s. They are held in position with a tough stainless steel spring clip at approximately 500mm centres, which make the profiles virtually impossible to remove once installed.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Aluminium Code | A | Movement | Total Available Movement | |
---|---|---|---|---|
All dimensions in millimetres. All mechanical expansion joint fixings by others. | ||||
AC-25 | 25 | +/-12mm | 25mm |
Aluminium Code | A | Movement | Total Available Movement | |
---|---|---|---|---|
All dimensions in millimetres. All mechanical expansion joint fixings by others. | ||||
AC-25 | 25 | +/-12mm | 25mm |
The Latham Wall Line Series Resilient Inserts are available for internal ceiling applications.
The AC-25 covers are for internal applications only and are supplied with grey inserts (standard), or black inserts on request.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Aluminium Code | A | Movement | Total Available Movement | |
---|---|---|---|---|
All dimensions in millimetres. All mechanical expansion joint fixings by others. | ||||
AW-25 | 25 | +/-12mm | 25mm |
Aluminium Code | A | Movement | Total Available Movement | |
---|---|---|---|---|
All dimensions in millimetres. All mechanical expansion joint fixings by others. | ||||
AW-25 | 25 | +/-12mm | 25mm |

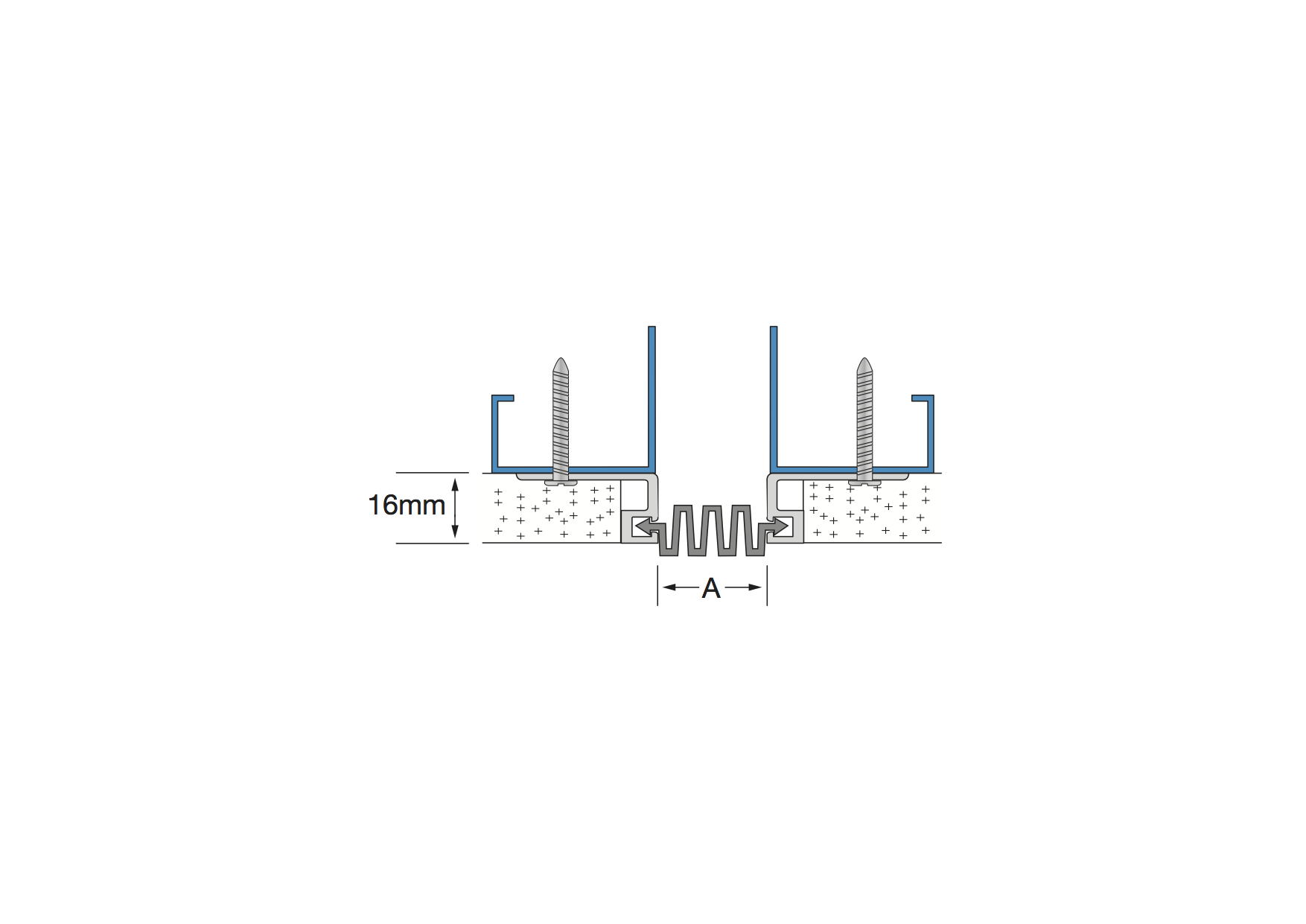

The Latham Wall Line Series Resilient Inserts are available for internal and external wall applications and internal ceiling applications.
The AW-25 covers are for internal applications only and are supplied with grey inserts (standard), or black inserts on request.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Aluminium Code | A | Movement | Total Available Movement | |
---|---|---|---|---|
All dimensions in millimetres. All mechanical expansion joint fixings by others. | ||||
VL-60 | 60 | +50/-25mm | 75mm | |
VL-75 | 75 | +50/-25mm | 75mm |
Aluminium Code | A | Movement | Total Available Movement | |
---|---|---|---|---|
All dimensions in millimetres. All mechanical expansion joint fixings by others. | ||||
VL-60 | 60 | +50/-25mm | 75mm | |
VL-75 | 75 | +50/-25mm | 75mm |

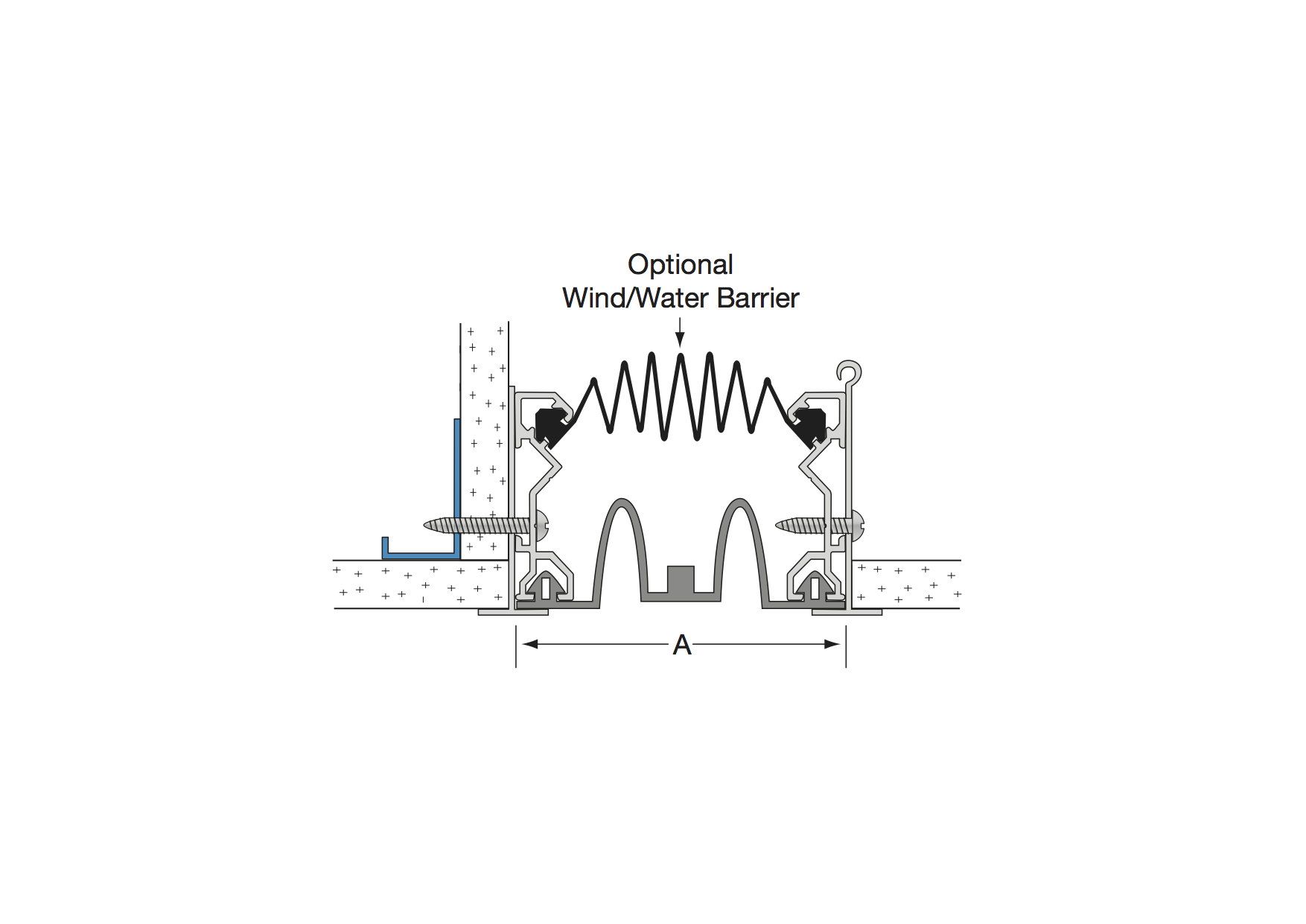

The Latham Wall Line VL Series with Resilient Inserts are suitable for interior and exterior applications.
The VL range has a grey Santoprene insert and carries a concertinaed water/wind barrier if required.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Aluminium Code | A | Movement | Total Available Movement | |
---|---|---|---|---|
All dimensions in millimetres. All mechanical expansion joint fixings by others. | ||||
DVL-120 | 120 | +/-50mm | 100mm | |
DVL-150 | 150 | +/-50mm | 100mm |
Aluminium Code | A | Movement | Total Available Movement | |
---|---|---|---|---|
All dimensions in millimetres. All mechanical expansion joint fixings by others. | ||||
DVL-120 | 120 | +/-50mm | 100mm | |
DVL-150 | 150 | +/-50mm | 100mm |

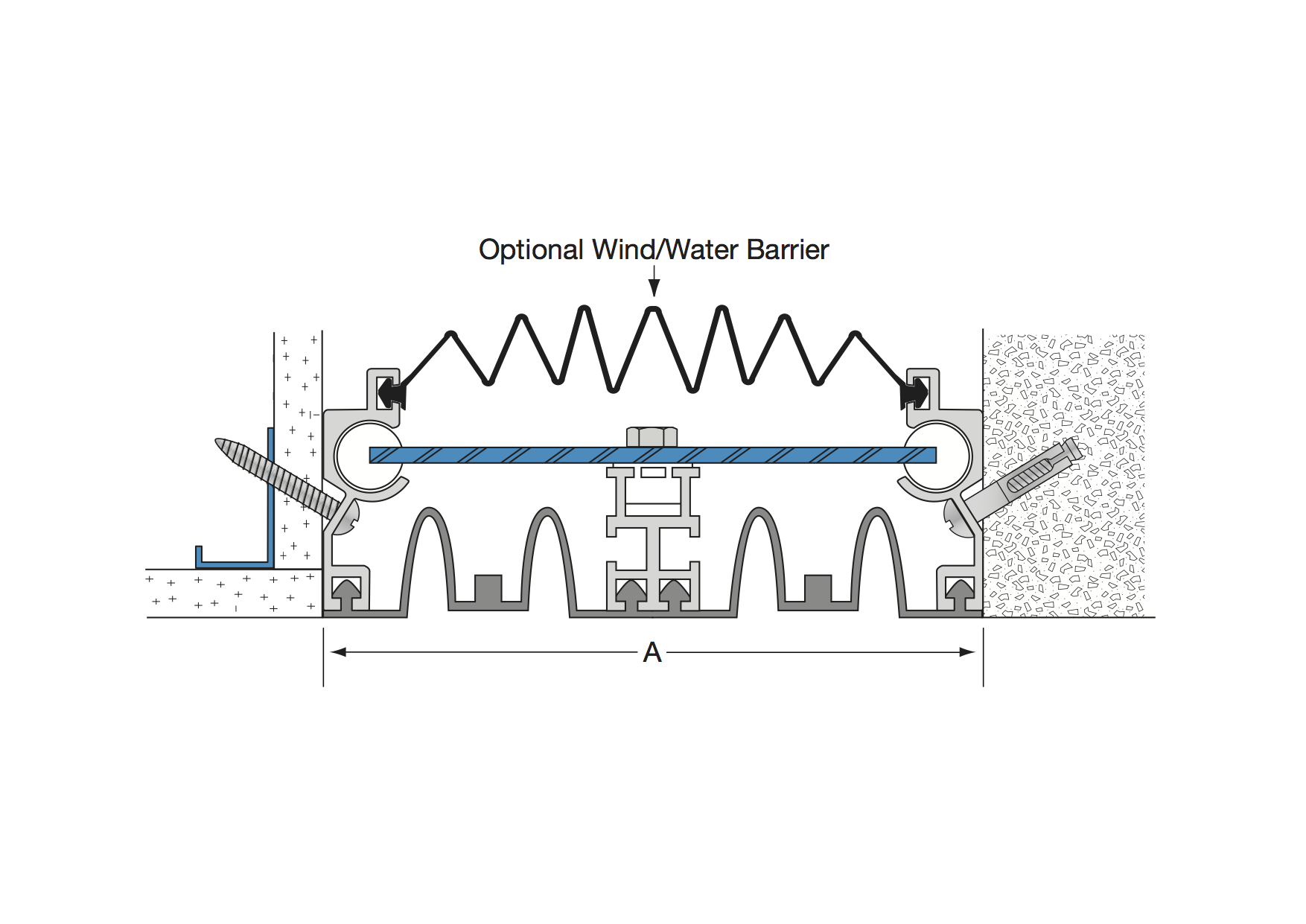

The Latham Wall Line DVL Series with Resilient Inserts are suitable for interior and exterior applications.
The DVL range has a grey Santoprene insert and carries a concertinaed water/wind barrier if required.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
