LRV 50.3

Colour Range

Aluminium

View product data sheets

Enquire about this product

Wall-Line, Wall-to-Ceiling & Ceiling Series

VW-75 to VW-150

Wall & Ceiling Expansion Joint Covers

VW Series wall and ceiling expansion joint covers are designed for internal and external applications, they can carry a secondary wind/vapour barrier, they are usually considered for installation on block work walls or internally in cement sheet walls, but are suitable for installation in most applications.

VW Applications

Expansion joint covers.
Can carry a BFG wind/vapour barrier if required.

Materials

Aluminium 6063-T5 mill finish alloy.
Supplied in 3050mm lengths.
Standard grey Santoprene inserts, or black inserts available on request.

Why you should choose Latham products

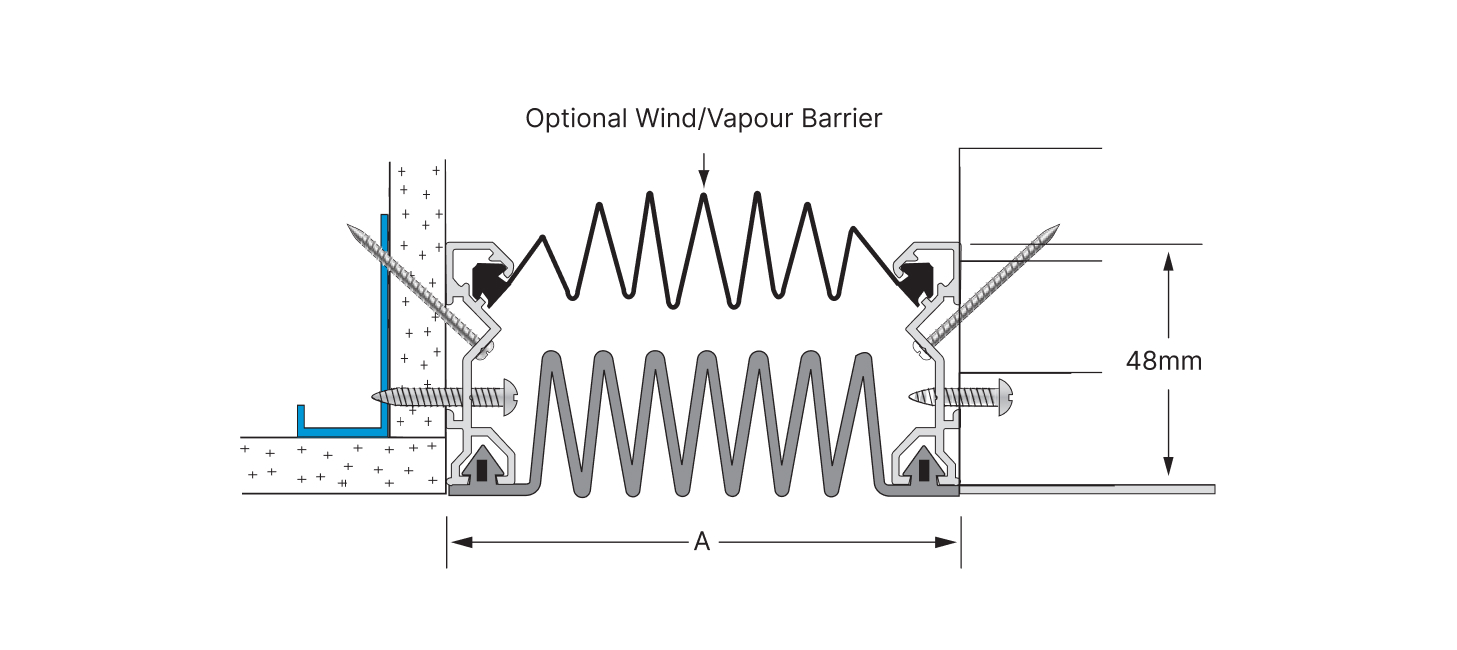

https://www.latham-australia.com/hubfs/Mechanical%20Expansion%20Joint%20Covers/Wall%20Line/1457x650-Tech%20Drawing-Wall%20Line%20VW-75%20to%20VW-150.jpg

TECHNICAL CHARACTERISTICS
Aluminium Code	A	Movement	Total Available Movement
VW-75	75	+85/-35mm	120mm
VW-100	100	+90/-60mm	150mm
VW-150*	150	+/-85mm	170mm

Product Code	Image 3
All dimensions in millimeters
VW-75 to VW-150 Aluminium	Image{width=1457,height=650,url='https://www.latham-australia.com/hubfs/Mechanical%20Expansion%20Joint%20Covers/Wall%20Line/1457x650-Tech%20Drawing-Wall%20Line%20VW-75%20to%20VW-150.jpg',altText='1457x650-Tech Drawing-Wall Line VW-75 to VW-150',fileId=387685039570}
