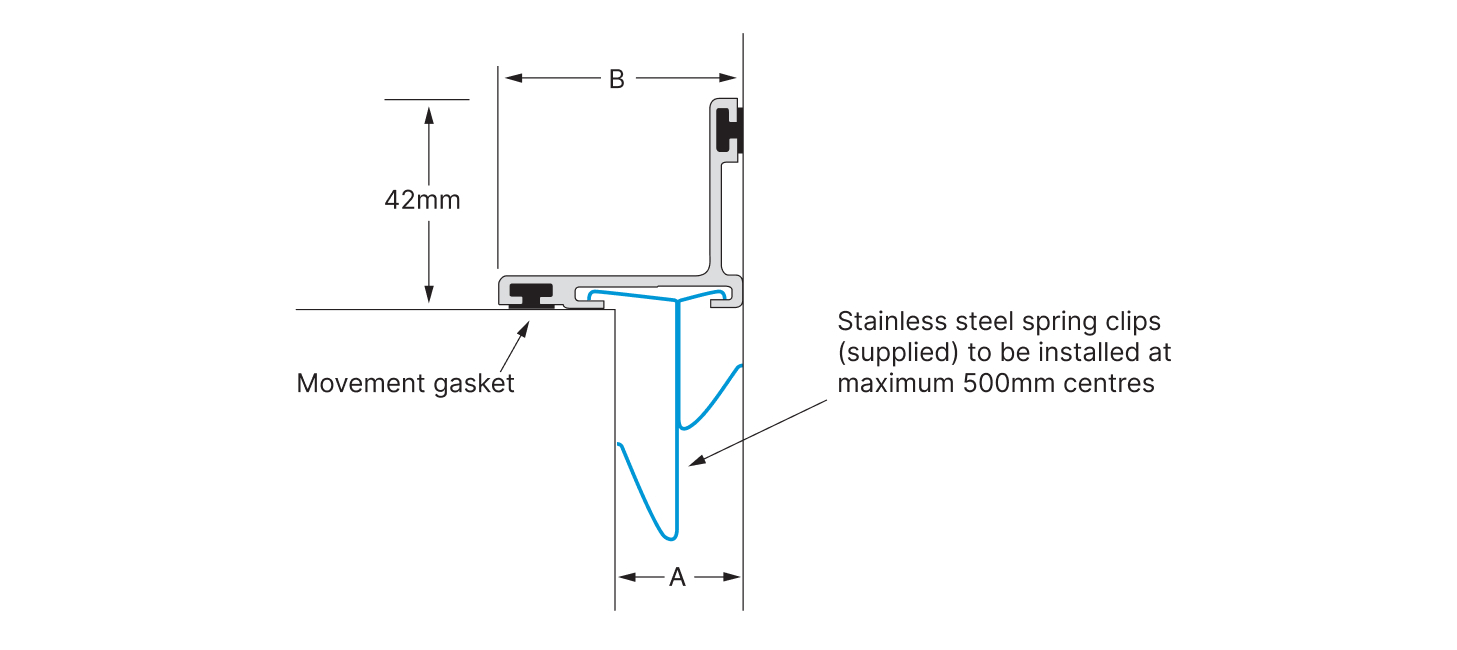

SCL Corner Wall

Wall & Ceiling Expansion Joint Covers

SCL Corner Wall Surface Mounted wall and ceiling expansion joint covers are generally for internal applications only, although they can also be used for external application where Latham type water and wind barrier are not required. Surfaces come with a 20 micron clear anodised finish (standard) or brass colour anodised finish (specify brass colour finish). On request they can also be anodised or powder coated to other colours, including woodgrain. The SCL Series are designed for use in masonry, timber, cement sheet, gyprock and other hard surfaced applications. They can be made to suit other wall and ceiling installation details on site but this will depend on the actual site condition. The covers are held in place by anti‑tamper one direction stainless steel springs making the system very difficult to remove once installed.

Materials

• Aluminium 6063-T5 alloy.

• Supplied in 3050mm lengths.

• Stainless steel spring clips.

• All visual surfaces come with a 20-micron clear anodised finish.

• Contact a Latham representative for alternative anodising or powder coating options.

Fixings

• The joint clips onto the wall or ceiling with a pre-fixed locking mechanism--, hidden from external view at ~500mm centres.
