FWL‑25 to FWL‑150

Roof‑to‑Parapet Expansion Joint Cover

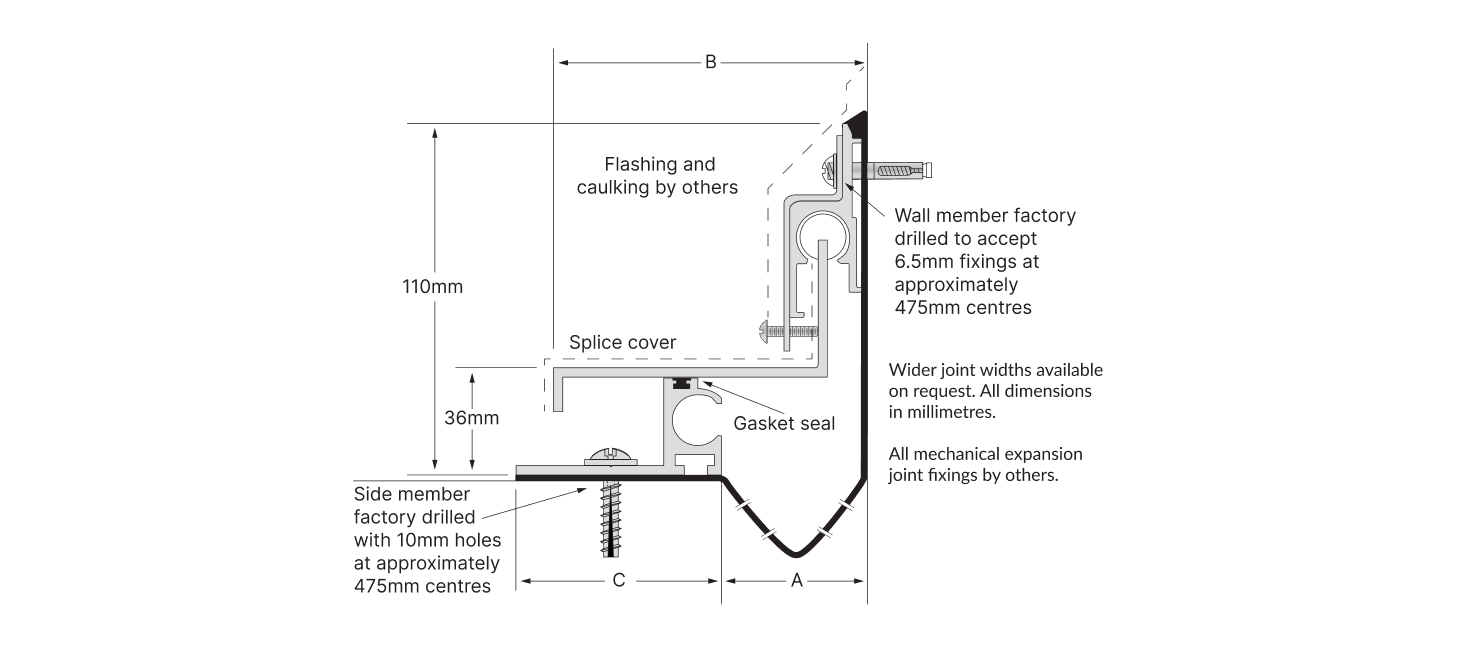

The FWL Series roof-line expansion joint covers are for roof‑to‑parapet applications. They are designed for installation on flat concrete or metal roofs, and they can also be installed on concrete or timber hobs. The system comes standard with a BFG water gutter. Splice plates can be supplied where cover plates are abutted to ensure water tightness. As standard the material is supplied in mill finish aluminium. On request, Latham can have the material powder coated or anodised to a required colour, or finish.

Materials

• Aluminium 6063-T5 mill finish alloy.

• Supplied in 3050mm lengths.

Fixings

• Side member factory drilled with 10mm holes at ~475mm centres.

• Wall member factory drilled to accept 6.5mm fixings at ~475mm centres.

• End Closures, Transition Splices, Corners and Tee’s should be considered for roof joints.

• Contact a Latham representative for more information.
