    Wall-Line, Wall-to-Ceiling & Ceiling Series

    AW-25

    Wall Expansion Joint Cover

    AW Series Wall expansion joint covers are designed for installation in conjunction with up to 16mm ceiling boards or cement wall sheeting. The aluminium extrusions are supplied in clear anodised finish.

    AC Applications

    • Expansion joint cover for fixing to frame of the plasterboard wall.

    • Designed to be installed with up to 16mm plasterboard or sheet.

    Materials

    • Aluminium 6063-T5 alloy.

    • Supplied in 3050mm lengths.

    • Standard grey neoprene inserts, or black inserts available on request.

    • All visual surfaces come with a 20-micron clear anodised finish.

    Why you should choose Latham products

    Genuine Warranty
    AS 2021 Compliant
    NCC 2022 Compliant
    P5 Slip Resistant
    AS 2018 Compliant

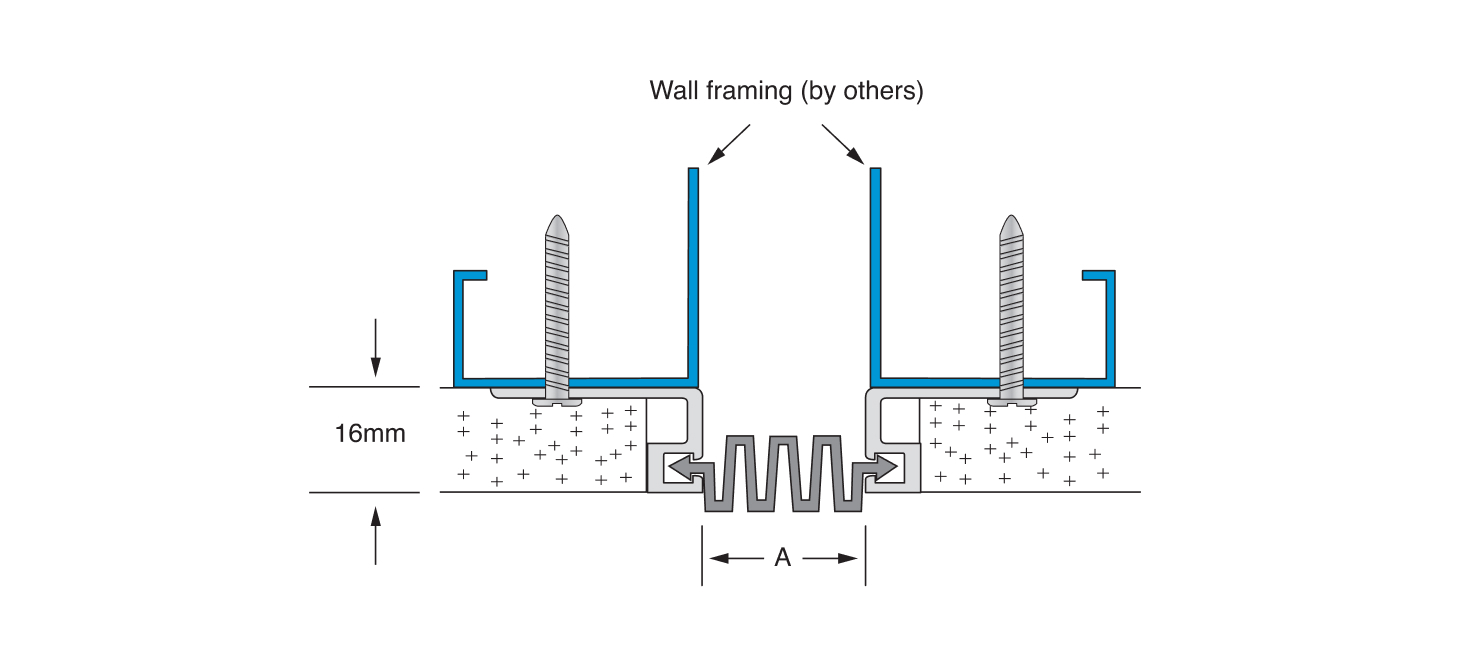

    https://www.latham-australia.com/hubfs/Mechanical%20Expansion%20Joint%20Covers/Wall%20Line/1457x650-Tech%20Drawing-Wall%20Line%20AW-25.jpg
    TECHNICAL CHARACTERISTICS
    Aluminium Code A Movement Total Available Movement
    AW-25 25 +/-12mm 25mm

    Resources & Downloads

    Access essential resources and downloads. Ensure you have all the necessary information to select and install the best Latham product for your project.

    Joint Cover Specs
    Australian Good Design Award
    Warranty Details
    Product Information
    Fire Rated Systems
    Adaptive Sustainability Policy
    Architectural Specs
    Enquire about this product
    Special Note

    Customers with special applications are invited to discuss them with us. Service factors must be taken into consideration when selecting tactile indicator studs or directional bars.
