25S to 100S

Wall & Ceiling Expansion Joint Cover

S Series wall and ceiling expansion joint covers are designed for use in masonry, timber, cement sheet, gyprock and other hard surfaced applications. Generally intended for internal use, although if no Latham wind or water barrier is required, they can be used in external applications. As standard, they are supplied in clear anodised finish for all exposed surfaces. On request they can be powder coated or anodised to other colours and textures, including woodgrain.

Materials

• Aluminium 6063-T5 alloy.

• Supplied in 3050mm lengths.

• Stainless steel spring clips.

• All visual surfaces come with a 20-micron clear anodised finish.

• Contact a Latham representative for alternative anodising or powder coating options.

Fixings

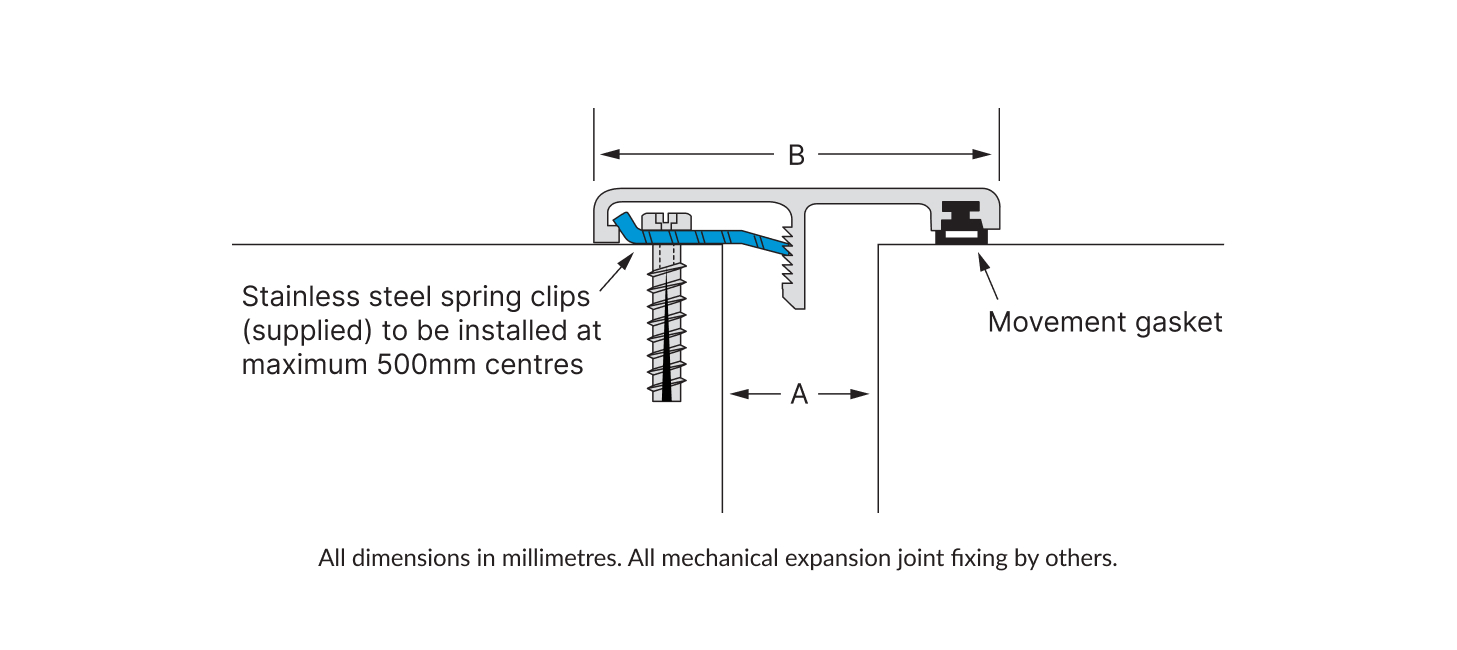

• The joint clips onto the wall or ceiling with a pre-fixed locking mechanism--, hidden from external view at ~500mm centres.
