Aluminium

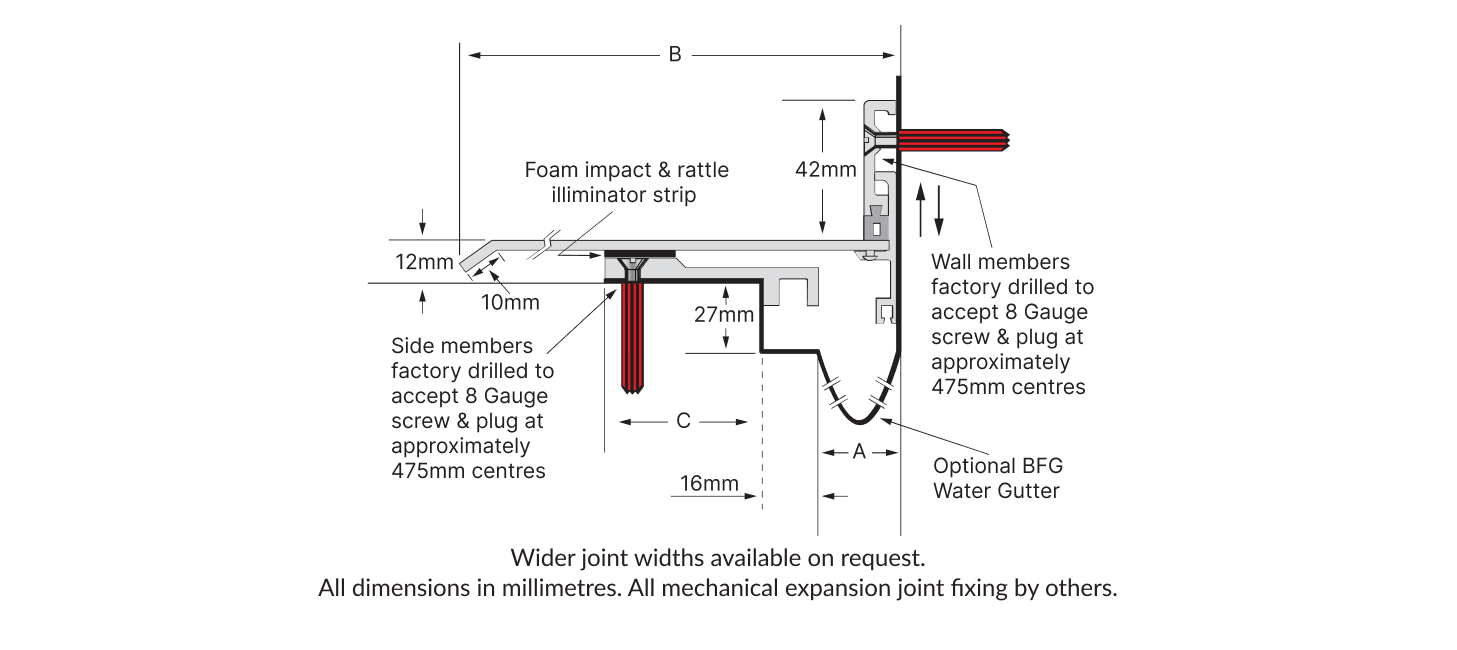

ML Series wall, corner and wall-to-ceiling expansion joint covers are surface mounted covers. As standard they are supplied in mill finish aluminium. On request they can be powder coated or anodised to other colours and textures, including woodgrain. The detail below shows a 16mm x 20mm recess in the wall finish, which is only required for joints less than 42mm.
Materials
Aluminium 6063-T5 mill finish alloy.
Supplied in 3050mm lengths.
All visual surfaces come with mill finish.
Contact a Latham representative for alternative anodising or powder coating options.
Fixings
Side members factory drilled to accept 8 gauge screw and plug at ~475mm centres.
