Roof and Roof-to-Parapet Expansion Joint Covers in Aluminium

All Roof-Line Series joint covers come standard with a water/wind barrier and top seal gaskets for the centre plate screw of the flat roof cover. All Latham Roof-Line Series flat roof and roof-to-parapet covers are supplied with 1 splice plate per full length which is for installation over the junction between 2 plates to maintain water tightness. As standard the Roof-Line Series covers are supplied in mill finish aluminium, although they can be successfully powder coated or anodised to harmonise with the surrounding finishes. End Closures, Transition Splices, Corners and Tees should be considered for all Roof Lines Series expansion joint covers.

For further details of available profiles, view and download the roof details here.

Product Specifications   How to Specify Guide


Additional Information:
Good Design Neoprene Strips + Movement Joint Systems.png

Illustrated: FW-50
Aluminium Code A B C Movement Total Available Movement Overall Depth
All dimensions in millimetres. All mechanical expansion joint fixings by others.
FW-25 25 114 70 +25/-17mm 43mm 36mm
FW-50 50 165 70 +50/-43mm 92mm 36mm
FW-75 75 190 70 +/-50mm 100mm 36mm
FW-100 100 215 70 +/-50mm 100mm 36mm
FW-150 150 266 70 +/-50mm 100mm 36mm
6 Way Movement
Outdoor
Water Gutter
Fire Barrier



The Latham Roof-Line Series Shallow aluminium roof range of expansion joint covers can be installed on a flat slab or hob. All Roof-Line Series joint covers come standard with a water/wind barrier and top seal gaskets for the centre plate screw of the flat roof cover.

All Latham Roof-Line Series roof expansion joint covers are supplied with 1 splice plate per full length which is for installation over the junction between 2 plates to maintain water tightness. When the expansion joint width is 50mm or wider, the series can accommodate the Latham Fire Barrier System.

As standard the Roof‑Line Series joint covers are supplied in mill finish aluminium, although they can be successfully powder coated or anodised to harmonize with the surrounding finishes. If this is required please contact a Latham representative to discuss the application. End Closures, Transition Splices, Corners and Tees should be considered for all Roof-Line Series expansion joint covers.

View and download our data sheets - PDF

Download our section details - CAD

Enquire About This Product

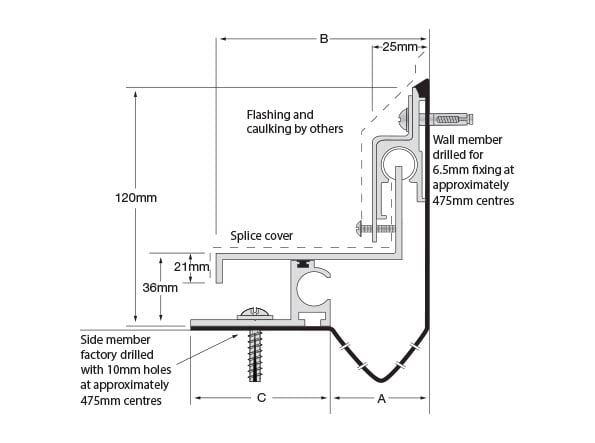

Illustrated: FWL-50
Aluminium Code A B C Movement Total Available Movement Overall Depth
Wider join widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others.
FWL-25 25 75 70 +/-12mm 25mm 110mm
FWL-50 50 108 70 +/-25mm 50mm 110mm
FWL-75 75 132 70 +/-25mm 50mm 110mm
FWL-100 100 158 70 +/-25mm 50mm 110mm
FWL-150 150 208 70 +/-25mm 50mm 110mm
6 Way Movement
Outdoor
Water Gutter
Fire Barrier



The Latham Roof-Line Series Shallow aluminium roof-to-parapet range of expansion joint covers can be installed on a flat slab or hob. All Roof-Line Series joint covers come standard with a water/wind barrier and top seal gaskets for the centre plate screw of the flat roof cover.

All Latham Roof-Line Series roof-to-parapet joint covers are supplied with 1 splice plate per full length which is for installation over the junction between 2 plates to maintain water tightness. When the expansion joint width is 50mm or wider, the series can accommodate the Latham Fire Barrier System.

As standard the Roof‑Line Series joint covers are supplied in mill finish aluminium, although they can be successfully powder coated or anodised to harmonize with the surrounding finishes. If this is required please contact a Latham representative to discuss the application. End Closures, Transition Splices, Corners and Tees should be considered for all Roof-Line Series expansion joint covers.


View and download our data sheets - PDF

Download our section details - CAD

    Enquire About This Product

    Illustrated: FR-50
    Aluminium Code A B C Movement Total Available Movement Overall Depth
    Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others.
    FR-25 25 114 64 +30/-20mm 40mm 88mm
    FR-50 50 165 64 +/-30mm 92mm 88mm
    FR-75 75 190 64 +/-30mm 100mm 88mm
    FR-100 100 215 64 +/-30mm 100mm 88mm
    FR-150 150 265 64 +/-30mm 100mm 88mm
    6 Way Movement
    Outdoor
    Water Gutter
    Fire Barrier



    The Latham Roof-Line Series Elevated aluminium roof range of expansion joint covers offer the best protection against water penetrating through the roof slab joint. The range can be installed on a concrete or timber hob. The elevated side members are installed high above the slabs. The slab membrane should continue to the side member and membrane hold down clips are supplied for installation at approximately 500mm centres. All Roof-Line Series joint covers come standard with a water/wind barrier and top seal gaskets for the centre plate screw of the flat roof cover.

    All Latham Roof Line Series flat roof covers are supplied with 1 splice plate per full length which is for installation over the junction between 2 plates to maintain water tightness. When concrete hobs or continuous up stands are used and the expansion joint width is 50mm or wider, the series can accommodate the Latham Fire Barrier System.

    As standard the Roof-Line Series Covers are supplied in mill finish aluminium, although they can be successfully powder coated or anodised to harmonize with the surrounding finishes. If this is required please contact a Latham representative to discuss the application.
    End Closures, Transition Splices, Corners and Tees should be considered for all Roof Lines Series expansion joint Covers.

    View and download our data sheets - PDF

    Download our section details - CAD

    Enquire About This Product

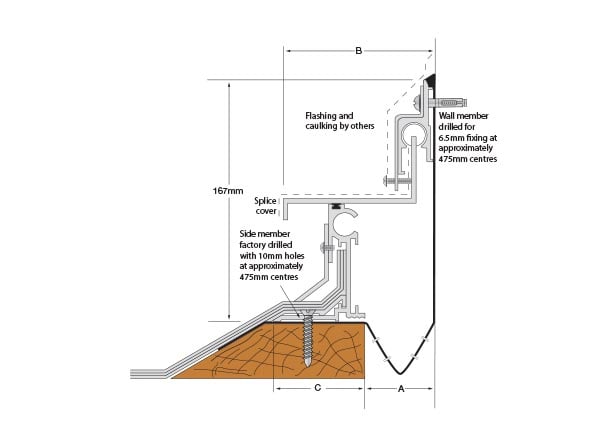

    Illustrated: FRL-50
    Aluminium Code A B C Movement Total Available Movement Overall Depth
    Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others.
    FRL-25 25 75 64 +/-12mm 25mm 167mm
    FRL-50 50 108 64 +/-25mm 50mm 167mm
    FRL-75 75 132 64 +/-25mm 50mm 167mm
    FRL-100 100 158 64 +/-25mm 50mm 167mm
    FRL-150 150 208 64 +/-25mm 50mm 167mm
    6 Way Movement
    Outdoor
    Water Gutter
    Fire Barrier



    The Latham Roof-Line Series Elevated aluminium roof-to-parapet range of expansion joint covers offer the best protection against water penetrating through the roof slab joint. The range can be installed on a concrete or timber hob. The elevated side members are installed high above the slabs. The slab membrane should continue to the side member and membrane hold down clips are supplied for installation at approximately 500mm centres. All Roof-Line Series joint covers come standard with a water/wind barrier and top seal gaskets for the centre plate screw of the flat roof cover.

    All Latham Roof Line Series roof-to-parapet covers are supplied with 1 splice plate per full length which is for installation over the junction between 2 plates to maintain water tightness. When concrete hobs or continuous up stands are used and the expansion joint width is 50mm or wider, the series can accommodate the Latham Fire Barrier System.

    As standard the Roof-Line Series Covers are supplied in mill finish aluminium, although they can be successfully powder coated or anodised to harmonize with the surrounding finishes. If this is required please contact a Latham representative to discuss the application. End Closures, Transition Splices, Corners and Tees should be considered for all Roof Lines Series expansion joint Covers.


    View and download our data sheets - PDF

    Download our section details - CAD

    Enquire About This Product

    Illustrated: FP-50
    Aluminium Code A B C Movement Total Available Movement Overall Depth
    Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others.
    FP-25 25 114 70 +25/-15mm 40mm 36mm plus taper
    FP-50 50 165 70 +50/-42mm 92mm 36mm plus taper
    FP-75 75 190 70 +/-50mm 100mm 36mm plus taper
    FP-100 100 215 70 +/-50mm 100mm 36mm plus taper
    FP-150 150 265 70 +/-50mm 100mm 36mm plus taper
    6 Way Movement
    Outdoor
    Water Gutter
    Fire Barrier



    The Latham Roof-Line Series Standard aluminium roof range of expansion joint covers offer the best protection against water penetrating through the roof slab joint. The range can be installed on a concrete or timber hob. The elevated side members are installed high above the slabs. The side member is designed to assist in holding down the membrane material. All Roof-Line Series joint covers come standard with a water/wind barrier and top seal gaskets for the centre plate screw of the flat roof cover.

    All Latham Roof Line Series roof joint covers are supplied with 1 splice plate per full length which is for installation over the junction between 2 plates to maintain water tightness. When concrete hobs or continuous up stands are used and the expansion joint width is 50mm or wider, the series can accommodate the Latham Fire Barrier System.

    As standard the Roof-Line Series joint covers are supplied in mill finish aluminium, although they can be successfully powder coated or anodised to harmonize with the surrounding finishes. If this is required please contact a Latham representative to discuss the application. End Closures, Transition Splices, Corners and Tees should be considered for all Roof-Lines Series expansion joint covers).

    View and download our data sheets - PDF

    Download our section details - CAD

    Enquire About This Product

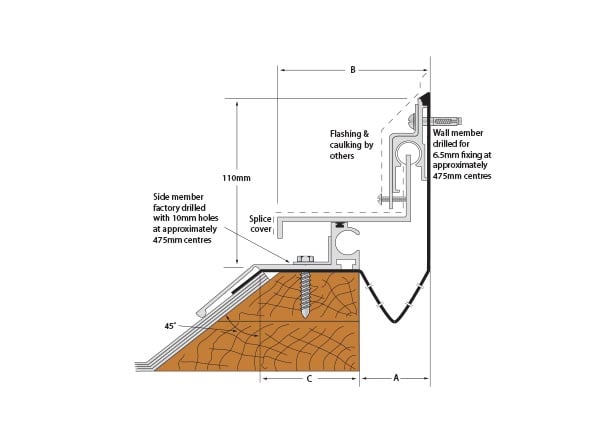

    Illustrated: FPL-50
    Aluminium Code A B C Movement Total Available Movement Overall Depth
    Wider joint widths available on request. All dimensions in millimetres. All mechanical expansion joint fixings by others.
    FPL-25 25 75 70 +/-12mm 25mm 110mm plus taper
    FPL-50 50 108 70 +/-25mm 50mm 110mm plus taper
    FPL-75 75 132 70 +/-25mm 50mm 110mm plus taper
    FPL-100 100 158 70 +/-25mm 50mm 110mm plus taper
    FPL-150 150 208 70 +/-25mm 50mm 110mm plus taper
    6 Way Movement
    Outdoor
    Water Gutter
    Fire Barrier



    The Latham Roof-Line Series Standard aluminium roof-to-parapet range of expansion joint covers offer the best protection against water penetrating through the roof slab joint. The range can be installed on a concrete or timber hob. The elevated side members are installed high above the slabs. The side member is designed to assist in holding down the membrane material. All Roof-Line Series joint covers come standard with a water/wind barrier and top seal gaskets for the centre plate screw of the flat roof cover.

    All Latham Roof Line Series roof-to-parapet joint covers are supplied with 1 splice plate per full length which is for installation over the junction between 2 plates to maintain water tightness. When concrete hobs or continuous up stands are used and the expansion joint width is 50mm or wider, the series can accommodate the Latham Fire Barrier System.

    As standard the Roof-Line Series joint covers are supplied in mill finish aluminium, although they can be successfully powder coated or anodised to harmonize with the surrounding finishes. If this is required please contact a Latham representative to discuss the application. End Closures, Transition Splices, Corners and Tees should be considered for all Roof-Lines Series expansion joint covers).

    View and download our data sheets - PDF

    Download our section details - CAD

    Enquire About This Product

    Have a question about your upcoming project or requirements?
