Carpet-Line Series

carpet-line series

Floor & Floor-to-wall Expansion Joint Covers In Stainless Steel, Aluminium & Brass

The Latham Carpet-Line Series offers a range of expansion joint covers that are suited to most floor and floor-to-wall applications in carpet flooring. The systems offer generous thermal and structural movement and shrinkage and will accommodate limited seismic movement. Systems are available in Stainless Steel, Aluminium and Brass and with an insert plate in direct stick carpet applications to complement most facets of architectural design, whilst incorporating the required movement element. Carpet-Line Series floor and floor-to-wall expansion joint covers should be considered with Wall-Line Series wall and ceiling expansion joint covers.

Product Specifications   How to Specify Guide


Additional Information:
Good Design Neoprene Strips + Movement Joint Systems.png
Latham-Genuine-Warranty-Green-Tick-Symbol

Illustrated: RCS-25
Stainless Steel Code Smooth Deck Aluminium Code Ribbed Deck Brass Code Smooth Deck A B C D Movement Total Available Movement Overall Depth Cover Plate Thickness
Larger movement capabilities & joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium, brass and stainless steel cover plate thicknesses may vary, see the detailed drawing at the links below for exact details of the cover thickness.
RCS-25 RCA-25 RCB-25 25 133 75 82 +25/-15mm 40mm 30mm 3mm*
RCS-50 RCA-50 RCB-50 50 158 100 82 +/-25mm 50mm 30mm 3mm*
RCS-75 RCA-75 RCB-75 75 183 125 82 +/-25mm 50mm 30mm 3mm*
RCS-100 RCA-100 RCB-100 100 208 150 82 +/-25mm 50mm 30mm 3mm*
RCS-150 RCA-150 RCB-150 150 258 200 82 +/-25mm 50mm 30mm 4mm*
6 Way Movement
Indoor
Outdoor
Water Gutter



The Latham Carpet-Line Series Standard 30mm deep floor expansion joint covers are available with aluminium side member and stainless steel, aluminium or brass cover plates. This series can carry a VWS water gutter if required. The series has a depth below the finished floor height of 30mm, excluding the carpet and any underlay.

The series can be set into a preformed recess with CA-16 Block-Out Anchors (supplied unless otherwise noted), in conjunction with mechanical fixings; or cast-into the slot when it is poured, with CA-6 Cast-In Anchors. The Latham Carpet-Line Series Standard floor and floor-to‑wall expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres and airports etc. These joint covers should be used in conjunction carpet and underlay, direct stick carpet and carpet tiles.

The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover. For full details of the joint covers see the data sheets below.

Download our technical data sheets - PDF

Download our product data sheets - PDF

Download our section details - CAD



Enquire About This Product

Illustrated: RCSL-25
Stainless Steel Code Smooth Deck Aluminium Code Ribbed Deck Brass Code Smooth Deck A B C D Movement Total Available Movement Overall Depth Cover Plate Thickness
Larger movement capabilities & joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium, brass and stainless steel cover plate thicknesses may vary, see the detailed drawing at the links below for exact details of the cover thickness.
RCSL-25 RCAL-25 RCBL-25 25 79 50 82 +/-12mm 25mm 30mm 3mm*
RCSL-50 RCAL-50 RCBL-50 50 104 75 82 +/-12mm 25mm 30mm 3mm*
RCSL-75 RCAL-75 RCBL-75 75 129 100 82 +/-12mm 25mm 30mm 3mm*
RCSL-100 RCAL-100 RCBL-100 100 154 125 82 +/-12mm 25mm 30mm 3mm*
RCSL-150 RCAL-150 RCBL-150 150 204 175 82 +/-12mm 25mm 30mm 4mm*
6 Way Movement
Indoor
Outdoor
Water Gutter



The Latham Carpet-Line Series Standard 30mm deep floor-to-wall expansion joint covers are available with aluminium side member and stainless steel, aluminium or brass cover plates. This series can carry a VWS water gutter if required. The series has a depth below the finished floor height of 30mm, excluding the carpet and any underlay.

The series can be set into a preformed recess with CA-16 Block-Out Anchors (supplied unless otherwise noted), in conjunction with mechanical fixings; or cast-into the slot when it is poured, with CA-6 Cast-In Anchors. The Latham Carpet-Line Series Standard floor and floor-to‑wall expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres and airports etc. These joint covers should be used in conjunction carpet and underlay, direct stick carpet and carpet tiles.

The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover. For full details of the joint covers see the data sheets below.

Download our technical data sheets - PDF

Download our product data sheets - PDF

Download our section details - CAD

Enquire About This Product

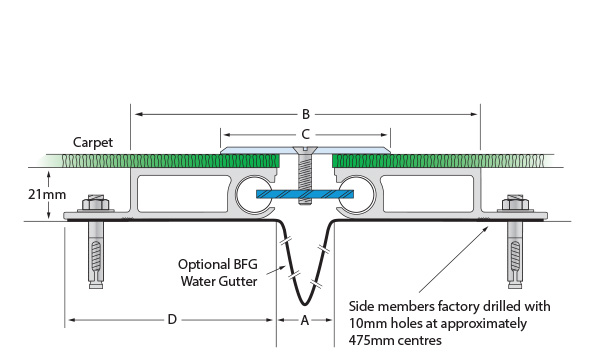

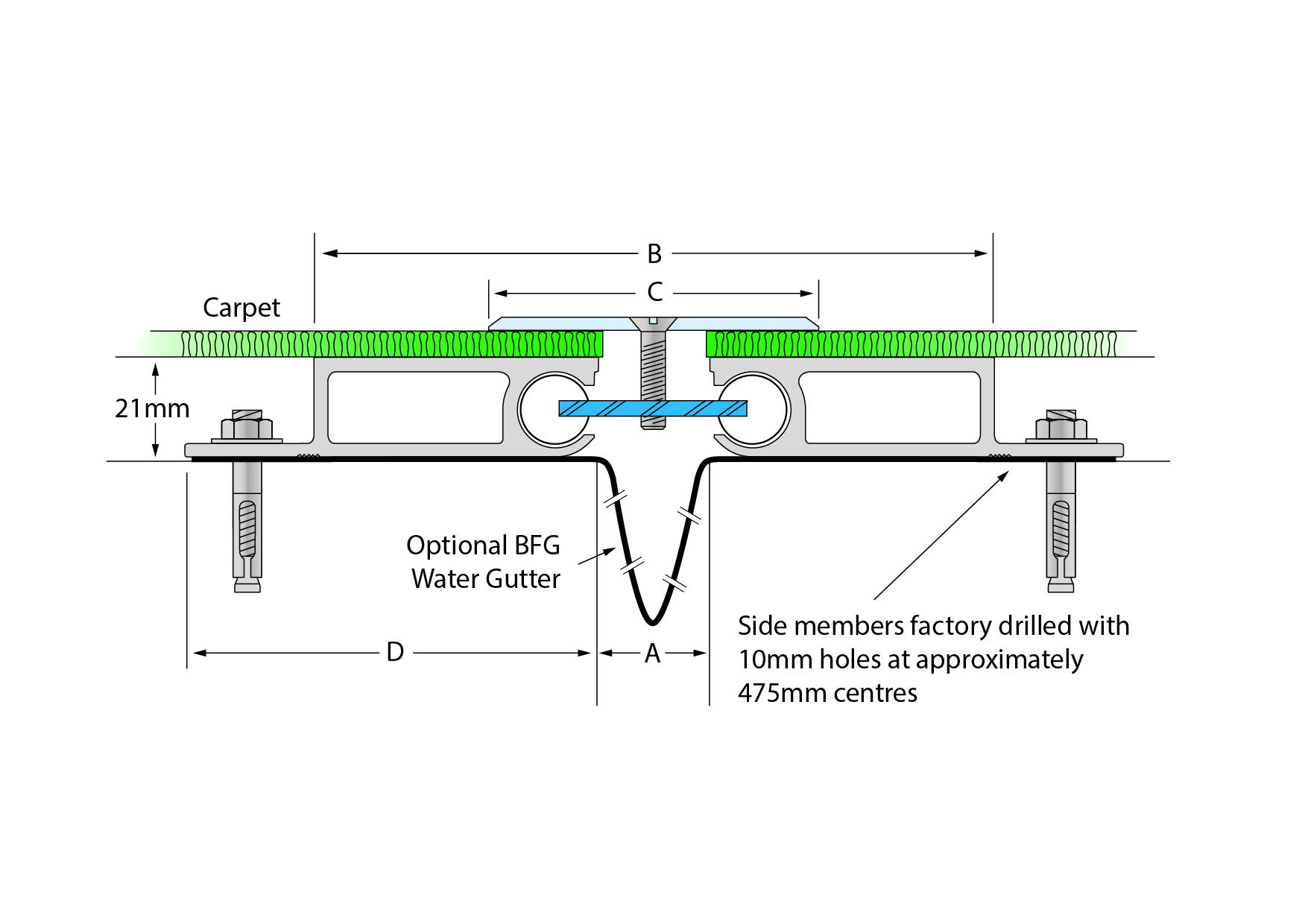

Illustrated: DRCS-25
Stainless Steel Code Smooth Deck Aluminium Code Ribbed Deck Brass Code Smooth Deck A B C D Movement Total Available Movement Overall Depth Cover Plate Thickness
Larger movement capabilities & joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium, brass and stainless steel cover plate thicknesses may vary, see the detailed drawing at the links below for exact details of the cover thickness.
DRCS-25 DRCA-25 DRCB-25 25 79 75 68 +25/-15mm 40mm 23mm 3mm*
DRCS-50 DRCA-50 DRCB-50 50 104 100 68 +/-25mm 50mm 23mm 3mm*
DRCS-75 DRCA-75 DRCB-75 75 129 125 68 +/-25mm 50mm 23mm 3mm*
DRCS-100 DRCA-100 DRCB-100 100 154 150 68 +/-25mm 50mm 23mm 3mm*
DRCS-150 DRCA-150 DRCB-150 150 194 200 68 +/-25mm 50mm 23mm 4mm*
6 Way Movement
Indoor
Outdoor
Water Gutter
Fire Barrier



The Latham Carpet-Line Series Shallow 23mm deep floor expansion joint covers are available with aluminium side members and stainless steel, brass or aluminium cover plates. This series can carry a BFG water gutter if required. The series has a depth below the finished floor height of 25mm. The series is designed to be installed generally into a preformed recess although in some applications the product may not require a recess, depending on the type and depth of the floor finish. When the installation construction joint width exceeds 50mm the series can accommodate the Latham Fire Barrier System.

The Latham Carpet-Line Series Shallow floor expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres, airports etc. These joint covers should be used in conjunction carpet and underlay, direct stick carpet and carpet tiles. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover. For full details of the joint covers see the technical drawings available from Latham Australia.

Download our technical data sheets - PDF

View and download our data sheets - PDF

Download our section details - CAD

Enquire About This Product

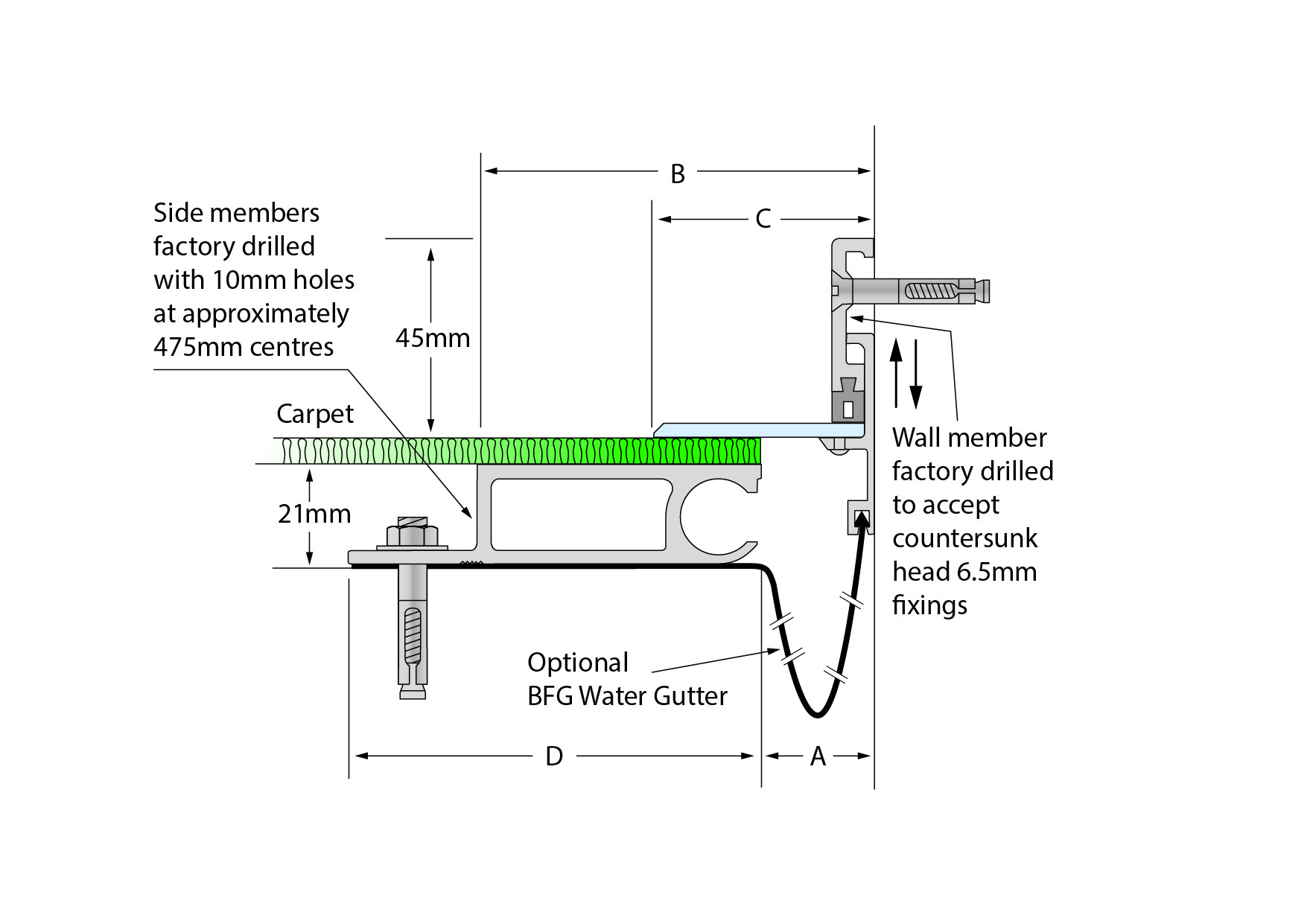

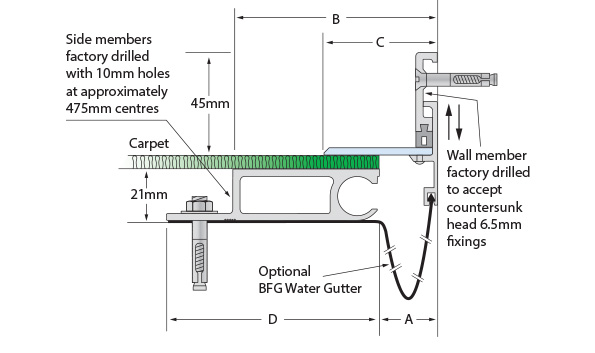

Illustrated: DRCSL-25
Stainless Steel Code Smooth Deck Aluminium Code Ribbed Deck Brass Code Smooth Deck A B C D Movement Total Available Movement Overall Depth Cover Plate Thickness
Larger movement capabilities & joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium, brass and stainless steel cover plate thicknesses may vary, see the detailed drawing at the links below for exact details of the cover thickness.
DRCSL-25 DRCAL-25 DRCBL-25 25 52 50 68 +/-12mm 25mm 23mm 3mm*
DRCSL-50 DRCAL-50 DRCBL-50 50 77 75 68 +/-12mm 25mm 23mm 3mm*
DRCSL-75 DRCAL-75 DRCBL-75 75 102 100 68 +/-12mm 25mm 23mm 3mm*
DRCSL-100 DRCAL-100 DRCBL-100 100 127 125 68 +/-12mm 25mm 23mm 3mm*
DRCSL-150 DRCAL-150 DRCBL-150 150 177 175 68 +/-12mm 25mm 23mm 4mm*
6 Way Movement
Indoor
Outdoor
Water Gutter
Fire Barrier



The Latham Carpet-Line Series Shallow 23mm deep floor-to-wall expansion joint covers are available with aluminium side members and stainless steel, brass or aluminium cover plates. This series can carry a BFG water gutter if required. The series has a depth below the finished floor height of 25mm. The series is designed to be installed generally into a preformed recess although in some applications the product may not require a recess, depending on the type and depth of the floor finish. When the installation construction joint width exceeds 50mm the series can accommodate the Latham Fire Barrier System.

The Latham Carpet-Line Series Shallow floor-to-wall expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres, airports etc. These joint covers should be used in conjunction carpet and underlay, direct stick carpet and carpet tiles. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover. For full details of the joint covers see the technical drawings available from Latham Australia.

Download our technical data sheets - PDF

Download our product data sheets - PDF

Download our section details - CAD

Enquire About This Product

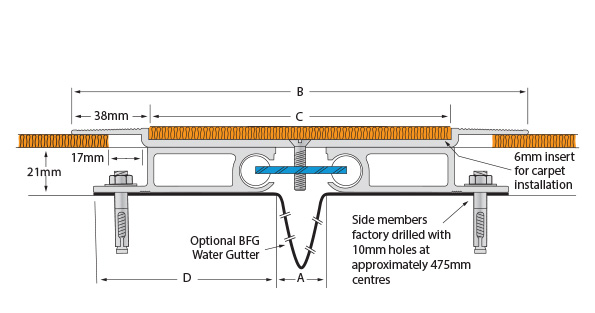

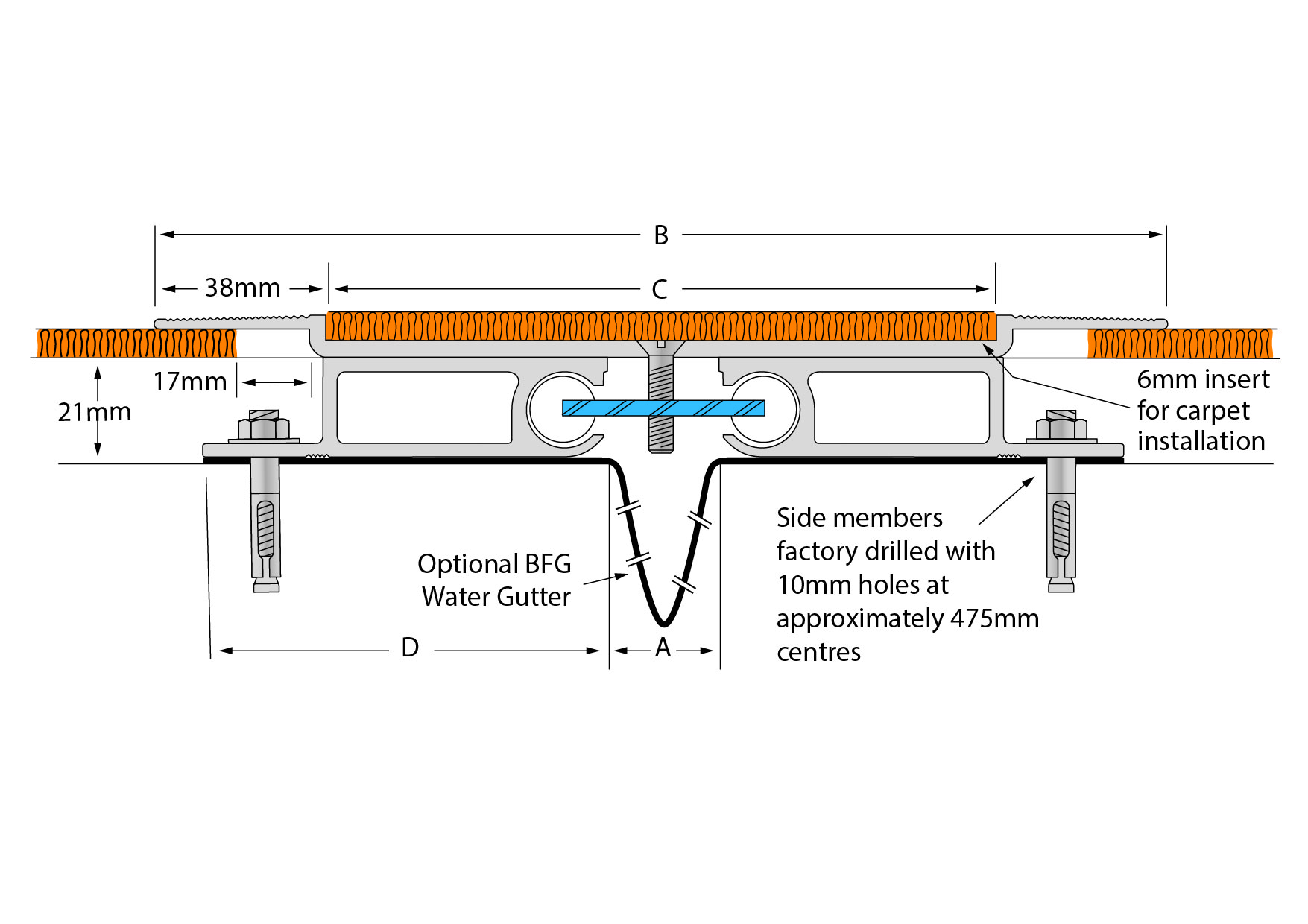

Illustrated: SCA-25
Aluminium Code Ribbed Deck A B C D Movement Total Available Movement Overall Depth Cover Plate Thickness
All measurements in millimetres. All mechanical expansion joint fixings by others.
SCA-25 25 230 154 82 +38/-17mm 55mm 30mm 9mm
SCA-50 50 230 154 82 +/-34mm 68mm 30mm 9mm
SCA-75 75 230 154 82 +/-34mm 68mm 30mm 9mm
SCA-100 100 230 154 82 +/-34mm 68mm 30mm 9mm
6 Way Movement
Indoor
Outdoor
Water Gutter



The Latham Carpet-Line Inlay Series 39mm deep floor expansion joint covers are available in aluminium. This series can carry a VWS water gutter if required. The series has a depth below the finished floor height of 30mm, excluding the carpet. The series can be set into a preformed recess with CA-16 Block-Out Anchors (supplied unless otherwise noted), in conjunction with mechanical fixings; or cast-into the slab when it is poured, with CA-6 Cast-In Anchors.

The Latham Carpet-Line Inlay Series floor expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres, etc. These joint covers should be used in conjunction with direct stick carpet and carpet tiles. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover. For full details of the joint covers see the technical drawing available from Latham Australia.

Download our technical data sheets - PDF

View and download our data sheets - PDF

Download our section details - CAD



Enquire About This Product

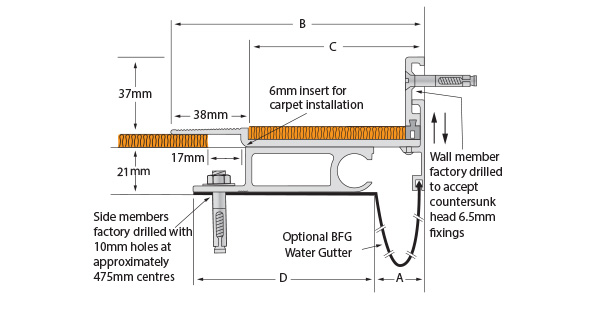

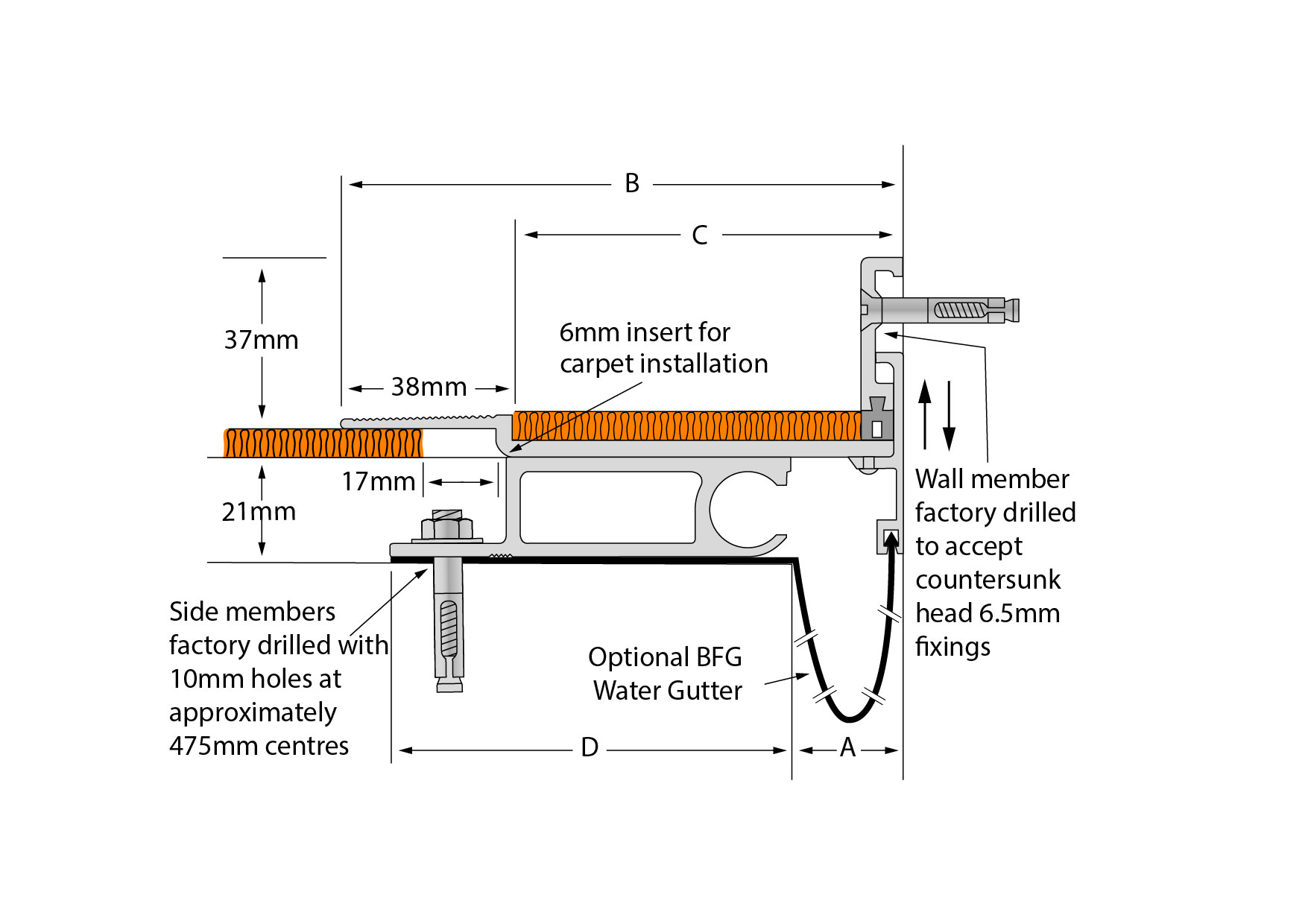

Illustrated: SCAL-25
Aluminium Code Ribbed Deck A B C D Movement Total Available Movement Overall Depth Cover Plate Thickness
All measurements in millimetres. All mechanical expansion joint fixings by others.
SCAL-25 25 127 88 82 +/-17mm 34mm 30mm 9mm
SCAL-50 50 140 100 82 +/-17mm 34mm 30mm 9mm
SCAL-75 75 152 113 82 +/-17mm 34mm 30mm 9mm
SCAL-100 100 165 125 82 +/-17mm 34mm 30mm 9mm
6 Way Movement
Indoor
Outdoor
Water Gutter



The Latham Carpet-Line Inlay Series 39mm deep floor-to-wall expansion joint covers are available in aluminium. This series can carry a VWS water gutter if required. The series has a depth below the finished floor height of 30mm, excluding the carpet. The series can be set into a preformed recess with CA-16 Block-Out Anchors (supplied unless otherwise noted), in conjunction with mechanical fixings; or cast-into the slab when it is poured, with CA-6 Cast-In Anchors.

The Latham Carpet-Line Inlay Series floor-to-wall expansion joint covers are designed for normal pedestrian applications such as office buildings, hotels, foyers, shopping centres, etc. These joint covers should be used in conjunction with direct stick carpet and carpet tiles. The systems offer various movements in 6 directions. The actual movement available will depend on the physical structural joint width and the installation width for the expansion joint cover. For full details of the joint covers see the technical drawing available from Latham Australia.

Download our technical data sheets - PDF

View and download our data sheets - PDF

Download our section details - CAD



Enquire About This Product
