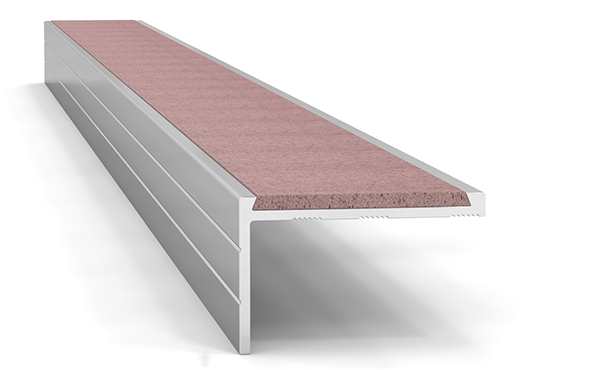

S Series Recessed

www.latham-australia.comhs-fshubfsHeader Imagesproduct-range-hero

Interior & Exterior Application

Latham S Series Recessed Safety Stair Tread Nosings are designed for new and existing applications where pedestrian safety, stair appearance and stair longevity is of particular concern. The systems can be recessed into new work or recessed into existing floor finishes. All S Series Recessed Mounted Safety Stair Tread Nosings are suitable for internal or external applications and are available with a wide range of insert colours.

Lengths
All Asbraloy Aluminium and Asbrabronz Solid Brass profiles are supplied factory cut to the site required length (up to 4600mm in one continuous length), complete with countersunk holes, stainless steel or brass screws (depending on the selected section) and plastic plugs. If specified at time of order treads can be supplied in full manufacturing lengths of 4600mm for on site cutting and drilling to suit clients supplied fixings. Factory Cutting Tolerance: +0/-3mm.

Screw Fixing Holes
Unless otherwise specified at time of order, holes will be provided in the treads to suit 8 gauge stainless steel or brass screws  at Latham’s standard 250mm centres.  Any special machining, mitres, modifications or alternative hole locations can be accommodated at extra cost.

Colour Range Slip Resistant Infill
For Asbraloy Aluminium and Asbrabronz Solid Brass profiles, the standard infill colour is sparkling black. A range of optional Supagrit infill colours are available on request.

Finishes
Asbraloy Aluminium profiles are supplied in mill finish. On request, profiles can be supplied with a polished bullnose or in clear anodized finish at additional cost. In marine-type applications, Asbraloy profiles should be specified with 20 micron clear anodised finish. Asbrabronz Solid Brass profiles are supplied in brush finish. On request, Asbraloy and Asbrabronz profiles can be supplied with a polished bullnose.

Installation
Installing Lathams’ Stair Tread Nosings is a straightforward task - and we can supply all the necessary fixings and accessories for a perfect job. They can be installed by builders, specialist flooring contractors, or capable maintenance personnel. Our Tredlite illuminated series of nosings use plug-in transformers and can be supplied with components that negate the requirement for any dedicated on-site electrical work, as long as suitable power outlets are close by. Alternatively, they can be wired into some lighting systems by qualified electricians.

Detailed instructions for each type of Stair Tread Nosing are available here. Our in-house technical engineers can also help you with any queries about correct specification or installation. Following the correct installation methods and using the recommended Latham installation accessories will result in many years of trouble-free use, even in the highest traffic volume areas.

Additional Services and Accessories
Latham Australia offer a range of factory additional products and services to complement the wide range of Asbraloy and Asbrabronz treads and inserts offered. These include leveling compounds, adhesives, cleaning and maintenance products, cutting wheels, varied fixing accessories, extra chemical resistant inserts, mitre and special factory cutting, bevelled edge and much more. See the whole range here.

Compliance and Testing Information
The Asbraloy and Asbrabronz range of treads and inserts have undergone rigorous and extensive including slip resistance testing, luminance testing and fire testing. Further details are available.

Product Specifications   How to Specify Guide
