LRV 50.3

Colour Range

Black

Blue

Blue Grey

Brown

Buff

Cactus Green

Lumo - Day

Lumo - Night

Off White

Plum

Rose

Silver Grey

Smoke

Teak

Teal

Terracotta

Safety Yellow

View product data sheets

Enquire about this product

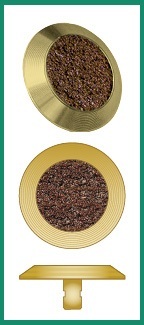

Tactile Indicator Studs

LTAB Abrasive Top Solid Brass

Discrete Abrasive Top Solid Brass Tactile

Latham LTAB Solid Brass mineral infill Tactile studs are suitable for both interior and exterior applications. They have an abrasive Top designed for long life and to deliver safety for vision-impaired pedestrians. All studs are designed in accordance with AS 1428.4-2018 and AS 1428.1-2021.

LTAB Solid Brass Tactiles are Composite Discrete Tactiles, available in 16 insert colours using the Latham Supagrit Silicon Carbide mineral inserts. The 10mm deep stem means these are installed into pre-drilled holes in the flooring at locations as set out in the relevant standard.

Latham recommend that the tactiles be fixed in place using Latham Titazel Thixotropic Epoxy adhesive. Alternatively, they can be simply installed using the Latham green Lat-Loc plug, which allows simple adhesive-free installation, in the right circumstances.

LTAB - P5 rated Slip Resistance

Tactile Luminance Reflective Values - See panel for available colours and LRVs. Luminance Contrast requirement with the surrounding floor finish as per AS1428.4 - 60%

Why you should choose Latham products

https://www.latham-australia.com/hubfs/Tactiles%203part%20pics/Tactile-elevation-line-art-with-dimensions_Tactile%20with%20Abrasive%20Inset%20Line%20Art.jpg

Colour range - up to 16 colours available (depending on the Series)

Resources & Downloads

Access essential resources and downloads. Ensure you have all the necessary information to select and install the best Latham product for your project.

Slip Resistance Tests AS 4586

Standard Compliance Information

Explore Luminance Contrast

Enquire about this product

Tactiles and Tactile Directional Indicators are designed to assist the visually impaired in navigating. They are required both in Australia and internationally by specific construction standards, which set out when they must be used and their location, design and style.

Latham Tactile Indicator products are made from 316 grade stainless steel, or solid brass. According to AS/NZS 1428.4:2009, because each indicator is an individual unit, these are classified as Discrete Tactiles and Composite Discrete Tactiles. Discrete Tactiles and discrete Tactile Directional Indicators of one particular colour (such as the Latham LTSS, LTSSL, LTSSD, LTASB, LTASW, LTSSB and LTSSW or LTBS series) need to achieve 45% luminance contrast with the surrounding floor finish to comply with the standard.

Composite Discrete Tactiles are made with an abrasive infill in a different colour, such as the Latham LTAS and LTAB series. To comply with the standard, these need to achieve 60% luminance contrast between the abrasive infill and the surrounding floor finish.

Colour Range

LTAB Abrasive Top Solid Brass

Discrete Abrasive Top Solid Brass Tactile

Why you should choose Latham products

Colour range - up to 16 colours available (depending on the Series)

Resources & Downloads
