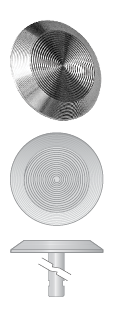

LTSSL Spiral Stainless Steel Long Stem

Latham LTSSL Spiral Top stainless steel Long Stem Tactile studs are suitable for both interior and exterior applications. They have a full metal Spiral Top designed for long life and to deliver safety for vision-impaired pedestrians. All studs are designed in accordance with AS 1428.4-2018 and AS 1428.1-2021.

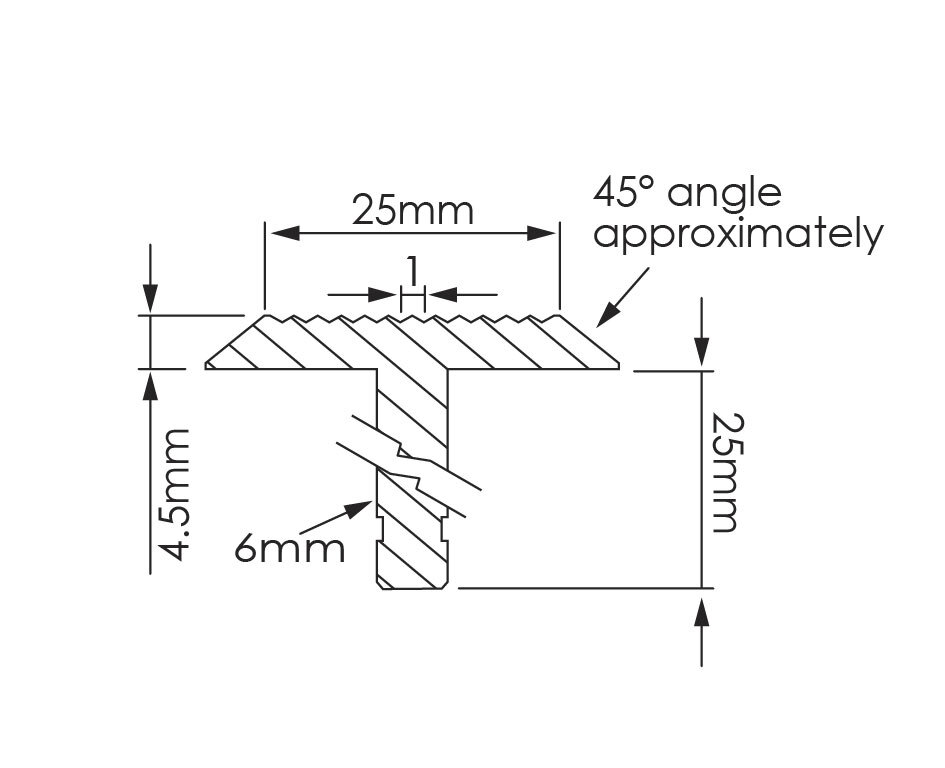

LTSSL 316 Grade Stainless Steel spiral top discrete Tactile is an individual Tactile and carries a 25mm deep stem for secure fixing. It is designed for installations where a longer stem and deeper fixing are required, such as through carpet, rubber or vinyl flooring.

Latham recommend that the tactiles be fixed in place using Latham Titazel Thixotropic Epoxy adhesive. Alternatively, they can be simply installed using the Latham green Lat-Loc plug, which allows simple adhesive-free installation, in the right circumstances.

LTSSL - P5 rated Slip Resistance

Tactile Luminance Reflective Values - Dry 38.9, Wet 39.3. Luminance Contrast requirement with the surrounding floor finish as per AS1428.4 - 45%

Why you should choose Latham products

Resources & Downloads

Access essential resources and downloads. Ensure you have all the necessary information to select and install the best Latham product for your project.

Slip Resistance Tests AS 4586

Standard Compliance Information

Explore Luminance Contrast

Enquire about this product

Tactiles and Tactile Directional Indicators are designed to assist the visually impaired in navigating. They are required both in Australia and internationally by specific construction standards, which set out when they must be used and their location, design and style.

Latham Tactile Indicator products are made from 316 grade stainless steel, or solid brass. According to AS/NZS 1428.4:2009, because each indicator is an individual unit, these are classified as Discrete Tactiles and Composite Discrete Tactiles. Discrete Tactiles and discrete Tactile Directional Indicators of one particular colour (such as the Latham LTSS, LTSSL, LTSSD, LTASB, LTASW, LTSSB and LTSSW or LTBS series) need to achieve 45% luminance contrast with the surrounding floor finish to comply with the standard.

Composite Discrete Tactiles are made with an abrasive infill in a different colour, such as the Latham LTAS and LTAB series. To comply with the standard, these need to achieve 60% luminance contrast between the abrasive infill and the surrounding floor finish.

Colour Range

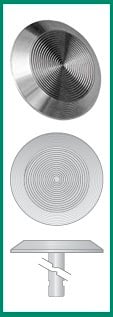

LTSSL Spiral Stainless Steel Long Stem

Why you should choose Latham products

Colour range - up to 16 colours available (depending on the Series)
