Stress Relieving Control Strips

Stress Relieving Control Strips

Available in Brass, Zinc & Stainless Steel


Latham Neoprene Stress Relieving Control Strips are designed to be used in applications where Latham Neoprene-X-Pansion Loc or Tile Strips have been overlooked when the floor finish is installed. These control strips are designed to be saw cut into the finished floor to help control expansion in the flooring surface, by relieving stress that can build up when flooring is installed without the use of control joints. Over stressed floor finishes may crack or lift.

Latham Neoprene Stress Relieving Control Strips are supplied in standard lengths of 1800mm and installed so as to minimise the frequency of butt joints and short lengths. Also 3-way and 4‑way butt joint intersections should be avoided.

Latham Neoprene Stress Relieving Strips should be installed at all locations of stress concentration; at changes in direction; wherever localised movement is anticipated and around rigid and fixed large objects such as columns, stair and lift wells, light posts, across doorways, garden beds, manhole covers and embedded pipe work and anywhere that may impede expansion and contraction of the tiling.

Control Strips are supplied with the following metal sideplate thicknesses: standard brass & zinc products - 1mm thick; stainless steel type 304 - 0.7mm thick (note: stainless steel products are not recommended for finish to be ground insitu). Optional 3mm thick brass & zinc sideplates are also available, specify with 3mm sideplates when ordering: Brass: TBLSB3mm / Zinc: TBLSZ3mm.


Product Specifications   How to Specify Guide


Additional Information:
Award Winning Stress Relieving Control Strips
Latham-Genuine-Warranty-Green-Tick-Symbol

To order specify height, neoprene colour & metal type

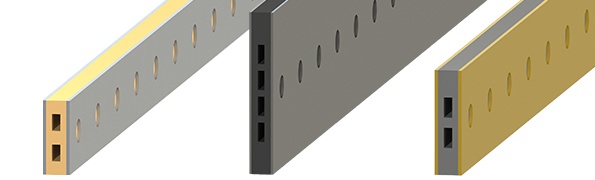

6MM WIDE NEOPRENE STRESS RELIEVING

CONTROL STRIPS PROFILE GUIDE

Specify Neoprene Colour

Brass

(1mm thick side plates)

Zinc

(1mm thick side plates)

Stainless Steel

(0.7mm thick side plates)

Overall Product Depth

FSLSB- 22 x 6

FSLSZ- 22 x 6

FSLSS- 22 x 6

22mm

FSLSB- 31 x 6

FSLSZ- 31 x 6

FSLSS- 31 x 6

31mm

FSLSB- 40 x 6

FSLSZ- 40 x 6

FSLSS- 40 x 6

40mm

FSLSB- 50 x 6

FSLSZ- 50 x 6

FSLSS- 50 x 6

50mm

FSLSB- 65 x 6

FSLSZ- 65 x 6

FSLSS- 65 x 6

65mm

Custom heights to accommodate custom floor finish thicknesses available on request.

Some custom metal plate thicknesses available on request.

Latham Neoprene Stress Relieving Control Strips with 6mm neoprene inserts and 1mm Brass or Zinc and 0.7mm Stainless Steel side plates are designed to be used in applications where Latham Neoprene-X-Pansion Loc® or Tile Strips have been over looked during the installation of the flooring.

These Stress Relieving Control Strips with 6mm neoprene inserts and 1mm Brass or Zinc and 0.7mm stainless steel are designed to be saw cut into the finished floor, to help control expansion in the flooring surface, by relieving stress that can build up when flooring is installed without the use of control joints. Over stressed floor finishes may crack or lift.

Latham Neoprene Stress Relieving Control Strips with 6mm neoprene inserts and 1mm Brass or Zinc and 0.7mm Stainless Steel side plates are generally used in interior applications where the expected thermal expansion of floor finish would be considered less than an external application. They are also suitable for external applications as well, however the bay sizes or distance between the strips will need to be reduced (see pages 4-6 for further set out and spacing details).

Latham Neoprene Stress Relieving Control Strips with 6mm neoprene inserts and 1mm Brass or Zinc and 0.7mm Stainless Steel side plates are supplied in standard 1800mm lengths and should be installed so as to minimise the frequency of butt joints and short lengths. Also 3-way and 4-way butt joint intersections should be avoided (see page 54 for further details).

Latham Neoprene Stress Relieving Control Strips should be installed in all locations of stress concentration; at changes in direction; wherever localised movement is anticipated and around rigid and fixed large objects such as columns, stair and lift wells, light posts, across driveways, at access covers, across doorways and anywhere that may impede expansion and contraction of the floor finish.

For further information and specification details available, see page 55 of catalogue.

View and download our data sheets - PDF


Enquire About This Product

To order specify height, neoprene colour & metal type

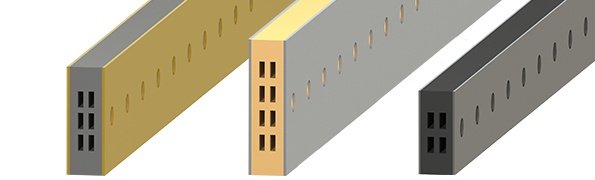

12MM WIDE NEOPRENE STRESS RELIEVING

CONTROL STRIPS PROFILE GUIDE

Specify Neoprene Colour

Brass

(1mm thick side plates)

Zinc

(1mm thick side plates)

Stainless Steel

(0.7mm thick side plates)

Overall Product Depth

FSLSB- 22 x 12

FSLSZ- 22 x 12

FSLSS- 22 x 12

22mm

FSLSB- 31 x 12

FSLSZ- 31 x 12

FSLSS- 31 x 12

31mm

FSLSB- 40 x 12

FSLSZ- 40 x 12

FSLSS- 40 x 12

40mm

FSLSB- 50 x 12

FSLSZ- 50 x 12

FSLSS- 50 x 12

50mm

FSLSB- 65 x 12

FSLSZ- 65 x 12

FSLSS- 65 x 12

65mm

Custom heights to accommodate custom floor finish thicknesses available on request.

Some custom metal plate thicknesses available on request.

Latham Neoprene Stress Relieving Control Strips with 12mm neoprene inserts and 1mm Brass or Zinc and 0.7mm Stainless Steel side plates are designed to be used in applications where Latham Neoprene-X-Pansion Loc® or Tile Strips have been over looked during the installation of the flooring.

These Stress Relieving Control Strips with 12mm neoprene inserts and 1mm Brass or Zinc and 0.7mm stainless steel are designed to be saw cut into the finished floor, to help control expansion in the flooring surface, by relieving stress that can build up when flooring is installed without the use of control joints. Over stressed floor finishes may crack or lift.

Latham Neoprene Stress Relieving Control Strips with 12mm neoprene inserts and 1mm Brass or Zinc and 0.7mm Stainless Steel side plates are generally considered for exterior applications where the thermal expansion of floor finishes is greater than internal floor applications. They are also suitable for internal applications as well and are sometimes considered when architects and clients want to extend the bay size and increase the distance between control strips (see pages 4-6 for further set out and spacing details).

Latham Neoprene Stress Relieving Control Strips with 12mm neoprene inserts and 1mm Brass or Zinc and 0.7mm Stainless Steel side plates are supplied in standard 1800mm lengths and should be installed so as to minimise the frequency of butt joints and short lengths. Also 3-way and 4-way butt joint intersections should be avoided (see page 54 for further details).

Latham Neoprene Stress Relieving Control Strips should be installed in all locations of stress concentration; at changes in direction; wherever localised movement is anticipated and around rigid and fixed large objects such as columns, stair and lift wells, light posts, across driveways, at access covers, across doorways and anywhere that may impede expansion and contraction of the floor finish.

For further information and specification details available, see page 55 of catalogue.


View and download our data sheets - PDF


Enquire About This Product

Specify Neoprene Colour & Wire Anchors

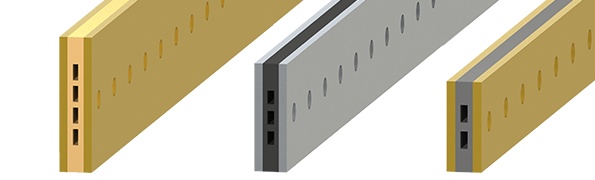

6MM WIDE NEOPRENE STRESS RELIEVING CONTROL

STRIPS WITH 3MM SIDE PLATES PROFILE GUIDE

Specify Neoprene Colour

Brass

(3mm thick side plates)

Zinc

(3mm thick side plates)

Overall Product Depth

3MM-FSLSB- 22 x 6

3MM-FSLSZ- 22 x 6

22mm

3MM-FSLSB- 31 x 6

3MM-FSLSZ- 31 x 6

31mm

3MM-FSLSB- 40 x 6

3MM-FSLSZ- 40 x 6

40mm

3MM-FSLSB- 50 x 6

3MM-FSLSZ- 50 x 6

50mm

3MM-FSLSB- 65 x 6

3MM-FSLSZ- 65 x 6

65mm

Custom heights to accommodate custom floor finish thicknesses available on request.

Some custom metal plate thicknesses available on request.

Latham Neoprene Stress Relieving Control Strips with 6mm neoprene inserts and 3mm Brass or Zinc side plates are designed to be used in applications where Latham Neoprene-X-Pansion Loc® or Tile Strips have been over looked during the installation of the flooring.

These Stress Relieving Control Strips with 6mm neoprene inserts and 3mm Brass or Zinc side plates are designed to be saw cut into the finished floor, to help control expansion in the flooring surface, by relieving stress that can build up when flooring is installed without the use of control joints. Over stress floor finishes may crack or lift.

Latham Neoprene Stress Relieving Control Strips with 6mm neoprene inserts and 3mm Brass or Zinc side plates are generally used in interior applications where the expected thermal expansion of floor finish would be considered less than an external application. They are also suitable for external applications as well, however the bay sizes or distance between the strips will need to be reduced (see page 4-6 for further set out and spacing details).

Latham Neoprene Stress Relieving Control Strips with 6mm neoprene inserts and 3mm Brass or Zinc side plates are supplied in standard 1800mm lengths and should be installed so as to minimise the frequency of butt joints and short lengths. Also 3-way and 4-way butt joint intersections should be avoided (see page 54 for further details).

Neoprene Stress Relieving Control Strips should be installed in all locations of stress concentration; at changes in direction; wherever localised movement is anticipated and around rigid and fixed large objects such as columns, stair and lift wells, light posts, across driveways, at access covers, across doorways and anywhere that may impede expansion and contraction of the floor finish.

For further information and specification details available see page 55 of the catalogue.

View and download our data sheets - PDF

Enquire About This Product

Specify Neoprene Colour & Wire Anchors

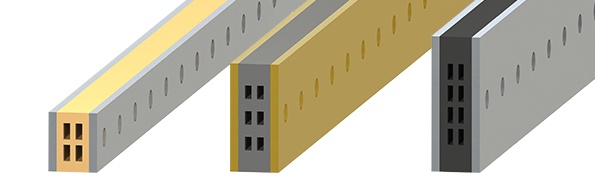

12MM WIDE NEOPRENE STRESS RELIEVING CONTROL

STRIPS WITH 3MM SIDE PLATES PROFILE GUIDE

Specify Neoprene Colour

Brass

(3mm thick side plates)

Zinc

(3mm thick side plates)

Overall Product Depth

3MM-FSLSB- 22 x 12

3MM-FSLSZ- 22 x 12

22mm

3MM-FSLSB- 31 x 12

3MM-FSLSZ- 31 x 12

31mm

3MM-FSLSB- 40 x 12

3MM-FSLSZ- 40 x 12

40mm

3MM-FSLSB- 50 x 12

3MM-FSLSZ- 50 x 12

50mm

3MM-FSLSB- 65 x 12

3MM-FSLSZ- 65 x 12

65mm

Custom heights to accommodate custom floor finish thicknesses available on request.

Some custom metal plate thicknesses available on request.

Latham Neoprene Stress Relieving Control Strips with 12mm neoprene inserts and 3mm Brass or Zinc side plates are designed to be used in applications where Latham Neoprene-X-Pansion Loc® or Tile Strips have been over looked during the installation of the flooring.

These Stress Relieving Control Strips with 12mm neoprene inserts and 3mm Brass or Zinc side plates are designed to be saw cut into the finished floor, to help control expansion in the flooring surface, by relieving stress that can build up when flooring is installed without the use of control joints. Over stress floor finishes may crack or lift.

Latham Neoprene Stress Relieving Control Strips with 12mm neoprene inserts and 3mm Brass or Zinc side plates are generally considered for exterior applications where the thermal expansion of floor finishes is greater than internal floor applications. They are also suitable for internal applications as well and are sometimes considered when architects and clients want to extend the bay size and increase the distance between control strips (see pages 4-6 for further set out and spacing details).

Latham Neoprene Stress Relieving Control Strips with 12mm neoprene inserts and 3mm Brass or Zinc side plates are supplied in standard 1800mm lengths and should be installed so as to minimise the frequency of butt joints and short lengths. Also 3-way and 4-way butt joint intersections should be avoided (see page 54 for further details).

Latham Neoprene Stress Relieving Control Strips should be installed in all locations of stress concentration; at changes in direction; wherever localised movement is anticipated and around rigid and fixed large objects such as columns, stair and lift wells, light posts, across driveways, at access covers, across doorways and anywhere that may impede expansion and contraction of the floor finish.

For further information and specification details available see page 55 of catalogue.

View and download our data sheets - PDF

Enquire About This Product
