    Tactile Indicator Studs

    CS‑25 to CS‑50

    The CS Ultimate Series robust floor-to-floor expansion joint covers carry a stainless steel cover plate. The series is designed to be installed in a recess with CA-16 Anchors or cast into topping or a slab using CA-6 anchors. It is intended predominantly for pedestrian applications. These joints can be used in conjunction with many floor finishes such as concrete toppings, terrazzo, tile, timber, carpet, vinyl, epoxy finishes etc. They would commonly be used in locations such as shopping centres, hotels, office foyers, schools, airports and other pedestrian traffic situations.

    Why you should choose Latham products

    Genuine Warranty
    AS 2021 Compliant
    NCC 2022 Compliant
    P5 Slip Resistant
    AS 2018 Compliant

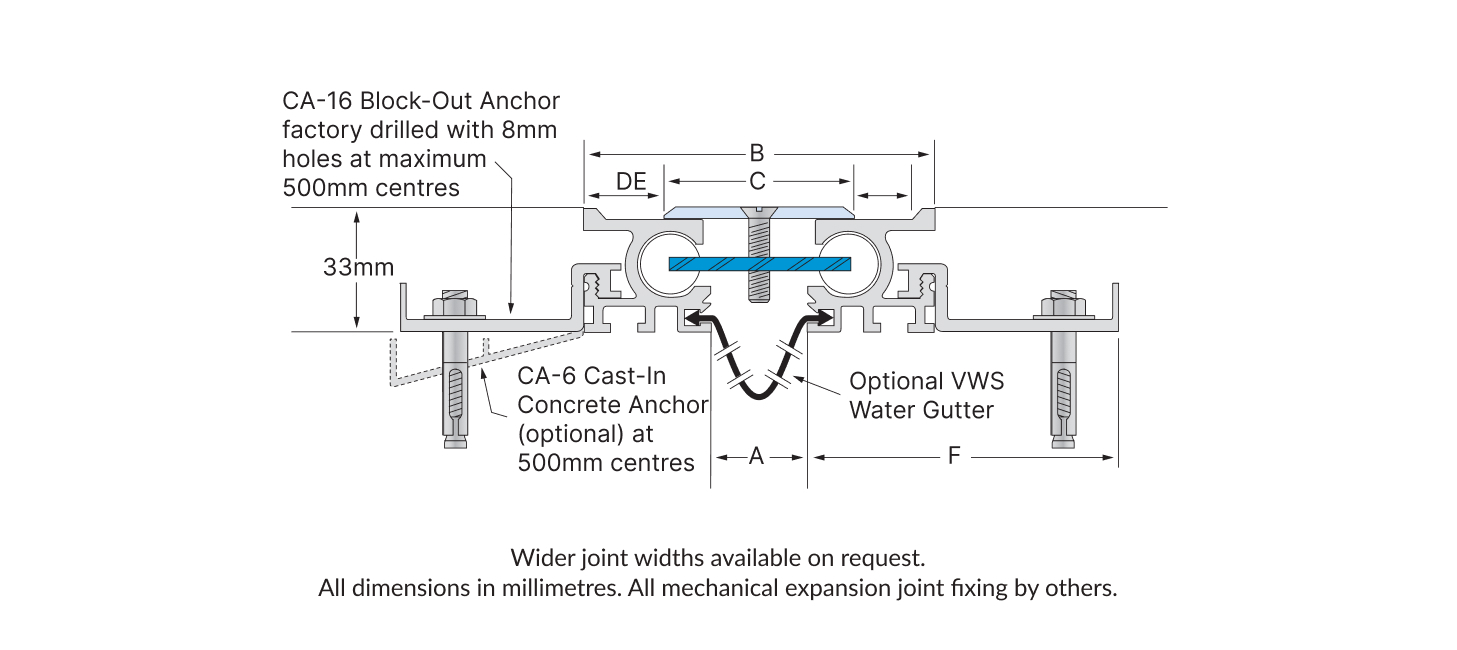

    https://www.latham-australia.com/hubfs/1457x650-Tech%20Drawing-Ultimate%20CS%E2%80%9025%20to%20CS%E2%80%9050.jpg
    <table class="text-center table table-striped table-bordered table-hover table-sm table-responsive">
    <thead>
    <tr>
    <th style="width: 51px;">Stainless Steel Code Smooth Deck</th>
    <th style="width: 65px;">Aluminium Code Ribbed Deck</th>
    <th style="width: 19px;">A</th>
    <th style="width: 19px;">B</th>
    <th style="width: 19px;">C</th>
    <th style="width: 12px;">D</th>
    <th style="width: 13px;">E</th>
    <th style="width: 13px;">F</th>
    <th style="width: 61px;">Movement</th>
    <th style="width: 61px;">Total Available Movement</th>
    <th style="width: 42px;">Overall Depth</th>
    <th style="width: 57px;">Cover Plate Thickness</th>
    </tr>
    </thead>
    <tfoot>
    <tr>
    <td style="font-size: 16px; width: 500px;" colspan="13">Wider joint widths available on request. All measurements in millimetres. All mechanical expansion joint fixings by others. *Aluminium &amp; stainless steel cover thickness may vary, see detailed drawing at the links below for the exact detail &amp; cover thickness.</td>
    </tr>
    </tfoot>
    <tbody>
    <tr id="">
    <td style="width: 51px;"><!-- stainless_steel_code_smooth_deck --> CS-25</td>
    <td style="width: 65px;"><!-- aluminium_code_ribbed_deck --> CA-25</td>
    <td style="width: 19px;"><!-- a --> 25</td>
    <td style="width: 19px;"><!-- b --> 86</td>
    <td style="width: 19px;"><!-- c --> 50</td>
    <td style="width: 12px;"><!-- d --> 18</td>
    <td style="width: 13px;"><!-- e --> 12</td>
    <td style="width: 13px;"><!-- f --> 82</td>
    <td style="width: 61px;"><!-- movement --> +20/-15mm</td>
    <td style="width: 61px;"><!-- total_available_movement --> 35mm</td>
    <td style="width: 42px;"><!-- overall_depth --> 33mm</td>
    <td style="width: 57px;"><!-- cover_plate_thickness --> 3mm*</td>
    </tr>
    <tr id="">
    <td style="width: 51px;"><!-- stainless_steel_code_smooth_deck --> CS-50</td>
    <td style="width: 65px;"><!-- aluminium_code_ribbed_deck --> CA-50</td>
    <td style="width: 19px;"><!-- a --> 50</td>
    <td style="width: 19px;"><!-- b --> 111</td>
    <td style="width: 19px;"><!-- c --> 75</td>
    <td style="width: 12px;"><!-- d --> 18</td>
    <td style="width: 13px;"><!-- e --> 12</td>
    <td style="width: 13px;"><!-- f --> 82</td>
    <td style="width: 61px;"><!-- movement --> +20/-25mm</td>
    <td style="width: 61px;"><!-- total_available_movement --> 45mm</td>
    <td style="width: 42px;"><!-- overall_depth --> 33mm</td>
    <td style="width: 57px;"><!-- cover_plate_thickness --> 3mm*</td>
    </tr>
    <tr id="">
    <td style="width: 51px;"><!-- stainless_steel_code_smooth_deck --> CS-35</td>
    <td style="width: 65px;"><!-- aluminium_code_ribbed_deck --> CA-35</td>
    <td style="width: 19px;"><!-- a --> 35</td>
    <td style="width: 19px;"><!-- b --> 125</td>
    <td style="width: 19px;"><!-- c --> 75</td>
    <td style="width: 12px;"><!-- d --> 25</td>
    <td style="width: 13px;"><!-- e --> 20</td>
    <td style="width: 13px;"><!-- f --> 82</td>
    <td style="width: 61px;"><!-- movement --> +35/-25mm</td>
    <td style="width: 61px;"><!-- total_available_movement --> 60mm</td>
    <td style="width: 42px;"><!-- overall_depth --> 33mm</td>
    <td style="width: 57px;"><!-- cover_plate_thickness --> 3mm*</td>
    </tr>
    <tr id="">
    <td style="width: 51px;"><!-- stainless_steel_code_smooth_deck --> CS-60</td>
    <td style="width: 65px;"><!-- aluminium_code_ribbed_deck --> CA-60</td>
    <td style="width: 19px;"><!-- a --> 60</td>
    <td style="width: 19px;"><!-- b --> 150</td>
    <td style="width: 19px;"><!-- c --> 100</td>
    <td style="width: 12px;"><!-- d --> 25</td>
    <td style="width: 13px;"><!-- e --> 20</td>
    <td style="width: 13px;"><!-- f --> 82</td>
    <td style="width: 61px;"><!-- movement --> +/-35mm</td>
    <td style="width: 61px;"><!-- total_available_movement --> 70mm</td>
    <td style="width: 42px;"><!-- overall_depth --> 33mm</td>
    <td style="width: 57px;"><!-- cover_plate_thickness --> 3mm*</td>
    </tr>
    <tr id="">
    <td style="width: 51px;"><!-- stainless_steel_code_smooth_deck --> CS-75</td>
    <td style="width: 65px;"><!-- aluminium_code_ribbed_deck --> CA-75</td>
    <td style="width: 19px;"><!-- a --> 75</td>
    <td style="width: 19px;"><!-- b --> 165</td>
    <td style="width: 19px;"><!-- c --> 115</td>
    <td style="width: 12px;"><!-- d --> 25</td>
    <td style="width: 13px;"><!-- e --> 20</td>
    <td style="width: 13px;"><!-- f --> 82</td>
    <td style="width: 61px;"><!-- movement --> +/-35mm</td>
    <td style="width: 61px;"><!-- total_available_movement --> 70mm</td>
    <td style="width: 42px;"><!-- overall_depth --> 33mm</td>
    <td style="width: 57px;">4mm*</td>
    </tr>
    <tr id="">
    <td style="width: 51px;"><!-- stainless_steel_code_smooth_deck --> CS-85</td>
    <td style="width: 65px;"><!-- aluminium_code_ribbed_deck --> CA-85</td>
    <td style="width: 19px;"><!-- a --> 85</td>
    <td style="width: 19px;"><!-- b --> 175</td>
    <td style="width: 19px;"><!-- c --> 125</td>
    <td style="width: 12px;"><!-- d --> 25</td>
    <td style="width: 13px;"><!-- e --> 20</td>
    <td style="width: 13px;"><!-- f --> 82</td>
    <td style="width: 61px;"><!-- movement --> +/-35mm</td>
    <td style="width: 61px;"><!-- total_available_movement --> 70mm</td>
    <td style="width: 42px;"><!-- overall_depth --> 33mm</td>
    <td style="width: 57px;"><!-- cover_plate_thickness --> 4mm*</td>
    </tr>
    <tr id="">
    <td style="width: 51px;"><!-- stainless_steel_code_smooth_deck --> CS-100</td>
    <td style="width: 65px;"><!-- aluminium_code_ribbed_deck --> CA-100</td>
    <td style="width: 19px;"><!-- a --> 100</td>
    <td style="width: 19px;"><!-- b --> 190</td>
    <td style="width: 19px;"><!-- c --> 140</td>
    <td style="width: 12px;"><!-- d --> 25</td>
    <td style="width: 13px;"><!-- e --> 20</td>
    <td style="width: 13px;"><!-- f --> 82</td>
    <td style="width: 61px;"><!-- movement --> +/-35mm</td>
    <td style="width: 61px;"><!-- total_available_movement --> 70mm</td>
    <td style="width: 42px;"><!-- overall_depth --> 33mm</td>
    <td style="width: 57px;"><!-- cover_plate_thickness --> 4mm*</td>
    </tr>
    <tr id="">
    <td style="width: 51px;"><!-- stainless_steel_code_smooth_deck --> CS-135</td>
    <td style="width: 65px;"><!-- aluminium_code_ribbed_deck --> CA-135</td>
    <td style="width: 19px;"><!-- a --> 135</td>
    <td style="width: 19px;"><!-- b --> 225</td>
    <td style="width: 19px;"><!-- c --> 175</td>
    <td style="width: 12px;"><!-- d --> 25</td>
    <td style="width: 13px;"><!-- e --> 20</td>
    <td style="width: 13px;"><!-- f --> 82</td>
    <td style="width: 61px;"><!-- movement --> +/-35mm</td>
    <td style="width: 61px;"><!-- total_available_movement --> 70mm</td>
    <td style="width: 42px;"><!-- overall_depth --> 33mm</td>
    <td style="width: 57px;"><!-- cover_plate_thickness --> 5mm*</td>
    </tr>
    </tbody>
    </table>

    Resources & Downloads

    Access essential resources and downloads. Ensure you have all the necessary information to select and install the best Latham product for your project.

    Slip Resistance Tests AS 4586
    Explore Luminance Contrast (Tactiles)
    Enquire about this product
    Special Note

    Customers with special applications are invited to discuss them with us. Service factors must be taken into consideration when selecting tactile indicator studs or directional bars.
