Latham Tredlite Illuminated Slip Resistant Safety Stair Tread Nosings feature the newest safe low voltage 24V LED lighting technology, which is cheap and efficient to run. For most applications all necessary hardware is supplied, including transformers which will simply plug into a power point.


The standard FL lighting system is installed to create a fan light effect over the risers and treads in darkened conditions, providing confidence and safety for negotiating the stairs.

For the top stair treads, landings and platforms or through-out the staircase, dual purpose Tredlite (TOP) should be considered with the first slip resistant bar in off white colour, designed to emit a low glow lamp effect as well as a fan light effect. The holes are approximately 8mm in diameter and are at approximately 66mm centres.

For further decorative impact, the bullnose of the nosings is available with holes to create a line of light for a powerful visual effect (DEC). When this is being considered it should be specified throughout the entire stairway. The holes are approximately 8mm in diameter and are at approximately 66mm centres.

For the ultimate in lighting affect the (TOP) and (DEC) features have been combined in the (TOPDEC) version, this triple effect system offers the first slip resistant bar in off white colour, designed to emit a low glow lamp effect as well as a fan light effect combined with holes in the bullnose of the nosing to create line of light for a powerful visual effect.

Running costs for the LED Tredlite Illuminated Stair Tread Nosing is negligible and the nosing is functional and decorative in situations such as public buildings, foyers, theatres, clubs, restaurants, grand houses, ships and yachts.

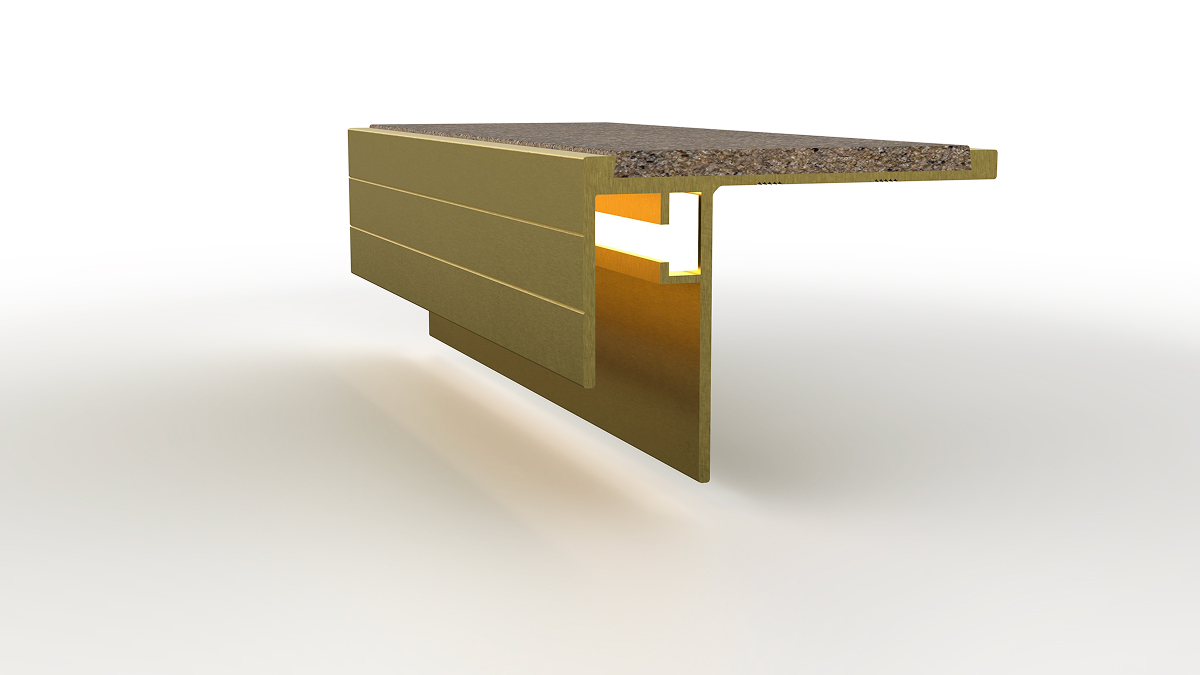

Standard Tredlite nosings are supplied in Asbraloy aluminium mill finish and Asbrabronz solid brass brush finish. Anodised aluminium finish, brush finished aluminium bullnose and polished bullnose for aluminium and brass available on request.

Because the systems are highly specialized they are supplied cut to site required lengths with the Tredlite Lighting installed in the nosing. The LED Tredlite Bulbs are at approximately 17mm centres and will be cut in length multiples of 100mm, to suit the required length. This means that the lit length in the tread will always be slightly shorter than the actual tread nosing to ensure the plugs and mechanisms are encapsulated within the nosing and are not visible. Latham’s recommend the LED’s are wired in parallel and each LED strip light is powered from a main power feed running down 1 side of the treads if possible.
For simple installation, consider using the purpose manufactured Latham Step Link Wiring Saddle Connections and Source Feed Wire Connections. Further details can be found on the Tredlite 2 Accessories page on this web site.

The LED Tredlite Illuminated Stair Tread Nosings are supplied standard with warm white LED lighting source. The light source will be supplied in the full run length required for each individual tread. On request the LED light Insert can be supplied in bright white, red, blue, green or yellow. The power consumption of the system is less than 5 watts per metre of LED lighting. We recommend that a maximum of 20 metres of LED lighting be run from 1 transformer. In applications where treads are large distances apart, additional transformers will be required.

Although the system is suitable for external applications, Latham recommend it only be used in protected external applications since  over time moisture can affect the wiring connections.

All Asbraloy and Asbrabronz profiles are supplied factory cut to the site required length (up to 4600mm in one continuous length), complete with countersunk holes, stainless steel or brass screws (depending on the selected section) and plastic plugs. If specified at time of order treads can be supplied in full manufacturing lengths of 4600mm for on site cutting and drilling to suit clients supplied fixings.
Factory Cutting Tolerance: +0/-3mm.

Colour Range Slip Resistant Infill
Asbraloy Aluminium Suregrip standard infill colour is sparkling black. Asbrabronz Brass Suregrip standard infill colour is brown. Optional Supagrit infill colours available on request.

Asbraloy Aluminium profiles are supplied in mill finish. On request profiles can be supplied with a polished bullnose or in clear anodized finish at additional cost. In marine type applications Asbraloy profiles should be specified with 20 micron clear anodised finish. Asbrabronz  Brass profiles are supplied in brush finish. On request Asbraloy and Asbrabronz profiles can be supplied with a polished bullnose.

Screw Fixing Holes
Unless otherwise specified at time of order, holes will be provided in the treads to suit 8 gauge stainless steel or brass screws  at Latham’s standard 250mm centres.  Any special machining, mitering, modifications or alternative hole locations will be carried out at extra cost.

Additional Services and Accessories
Latham Australia offer a range of factory additional products and services to compliment the wide range of Asbraloy and Asbrabronz treads and inserts offered. These include leveling compounds, adhesives, cleaning and maintenance products, cutting wheels, varied fixing accessories, extra chemical resistant inserts, miter and special factory cutting, bevelled edge and much more. Further details are available.

Compliance and Testing Information
The Asbraloy and Asbrabronz range of treads and inserts have undergone rigorous and extensive including slip resistance testing, luminance testing and fire testing. Further details are available.
