Light Duty 50 Series

Light Duty 50 series

Floor & Floor-to-wall Expansion Joint Covers in Aluminium

The Latham Light Duty 50 Series of expansion joint covers incorporate Santoprene and Neoprene inserts to allow limited movement in internal light duty applications. They are suited to floor, floor-to-wall, wall and ceiling applications where limited movement capabilities are required. The systems interact with each other, which means a similarly designed system can be used in the floor, wall and ceiling if required. The systems offer 4 directional movement and limited thermal and structural movement.

Product Specifications   How to Specify Guide


Additional Information:
Good Design Neoprene Strips + Movement Joint Systems.png
Latham-Genuine-Warranty-Green-Tick-Symbol

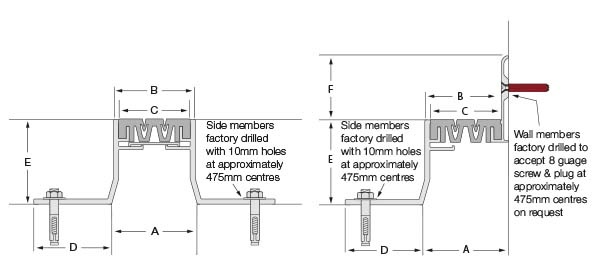

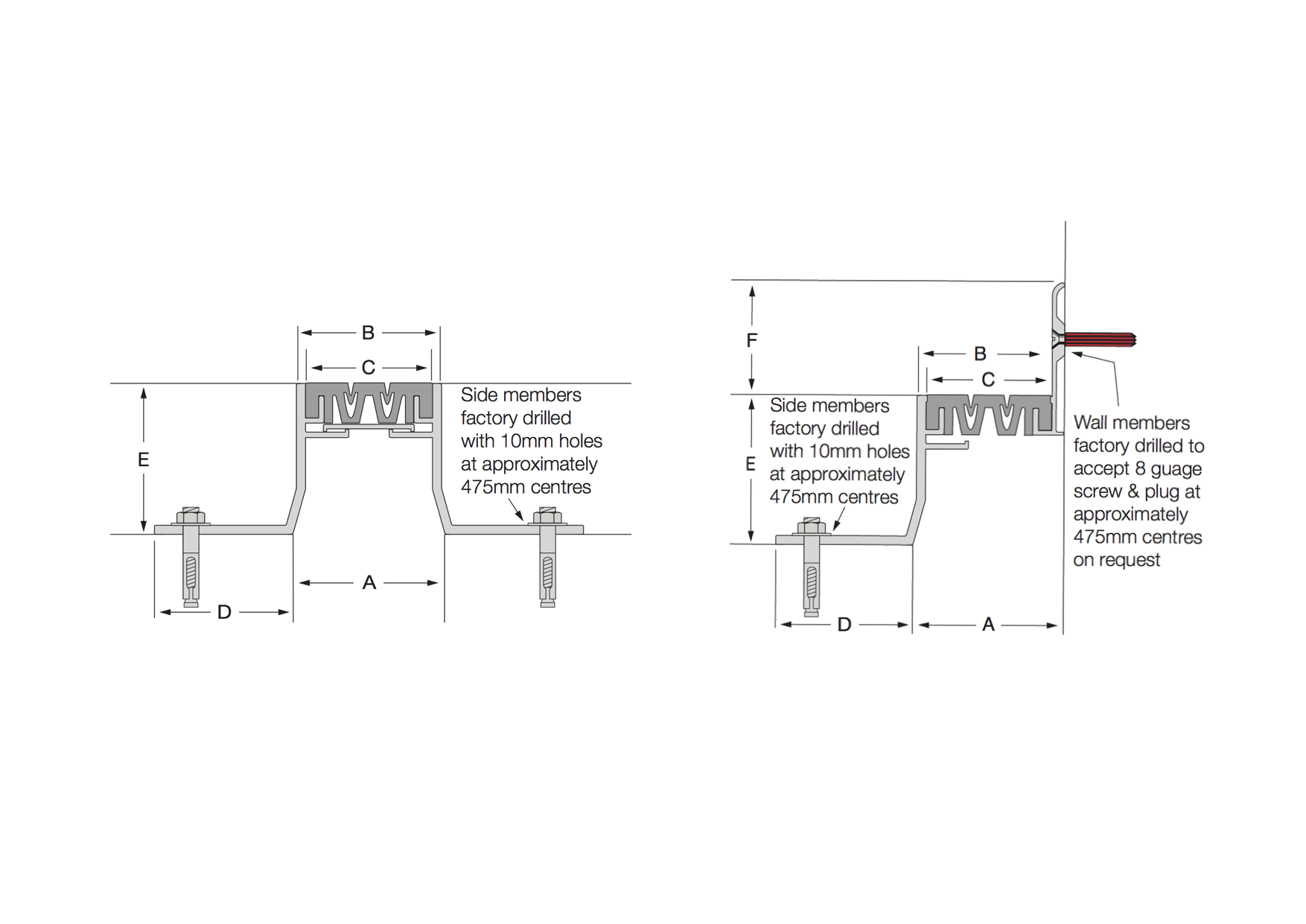

Illustrated: 50-FDR & 50-FDRW
Aluminium Code A B C D E F Movement Total Available Movement Overall Depth
All dimensions in millimetres. All mechanical expansion joint fixings by others.
50-FDR 50 48 42 50 50 n/a +/-5mm 10mm 50mm
50-FDRW 50 45 42 50 50 38 +/-5mm 10mm 88mm
4 Way Movement
Indoor



The Latham Resilient Jointing System for floor, floor-to-wall, wall and ceiling applications. The series is for internal light duty applications only. The 50-Series joint covers allow a maximum of ±5mm of horizontal movement. These systems are for light duty, low traffic applications only, where limited movement is expected. If high pedestrian traffic is expected or considerable multi directional movement is required, an expansion joint cover from one of Latham's Mechanical Ranges should be considered.

The series is supplied in 4000mm lengths and as standard the replaceable synthetic rubber inserts are grey (beige or black can be supplied on request). The 50-Series offers the opportunity to use the most similar joint cover in the wall and ceiling to the floor. This is particularly effective when the construction joint forms a square box shape. That means the joint runs across the floor, up both walls and across the ceiling. In this situation the rubber insert can continue around the box.

View and download our data sheets - PDF

Download our section details - CAD





Enquire About This Product

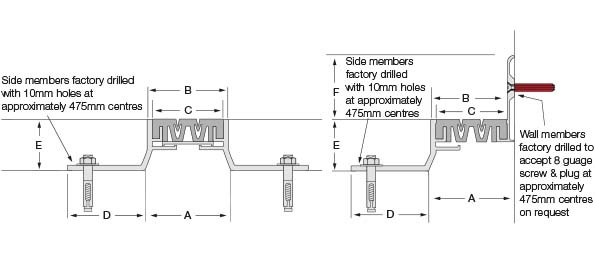

Illustrated: 50-FDR(30) & 50-FDRW(30)
Aluminium Code A B C D E F Movement Total Available Movement Overall Depth
All dimensions in millimetres. All mechanical expansion joint fixings by others.
50-FDR(30) 50 48 42 50 30 n/a +/-5mm 10mm 30mm
50-FDRW(30) 50 45 42 50 30 38 +/-5mm 10mm 68mm
4 Way Movement
Indoor



The Latham Resilient Jointing System for floor, floor-to-wall, wall and ceiling applications. The series is for internal light duty applications only. The 50-Series joint covers allow a maximum of ±5mm of horizontal movement. These systems are for light duty, low traffic applications only, where limited movement is expected. If high pedestrian traffic is expected or considerable multi directional movement is required, an expansion joint cover from one of Latham's Mechanical Ranges should be considered.

The series is supplied in 4000mm lengths and as standard the replaceable synthetic rubber inserts are grey (beige or black can be supplied on request). The 50-Series offers the opportunity to use the most similar joint cover in the wall and ceiling to the floor. This is particularly effective when the construction joint forms a square box shape. That means the joint runs across the floor, up both walls and across the ceiling. In this situation the rubber insert can continue around the box.


View and download our data sheets - PDF

Download our section details - CAD





    Enquire About This Product

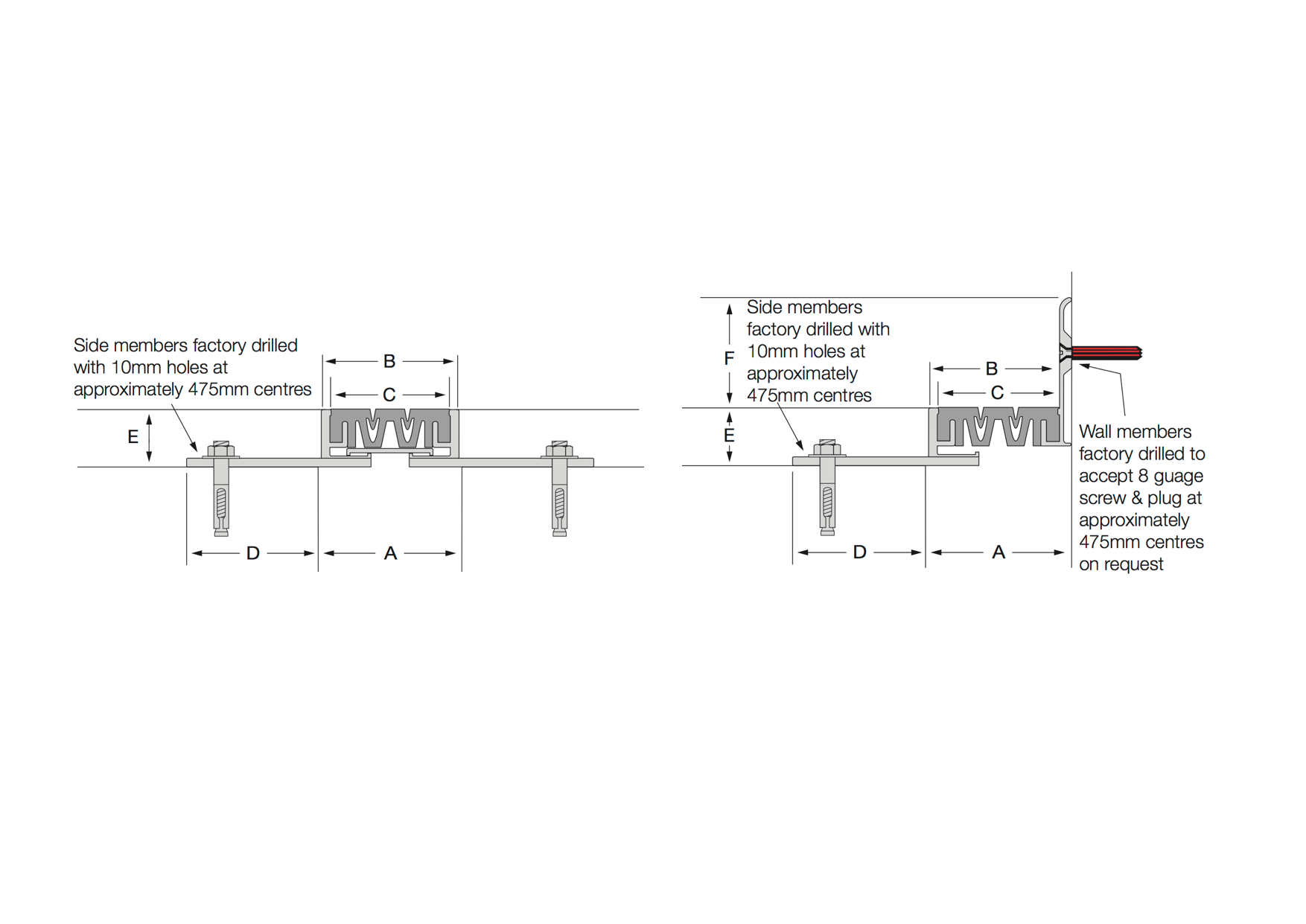

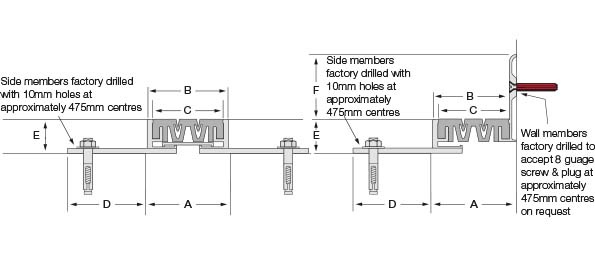

    Illustrated: 50-FDR(20) & 50-FDRW(20)
    Aluminium Code A B C D E F Movement Total Available Movement Overall Depth
    All dimensions in millimetres. All mechanical expansion joint fixings by others.
    B50-FDR(20) 50 48 42 50 21 n/a +/-5mm 10mm 20mm
    B50-FDRW(20) 50 46 42 50 21 38 +/-5mm 10mm 59mm
    4 Way Movement
    Indoor



    The Latham Resilient Jointing System for floor, floor-to-wall, wall and ceiling applications. The series is for internal light duty applications only. The 50-Series joint covers allow a maximum of ±5mm of horizontal movement. These systems are for light duty, low traffic applications only, where limited movement is expected. If high pedestrian traffic is expected or considerable multi directional movement is required, an expansion joint cover from one of Latham's Mechanical Ranges should be considered.

    The series is supplied in 4000mm lengths and as standard the replaceable synthetic rubber inserts are grey (beige or black can be supplied on request). The 50-Series offers the opportunity to use the most similar joint cover in the wall and ceiling to the floor. This is particularly effective when the construction joint forms a square box shape. That means the joint runs across the floor, up both walls and across the ceiling. In this situation the rubber insert can continue around the box.

    View and download our data sheets - PDF

    Download our section details - CAD





    Enquire About This Product

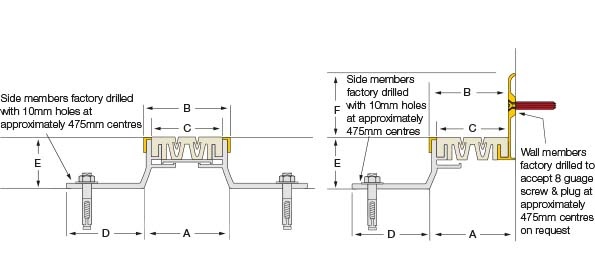

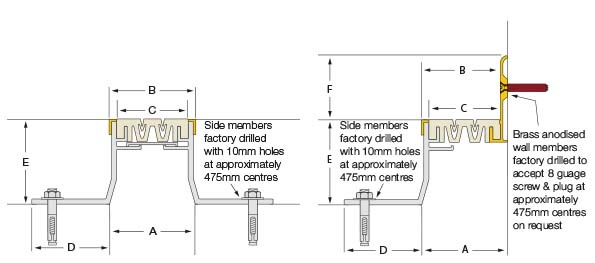

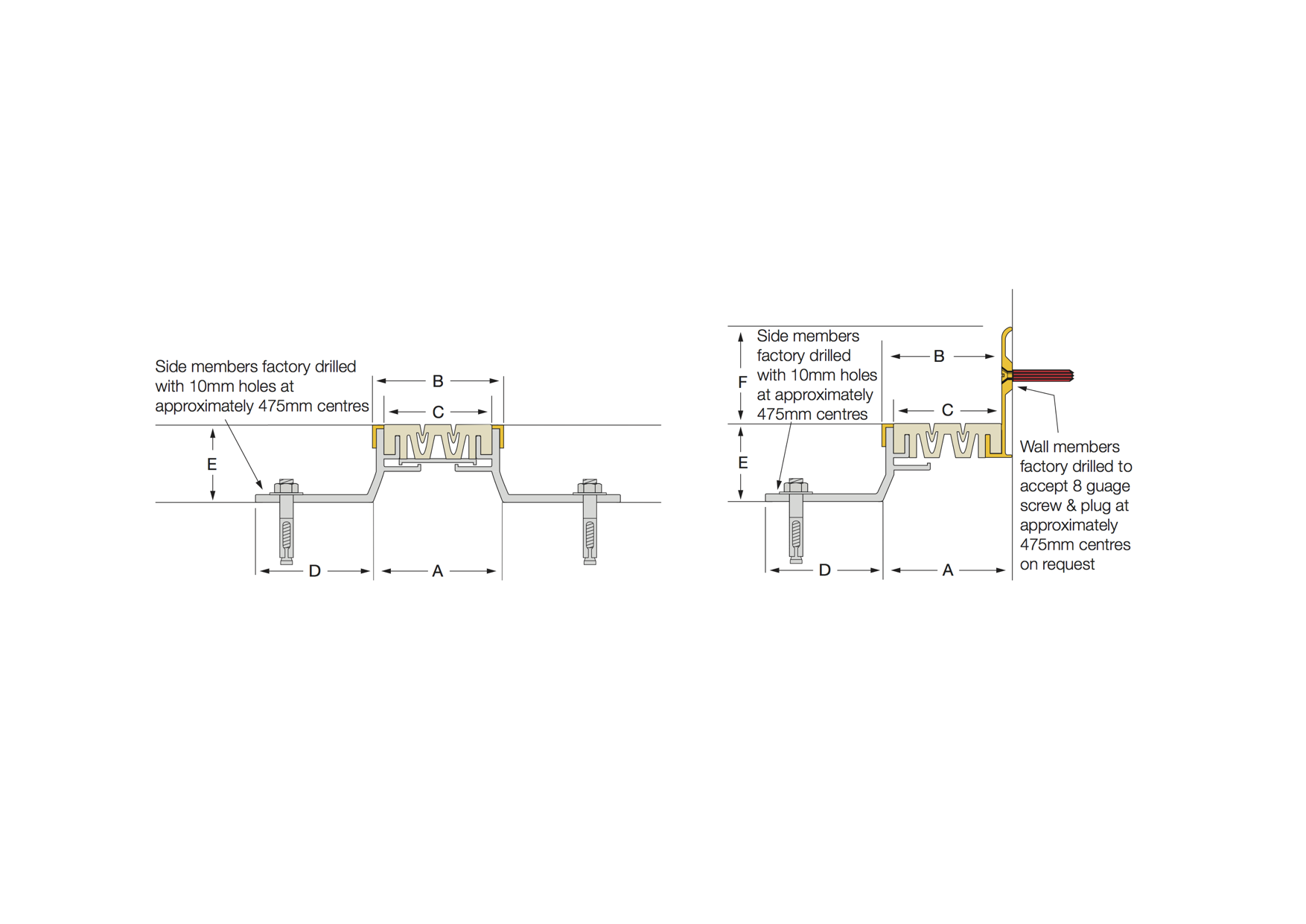

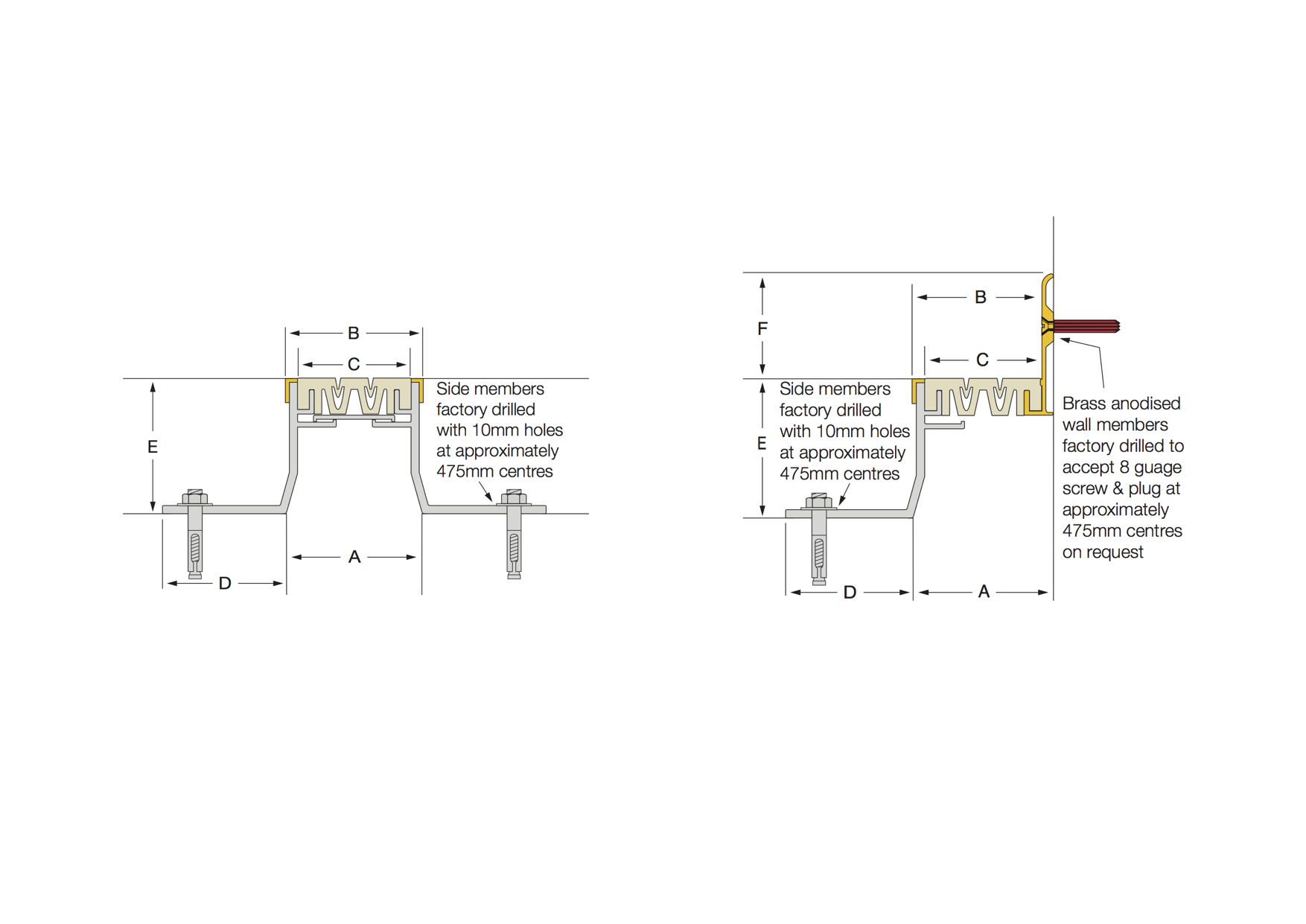

    Illustrated: B50-FDR & B50-FDRW
    Aluminium Code A B C D E F Movement Total Available Movement Overall Depth
    All dimensions in millimetres. All mechanical expansion joint fixings by others.
    B50-FDR 50 48 42 50 51 n/a +/-5mm 10mm 50mm
    B50-FDRW 50 46 42 50 51 38 +/-5mm 10mm 88mm
    4 Way Movement
    Indoor



    The Latham Resilient Brass Clad Jointing System, for floor, floor-to-wall, wall and ceiling applications. The series is for internal light duty applications only. The 50-Series joint covers allow a maximum of ±5mm of horizontal movement. These systems are for light duty, low traffic applications only, where limited movement is expected. If high pedestrian traffic is expected or considerable multi directional movement is required, an expansion joint cover from one of Latham’s Mechanical Ranges should be considered.

    The series is supplied in 3600mm lengths and as standard the replaceable synthetic rubber inserts are beige (grey or black can be supplied on request).


    View and download our data sheets - PDF

    Download our section details - CAD





    Enquire About This Product

    Illustrated: B50-FDR(30) & B50-FDRW(30)
    Aluminium Code A B C D E F Movement Total Available Movement Overall Depth
    All measurements in millimetres. All mechanical expansion joint fixings by others.
    B50-FDR(30) 50 48 42 50 31 n/a +/-5mm 10mm 30mm
    B50-FDRW(30) 50 46 42 50 31 38 +/-5mm 10mm 69mm
    4 Way Movement
    Indoor



    The Latham Resilient Brass Clad Jointing System, for floor, floor-to-wall, wall and ceiling applications. The series is for internal light duty applications only.The 50-Series joint covers allow a maximum of ±5mm of horizontal movement. These systems are for light duty, low traffic applications only, where limited movement is expected. If high pedestrian traffic is expected or considerable multi directional movement is required, an expansion joint cover from one of Latham’s Mechanical Ranges should be considered.

    The series is supplied in 3600mm lengths and as standard the replaceable synthetic rubber inserts are beige (grey or black can be supplied on request).

    View and download our data sheets - PDF

    Download our section details - CAD





    Enquire About This Product

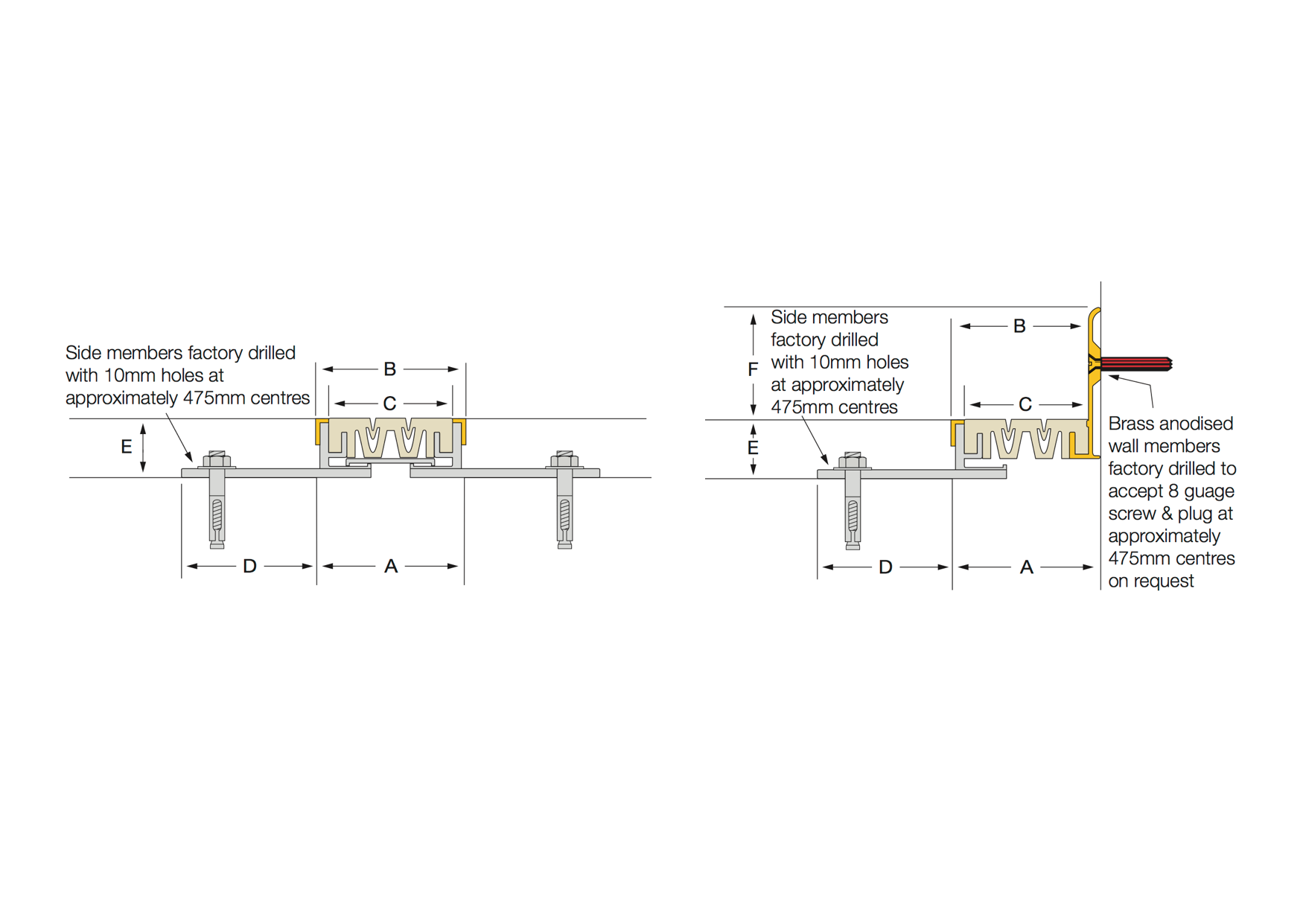

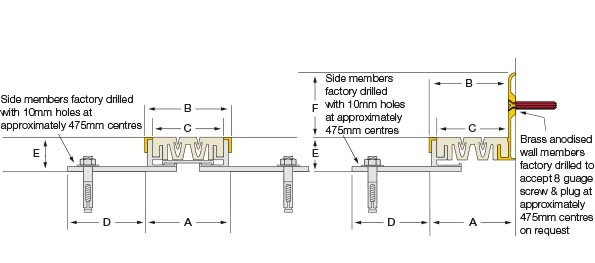

    Illustrated: B50-FDR(20) & B50-FDRW(20)
    Aluminium Code A B C D E F Movement Total Available Movement Overall Depth
    All measurements in millimetres. All mechanical expansion joint fixings by others.
    B50-FDR(20) 50 48 42 50 21 n/a +/-5mm 10mm 20mm
    B50-FDRW(20) 50 46 42 50 21 38 +/-5mm 10mm 59mm
    4 Way Movement
    Indoor



    The Latham Resilient Brass Clad Jointing System, for floor, floor-to-wall, wall and ceiling applications. The series is for internal light duty applications only. The 50-Series joint covers allow a maximum of ±5mm of horizontal movement. These systems are for light duty, low traffic applications only, where limited movement is expected. If high pedestrian traffic is expected or considerable multi directional movement is required, an expansion joint cover from one of Latham’s Mechanical Ranges should be considered.

    The series is supplied in 3600mm lengths and as standard the replaceable synthetic rubber inserts are beige (grey or black can be supplied on request).

    View and download our data sheets - PDF





    Enquire About This Product

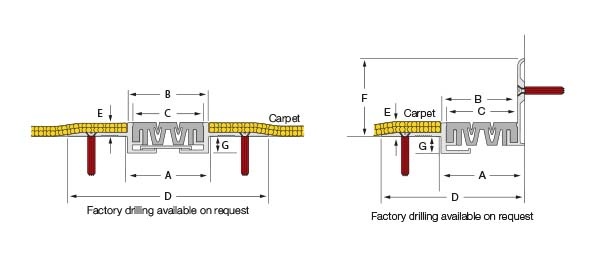

    50-FCSR (Carpet) & 50-FCWSR (Carpet)
    Aluminium Code A B C D E F G Movement Total Available Movement Overall Depth
    All measurements in millimetres. All mechanical expansion joint fixings by others.
    50-FCSR 50 48 42 115 8 n/a 10 +/-5mm 10mm 18mm
    50-FCWSR 50 45 42 85 8 38 10 +/-5mm 10mm 46mm
    4 Way Movement
    Indoor



    The Latham Resilient Surface Mounted Series for carpet expansion joint covers should be laid on a bedding compound such as Latham Tytred 2, or glued down with Latham Titazel Thixotropic Epoxy Resin Adhesive, both in conjunction with stainless steel screws and plastic plugs or mechanical fixings. The series is supplied in 4000mm lengths and as standard the replaceable synthetic rubber inserts are grey (beige or black can be supplied on request).

    The 70-Series joint covers allow a maximum of ±5mm of horizontal movement. These systems are for light duty, low traffic applications only, where limited movement is expected. If high pedestrian traffic is expected or considerable multi directional movement is required an expansion joint cover from one of Latham’s Mechanical Ranges should be considered.

    The 50-Series offers the opportunity to use the most similar joint cover in the wall and ceiling to the floor. This is particularly effective when the construction joint forms a square box shape. That means the joint runs across the floor, up both walls and across the ceiling. In this situation the rubber insert can continue around the box.

    View and download our data sheets - PDF

    Download our section details - CAD

    Enquire About This Product

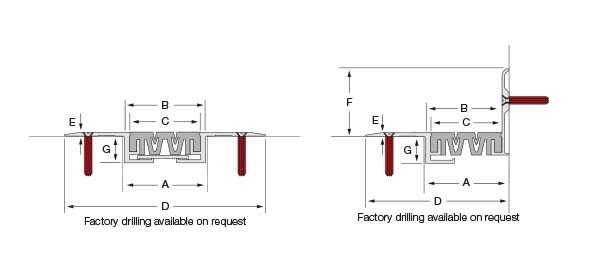

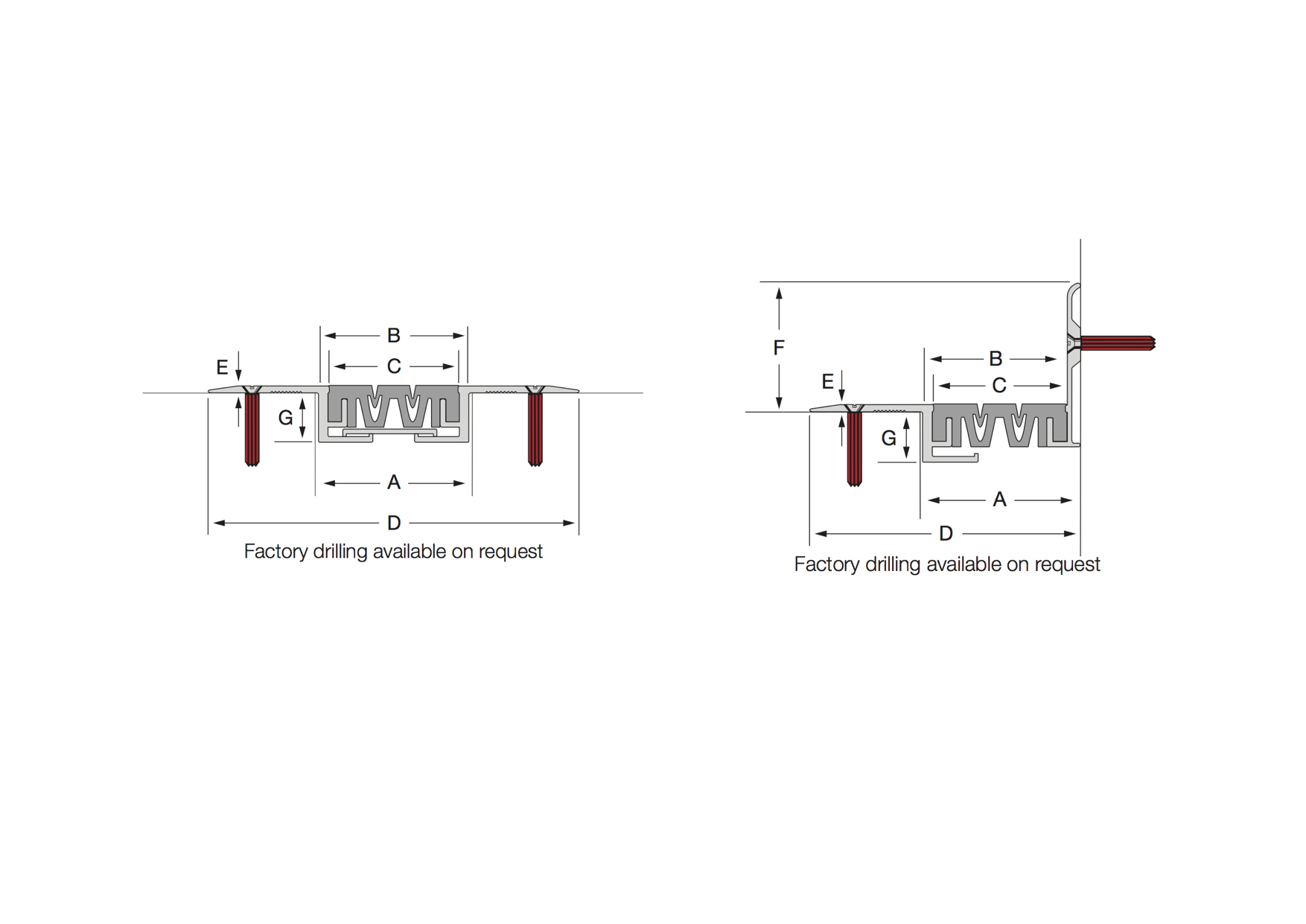

    Illustrated: 50-FTSR (Surface Mounted) & 50-FTWSR (Surface Mounted)
    Aluminium Code A B C D E F G Movement Total Available Movement Overall Depth
    All measurements in millimetres. All mechanical expansion joint fixings by others.
    50-FTSR 50 48 42 115 3 n/a 20 +/-5mm 10mm 23mm
    50-FTWSR 50 45 42 85 3 38 20 +/-5mm 10mm 58mm
    4 Way Movement
    Indoor



    The Latham Resilient Surface Mounted Series expansion joint covers should be laid on a bedding compound such as Latham Tytred 2, or glued down with Latham Titazel Thixotropic Epoxy Resin Adhesive, both in conjunction with stainless steel screws and plastic plugs or mechanical fixings. The series is supplied in 4000mm lengths and as standard the replaceable synthetic rubber inserts are grey (beige or black can be supplied on request).

    The 50-Series joint covers allow a maximum of ±5mm of horizontal movement. These systems are for light duty, low traffic applications only, where limited movement is expected. If high pedestrian traffic is expected or considerable multi directional movement is required an expansion joint cover from one of Latham’s Mechanical Ranges should be considered.

    The 50-Series offers the opportunity to use the most similar joint cover in the wall and ceiling to the floor. This is particularly effective when the construction joint forms a square box shape. That means the joint runs across the floor, up both walls and across the ceiling. In this situation the rubber insert can continue around the box.

    View and download our data sheets - PDF

    Download our section details - CAD

    Enquire About This Product

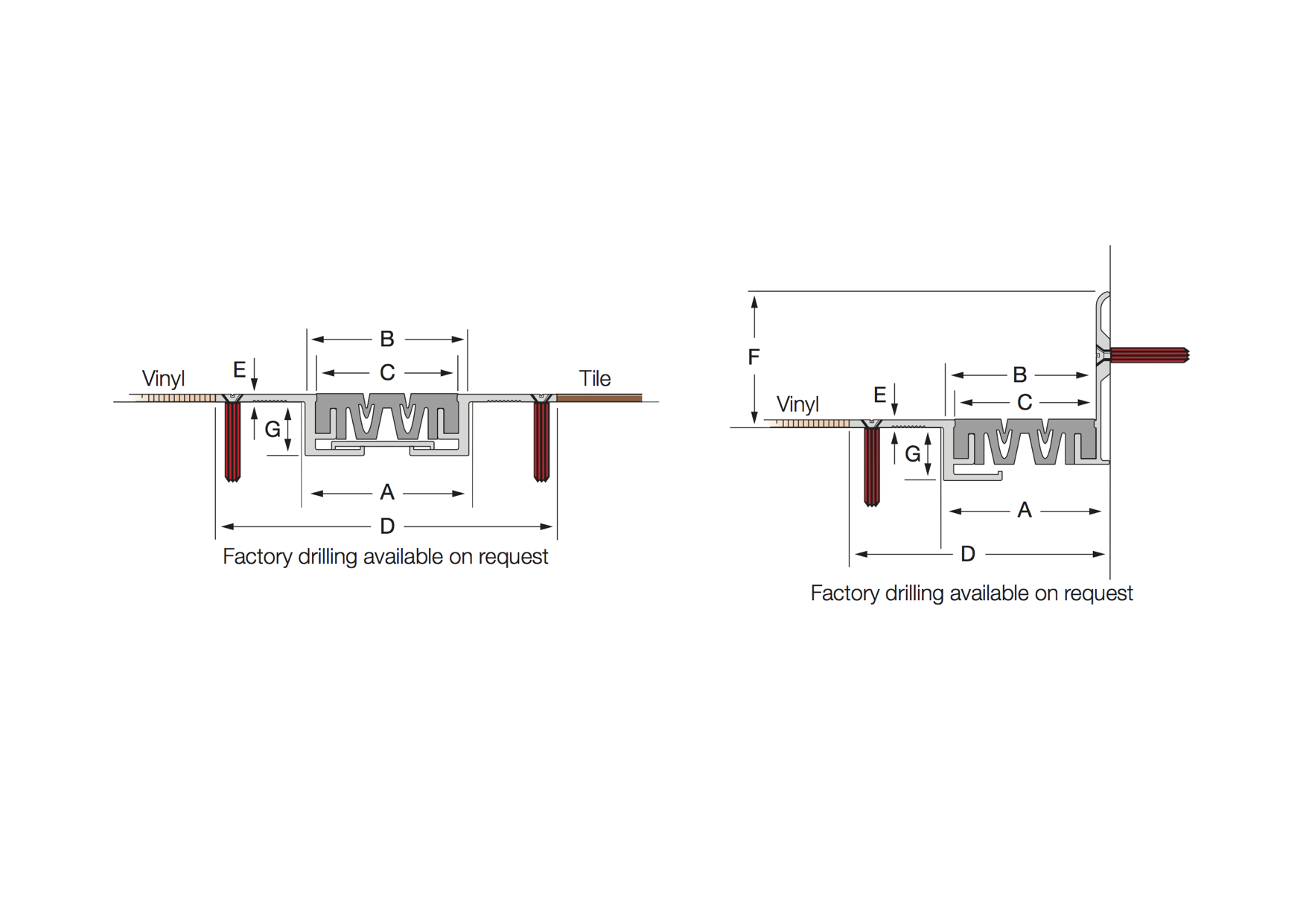

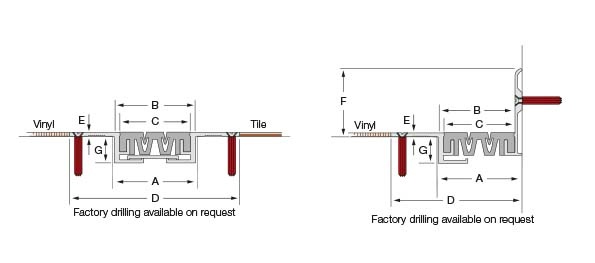

    Illustrated: 50-FTVR (Vinyl) & 50-FTWVR (Vinyl)
    Aluminium Code A B C D E F G Movement Total Available Movement Overall Depth
    All measurements in millimetres. All mechanical expansion joint fixings by others.
    50-FTVR 50 48 42 115 3 n/a 20 +/-5mm 10mm 23mm
    50-FTWVR 70 45 42 85 3 38 20 +/-5mm 10mm 56mm
    4 Way Movement
    Indoor



    The Latham Resilient Surface Mounted Series for vinyl expansion joint covers should be laid on a bedding compound such as Latham Tytred 2, or glued down with Latham Titazel Thixotropic Epoxy Resin Adhesive, both in conjunction with stainless steel screws and plastic plugs or mechanical fixings. The series is supplied in 4000mm lengths and as standard the replaceable synthetic rubber inserts are grey (beige or black can be supplied on request).

    The 50-Series joint covers allow a maximum of ±5mm of horizontal movement. These systems are for light duty, low traffic applications only, where limited movement is expected. If high pedestrian traffic is expected or considerable multi directional movement is required an expansion joint cover from one of Latham’s Mechanical Ranges should be considered.

    The 50-Series offers the opportunity to use the most similar joint cover in the wall and ceiling to the floor. This is particularly effective when the construction joint forms a square box shape. That means the joint runs across the floor, up both walls and across the ceiling. In this situation the rubber insert can continue around the box.

    View and download our data sheets - PDF

    Download our section details - CAD

    Enquire About This Product

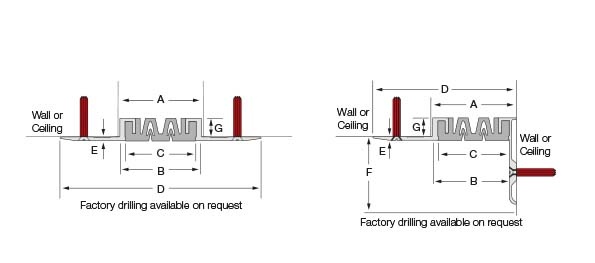

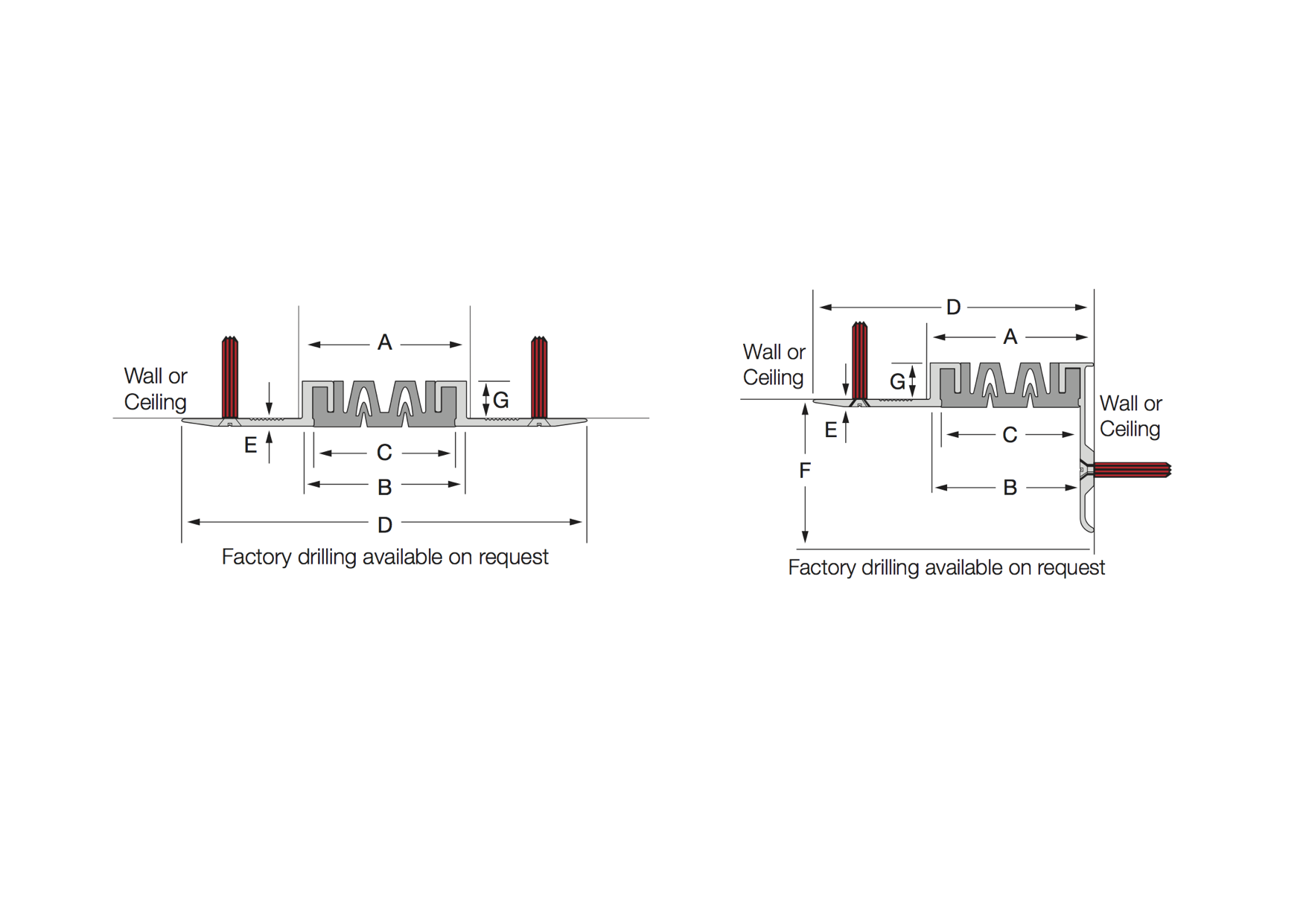

    Illustrated: 50-WR (Wall & Ceiling) & 50-WCR (Wall & Ceiling)
    Aluminium Code A B C D E F G Movement Total Available Movement Overall Depth
    All measurements in millimetres. All mechanical expansion joint fixings by others.
    50-WR 50 48 42 115 3 n/a 20 +/-5mm 10mm 23mm
    50-WCR 50 45 42 85 3 38 20 +/-5mm 10mm 41mm
    4 Way Movement
    Indoor



    The Latham Resilient Surface Mounted Series Wall & Ceiling expansion joint covers should be laid on a bedding compound such as Latham Tytred 2, or glued down with Latham Titazel Thixotropic Epoxy Resin Adhesive, both in conjunction with stainless steel screws and plastic plugs or mechanical fixings. The series is supplied in 4000mm lengths and as standard the replaceable synthetic rubber inserts are grey (beige or black can be supplied on request).

    The 50-Series joint covers allow a maximum of ±5mm of horizontal movement. These systems are for light duty, low traffic applications only, where limited movement is expected. If high pedestrian traffic is expected or considerable multi directional movement is required an expansion joint cover from one of Latham’s Mechanical Ranges should be considered.

    The 50-Series offers the opportunity to use the most similar joint cover in the wall and ceiling to the floor. This is particularly effective when the construction joint forms a square box shape. That means the joint runs across the floor, up both walls and across the ceiling. In this situation the rubber insert can continue around the box.

    View and download our data sheets - PDF

    Download our section details - CAD

    Enquire About This Product
