The Latham Heavy Duty Series offers a range of aluminium and stainless steel expansion joint covers suited to most heavy duty pedestrian car and truck applications. The systems in the range offer 6 way movement, whilst offering generous thermal and structural movement and shrinkage and will accommodate limited seismic movement. Systems are available in stainless steel and aluminium to complement most facets of architectural design, whilst incorporating the required movement element. The systems in the range offer 6 way movement.
Product Specifications How to Specify Guide
Stainless Steel Code | Aluminium Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|---|

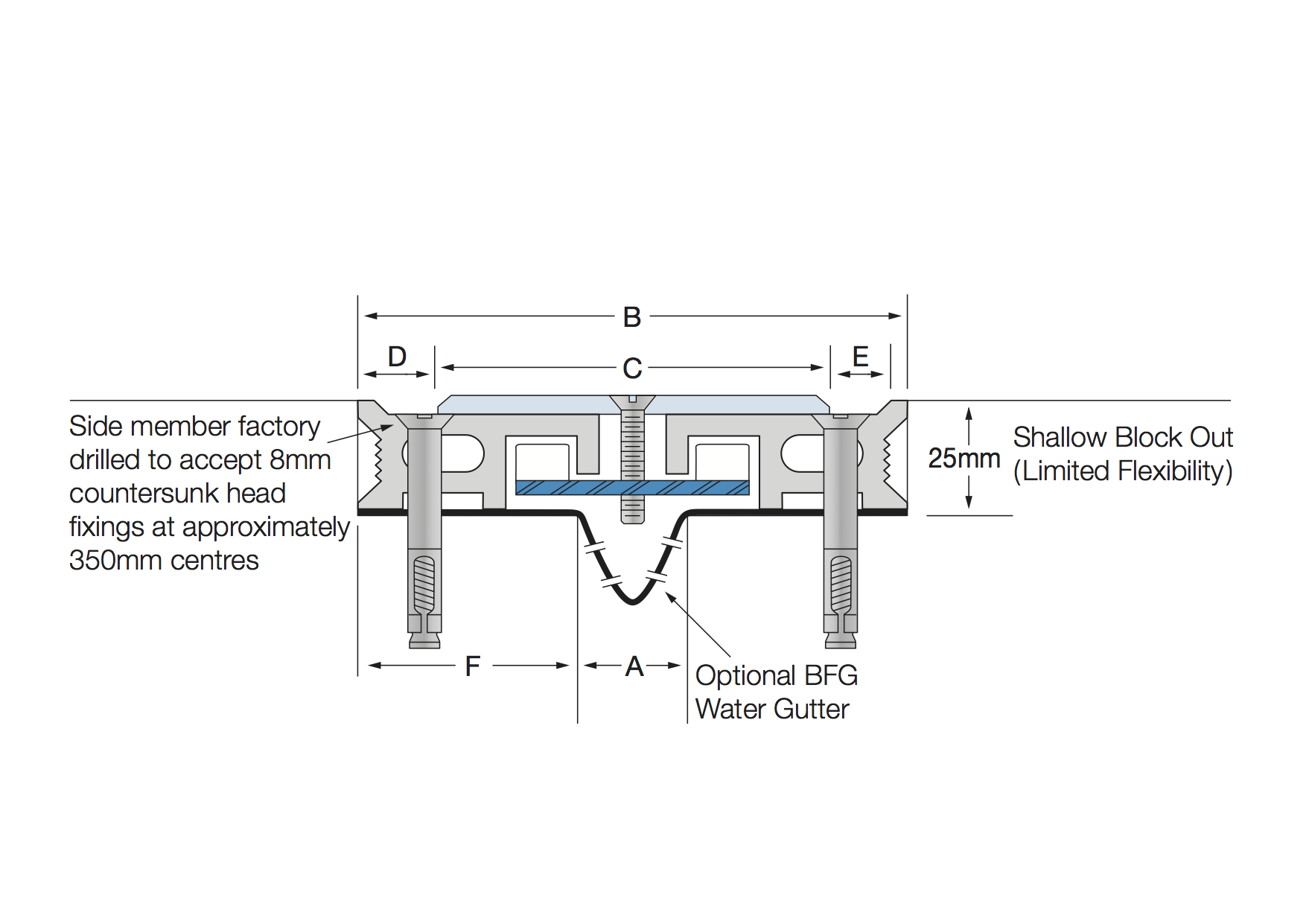

All measurements in millimetres. All mechanical expansion joint fixings by others. Aluminium & stainless steel cover thickness may vary, see the detailed drawing at the links below for the exact detail & cover thickness. | ||||||||||||
HHS-25 | HHA-25 | 25 | 125 | 90 | 18 | 12 | 50 | +25/-12mm | 37mm | 25mm | 5mm | |
HHS-50 | HHA-50 | 50 | 150 | 115 | 18 | 12 | 50 | +/-25mm | 50mm | 25mm | 5mm | |
HHS-75 | HHA-75 | 75 | 175 | 140 | 18 | 12 | 50 | +/-25mm | 50mm | 25mm | 5mm | |
HHS-100 | HHA-100 | 100 | 200 | 165 | 18 | 12 | 50 | +/-25mm | 50mm | 25mm | 6mm | |
HHS-150 | HHA-150 | 150 | 250 | 215 | 18 | 12 | 50 | +/-25mm | 50mm | 25mm | 6mm | |
HHS-200 | HHA-200 | 200 | 300 | 265 | 18 | 12 | 50 | +/-25mm | 50mm | 25mm | 7mm |
Stainless Steel Code | Aluminium Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
All measurements in millimetres. All mechanical expansion joint fixings by others. Aluminium & stainless steel cover thickness may vary, see the detailed drawing at the links below for the exact detail & cover thickness. | ||||||||||||
HHS-25 | HHA-25 | 25 | 125 | 95 | 18 | 12 | 50 | +25/-12mm | 37mm | 25mm | 5mm | |
HHS-50 | HHA-50 | 50 | 160 | 125 | 18 | 12 | 50 | +/-25mm | 50mm | 25mm | 5mm | |
HHS-75 | HHA-75 | 75 | 175 | 140 | 18 | 12 | 50 | +/-25mm | 50mm | 25mm | 5mm | |
HHS-100 | HHA-100 | 100 | 210 | 175 | 18 | 12 | 50 | +/-25mm | 50mm | 25mm | 6mm | |
HHS-150 | HHA-150 | 150 | 250 | 215 | 18 | 12 | 50 | +/-25mm | 50mm | 25mm | 6mm | |
HHS-200 | HHA-200 | 200 | 300 | 265 | 18 | 12 | 50 | +/-25mm | 50mm | 25mm | 7mm |
The Latham HHS and HHA Heavy Duty Pedestrian expansion joint covers are specifically intended for areas of mass movement of pedestrians, such as railway and airport concourses.The series is designed to be set into a pre-formed recess, in conjunction with mechanical fixings.
The series is available with stainless steel or aluminium cover plates and can carry a water gutter if required. When the expansion joint width is 50mm or wider, the recess can accommodate the Latham Fire Barrier System.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Stainless Steel Code | Aluminium Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|---|

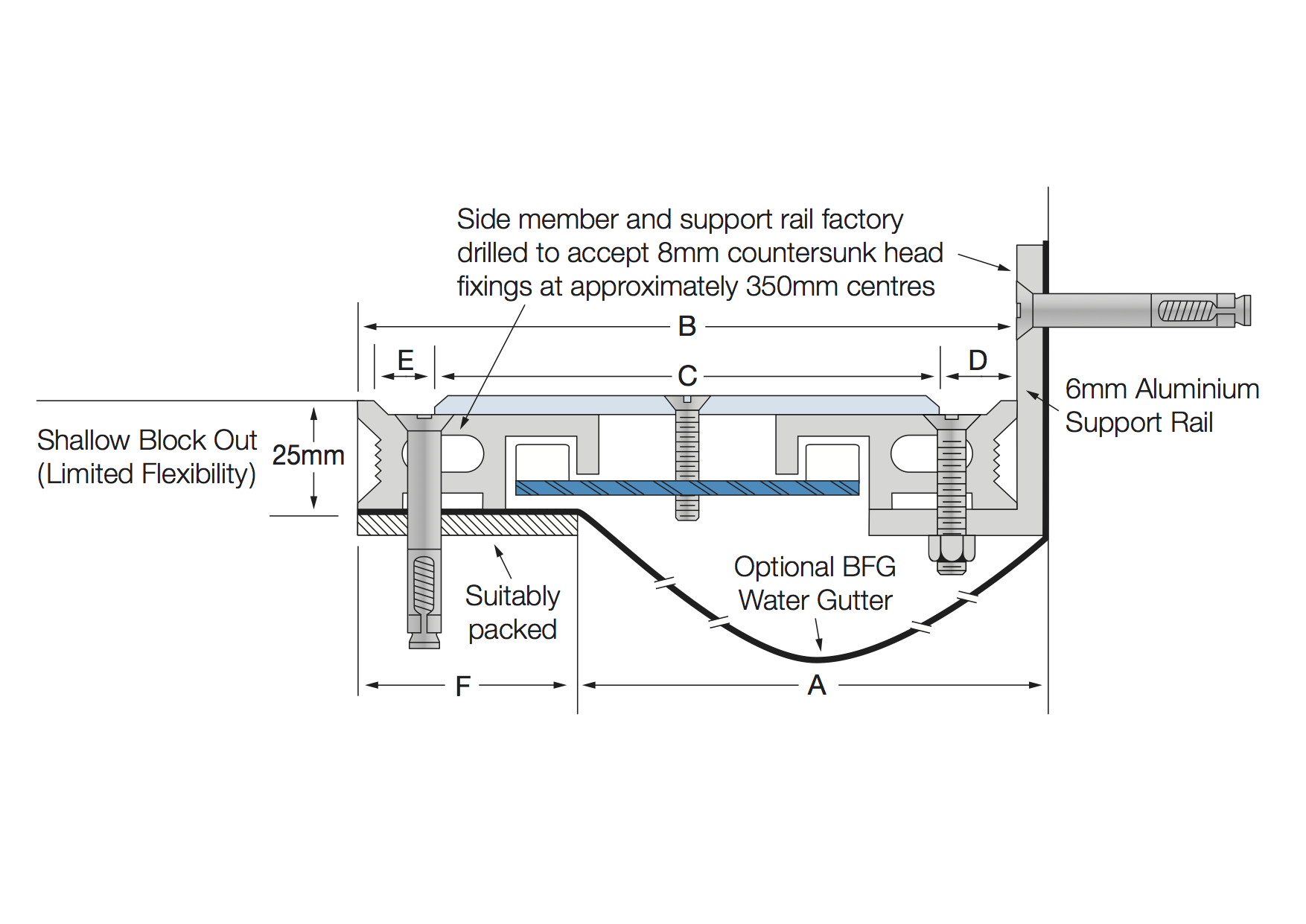

All measurements in millimetres. All mechanical expansion joint fixings by others. Aluminium & stainless steel cover thickness may vary, see the detailed drawing at the links below for the exact detail & cover thickness. | ||||||||||||
HHSAF-25 | HHAAF-25 | 80 | 125 | 90 | 18 | 12 | 50 | +25/-12mm | 37mm | 25mm | 5mm | |
HHSAF-50 | HHAAF-50 | 105 | 150 | 115 | 18 | 12 | 50 | +/-25mm | 50mm | 25mm | 5mm | |
HHSAF-75 | HHAAF-75 | 130 | 175 | 140 | 18 | 12 | 50 | +/-25mm | 50mm | 25mm | 5mm | |
HHSAF-100 | HHAAF-100 | 155 | 200 | 165 | 18 | 12 | 50 | +/-25mm | 50mm | 25mm | 6mm | |
HHSAF-150 | HHAAF-150 | 205 | 250 | 215 | 18 | 12 | 50 | +/-25mm | 50mm | 25mm | 6mm | |
HHSAF-200 | HHAAF-200 | 255 | 300 | 265 | 18 | 12 | 50 | +/-25mm | 50mm | 25mm | 7mm |
Stainless Steel Code | Aluminium Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
All measurements in millimetres. All mechanical expansion joint fixings by others. Aluminium & stainless steel cover thickness may vary, see the detailed drawing at the links below for the exact detail & cover thickness. | ||||||||||||
HHSAF-25 | HHAAF-25 | 80 | 130 | 95 | 18 | 12 | 50 | +25/-12mm | 37mm | 25mm | 5mm | |
HHSAF-50 | HHAAF-50 | 105 | 160 | 125 | 18 | 12 | 50 | +/-25mm | 50mm | 25mm | 5mm | |
HHSAF-75 | HHAAF-75 | 130 | 175 | 140 | 18 | 12 | 50 | +/-25mm | 50mm | 25mm | 5mm | |
HHSAF-100 | HHAAF-100 | 155 | 210 | 175 | 18 | 12 | 50 | +/-25mm | 50mm | 25mm | 6mm | |
HHSAF-150 | HHAAF-150 | 205 | 250 | 215 | 18 | 12 | 50 | +/-25mm | 50mm | 25mm | 6mm | |
HHSAF-200 | HHAAF-200 | 255 | 300 | 265 | 18 | 12 | 50 | +/-25mm | 50mm | 25mm | 7mm |
The Latham HHSAF and HHAAF Heavy Duty Pedestrian expansion joint covers are specifically intended for areas of mass movement of pedestrians, such as railway and airport concourses.The series is designed to be set into a pre-formed recess, in conjunction with mechanical fixings.
The series is available with stainless steel or aluminium cover plates and can carry a water gutter if required. When the expansion joint width is 50mm or wider, the recess can accommodate the Latham Fire Barrier System.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Aluminium Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|

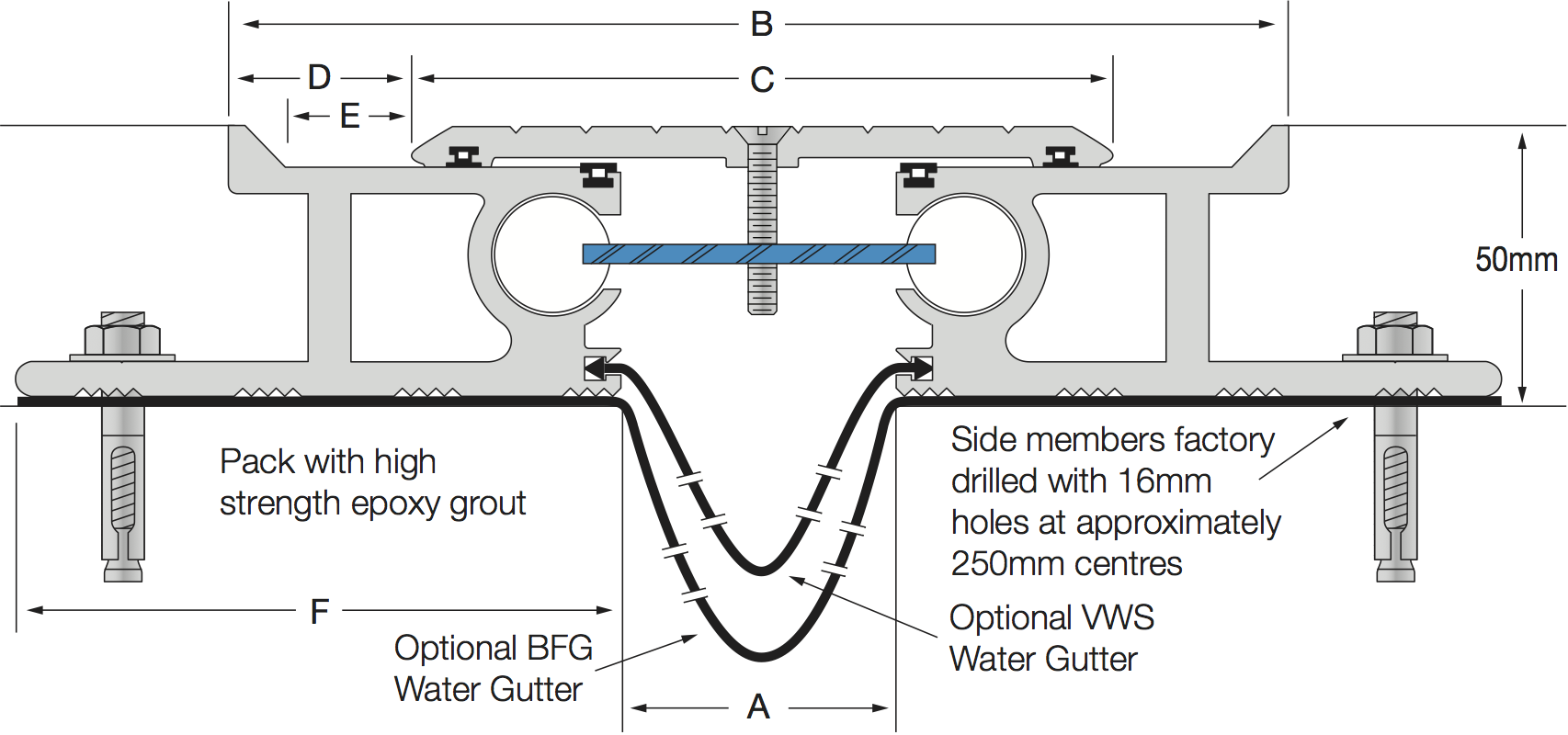

HD-100* denotes smooth deck. All dimensions in millimetres. All mechanical expansion joint fixings by others. | |||||||||||
HD-50 | 50 | 195 | 128 | 34 | 24 | 113 | +/-36mm | 72mm | 50mm | 6mm | |
HD-75 | 75 | 220 | 153 | 34 | 24 | 113 | +/-36mm | 72mm | 50mm | 6mm | |
HD-100* | 100 | 245 | 178 | 34 | 24 | 113 | +/-36mm | 72mm | 50mm | 6mm |
Aluminium Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|
HD-100* denotes smooth deck. All dimensions in millimetres. All mechanical expansion joint fixings by others. | |||||||||||
HD-50 | 50 | 195 | 128 | 34 | 24 | 113 | +/-36mm | 72mm | 50mm | 6mm | |
HD-75 | 75 | 220 | 153 | 34 | 24 | 113 | +/-36mm | 72mm | 50mm | 6mm | |
HD-100* | 100 | 245 | 178 | 34 | 24 | 113 | +/-36mm | 72mm | 50mm | 6mm |
The Latham HD Heavy Duty Vehicle expansion joint covers are specifically intended for areas of light vehicular traffic and heavy pedestrian traffic. With the spring steel centring bar acting as a shock absorber, the Series withstand the impact and vibration generated by light vehicular traffic travelling at speeds up to 20 kph.
The Series is designed to be set into a pre-formed recess, in conjunction with mechanical fixings. The Series is available with stainless steel or aluminium (ribbed) cover plates and this series can carry a water gutter if required. When the expansion joint width is 50mm or wider, the recess can accommodate the Latham Fire Barrier System.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Stainless Steel Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|

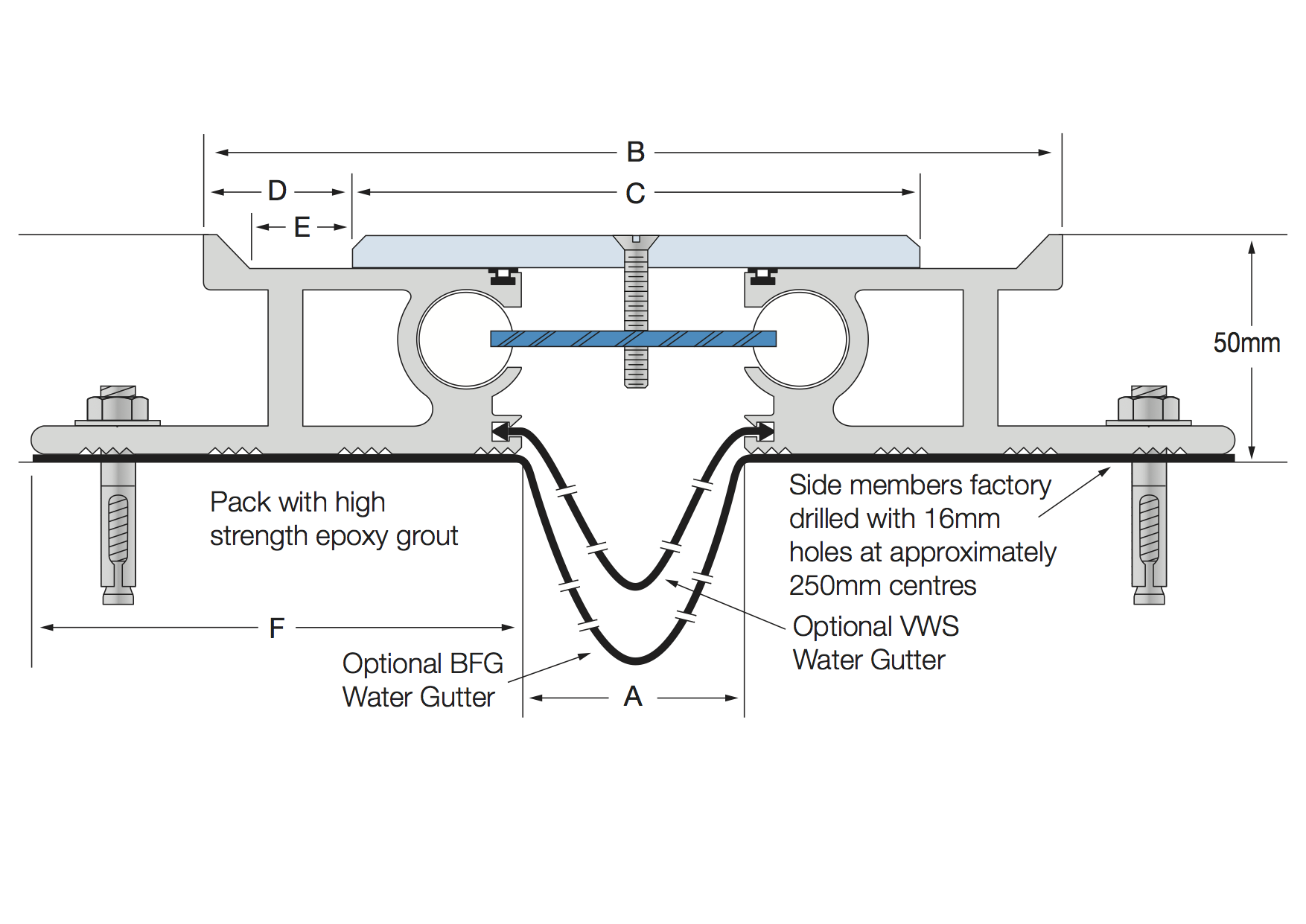

All dimensions in millimetres. All mechanical expansion joint fixings by others. | |||||||||||
HDS-50 | 50 | 195 | 128 | 34 | 24 | 113 | +/-36mm | 72mm | 50mm | 6mm | |
HDS-75 | 75 | 220 | 153 | 34 | 24 | 113 | +/-36mm | 72mm | 50mm | 6mm | |
HDS-100 | 100 | 245 | 178 | 34 | 24 | 113 | +/-36mm | 72mm | 50mm | 6mm | |
HDS-150 | 150 | 295 | 228 | 34 | 24 | 113 | +/-36mm | 72mm | 50mm | 8mm | |
HDS-200 | 200 | 320 | 253 | 34 | 24 | 113 | +/-36mm | 72mm | 50mm | 8mm |
Stainless Steel Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|
All dimensions in millimetres. All mechanical expansion joint fixings by others. | |||||||||||
HDS-50 | 50 | 195 | 128 | 34 | 24 | 113 | +/-36mm | 72mm | 50mm | 6mm | |
HDS-75 | 75 | 220 | 153 | 34 | 24 | 113 | +/-36mm | 72mm | 50mm | 6mm | |
HDS-100 | 100 | 245 | 178 | 34 | 24 | 113 | +/-36mm | 72mm | 50mm | 6mm | |
HDS-150 | 150 | 270 | 203 | 34 | 24 | 113 | +/-36mm | 72mm | 50mm | 8mm | |
HDS-200 | 200 | 295 | 228 | 34 | 24 | 113 | +/-36mm | 72mm | 50mm | 8mm |
The Latham HDS Heavy Duty Vehicle expansion joint covers are specifically intended for areas of light vehicular traffic and heavy pedestrian traffic. With the spring steel centring bar acting as a shock absorber, the Series withstand the impact and vibration generated by light vehicular traffic travelling at speeds up to 20 kph.
The Series is designed to be set into a pre-formed recess, in conjunction with mechanical fixings. The Series is available with stainless steel or aluminium (ribbed) cover plates and this series can carry a water gutter if required. When the expansion joint width is 50mm or wider, the recess can accommodate the Latham Fire Barrier System.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Stainless Steel Code | A | B | C | D | E | F | G | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | Maximum Cover Plate Point Loading (kg) * | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

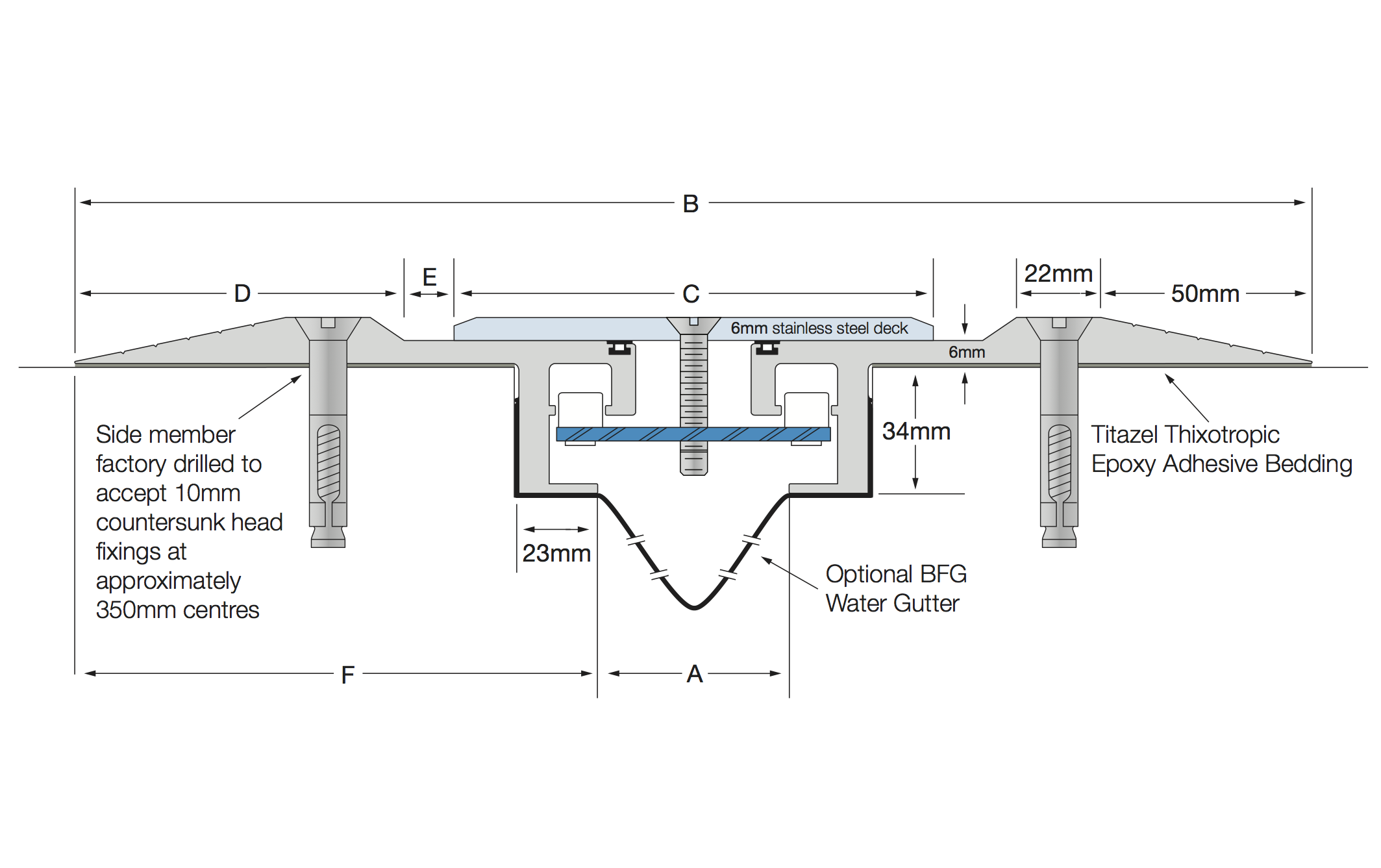

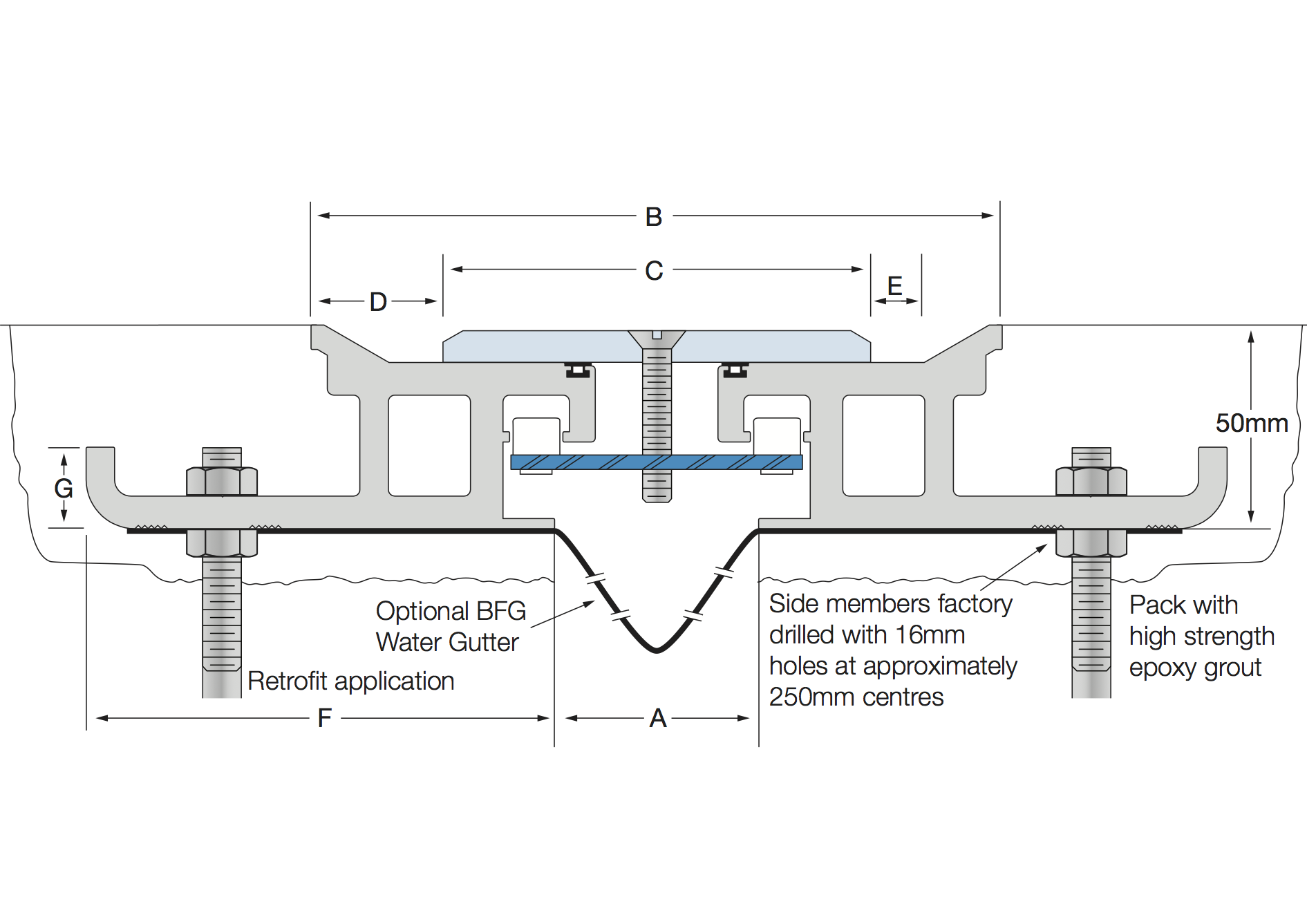

All measurements in millimetres. All mechanical expansion joint fixings by others. | |||||||||||||
EHDF-50 | 50 | 170 | 105 | 32 | 12 | 115 | 20 | +25/-18mm | 43mm | 50mm | 8mm | 2310 | |
EHDF-75 | 75 | 195 | 130 | 32 | 12 | 115 | 20 | +/-25mm | 50mm | 50mm | 8mm | 1440 | |
EHDF-100 | 100 | 220 | 155 | 32 | 12 | 115 | 20 | +/-25mm | 50mm | 50mm | 10mm | 1580 | |
EHDF-150 | 150 | 270 | 205 | 32 | 12 | 115 | 20 | +/-25mm | 50mm | 50mm | 10mm | 1120 |
Stainless Steel Code | A | B | C | D | E | F | G | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | Maximum Cover Plate Point Loading (kg) * | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
All measurements in millimetres. All mechanical expansion joint fixings by others. | |||||||||||||
EHDF-50 | 50 | 170 | 105 | 32 | 12 | 115 | 20 | +25/-18mm | 43mm | 50mm | 8mm | 2310 | |
EHDF-75 | 75 | 195 | 130 | 32 | 12 | 115 | 20 | +/-25mm | 50mm | 50mm | 8mm | 1440 | |
EHDF-100 | 100 | 220 | 155 | 32 | 12 | 115 | 20 | +/-25mm | 50mm | 50mm | 10mm | 1580 | |
EHDF-150 | 150 | 270 | 205 | 32 | 12 | 115 | 20 | +/-25mm | 50mm | 50mm | 10mm | 1120 |
The Latham EHDF Heavy Vehicle expansion joint covers are designed for areas of heavy vehicular traffic such as loading docks. With the spring steel centering bar acting as a shock absorber.The series withstands the impact and vibration generated by vehicular traffic travelling at speeds up to 20 kph.
The series is designed to be set into a pre-formed recess, in conjunction with mechanical fixings, and has stainless steel cover plates. This series can carry a water gutter if required and can either be cast into the slab or set into a preformed recess. When the expansion joint width is 50mm or wider, the recess can accommodate the Latham Fire Barrier System. For this system contact Latham Australia Pty Ltd before specifying with details of maximum loading, wheel diameter, width and type.
Cover plate loadings indicated are calculated under vehicular conditions, based on a 150mm diameter load circle, with a maximum allowable deflection of 3.2mm when calculated in the nominal indicated joint width position. The assumed plate length is 1000mm, i.e. loads applied no closer than 500mm to end of the plate.
Loads are presumed to be for one tyre or one foot and are static, not dynamic, nor impact. The 150mm load circle is considered quite small for the loaded surface of a vehicular tyre, but some fork lifts and vertical lift devices will have surface load prints of this size. Loads have been calculated using a infinite fatigue life calculation, taking into account, stress and high cycle loading. Figures indicated are not ultimate strength of system failure figures. For further information contact your Latham Australia representative.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD

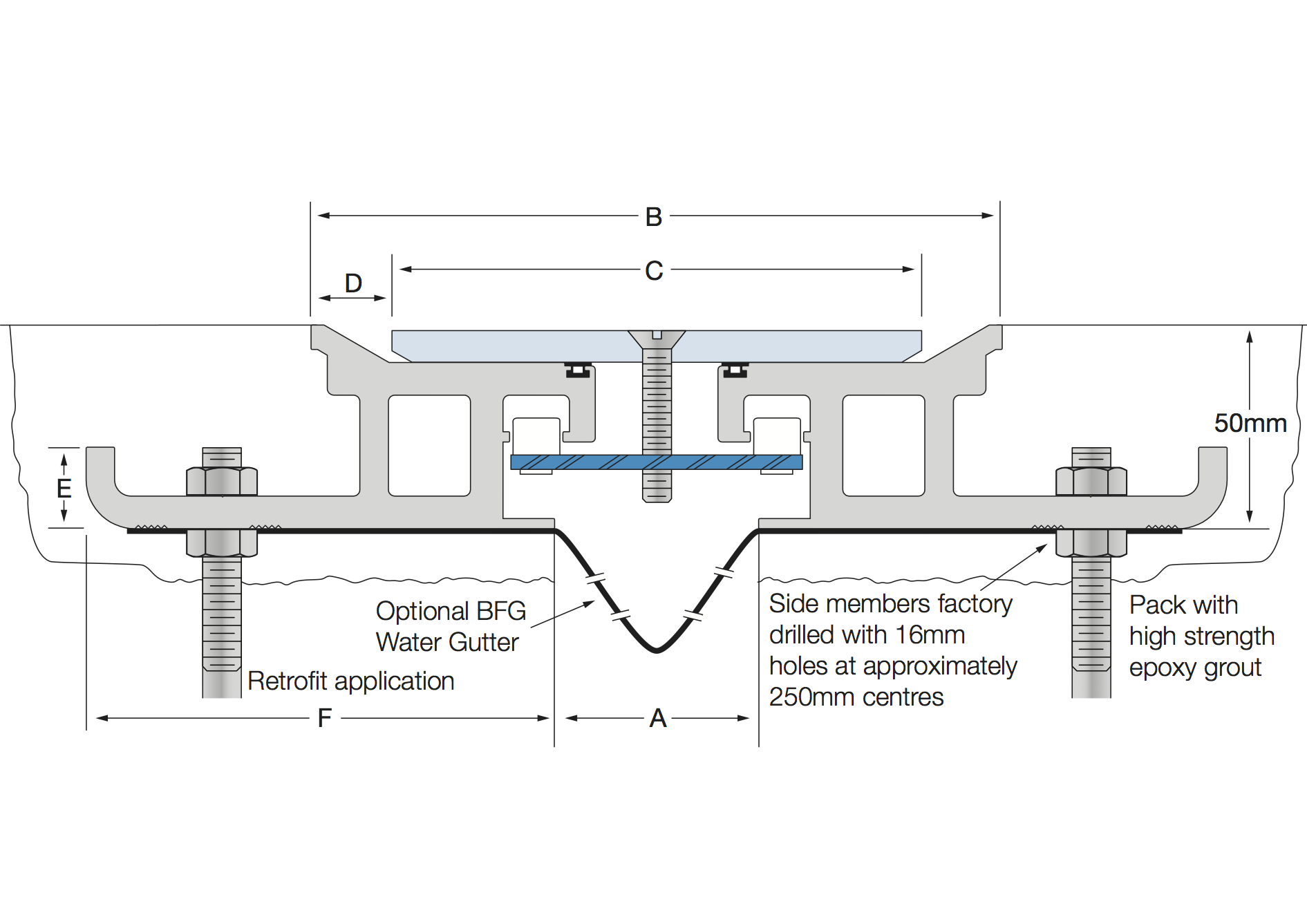

Stainless Steel Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | Maximum Cover Plate Point Loading (kg) * | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
All measurements in millimetres. All mechanical expansion joint fixings by others. | ||||||||||||
NBEHDF-50 | 50 | 170 | 130 | 20 | 20 | 115 | +30/-6mm | 36mm | 50mm | 8mm | 2310 | |
NBEHDF-75 | 75 | 195 | 155 | 20 | 20 | 115 | +30/-6mm | 36mm | 50mm | 8mm | 1440 | |
NBEHDF-100 | 100 | 220 | 180 | 20 | 20 | 115 | +30/-6mm | 36mm | 50mm | 10mm | 1580 | |
NBEHDF-150 | 150 | 270 | 225 | 20 | 20 | 115 | +30/-6mm | 36mm | 50mm | 10mm | 1120 |
Stainless Steel Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | Maximum Cover Plate Point Loading (kg) * | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
All measurements in millimetres. All mechanical expansion joint fixings by others. | ||||||||||||
NBEHDF-50 | 50 | 170 | 130 | 20 | 20 | 115 | +30/-6mm | 36mm | 50mm | 8mm | 2310 | |
NBEHDF-75 | 75 | 195 | 155 | 20 | 20 | 115 | +30/-6mm | 36mm | 50mm | 8mm | 1440 | |
NBEHDF-100 | 100 | 220 | 180 | 20 | 20 | 115 | +30/-6mm | 36mm | 50mm | 10mm | 1580 | |
NBEHDF-150 | 150 | 270 | 225 | 20 | 20 | 115 | +30/-6mm | 36mm | 50mm | 10mm | 1120 |
The Latham NBEHDF Heavy Vehicle expansion joint covers are designed for areas of heavy vehicular traffic such as loading docks. With the spring steel centering bar acting as a shock absorber.The series withstands the impact and vibration generated by vehicular traffic travelling at speeds up to 20 kph.
The series is designed to be set into a pre-formed recess, in conjunction with mechanical fixings, and has stainless steel cover plates. This series can carry a water gutter if required and can either be cast into the slab or set into a preformed recess. When the expansion joint width is 50mm or wider, the recess can accommodate the Latham Fire Barrier System. For this system contact Latham Australia Pty Ltd before specifying with details of maximum loading, wheel diameter, width and type.
Cover plate loadings indicated are calculated under vehicular conditions, based on a 150mm diameter load circle, with a maximum allowable deflection of 3.2mm when calculated in the nominal indicated joint width position. The assumed plate length is 1000mm, i.e. loads applied no closer than 500mm to end of the plate.
Loads are presumed to be for one tyre or one foot and are static, not dynamic, nor impact. The 150mm load circle is considered quite small for the loaded surface of a vehicular tyre, but some fork lifts and vertical lift devices will have surface load prints of this size. Loads have been calculated using a infinite fatigue life calculation, taking into account, stress and high cycle loading. Figures indicated are not ultimate strength of system failure figures. For further information contact your Latham Australia representative.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Stainless Steel Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|
All measurements in millimetres. All mechanical expansion joint fixings by others. | |||||||||||
HDSSM-50 | 50 | 318 | 128 | 81 | 14 | 110 | +/-25mm | 50mm | 46mm | 6mm | |
HDSSM-75 | 75 | 343 | 153 | 81 | 14 | 110 | +/-25mm | 50mm | 46mm | 6mm |
Stainless Steel Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|
All measurements in millimetres. All mechanical expansion joint fixings by others. | |||||||||||
HDSSM-50 | 50 | 318 | 128 | 81 | 14 | 110 | +/-25mm | 50mm | 46mm | 6mm | |
HDSSM-75 | 75 | 343 | 153 | 81 | 14 | 110 | +/-25mm | 50mm | 46mm | 8mm |
The Latham HDSSM Surface Mounted Heavy Duty Vehicular expansion joint covers, with stainless steel cover plates are specifically intended for areas of domestic and light commercial vehicular traffic and heavy pedestrian traffic, where the expansion joint cover need to be installed in a surface mounted application. Where possible it is preferable to install a recessed expansion joint cover like the HDS series, when a recess has not been allowed or cannot be cut in after the event the HDSSM Series is a possible solution. With the spring steel centring bar acting as a shock absorber, the Series withstands the impact and vibration generated by light vehicular traffic travelling at speeds up to 20 kph.
The Series is designed to be surface mounted on top of a level slab in conjunction with mechanical fixings, Latham also recommend a suitable epoxy be allied to the underside of the side members, like Latham Thixotropic Epoxy Adhesive for superior securing. The Series is available with stainless steel or aluminium (ribbed) cover plates (see HDASM Series) and this series can carry a water gutter if required. When the expansion joint width is 50mm or wider, the recess can accommodate the Latham Fire Barrier System.
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
Stainless Steel Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|

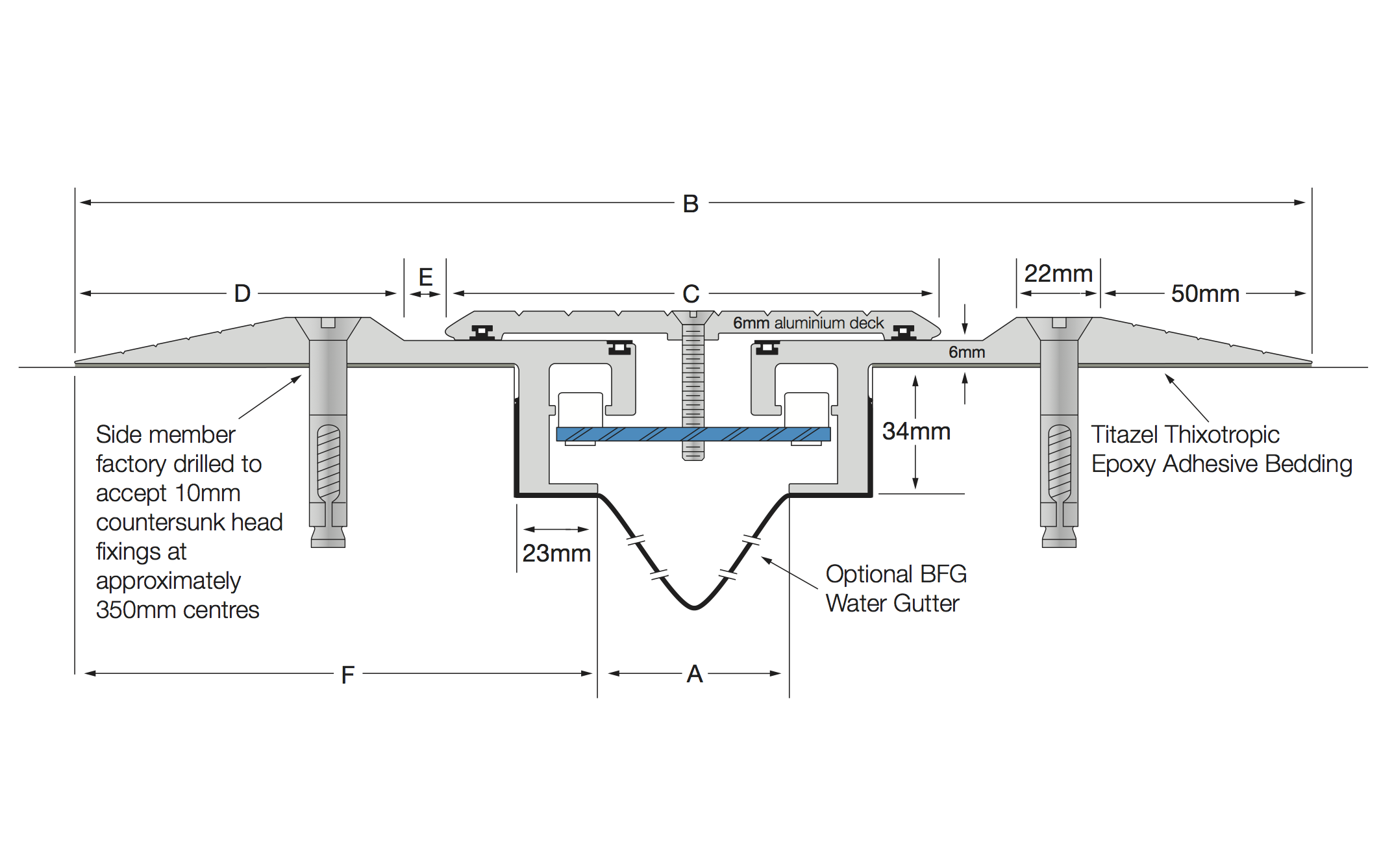

All measurements in millimetres. All mechanical expansion joint fixings by others. | |||||||||||

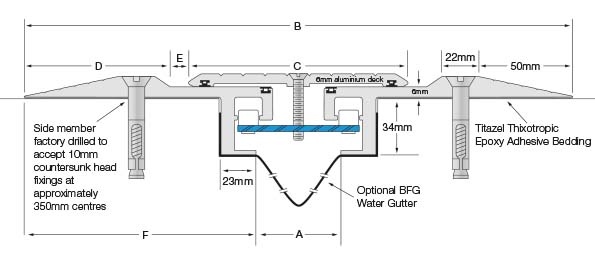

HDASM-50 | 50 | 318 | 128 | 81 | 14 | 110 | +/-25mm | 50mm | 46mm | 6mm | |
HDASM-75 | 75 | 343 | 153 | 81 | 14 | 110 | +/-25mm | 50mm | 46mm | 6mm |
Stainless Steel Code | A | B | C | D | E | F | Movement | Total Available Movement | Overall Depth | Cover Plate Thickness | |
---|---|---|---|---|---|---|---|---|---|---|---|
All measurements in millimetres. All mechanical expansion joint fixings by others. | |||||||||||
HDASM-50 | 50 | 318 | 128 | 81 | 14 | 110 | +/-25mm | 50mm | 46mm | 6mm | |
HDASM-75 | 75 | 343 | 153 | 81 | 14 | 110 | +/-25mm | 50mm | 46mm | 8mm |
The Latham Aluminium HDASM Surface Mounted Heavy Duty Vehicular expansion joint covers are specifically intended for areas of domestic and light commercial vehicular traffic and heavy pedestrian traffic, where the expansion joint cover need to be installed in a surface mounted application. Where possible it is preferable to install a recessed expansion joint cover like the HD series, when a recess has not been allowed or cannot be cut in after the event the HDASM Series is a possible solution. With the spring steel centring bar acting as a shock absorber, the Series withstands the impact and vibration generated by light vehicular traffic travelling at speeds up to 20 kph.
The Series is designed to be surface mounted on top of a level slab in conjunction with mechanical fixings, Latham also recommend a suitable epoxy be allied to the underside of the side members, like Latham Thixotropic Epoxy Adhesive for superior securing. The Series is available with stainless steel (see HDSSM Series) or aluminium (ribbed) cover plates and this series can carry a water gutter if required. When the expansion joint width is 50mm or wider, the recess can accommodate the Latham Fire Barrier System
Download our technical data sheets - PDF
Download our product data sheets - PDF
Download our section details - CAD
