Curved Stair Treads & Nosings

AS 1428.1 - 2009 Compliant at a Glance

Interior & Exterior Application

A number of Latham Asbraloy and Asbrabronz profiles can be curved to convex and concave radii. The actual achievable radius will be dependent on whether the profile is to be curved in a convex or concave fashion and also the material type and profile.

In general the tightest radius that can be achieved with stair tread nosings and inserts is approximately 1750mm, although this varies from profile to profile and the requirement should be discussed with a Latham representative.

Curved Stair Tread Nosings and Tread Inserts are available in all of the profiles shown below including the surface mounted 834 ST and even some recessed LED Tredlite profiles.

When supplying curved Stair Tread Nosings and Inserts, the profiles can be curved to architectural drawings, or preferably, hard templates should be supplied with the order to ensure the treads or inserts are in accordance with the actual site requirement as opposed to a drawing detail.

banner_treads_curved-1


"V" Standard hole drilling location when specified
Product Code Metal Type A B C D E Template
All dimensions in millimetres.

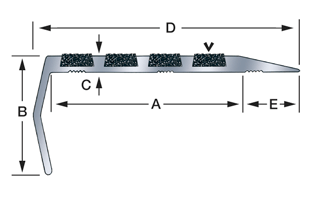

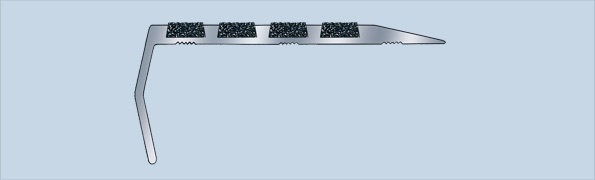

 834ST Aluminium 60 37 5 83 18 834ST Surface Mounted Nosing template diagram

View and download our data sheets - PDF


Download our AutoCAD section details - DWG

Enquire About This Product

"V" Standard hole drilling location when specified
Product Code Metal Type A B C D E Template
All dimensions in millimetres.

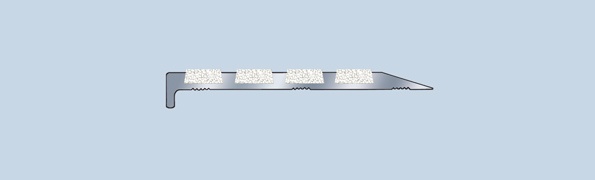

 734ST Aluminium 58 10 5 75 15 734ST Surface Mounted Nosing template diagram
